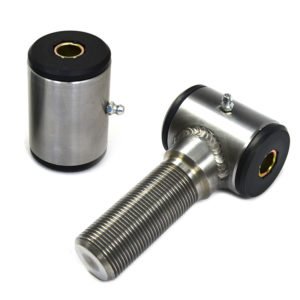

4 Bar Rod End

EXCLUSIVE FEATURES

  • Forged 4 Bar Rod Ends
  • Polyurethane Bushing
  • Carbon Steel, Zinc Plated Housing
  • Polished Stainless Steel Optional

Description

Product Information
  • Thread: Both Right Hand & Left Hand; Male & Female
  • Packaging Details: Individual Plastic Bag, with Thread Cover, and into Cartons.
  • Brand Name: SYZ
  • Origin: Made-in-China
Supplier Details
  • Registration Name: Shanghai YongZhen Machine Components Co.,Ltd
  • Year Established: 2002
  • Location: Shanghai,China(mainland)
  • Business Type: Manufacturer
  • Main Products: Rod Ends, Spherical Bearings, Ball Joints, Linkage Adjusters,  Custom Machining Services
  • Working Hours: 9:00 AM- 18:00 PM, Monday to Friday, China Beijing Time GMT+8
Order & Shipping
  • Sample Order: Samples Free of charge; Air Freight needs to be paid.
  • MOQ: 100pcs or $500 minimum.
  • Payment term: Wire Transfer or PayPal 30% in advance, 70% before delivery.
  • Delivery Time: For inventory parts ship the Same Day; For production usually 30-45 Days.
  • Shipping Method: Air Freight by Dhl/Tnt/FedEx Great Discount Rate in 3-7 days; Headache-Free Ocean Freight with all procedures taken care of to doorstep in 30-40 days.

Forged 4 Bar Rod Ends

ThreadDescriptionRod End StyleMaterialFinishSpec.
5/8-18 RHForged 4-Bar Rod Ends, 5/8-18 RH ThreadSolidCarbon SteelZinc PlatedOverall Length: 3.69″
Overall width: 1.370″
Hole Diameter: 0.5″
Thread Pitch: 5/8″-18
5/8-18 LHForged 4-Bar Rod End, 5/8-18 LH ThreadSolidCarbon SteelZinc PlatedOverall Length: 3.69″
Overall width: 1.370″
Rod end width: 1.050″
Rod end I.D.: 1.125″
Steel sleeve O.D.: 0.750″
Steel sleeve I.D.: 0.500″
Threaded shaft length: 1-7/8″       Thread Pitch: 5/8″-18
5/8-18 RHStainless Steel 4-Bar Rod Ends, 5/8-18 RH ThreadSolidStainless SteelPolishedOverall Diameter: 1.5″                   Overall width: 1.370″
Rod end width: 1.050″
Rod end I.D.: 1.125″
Steel sleeve O.D.: 0.750″
Steel sleeve I.D.: 0.500″
Threaded shaft length: 1-7/8″                  Thread Pitch: 5/8″-18
Thread Length: 1.875″
Hole Diameter: 0.5″
5/8-18 LHStainless Steel 4-Bar Rod End, 5/8-18 LH ThreadSolidStainless SteelPolishedRod End Head Width: 1.37″
Overall Length: 3.60″
Overall Diameter: 1.5″
Center Hole to End of Shank: 2.875
Overall width: 1.370″
Rod end width: 1.050″
Rod end I.D.: 1.125″
Steel sleeve O.D.: 0.750″
Steel sleeve I.D.: 0.500″
Threaded shaft length: 1-7/8″                 Thread Pitch: 5/8″-18
Thread Length: 1.91″
Hole Diameter: 0.5″
3/4-16 RHForged Stainless 4-Bar Rod End, 3/4-16 RH ThreadSolidStainless SteelPolishedThread Pitch: 3/4″-16
Thread Length: 1.63″
Hole Diameter: 0.625″
Overall Length: 3.65″
Overall Diameter: 1.5″
Center Hole to End of Shank: 2.75″
3/4-16 LHForged Stainless 4-Bar Rod End, 3/4-16 LH ThreadSolidStainless SteelPolishedThread Pitch: 3/4″-16
Thread Type: LH Male
Thread Length: 1.75″
Hole Diameter: 0.625″
Overall Length: 3.68″
Overall Diameter: 1.5″
Center Hole to End of Shank: 2.75″
3/4-16 RHForged 4-Bar Rod End, 3/4-16 RH ThreadSolidCarbon SteelZinc PlatedThread Pitch: 3/4″-16
Thread Length: 2″
Hole Diameter: 0.625″
Overall Length: 3.75″
Center Hole to End of Shank: 3.00″
3/4-16 LHForged 4-Bar Rod End, 3/4-16 LH ThreadSolidCarbon SteelZinc PlatedThread Pitch: 3/4″-16
Thread Length: 2″
Hole Diameter: 0.625″
Overall Length: 3.75″
Overall Diameter: 1.55″
Center Hole to End of Shank: 3.00″
3/4-16 RHRod End Supply FBE12 Steel 4-Bar Rod End, 3/4-16 RH Thread, StraightSpherical Bearing45# SteelBlack OxideOverall Length: 3.84″
Overall Diameter: 1.63″
Center Hole to End of Shank: 3.00      Hole Diameter: 0.625″                   Thread Pitch: 3/4″-16
Thread Length: 1.93″
3/4-16 RHPlain Steel 4-Bar Rod End, 3/4-16 RH ThreadSpherical BearinPlain SteelBlack OxideThread Pitch: 3/4″-16
Thread Length: 2.00″
Hole Diameter: 0.625″
Overall Diameter: 1.63″
11/16-18 RHForged 4-Bar Rod End, 11/16-18 RH ThreadSolidCarbon SteelZinc PlatedThread Pitch: 11/16″-18
Hole Diameter: 0.5″
Rod End Head Width: 1.4″
Overall Diameter: 1.47″
11/16-18 RHStainless Steel 4-Bar Rod End, 11/16-18 RH ThreadSolidStainless SteelPolishedThread Pitch: 11/16″-18
Hole Diameter: 0.5″
