Several Methods to Protect Rod Ends from Corrosion

July 30, 2025
Rod ends corrosion is preventable. Learn how to protect rod ends from corrosion with the right materials, finishes, and handling methods in this expert-backed guide.

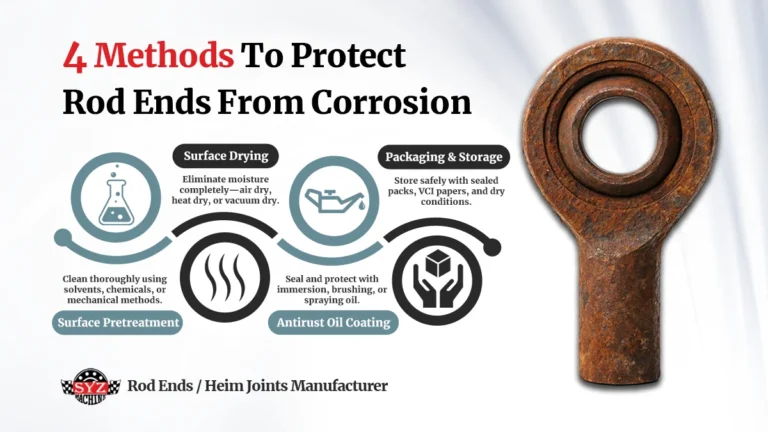

Infographic - 4 methods to protect rod ends from corrosion

Table of Contents

Rod ends corrosion is a common issue that impacts their durability and mechanical performance across many applications, from motorsports to industrial machinery. These corrosion problems are not just cosmetic—they can lead to fatigue cracks, reduced joint flexibility, and even system failure in critical scenarios. To protect rod ends from corrosion, it’s important to understand both the environmental causes and engineering solutions involved. This article provides a comprehensive guide on rod ends corrosion mechanisms, material and finish choices, vulnerable environments, and practical protective measures.

Rod Ends Materials & Surface Finishes

The corrosion resistance of rod ends largely depends on the base material and surface finish. Each material and coating responds differently to moisture, chemicals, or temperature variations. Understanding these differences helps engineers choose the right product for each environment.

Common Materials

Carbon Steel

  • Cost-effective, but prone to rust without protective coatings.
  • Often used in dry or low-risk environments.

Chromoly Steel (Alloy Steel)

  • Stronger than carbon steel and offers moderate corrosion resistance.
  • Often paired with plating for outdoor use.

Stainless Steel (e.g., 304 or 316)

  • High corrosion resistance, suitable for marine or chemical applications.
  • 316 is especially effective in saltwater environments.

Aluminum Alloys

  • Lightweight with fair corrosion resistance, often anodized for added protection.
  • Suitable for light-duty or weight-sensitive applications.

Surface Finishes & Treatments

Zinc Plating

  • Economical corrosion protection, often used for mild exposure.
  • Can be combined with chromate for improved protection.

Nickel or Chrome Plating

  • Offers both corrosion resistance and a polished finish.
  • More expensive, used in high-performance or decorative settings.

Anodizing (for Aluminum)

  • Creates a protective oxide layer on aluminum.
  • Resistant to wear and corrosion.

Black Oxide Coating

  • Aesthetic and mildly protective, commonly used indoors.
  • Requires oiling for better corrosion protection.

Environments That Accelerate Rod Ends Corrosion

Even high-quality materials can corrode in aggressive environments. Here are common use-case scenarios that elevate rod ends corrosion risk:

Marine & Coastal Applications

  • Constant exposure to salt spray
  • High humidity accelerates electrochemical reactions

Off-Road and Agricultural Equipment

  • Mud, fertilizers, and road salt promote corrosion
  • Regular impact and abrasion wear down protective layers

Industrial Machinery

  • Chemical exposure, including acids and solvents
  • Heat and humidity amplify the corrosive effect

Motorsport & Performance Vehicles

  • Brake dust and heat cycles break down surface finishes
  • Rain or snow exposure during transport or storage

For an in-depth look at how environments contribute to corrosion, an article Corrosion – A natural but controllable process offers technical insights.

What Are the Main Factors Affecting Metal Corrosion?

Metal corrosion is caused by various internal and external factors, including:

  1. The chemical composition and structure of the metal itself
  2. Temperature and humidity
  3. The types of materials that come into contact with the metal surface

Why Does Hand Sweat Cause Metal Rust?

Human sweat is a colorless, transparent, or yellowish liquid with a salty taste and weak acidity. Its pH value ranges from 5 to 6. In addition to sodium, potassium, calcium, and magnesium salts, it also contains small amounts of urea, lactic acid, citric acid, and other organic acids.

When sweat comes into contact with metal, a sweat film forms on the metal surface. This film can trigger electrochemical reactions that lead to rust.

Since sweat is unavoidable, preventing hand-induced corrosion means avoiding direct contact with the product. Wear gloves, avoid fingerprints, or use special tools.

Methods to Protect Rod Ends from Corrosion

Below are several practical and field-tested methods to prevent rod ends corrosion. This section integrates both industry practices and scientific treatments.

Step 1: Surface Pretreatment of Rod Ends

Surface cleaning: The appropriate cleaning method must be based on the nature of the rod end’s surface and the actual conditions at that time. Commonly used methods include solvent cleaning, chemical treatment cleaning, and mechanical cleaning.

What Is a Cleaning Solvent?

Solvents are compounds that can dissolve, soften, melt, or extract another compound. Solvents are divided into two categories: organic and inorganic.

  • Organic solvents contain carbon and are commonly used to remove stains, dry-clean fabrics, dissolve paint, and remove glue.
  • Inorganic solvents do not contain carbon and are rarely used outside of professional research facilities, except for water.

Types of Cleaning Solvent

Oxygen-containing solvents: As the name suggests, these solvents contain oxygen molecular structures. Derived from petroleum products, they usually have low toxicity and high solvency.

Hydrocarbon solvents: These are petroleum-based solvents whose chemical structures contain hydrogen and carbon atoms. They can have complex chemical structures.

Halogenated solvents: These solvents contain halogen atoms in their molecular structures. Because they are usually stable, non-flammable, and have high solvency, they are widely used in industry for precision cleaning and many other applications.

Chemical Treatment Cleaning

Chemical treatment cleaning involves using acidic or alkaline solutions to chemically dissolve surface contaminants such as rust, scale, and oxidation layers. Acidic solutions like phosphoric or hydrochloric acid are often used to remove heavy rust, while alkaline solutions effectively remove oil, grease, and organic residues. This method is especially suitable when precise surface preparation is critical for subsequent coatings or plating.

Mechanical Cleaning

Mechanical cleaning methods physically remove contaminants through abrasive or impact processes. Common techniques include abrasive blasting, wire brushing, grinding, or sanding. Mechanical cleaning effectively removes stubborn surface residues like heavy rust or scale, providing an ideal roughened surface for better coating adhesion. This method is typically employed when surfaces are heavily contaminated or when precision chemical cleaning is impractical.

Step 2: Surface Drying

After the rod end is cleaned, it can be dried by filtered compressed air, by a dryer set to 120–170°C, or by using clean gauze.

Additional drying considerations include controlling humidity levels, drying duration, and the cleanliness of drying tools or equipment.

For critical applications, vacuum drying or heated air circulation ovens may be employed to ensure complete removal of residual moisture. Rod ends should be handled promptly after drying to prevent recontamination, as exposure to ambient moisture or contaminants can rapidly undermine surface cleanliness.

Furthermore, ensuring that compressed air is properly filtered and oil-free is essential, as even trace oils can compromise subsequent coating or protection processes.

Step 3: Coating Antirust Oil

Immersion method: Immerse rod ends in rust-proof grease so that their surfaces are coated with a layer of protective oil. The oil film thickness can be controlled by adjusting the temperature or viscosity of the grease.

Brushing method: When brushing, pay attention to avoid accumulation and prevent missed areas.

Spraying method: Typically, filtered compressed air with a pressure of about 0.7 MPa is used to spray rod ends. This method is suitable for solvent-diluted antirust oils or thin-layer oils but requires strict fire safety and labor protection measures.

Step 4: Packaging & Storage

Proper packaging and storage are essential to maintain the corrosion protection measures applied to rod ends during production. Without suitable storage conditions and packaging materials, even the best corrosion-prevention methods may fail prematurely.

Sealed Packaging: Vacuum sealing or tightly sealed bags help prevent moisture ingress during transportation or long-term storage.

VCI Paper or Bags: Vapor Corrosion Inhibitor (VCI) materials release protective vapors that coat metal surfaces and prevent corrosion.

Desiccant Use: Placing desiccants in packaging materials effectively absorbs residual humidity, reducing the risk of corrosion during shipping and storage.

Climate-Controlled Storage: Maintaining stable temperature and humidity environments significantly reduces the potential for rod ends corrosion, especially for extended storage periods.

Rod ends corrosion is not an issue that can be overlooked, especially in demanding environments like agriculture, marine, or motorsports. By understanding the materials, finishes, and environments that contribute to corrosion, and by applying targeted protective methods—from surface pretreatment to proper storage—manufacturers and engineers can greatly extend the lifespan of rod ends. Preventive action always costs less than unexpected failure. Whether you’re sourcing parts or designing a new system, taking rod ends corrosion seriously is essential to long-term performance and safety.

Surface Pretreatment of Rod Ends
  1. Surface cleaning: The appropriate cleaning method must be based on the nature of rod ends’surface and the conditions at that time. Commonly used methods are solvent cleaning, chemical treatment cleaning and mechanical cleaning.What is a cleaning solvent?Solvents are compounds that can be used to dissolve, soften, melt or extract another compound. Solvents are divided into two categories: organic and inorganic. Organic solvents contain carbon and are commonly used to remove stains, dry-clean fabrics, dissolve paint and remove glue. Inorganic solvents do not contain carbon and are rarely used outside professional research facilities except water.Types of cleaning solvent:Oxygen-containing solvents, as their names imply, contain oxygen molecular structures. Derived from petroleum products, they usually have low toxicity and high solvent capacity.Hydrocarbon solvents These are petroleum based solvents whose chemical structures contain hydrogen and carbon atoms. Hydrocarbon solvents can have complex chemical structures.Halogenated solvents These solvents contain halogen atoms in their molecular structures. Because they are usually stable, non-flammable, and they have high solvent capacity, they are widely used in industry for precision cleaning and many other applications.
  2.  Surface drying: After the rod end is cleaned, it can be dried by filtered compressed air, or by a dryer at 120 – 170 C, or by a clean gauze.Coating Antirust Oil
    • Immersion method: To immerse rod ends in rust-proof grease, so that their surface is adhered to a layer of rust-proof grease. Oil film thickness can be controlled by adjusting the temperature or viscosity of rust-proof grease.
    • Brushing method: When brushing, pay attention to avoid accumulation and prevent leakage.
    • Spraying method. Usually, the filtered compressed air of about 0.7Mpa pressure is applied to clean spray rod ends. Spraying method is suitable for solvent dilution antirust oil or thin layer antirust oil, but must take perfect fire protection and labor protection measures.
     What are the main factors affecting metal corrosion?Metal corrosion is caused by various internal and external factors. It can be summarized as follows: 1) chemical composition and structure of metal material itself; 2) temperature and humidity; 3) all kind of materials contact with metal surface. Why does hand sweat cause metal rust?Human sweat is a colorless, transparent or yellowish liquid with salty taste and weak acidity. Its pH value is 5-6. In addition to sodium, potassium, calcium, magnesium salts, it also contains a small amount of urea, lactic acid, citric acid and other organic acids. When sweat contacts with metal, a layer of sweat film will be formed on the metal surface. The sweat film will cause electrochemical reactions and cause metal rust.Sweat is inevitable. To prevent hand sweat from causing rust, do not touch products with hands. You should wear gloves, fingerprints, or use special tools.
