XM / XF Series — Chromoly Rod Ends

XM & XF Series
High-Strength Chromoly Steel Rod Ends

Heavy-Duty Shank · Self-Lubricating PTFE Liner · 4130 Chromoly Body

28
Male Rod End Choices
12
Female Rod End Choices

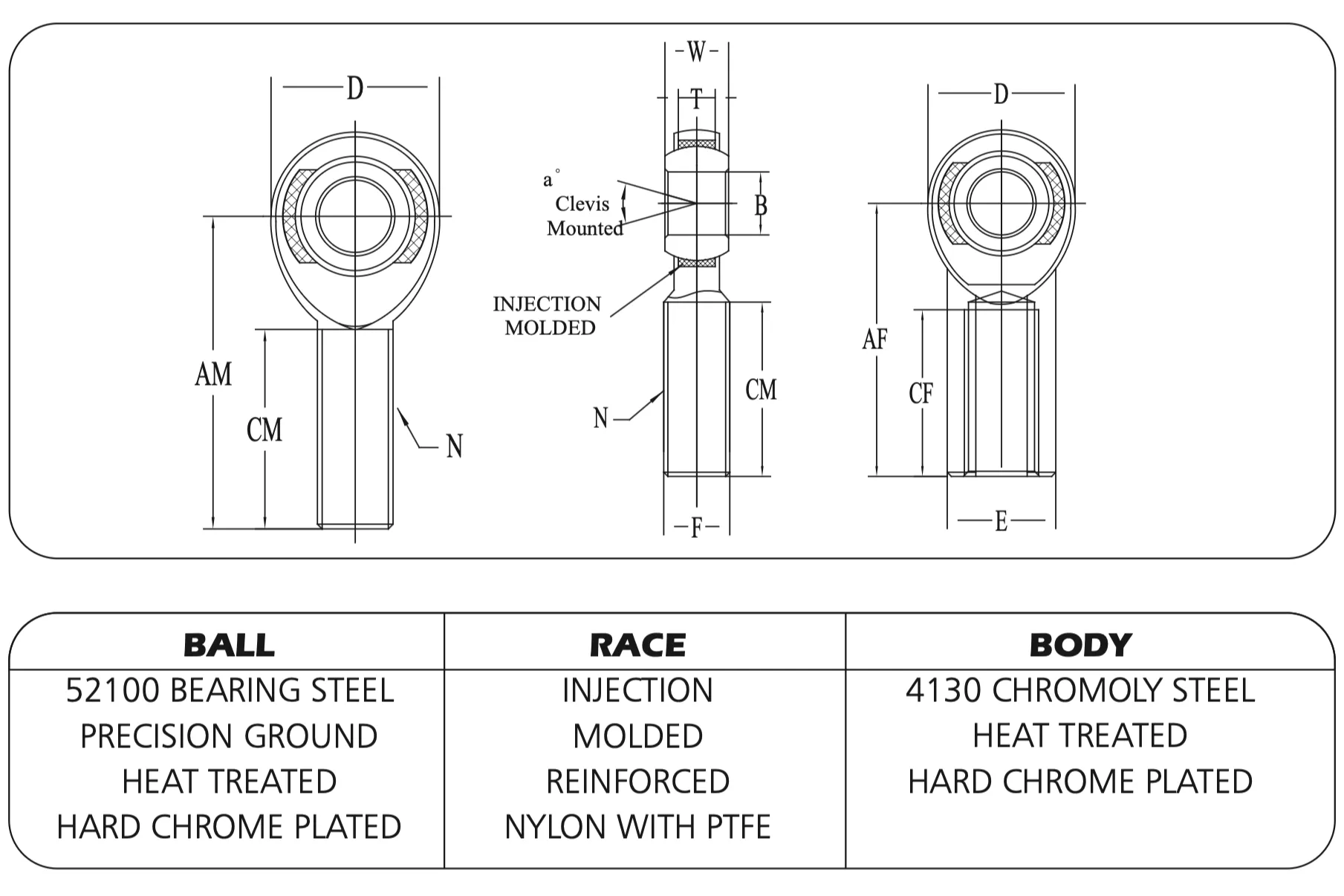

XM XF series rod end technical drawing XM XF series rod end detail

Brand Compatibility

Cross-searching

Full Spec Range

Search by spec.

Type RH Part No. LH Part No. BDIA.
+.0025
-.0005		DDIA.
+.010
-.010		NTHREAD
UNF 3A		WWIDTH
+.005
-.005		TWIDTH
+.005
-.005		BallDIA.
REF.		AM / AFLENGTH
+.015
-.015		CM / CFLENGTH
+.062
-.031		A°MIS.
ANGLE
REF.		StaticRADIAL
LOAD
(LBS)		WeightAPPROX.
(LBS)		Qty

Technical Spec.

  • Ball: 52100 Bearing Steel, precision ground, heat-treated, and Hard Chrome Plated for smooth articulation and extended wear life.
  • Race: Injection Molded, Reinforced Nylon with PTFE.
  • Body: 4130 Chromoly Steel, Heat Treated, Hard Chrome Plated.

Notes

  • Stud Configurations Available: Add "S" to suffix, example: XMR12S.
  • Metric Size Available: Check MXM, MXF series on page 16.
  • Material Option: Stainless steel material available.
