When evaluating heim joints or rod ends, buyers and engineers often look first at the housing, the ball, or the thread type. But the Heim joint liner material is just as critical. It dictates service life, maintenance needs, and operating smoothness. Select the wrong liner and you risk faster wear, higher costs, and downtime.
Here we review the three main materials—PTFE, bronze mesh, and bronze powder composite—and compare how they perform in real applications.

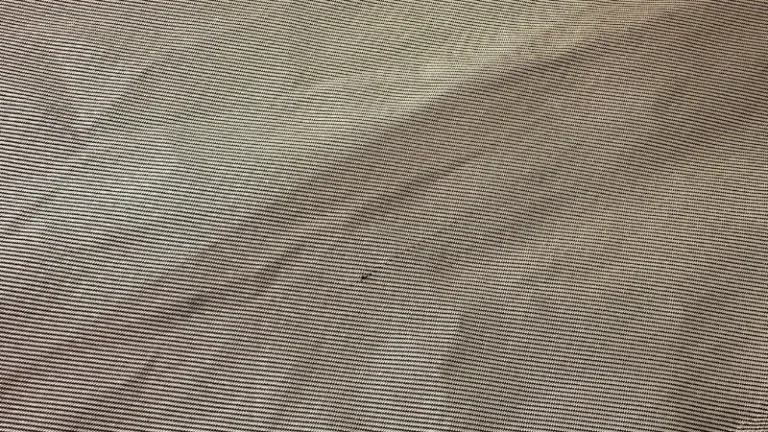

PTFE Liner
PTFE (Polytetrafluoroethylene) liners are widely used because they are self-lubricating and require almost no maintenance. They provide a low-friction surface between the ball and housing, making them ideal for aerospace, motorsport, and robotics where lubrication intervals must be minimized.
PTFE also tolerates high temperatures well, which is why it appears in automotive and industrial equipment. The limitation is durability under shock loads—heavy impacts can wear the liner faster than metallic alternatives. For buyers, PTFE remains the most cost-effective choice for moderate-load, high-precision applications.

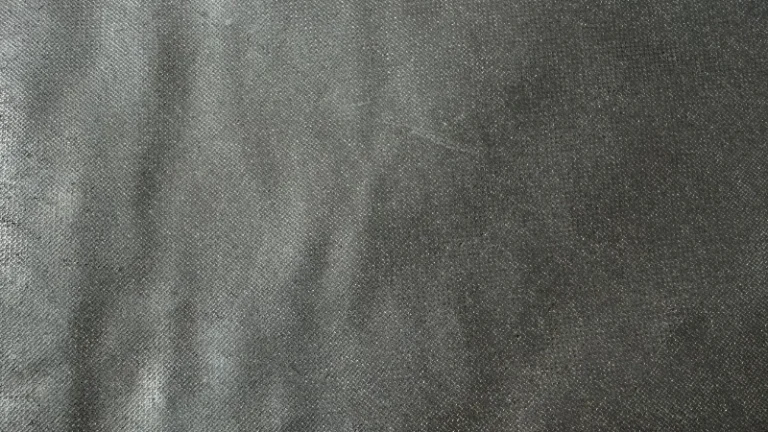

Bronze Mesh Liner
The bronze mesh liner reinforces the joint with a woven bronze structure impregnated with PTFE. This gives it more strength than pure PTFE while keeping smoother movement than a bare metal surface. It is common in agricultural equipment, automation systems, and off-road vehicles where vibration and dirt are constant.
Its main limitation lies in long-term stability. Under continuous stress or heavy shock loads, the mesh structure can gradually loosen, reducing precision and service life.
For rebuildable heim joints, this is less of a concern since the liner can be replaced. In practice, bronze mesh represents a solid middle ground—more durable than PTFE in demanding environments, but not as heavy-duty as bronze powder composites.

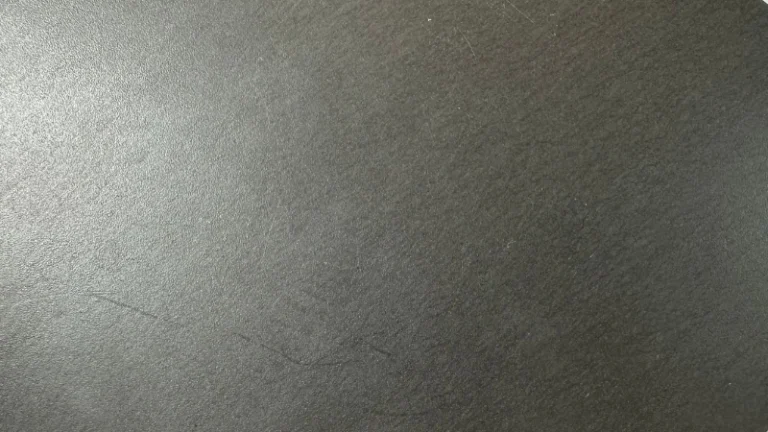

Bronze Powder Composite (Copper Backing)
The bronze powder composite liner (copper-backed, sintered design) is the premium option. Built with a steel backing, a bronze powder layer, and a PTFE/polymer surface, it offers the highest durability and load capacity.
This liner withstands heavy shock, grit, and high cycle counts without losing shape. It is standard in mining, defense, and construction machinery, where downtime is unacceptable. Its higher cost and weight are trade-offs, but in critical systems the longer service life offsets the investment.
Performance in Normal Conditions
In regular environments—moderate load, average humidity:
- PTFE liners deliver smooth operation at low cost.
- Bronze mesh provides balance and longer life.
- Bronze powder composites are often overbuilt unless extreme durability is required.
Performance in Extreme Environments
High Temperatures
- PTFE retains stability and low friction.
- Bronze mesh performs reasonably well but doesn’t match composites in heavy-load, high-heat situations.
- Bronze composites perform best under heat and load.
Extreme Cold
- PTFE stays flexible at low temperatures.
- Bronze mesh maintains performance, though not as smooth as PTFE.
- Bronze composites remain strong but can lose responsiveness if lubrication hardens.
High Humidity and Corrosion-Prone Environments
- PTFE resists moisture absorption.
- Bronze mesh performs adequately but is less corrosion-resistant than dense composite liners.
- Bronze composites resist corrosion thanks to their bonded structure and metallic reinforcement.
Dust, Sand, and Contamination
- Bronze composites are the most resistant to grit and deformation.
- PTFE wears quickly under abrasive conditions.
- Bronze mesh performs moderately but contamination shortens life.
Heavy Shock Loads
- Bronze composites offer the highest resistance.
- Bronze mesh manages moderate shocks.
- PTFE is suited only for lighter applications.
Comparison of Heim Joint Liner Materials
| Feature / Property | PTFE Liner | Bronze Mesh Liner | Bronze Powder Composite Liner |
|---|---|---|---|
| Durability | Moderate, wears faster under shock | Good, better than PTFE, gradual wear | Excellent, highest endurance |
| Maintenance Needs | Very low, self-lubricating | Medium, may require earlier replacement | Low, long service intervals |
| Shock Load Resistance | Low | Medium | High |
| Moisture & Corrosion Resistance | High, no water absorption | Moderate, adequate but less resistant than composites | High, dense structure resists corrosion |
| Temperature Resistance | Excellent at high and low temps | Adequate, not as strong as PTFE or composites | Excellent at high, stable at low |
| Cost | Low to medium | Medium | High |
| Best Use Cases | Aerospace, racing, robotics | Agriculture, automation, off-road | Mining, defense, heavy equipment |
Don’t just buy the cheapest option. Think about where your heim joints will actually live and what kind of abuse they’ll face. That way, your liner choice won’t just save money—it’ll save headaches later.
Conclusion
The right heim joint liner is essential for long-term performance. PTFE liners are affordable and maintenance-free, bronze mesh liners offer balance in rougher conditions, and bronze powder composites provide unmatched durability for heavy-duty work. Understanding these options allows buyers and engineers to match cost with reliability, ensuring fewer replacements and less downtime.
Liners are critical, but the right choice also involves housing, ball, and surface treatment. See the bigger context in our Buyers’ Guide to Heim Joints.
