Off-Road Rod Ends
Our off-road rod ends ensure durability, control, and shock absorption across all off-road scenarios.
What is an off-road rod end?
An off-road rod end is a spherical joint used in suspension, steering, and drivetrain linkages that allows controlled angular movement under extreme conditions. Compared to standard industrial rod ends, off-road rod ends are designed to handle:
- Shock loads
- Large misalignment angles
- Harsh environments involving mud, sand, dust, and water.

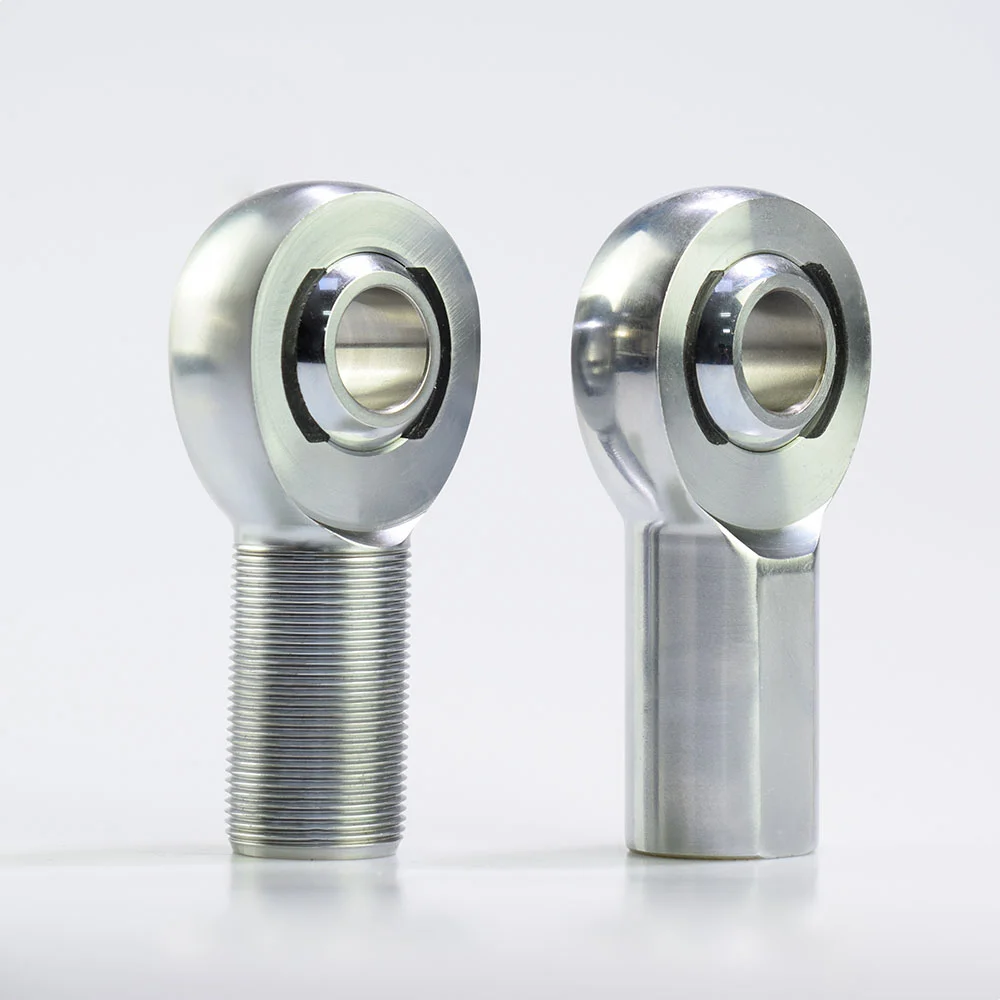

XM/XF Series 1 1/4" Chromoly Steel Self-Lubricating Heim Joints

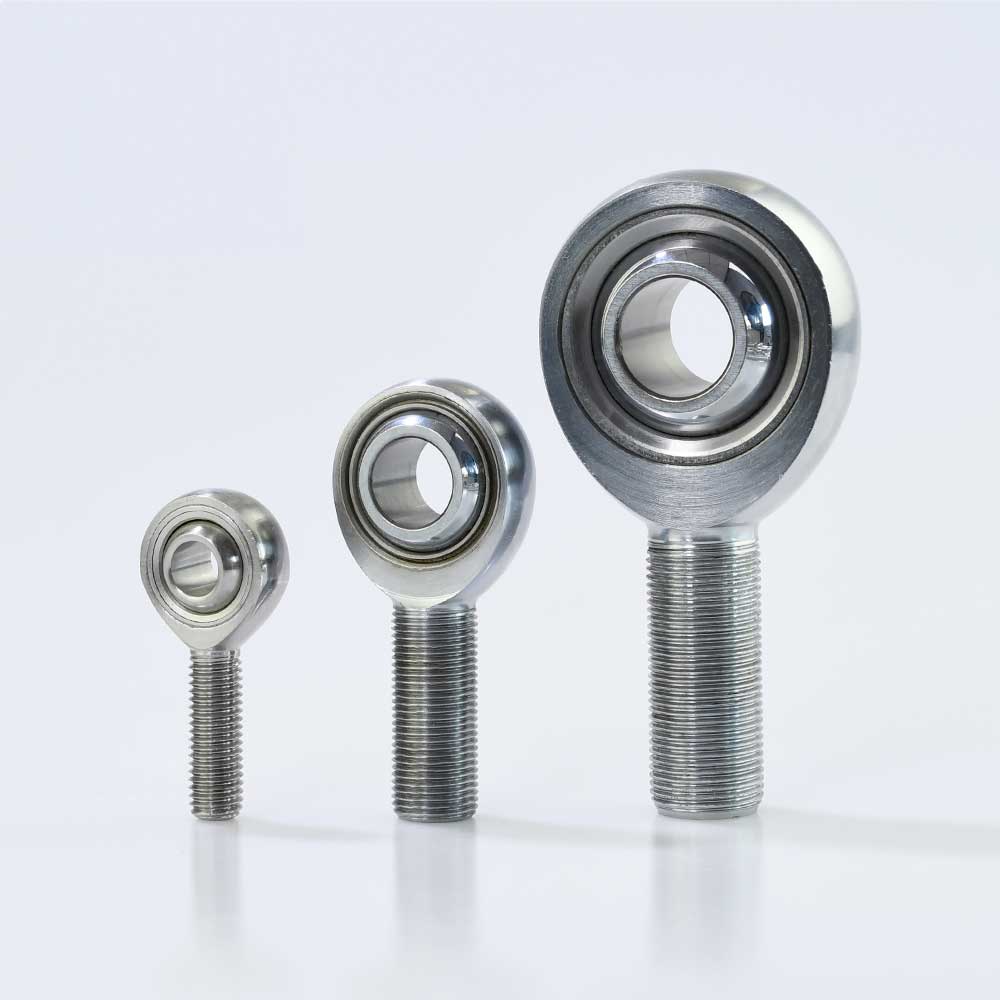

JMX/JFX Series 1 1/4" Chromoly Steel Self-Lubricating Heim Joints

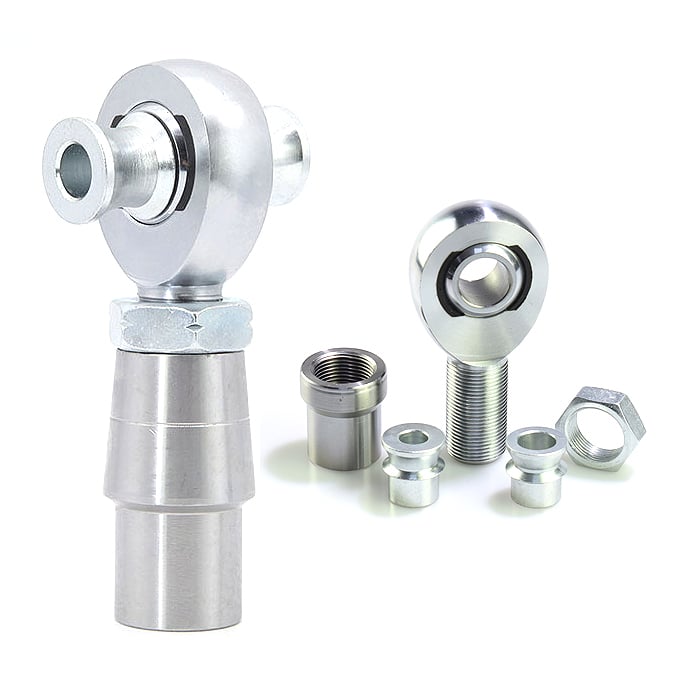

More custom heim joints choices on your needs
Main platforms that fit off-road mods
Hard-Core Off-Road Vehicles
Hard-core off-road vehicles are designed from the factory with off-road use in mind. They typically feature a body-on-frame chassis, solid axles or heavy-duty suspension components, and a proper four-wheel-drive system with low range. These platforms provide excellent articulation potential and structural strength, making them ideal for serious off-road modifications.
- Jeep Wrangler
- Toyota Land Cruiser
- Toyota 4Runner
- Suzuki Jimny
Pickup Trucks
Pickup trucks are another major platform for off-road builds, especially in North America. With their body-on-frame construction, long wheelbase options, and high payload capacity, pickups are well suited for both performance-oriented and utility-focused off-road modifications. They are commonly used for overlanding, desert driving, and expedition-style builds.
- RAM 1500
- Ford F-150
- Toyota Tacoma
- Chevrolet Silverado
Why These Platforms Work for Off-Road Mods
Both hard-core off-road vehicles and pickup trucks share key structural advantages that make them suitable for off-road modifications. Their body-on-frame design can handle higher stress and impact loads, while their suspension layouts allow for geometry changes using components like rod ends. In addition, the aftermarket support for these platforms is mature, making it easier to upgrade suspension links, steering systems, and driveline components to meet the demands of off-road use.
Why rod ends matter
Rod Ends for Overlanding
In overlanding builds, rod ends are used to maintain suspension geometry under added load from gear, fuel, and accessories while allowing controlled movement on uneven terrain. For this application, durability and long-term reliability matter more than extreme articulation, so rod ends with high static load ratings and sealed or self-lubricating liners are typically preferred.
Rod ends for rock crawling
Rock crawling demands maximum suspension articulation and precise axle control, which is why rod ends are commonly used in control arms and suspension links. For this application, rod ends should prioritize large misalignment angles, high shock-load resistance, and rebuildable designs to withstand repeated impacts at low speed.
Rod ends for baja/desert racing
In Baja and desert off-road builds, rod ends are exposed to high-speed impacts, vibration, and continuous cyclic loading. Choosing rod ends with high fatigue strength, tight internal tolerances, and materials designed for impact resistance is critical to ensure stability and durability at speed.
Rod Ends for mudding
Mudding environments place rod ends in constant contact with mud, water, and debris, making contamination a primary concern. For this application, rod ends with corrosion-resistant materials and protective liners are preferred, with a focus on durability and ease of maintenance rather than maximum articulation.
Related Parts

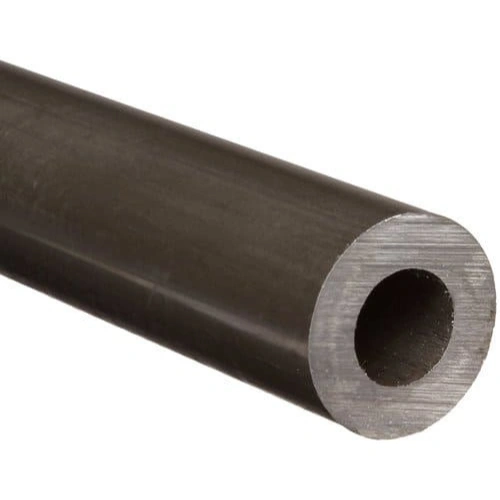

Tubing
High misalignment spacers
Jam Nuts
Tube Adapters
Why Choose SYZ?
Manufacturer & Supplier
As both a manufacturer and a wholesale supplier, we bridge the gap between factory capabilities and global customer needs—efficiently and professionally.
In-House Manufacturing
With full in-house machining and quality control, we provide stable production, fast sampling, and the flexibility to handle complex rod end customizations.
Integrated Sourcing Support
Beyond rod ends, we help source related mechanical parts—offering one-stop procurement support and reducing coordination time and cost for our clients.
Reliable Service & Communication
From fast RFQ responses to full logistics coordination, our team ensures timely updates, clear documentation, and smooth communication throughout your project.
FAQs
Q1: Are your rod ends/Heim joints models universal?
Yes, to make it easier for you to find the right rod ends/Heim joints, you can simply provide us with the commonly used model numbers in the market. Our model naming is generally based on industry standards.
Q2: What information do I need to provide when inquiring about rod ends/Heim joints pricing?
You can directly provide us with the standard model number of the rod ends/Heim joints you need, such as XM, XF, AM, AF, along with the size. If it’s a custom model, please provide more specific details, such as size, material, male or female, two-piece or three-piece design, and whether PTFE is required. You can submit an inquiry form or contact us via email, and our service support team will assist you with detailed customization options.
Q3: What materials can be customized for your rod ends/Heim joints?
Our standard materials for rod ends/Heim joints include 4130 Chromoly Steel, Aluminum, Stainless Steel, Carbon Steel, and 52100 Bearing Steel. If you have special requirements, such as plastic rod ends, we can also offer customization.
Q4: What’s your average lead time for production?
Most standard models ship within 7–15 days. For custom orders, lead time will be confirmed after evaluating your specs and quantity.
Q5: Can you label my brand on the rod ends/heim joints or packaging?
Yes, we support laser engraving on the rod ends/heim joints and custom packaging with logo labels or barcodes. Ideal for brand distributors.
Q6: What payment terms do you accept?
We accept T/T, PayPal (for samples), and L/C for large orders. For new customers, 30% deposit and 70% before shipment is standard.
Need Technical Support?
Our experts offer fast response, design support, and product matching for your mechanical application.
