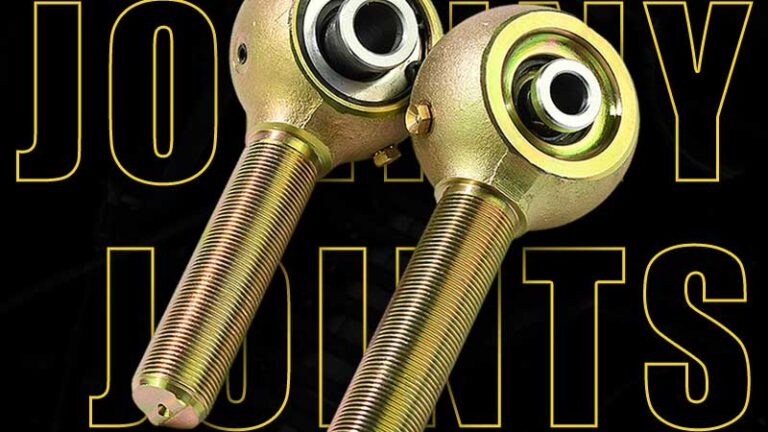

A Johnny Joint is a type of rebuildable flex joint used in off-road suspensions. It provides more articulation than rubber bushings and runs quieter than heim joints. The key difference comes from its structure and the materials used — each part is designed for strength, flexibility, and long service life.
Johnny Joint Construction
A Johnny Joint is made up of three main parts — the housing, the inner ball, and the bushings. The housing holds everything together, the ball provides the pivot point, and the bushings separate the metal surfaces to reduce friction and noise. The Johnny Joint’ structure is what makes Johnny Joints durable and rebuildable.
Johnny Joint Materials
Housing
The housing is the main body of a Johnny Joint. It supports the internal ball and bushings and must handle high loads, constant movement, and outdoor exposure. That’s why the choice of housing material directly affects joint strength, corrosion resistance, and overall service life.
1. Forged Steel
This is the most common housing material used in Johnny Joints. Forged steel combines strength and toughness, making it ideal for off-road or heavy-duty applications. It handles impact and torsional stress very well. However, it is slightly heavier and requires proper surface protection to avoid rusting.
2. Chromoly 4130
For customers who want both strength and weight savings, 4130 chromoly is a top choice. It offers higher tensile strength and fatigue resistance compared to standard carbon steel. It’s often used in performance builds where extra durability is required without adding too much weight. Chromoly housings are also easier to weld and machine precisely.
3. Stainless Steel
While not commonly used, stainless steel housings are sometimes produced for customers operating in humid or marine environments. They provide excellent corrosion resistance and clean appearance but are more expensive and not as strong as chromoly. Stainless housings are typically selected for special projects, not mass production.
| Material Type | Strength | Corrosion Resistance | Weight | Typical Application |
|---|---|---|---|---|
| Forged Steel | ★★★★☆ | ★★☆☆☆ | Heavy | General off-road use |
| Chromoly 4130 | ★★★★★ | ★★★☆☆ | Medium | Performance builds |
| Stainless Steel | ★★★☆☆ | ★★★★★ | Medium | Marine or custom use |
Surface Treatment
To protect the housing, most Johnny Joints use either clear zinc plating or gold zinc plating. These coatings prevent corrosion, improve appearance, and extend product life, especially when exposed to mud, water, or road salt.
Ball
The ball is the core moving part of every Johnny Joint. It connects to the control arm or link rod and allows the suspension to move freely in multiple directions. Because it bears direct load and rotation, the ball must be extremely strong, precisely machined, and resistant to surface wear.
1. Heat-Treated Steel
Many Johnny Joints use regular alloy steel that has been heat-treated to increase hardness and tensile strength. Heat treatment helps the surface resist deformation and extends the service life under repeated impact. It’s a reliable and cost-effective option for most off-road vehicles.
2. High-Carbon Heat-Treated Steel
High-carbon steel contains more carbon, which allows for deeper hardening during heat treatment. This gives the ball superior surface hardness and wear resistance, making it suitable for heavy-load or long-travel suspension setups. The trade-off is slightly reduced ductility.
3. 52100 Bearing Steel
This is the same material used in precision ball bearings. 52100 bearing steel has excellent fatigue strength, high hardness, and very smooth surface finish. It performs extremely well under continuous rotation and vibration, which is why it’s popular in premium or racing-grade Johnny Joints.
4. 4130 Chromoly Steel
Some manufacturers also use chromoly 4130 for the ball, especially when they want to balance strength and machinability. It offers a good mix of rigidity, durability, and ease of precision grinding.
| Material Type | Hardness | Fatigue Strength | Corrosion Resistance | Typical Application |
|---|---|---|---|---|
| Heat-Treated Steel | ★★★★☆ | ★★★★☆ | ★★☆☆☆ | Standard off-road use |
| High-Carbon Steel | ★★★★★ | ★★★★☆ | ★★☆☆☆ | Heavy-duty setups |
| 52100 Bearing Steel | ★★★★★ | ★★★★★ | ★★★☆☆ | Racing-grade joints |
| 4130 Chromoly | ★★★★☆ | ★★★★☆ | ★★★☆☆ | Balanced performance |
Surface Treatment
After machining, the ball is usually polished and then hard chrome plated. Polishing ensures a smooth movement with minimal friction, while chrome plating improves corrosion resistance and adds surface hardness.
Bushing
The bushing is what makes a Johnny Joint different from a traditional heim joint. Instead of metal-to-metal contact, it uses durable polymer inserts to isolate vibration and reduce noise. Choosing the right bushing material is key to achieving the perfect balance between movement and comfort.
1. High-Density Polyurethane
Polyurethane is the most common bushing material found in Johnny Joints. It’s flexible yet tough, capable of absorbing impact while maintaining shape under load. This material resists oil, grease, and weathering, making it ideal for off-road or daily-use suspension systems. Polyurethane also helps reduce noise, vibration, and harshness (NVH), giving a smoother driving experience.
2. Delrin® (Acetal / POM)
Delrin is a high-performance plastic known for its low friction and excellent dimensional stability. It provides a tighter, more precise feel compared to polyurethane. Delrin bushings are used in performance or racing setups where maximum articulation and minimal deflection are required. However, they transmit slightly more vibration than polyurethane.
| Material Type | Flexibility | Wear Resistance | Noise Control | Typical Application |
|---|---|---|---|---|
| High-Density Polyurethane | ★★★★★ | ★★★★☆ | ★★★★★ | Off-road / General use |
| Delrin (POM) | ★★★☆☆ | ★★★★★ | ★★★☆☆ | Racing / High articulation |
Summary
Understanding Johnny Joint materials helps you choose the right joint for your vehicle’s suspension needs. From forged steel housings to chromoly balls and polyurethane bushings, each material serves a clear purpose — balancing strength, flexibility, and durability. Whether you’re building an off-road rig or fine-tuning a race car, picking quality materials ensures long-term performance and reliability.
