What is inside a Johnny Joint?

Have you ever wondered what’s actually inside a Johnny Joint? This specialized joint used in suspension systems is known for its durability and smooth rotation, particularly in off-road applications. While many buyers and tuners are aware of the Johnny Joint’s function, few truly understand how its internal components work together to provide strength, flexibility, and maintainability. In this article, we’ll take a closer look at the Johnny Joint components and explain why understanding these details can help you make more informed choices when it comes to suspension projects.

What is Inside a Johnny Joint?

A Johnny Joint is a precisely engineered assembly of components, each designed to deliver smooth movement and exceptional durability. The housing, typically made from heavy-duty chromoly steel, provides the joint’s core strength and serves as its threaded or weld-on connection point. Inside the housing, there is a precision-machined spherical steel bearing ball, which allows multi-directional movement and greater articulation than traditional rubber bushings. Surrounding the ball are a pair of polyurethane bushings that absorb vibration and reduce noise while firmly securing the sphere under high loads.

Additional components ensure everything stays secure: shims and washers maintain alignment, a snap ring locks the assembly in place, and grease nipples allow for regular lubrication for a longer service life. These components work together to make the Johnny Joint not only strong, but also rebuildable—meaning you can replace bushings or refresh lubrication rather than discarding the whole unit.

For a deeper technical perspective on suspension joint design and structure, check out this educational resource on suspension systems.

Why Understanding Johnny Joint Internals is Important?

Knowing what’s inside a Johnny Joint isn’t just for curiosity—it directly impacts how you choose, maintain, and even upgrade your suspension system. For buyers and engineers, understanding the internal components helps them evaluate quality and durability before purchasing large quantities. For off-road enthusiasts, knowing these joints are rebuildable means they can plan for long-term maintenance instead of replacing entire control arms or links.

Polyurethane bushings, chromoly steel housings, and precision-machined steel bearing balls all contribute to performance in different ways. Understanding these details ensures you’re using the right joint for the right application—whether it’s the high-angle rotation required for rock climbing or the vibration control of everyday driving.

Finally, a clear understanding of Johnny Joint internals makes communication with suppliers easier. When you can precisely specify the details you need—such as bushing hardness, housing material, or lubrication method—you can reduce downtime and avoid costly mismatches. In short, understanding the internals of Johnny Joints is a necessary step for anyone who values suspension performance and reliability.

Key Components of a Johnny Joint

1. Outer Housing

outer-housing

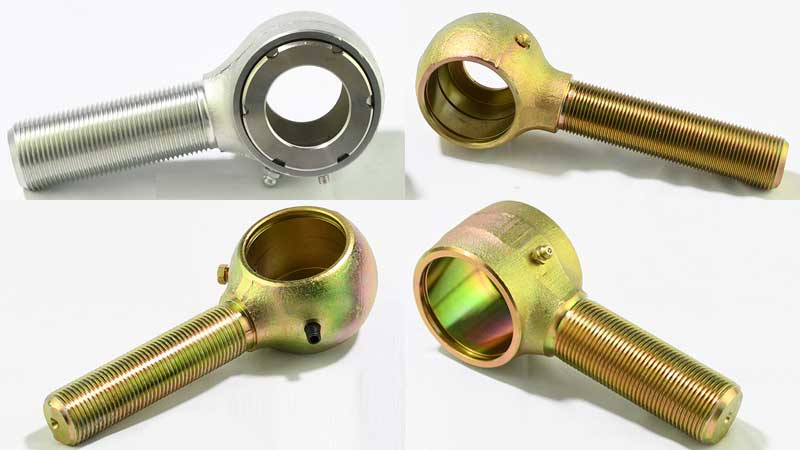

The outer housing is the backbone of a Johnny Joint. Typically manufactured from forged or CNC-machined steel, this component provides the necessary structural strength for all internal components under extreme loads.

Its primary functions include:

Load Distribution: The housing ensures that impact forces and suspension loads are evenly spread across the joint, preventing premature wear.

Protection: It protects the ball and polyurethane bushings from dirt, water, and debris — common challenges in off-road environments.

Durability: A properly coated or plated housing (e.g., zinc or powder coating) resists corrosion, which is especially important when exposed to mud, salt, or varying climates.

In most applications, the housing is threaded or welded into the suspension link, making it the foundation of the Johnny Joint assembly. A poorly designed or low-quality housing will shorten the life of the entire joint.

2. Spherical Ball

spherical-ball

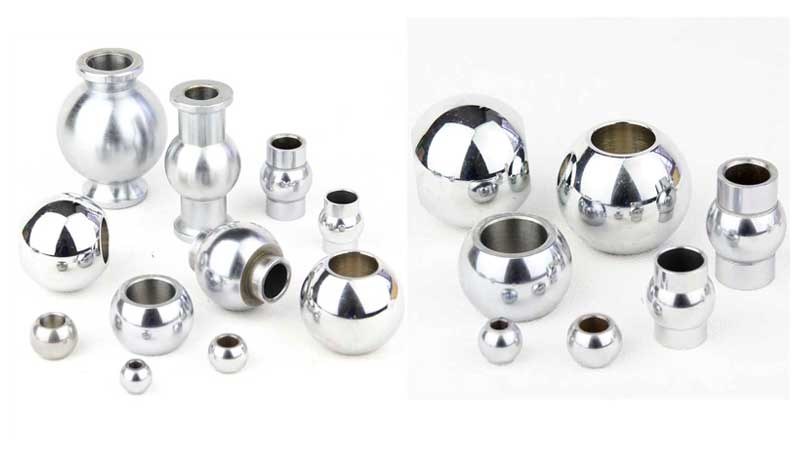

At the heart of every Johnny Joint lies a spherical ball. It’s the key rotating component that allows for extreme articulation without binding. Unlike traditional rubber bushings, the spherical ball not only moves smoothly but also remains stable under high loads or in harsh off-road conditions.

High-quality Johnny Joints typically use 52100 steel bearings for the spherical ball. This material is well known in the industry for its excellent hardness, fatigue resistance, and ability to maintain precision under constant stress. In practical applications, this means the ball won’t deform or wear under long-term loads, maintaining performance even under extreme suspension conditions.

Another key feature is the precision polishing of the ball surface. A finely polished ball reduces friction with the internal bushings, which not only improves performance but also extends the service life of the joint. These features ensure the johnny joint remains reliable in demanding applications such as rock crawling, desert racing, or heavy-duty off-road suspension systems.

Summary:

  • 52100 bearing steel for strength and durability.
  • Provides smooth, low-friction rotation.
  • Outperforms rubber bushings in load-bearing and longevity.
  • Designed for harsh off-road environments.

3. Inner Bushings

bushing

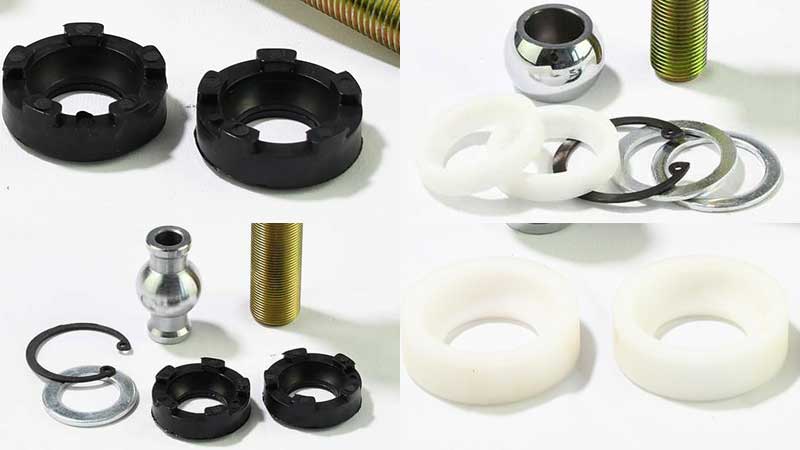

The inner bushings, located between the ball and the outer housing, play a vital role in the smooth performance of the Johnny Joint. While the spherical ball provides the rotation, the bushings provide cushioning, reduce friction, and maintain a proper fit.

We typically provide bushings made of polyurethane or Delrin (polyoxymethylene). Both materials offer excellent durability compared to traditional rubber. Polyurethane bushings offer excellent toughness and elasticity, making them ideal for off-road applications. Delrin bushings, on the other hand, are harder and offer a very low coefficient of friction, providing smoother motion and greater precision. Customers can choose the material depending on whether they prioritize cushioning or performance.

Another significant advantage is maintainability. The Johnny Joint features a rebuildable design, allowing bushings to be replaced individually when worn, without having to discard the entire joint. This not only extends the product’s lifespan but also makes it more cost-effective for heavy-duty applications.

Summary:

  • Available in polyurethane (toughness, elasticity) or Delrin (hard, low-friction).
  • Provide cushioning and alignment between the ball and housing.
  • Reduce wear, friction, and operational noise.
  • Replaceable design ensures long-term service life.

4. Supporting Components of a Johnny Joint

Besides the core components of the outer housing, spherical ball, and inner bushings, a Johnny Joint relies on several smaller but equally critical parts to ensure its long-term performance and reliability.Washers and snap rings are the structural backbone of the joint. Made from hardened steel, these components work together to hold the spherical ball and bushings securely within the outer housing. They prevent any unwanted movement or disassembly, even when the joint is under extreme tension or compression. Their simple, yet effective design also makes the joint easy to service and rebuild.The grease nipple (zerk) is the key to keeping the johnny joint running smoothly. This small but important component provides a direct pathway for lubrication into the joint’s core. Regular greasing through the zerk reduces friction between the moving parts, minimizes wear, and extends the overall service life of the joint. It also helps remove any debris that may have entered the assembly.Together, these supporting components ensure the Johnny Joint is a durable, low-maintenance, and reliable solution for high-performance off-road applications.

Conclusion

A Johnny Joint is far more than a suspension component; it’s a meticulously engineered system where every detail plays a crucial role. From the strength of the chromoly steel housing to the precise rotation of the 52100 bearing steel ball, and from the cushioning properties of polyurethane or Delrin bushings to the maintainability provided by the grease nipple and snap rings, each element contributes to the joint’s reliability.

What makes Johnny Joints stand out is their ability to balance articulation, durability, and maintainability. Compared to traditional bushings, Johnny Joints maintain stability under heavy loads while offering the flexibility required for extreme off-road conditions. Their rebuildable design also ensures long-term value, allowing individual parts to be replaced without discarding the entire joint.

For engineers, brand buyers, and off-road enthusiasts, this means less downtime, lower maintenance costs, and confidence in the suspension under extreme conditions. In short, understanding what’s inside a Johnny Joint will help you understand why it is the ideal choice for high-performance and off-road suspension systems.

This question comes up a lot, so I thought I’d start a thread that may hopefully help out. A Johnny Joint is either come as a fixed housing Weld on style like on an upper axle mount or they come as the type with the threaded section for use with an adjustable arm. The Johnny joint is a very large, tight joint, but the ball assembly inside allows smooth pivoting and less binding as the axle moves. They bind less than a polyurethane bushing are are affordable to rebuild.Here’s a picture of a Johnny Joint’s internals. Basically, the order of parts that goes in the metal housing is WASHER, BUSHING, BALL ASSY, BUSHING, WASHER, SNAP RING. You can see that the housing has a snap ring groove and a hole for a grease zerk.
