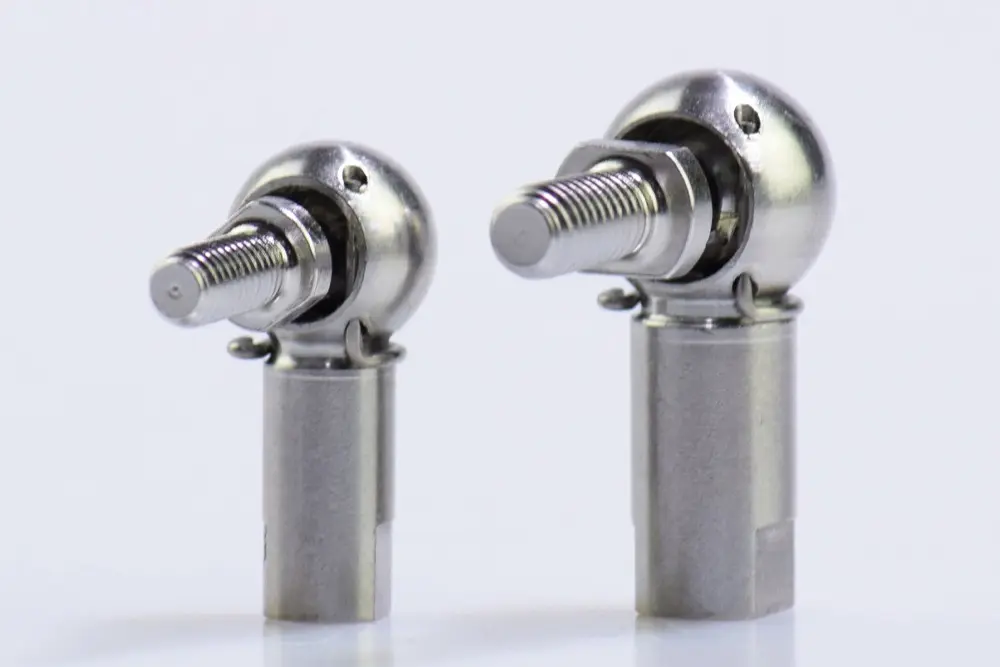

CS Series
MetricMetric carbon steel small ball joints with spring-clip retention. Silver or yellow zinc plated, with 36° misalignment and optional sealing cap.
Compact Articulating Ball-Stud Joints for Control Linkage
Small Ball Joints
SYZ small ball joints are compact ball-stud articulating joints for light control and positioning linkage — distinct from full-size rod ends. A ball stud mates with a socket housing in a simpler, smaller package suited to throttle linkage, mower steering, pedal and cable controls. Choose quick-disconnect (QD), push-button quick-release (QI), staked with rubber grommet (ES) or metric spring-clip (CS).
4 Series
CS / ES / QD / QI
Tool-free
QD / QI Release
Rubber Grommet
ES Vibration/Dust
Carbon Steel
Zinc Plated
ISO 9001:2015 Certified
Factory Direct Pricing
15–30 Day Lead Time
26 Years Manufacturing
OEM-Grade Tolerances
Definition
What Are Small Ball Joints?
Small ball joints are smaller, lighter articulating linkage joints distinct from rod ends. Rod ends use a spherical bearing in a threaded housing; small ball joints use a ball stud in a socket — simpler and more compact, for low-to-moderate-load control and positioning linkage. These are light industrial/equipment small ball joints (throttle, governor, mower, actuator linkage), not automotive suspension small ball joints.
Note on Usage: These are light control linkage joints. For structural/suspension loads use rod ends — exact load and dimensions are on each spec page.
Series Overview
Product Series Breakdown
Compare our four core light-duty ball joint models built for specific retention and sealing needs.
ES Series
Inch StakedInch carbon steel small ball joints in a permanently staked design. Includes a rubber grommet for vibration damping and dust seal. Lawn/garden standard.
QD Series
Inch QDInch carbon steel quick-disconnect with spring-loaded release. Stainless steel spring allows rapid tool-free detaching.
QI Series
Inch Push-BtnInch carbon steel quick-release with a push-button positive lock. Offers tool-free detachment with maximum safety against accidental release.
Series Quick Reference Matrix
| Series | Standard | Retention Mechanism | Seal / Dust Cap | Thread Range |
|---|---|---|---|---|
| CS | Metric | Spring clip | Optional sealing cap | M8×1.25 – M10×1.5 |
| ES | Inch | Staked (permanent) | Rubber grommet | 10-32 to 5/8-18 |
| QD | Inch | Spring-loaded release | None (exposed) | 10-32 to 1/2-20 |
| QI | Inch | Push-button positive lock | None (exposed) | 10-32 to 1/2-20 |
How to choose
Retention-Based Selection Guide
These four series mostly differ in how the ball stud is held — choose by service frequency and environmental exposure.
- A
Need tool-free connect/disconnect?
Choose QD (spring release) or QI (push-button lock). QI’s positive lock resists accidental release better than QD’s spring clip.
- B
Need permanently sealed & vibration-isolated?
Choose ES (staked, rubber grommet). Never meant to separate in service; the rubber grommet seals out dust and damps engine vibration.
- C
Need metric spring-clip retention with high misalignment?
Choose CS. Retained but removable with effort; 36° misalignment angle is ideal for linkages swinging through wide arcs.
Important Application Advice
A consistent caveat: these are light control-linkage joints, not load-bearing suspension parts. If the joint carries structural or heavy shock load, step up to a rod end.
When ordering, please confirm: ball stud diameter, thread size & pitch, socket configuration, quick-release mechanism choice, ball-stud angle, finish plating, and boot/grommet requirements.
Applications
Where SYZ Small Ball Joints Perform
Commonly specified across control linkages, engines, and mechanical systems.
| Application Area | Recommended Series |
|---|---|
| Riding mower deck-height / steering linkage | QD, ES |
| Small-engine throttle / governor linkage | ES, CS |
| Carburetor choke/throttle linkage | ES, CS |
| Cable & pedal controls | QD, QI |
| Light automation actuator linkage | CS, QD |
| Frequently-serviced / quick-change linkage | QD, QI |
FAQ
Common Questions
What is a quick-disconnect ball joint?
A ball joint with a spring-loaded retainer (QD) or push-button positive lock (QI) that lets the ball stud connect and release by hand without tools, threading or bolts, ideal for frequently adjusted or detached linkage.
Are these the same as automotive suspension small ball joints?
No. These are light industrial control-linkage small ball joints (CS, ES, QD, QI). Automotive suspension small ball joints are a different, much higher-load category.
What’s the rubber grommet on the ES series for?
It seals the ball-socket interface against dust and moisture, retains grease, and damps vibration between ball stud and housing, useful on small-engine throttle linkage.
What is the difference between CS, ES, QD and QI small ball joints?
CS is metric with a spring clip; ES is inch staked with a rubber grommet; QD is inch quick-disconnect with a spring release; QI is inch quick-release with a push-button positive lock.
Can small ball joints replace rod ends?
Only in light-duty, non-structural control linkage. For suspension, steering or load-bearing links, use rod ends.
