CS Series — Metric Small Ball Joints
CS Series
Metric Small Ball Joints
Metric Sizes · Sealing Cap Optional · Stainless Optional · Zinc-Plated Carbon Steel Construction
8
Available Sizes
4
Image Views Included
Full Spec Range
Search by spec.

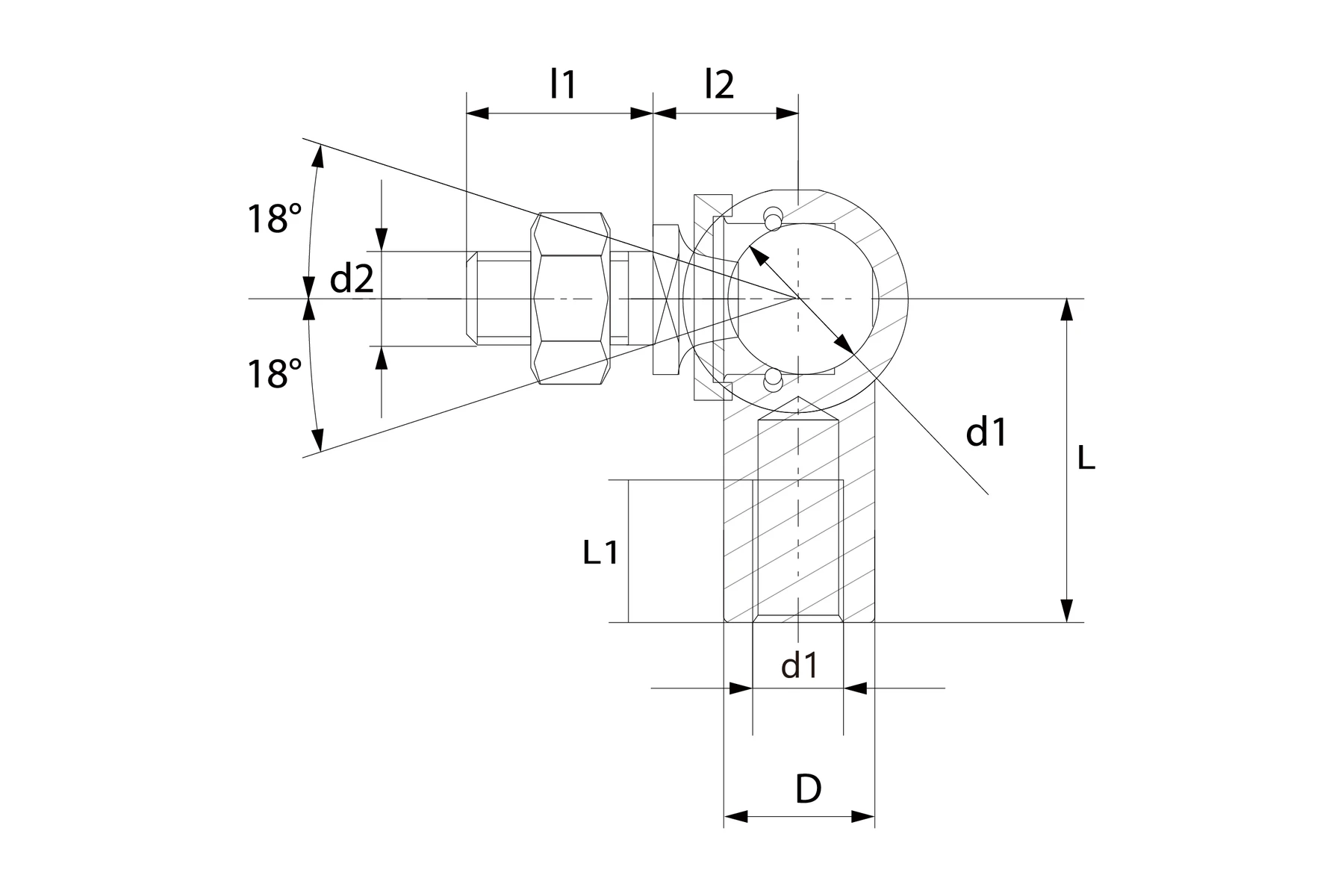

| Type | Part No. | Thread d1 | Thread d2 | Ball Dia d1 | L | L1 | l1 | l2 | D | a° | Weight | Qty | |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| CS Metric | CSM5 | M5X0.8 | M5X0.8 | 8 | 22 | 10.2 | 10.2 | 9 | 8 | 36 | 15.2 | ||
| CS Metric | CSM6 | M6X1.0 | M6X1.0 | 10 | 25 | 11.5 | 12.5 | 11 | 10 | 36 | 25.2 | ||
| CS Metric | CSM8 | M8X1.25 | M8X1.25 | 13 | 30 | 14.0 | 16.5 | 13 | 13 | 36 | 53.1 | ||
| CS Metric | CSM10 | M10X1.5 | M10X1.5 | 16 | 35 | 15.5 | 20.0 | 16 | 16 | 36 | 103.8 | ||
| CS Metric | CSM12 | M12X1.75 | M12X1.75 | 16 | 35 | 15.5 | 20.0 | 16 | 16 | 36 | 103.8 | ||
| CS Metric | CSM14 | M14X1.5 | M14X1.5 | 22 | 45 | 21.5 | 28.0 | 22 | 19 | 36 | 220.9 | ||
| CS Metric | CSM14x2.0 | M14X2.0 | M14X2.0 | 22 | 45 | 21.5 | 28.0 | 22 | 19 | 36 | 220.9 | ||
| CS Metric | CSM16 | M16X1.75 | M16X1.75 | 22 | 45 | 21.5 | 28.0 | 22 | 19 | 36 | 220.9 |
Technical Spec.
- Housing: Carbon steel 1020 for compact linkage housings with zinc-plated protection.
- Ball Stud: Carbon steel 1045 for dependable articulated stud performance.
- Clip: Spring steel retention clip for secure assembly.
- Seal: Sealing cap optional when extra dust protection is required.
Notes
- Stainless material available: add
Sto the prefix, for exampleSCSM10. - Left-hand thread available: add
LHwhere applicable for the required direction. - Sealing cap optional: confirm cap requirement when requesting quotation for dusty or splash-exposed service.
