CBL-DP — Standard Replacement Balls
10 sizes, bore 0.190″–1.000″. Use CBL-DP when rebuilding a worn rod end or spherical bearing; match the original bore, OD and width to the race.
Hardened Chrome Steel Balls for Rod Ends & Bearings
Rod End Balls — CBL-DP & High-Misalignment HMBL
SYZ rod end balls are precision-ground, heat-treated, hard-chrome-plated 52100 bearing-steel balls for spherical-bearing rebuilds and high-misalignment joint builds. The CBL-DP and HMBL series cover 23 sizes from bore 0.190″ to 1.500″, with 440C stainless available when corrosion resistance is required.
52100 chrome
440C optional
Precision ground
Heat-treated
2 series · 23 sizes
CBL-DP + HMBL
0.190″–1.500″
Bore range
Material Certs Available
Sample to Full-Container
Factory Direct Sourcing
Bore × OD size charts
ISO 9001:2015 Quality
Overview
What Are These Steel Balls?
These are the spherical ball element used inside rod ends and spherical bearings — supplied separately for repair/rebuild or for building high-misalignment joints. Material is 52100 bearing steel (heat-treated, precision-ground, hard chrome plated), with 440C stainless as an option for corrosion resistance.
Replacement & Rebuild Use
These balls are supplied as the actual spherical running element for rod-end and spherical-bearing rebuild work, not as generic loose hardware.
Misalignment Tuning
HMBL balls are sized specifically to increase articulation angle in the joint, making them useful when a standard ball limits suspension or linkage travel.
Product Offerings
CBL-DP & HMBL Rod End Ball Series

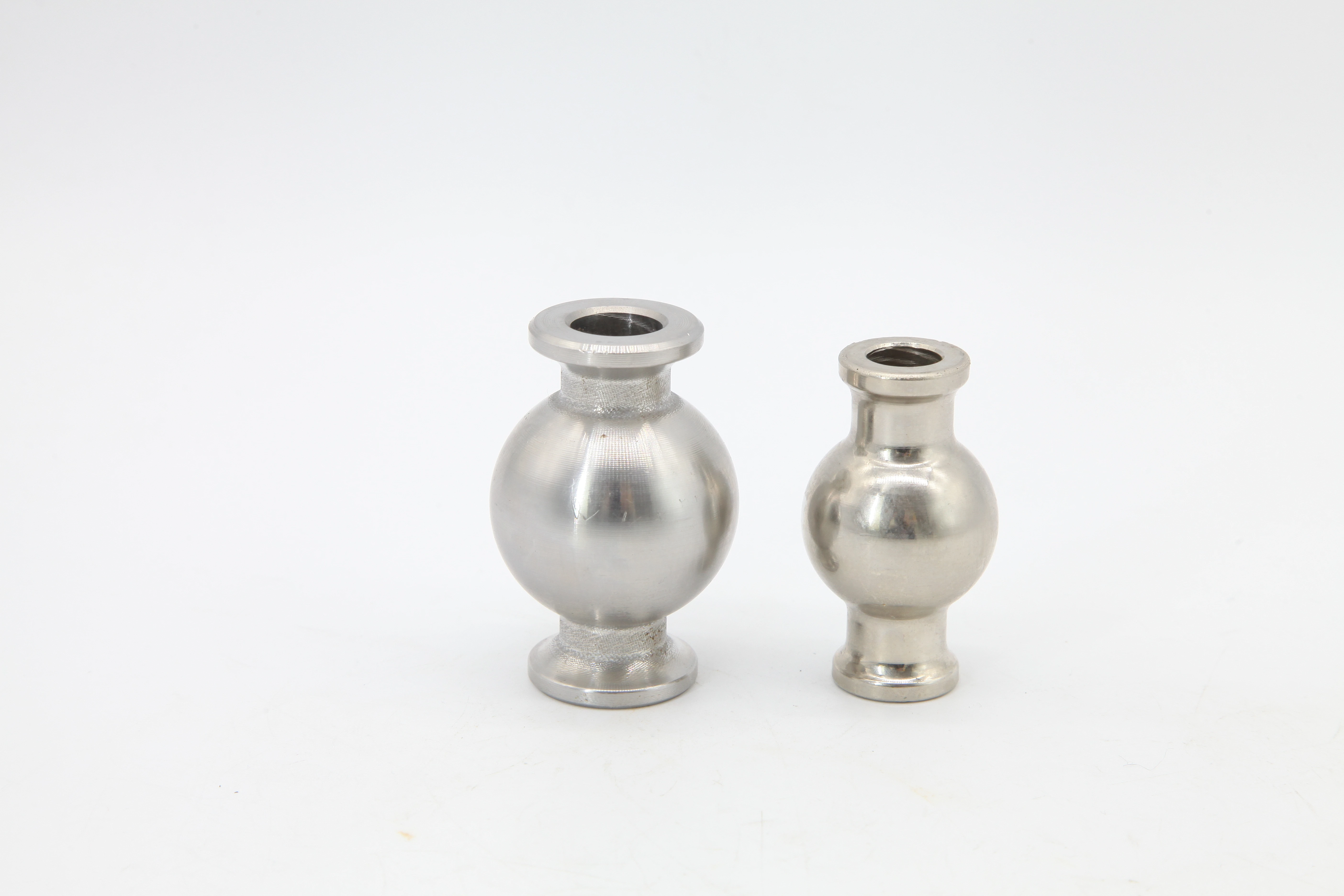

HMBL — High-Misalignment Balls
13 sizes, bore 0.190″–1.500″. The profiled ball works with high-misalignment spacers to give the joint more articulation before binding; confirm the complete stack on the spec page.
| Bore | CBL-DP OD | HMBL OD |
|---|---|---|
| 0.190″ | 0.437″ | 0.437″ |
| 0.250″ | 0.500″ | 0.593″ |
| 0.3125″ | 0.625″ | 0.593″ |
| 0.375″ | 0.719″ | 0.781″ |
| 0.4375″ | 0.812″ | 0.875″ |
| 0.500″ | 0.937″ | 1.000″ |
| 0.625″ | 1.125″ | 1.250″ |
| 0.750″ | 1.312″ | 1.375″ |
| 0.875″ | 1.375″ | 1.531″ |
| 1.000″ | 1.875″ | 1.875″ |
| 1.250″ | — | 2.250″ |
| 1.500″ | — | 2.672″ |
Published dimensions are a selection reference; confirm the exact ball width, tolerances, finish and mating race on the applicable CBL-DP or HMBL specification page.
Engineering Guide
Selection Guide
01
Rebuilding a Joint → CBL-DP
Replacing a worn ball in a rod end or spherical bearing — match the original bore and size with a CBL-DP precision replacement ball.
02
More Articulation → HMBL
Need a wider misalignment angle — use an HMBL high-misalignment ball, typically paired with high-misalignment spacers.
03
Corrosive Environment → 440C
Marine, washdown or chemical exposure — specify the 440C stainless option for both CBL-DP and HMBL series.
04
Match Bore, OD and Width
Match bore to your bearing/rod end, OD and width to the housing race; confirm finish and dimensions on the spec page.
Industrial Uses
Applications
Rod end and spherical bearing rebuilds, high-misalignment suspension joints, OEM bearing assembly, and maintenance kits.
Rod End & Bearing Rebuilds
Replacing worn balls in existing rod ends or spherical bearings to restore zero-play operation without replacing the entire bearing assembly.
CBL-DP standard replacement
High-Misalignment Suspension Joints
Building high-articulation joints in off-road, motorsport or industrial suspension where the stock ball limits the angular range needed.
HMBL + misalignment spacers
OEM Bearing Assembly
Supplying precision balls into OEM rod end or bearing housing production runs where consistent grade and finish are required.
Bulk OEM supply
Maintenance Kits
Service kits combining replacement balls and hardware for scheduled maintenance programmes in agriculture, construction and machinery.
Service & maintenance
Material Science
Why 52100 + Hard Chrome (the metallurgy that matters)
52100 is a high-carbon chromium bearing steel selected for hardened, wear-resistant ball elements. Hard chrome adds a low-friction running surface; the 440C stainless option is available where corrosion resistance is the priority, while precision grinding keeps the ball seated true in the race.
Published alloy properties are general; confirm per-part dimensions and tolerances on the applicable specification page.
Maintenance Guide
When to Replace the Ball — and Sizing It Right
The ball is a wear item in greased metal-to-metal joints. Replace it when you feel play (radial knock) or see scoring/flat spots/pitting on the ball or race — running a worn ball quickly ruins the race too.
| Pitfall | Result | Avoid by |
|---|---|---|
| Wrong ball OD/width for the race | Loose fit (play) or won’t seat | Match OD and width to the original race, not just the bore |
| Bore too large for the bolt | Slop, accelerated wear | Match bore to the actual pin/bolt |
| 52100 in a wet/salt environment | Corrosion, pitting | Specify the 440C stainless option |
| Reusing a worn race with a new ball | New ball wears fast | Inspect/replace the race too; consider a full bearing |
For a higher-articulation rebuild, swap a standard CBL-DP for an HMBL high-misalignment ball and add misalignment spacers — together they let the joint tilt further before binding.
FAQ
Common Questions
What material are SYZ steel balls?
52100 bearing steel — heat-treated, precision-ground, hard chrome plated. 440C stainless is available for corrosion resistance.
What’s the difference between CBL-DP and HMBL?
CBL-DP are standard precision replacement balls; HMBL are high-misalignment balls shaped to allow a rod end to articulate to a wider angle.
Can I use these to rebuild a rod end?
Yes — match the ball bore and size to the original. For more angle, combine an HMBL ball with high-misalignment spacers.
Are stainless balls available?
Yes — specify the 440C stainless option for corrosive or washdown environments.
What sizes are available?
Bore 0.190″–1.500″ across 23 sizes: CBL-DP covers 10 sizes to 1.000″ and HMBL covers 13 sizes to 1.500″. See the spec pages for exact dimensions.
Can I buy balls in bulk for my own rod end production?
Yes. SYZ can supply CBL-DP and HMBL balls for OEM assembly, service kits and repeat production. Send the bore, OD, width, material/finish and annual quantity for a bulk quote.
Complete the Link
Build the Complete Ball-and-Housing Stack
SG / HMS Spacers
Pair an HMBL ball with SG or HMS high-misalignment spacers for more articulation in the assembled joint.
Uniball Cups
Weld-in 4130 housings sized for the matching spherical bearing and ball stack.
Spherical Plain Bearings
Use the bearing spec to confirm the race, bore and fit around the replacement ball.
Rod Ends & Heim Joints
Start with the complete rod-end family when the ball is part of a new linkage assembly.
