Compact ball-stud joints for control linkage

Small Ball Joints

Find compact ball-stud joints for light control and positioning linkage, including CS DIN 71802 angled ball joints, AIM axial ball joints equivalent to GN 71802.1, ES grommet style ball joints, QD quick disconnect ball joints with inner spring, and QI quick disconnect ball joints with outer spring. Use the series sections below to compare geometry, release style, sealing and size charts before requesting a quote.

Request Quote Compare 5 Series

5 Series

CS / AIM / ES / QD / QI

DIN 71802

Angled ball joint

GN 71802.1

Axial equivalent

Quick Release

QD / QI options

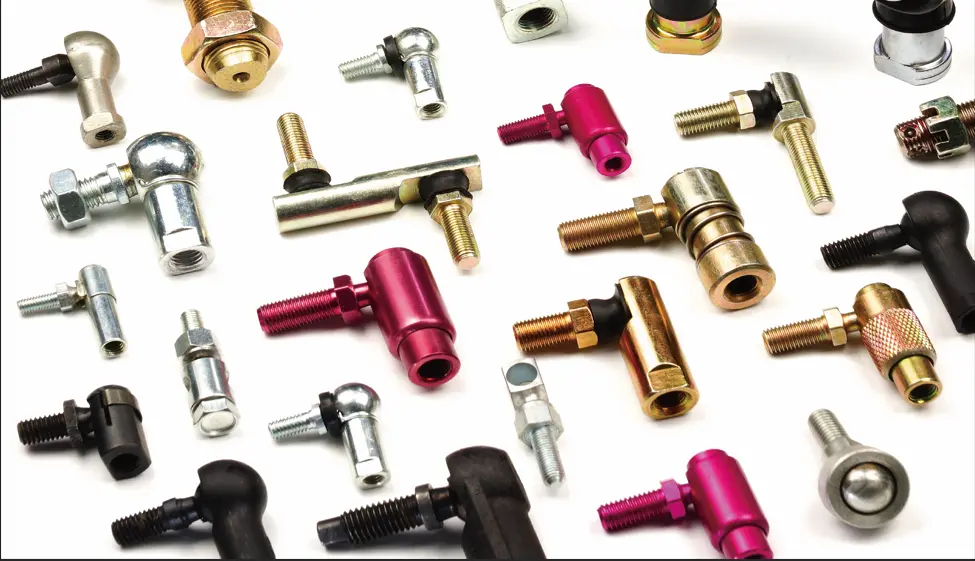

SYZ small ball joints all series including CS AIM ES QD QI

ISO 9001:2015 Certified

Factory Direct Pricing

15-30 Day Lead Time

26 Years Manufacturing

OEM-Grade Tolerances

Definition

What Are Small Ball Joints?

Small ball joints are smaller, lighter articulating linkage joints distinct from rod ends. Rod ends use a spherical bearing in a threaded housing; small ball joints use a ball stud in a socket – simpler and more compact, for low-to-moderate-load control and positioning linkage. These are light industrial/equipment small ball joints, not automotive suspension small ball joints.

Note on Usage: These are light control linkage joints. For structural or suspension loads, confirm the required load rating and consider a rod end or engineered suspension joint.

Series Overview

Small Ball Joint Series Breakdown

Compare DIN 71802 angled ball joints, axial ball joints, grommet style ball joints and two quick disconnect ball joint layouts by geometry, retention method and service access.

CS Series · Metric angled ball joint

CS Series DIN 71802 Angled Ball Joint

CS series DIN 71802 angled ball joints use a 90-degree ball stud and compact socket housing to connect and guide moving linkage parts in tight assemblies. The angled layout simplifies throttle linkage, control rods, mower steering, actuator links and other compact mechanisms where a straight rod end is too large or too complex.

Socket: carbon steel, tensile strength class 5, zinc plated and colorless passivated.
Ball: hardened steel with lubricated ball seat; stainless steel versions are available.
90-degree structure helps eliminate extra brackets or levers while maintaining tensile and compressive strength.

Choose DIN 71802 angled ball joint by spec

DIN 71802 angled ball joint with threaded ball stud

Spec size chart

Part NO.	THREAD d1	THREAD d2	Ball Dia d1	L +0.3 -0.3	L1 +0.3 -0.3	l1 +0.3 -0.3	l2 +0.3 -0.3	D	a°	APPROX WEIGHT (g)
CSM5	M5X0.8	M5X0.8	8	22	10.2	10.2	9	8	36	15.2
CSM6	M6X1.0	M6X1.0	10	25	11.5	12.5	11	10	36	25.2
CSM8	M8X1.25	M8X1.25	13	30	14.0	16.5	13	13	36	53.1
CSM10	M10X1.5	M10X1.5	16	35	15.5	20.0	16	16	36	103.8
CSM12	M12X1.75	M12X1.75	16	35	15.5	20.0	16	16	36	103.8
CSM14	M14X1.5	M14X1.5	22	45	21.5	28.0	22	19	36	220.9
CSM14x2.0	M14X2.0	M14X2.0	22	45	21.5	28.0	22	19	36	220.9
CSM16	M16X1.75	M16X1.75	22	45	21.5	28.0	22	19	36	220.9

CS DIN 71802 angled ball joint technical drawing

AIM Series · Metric axial ball joint

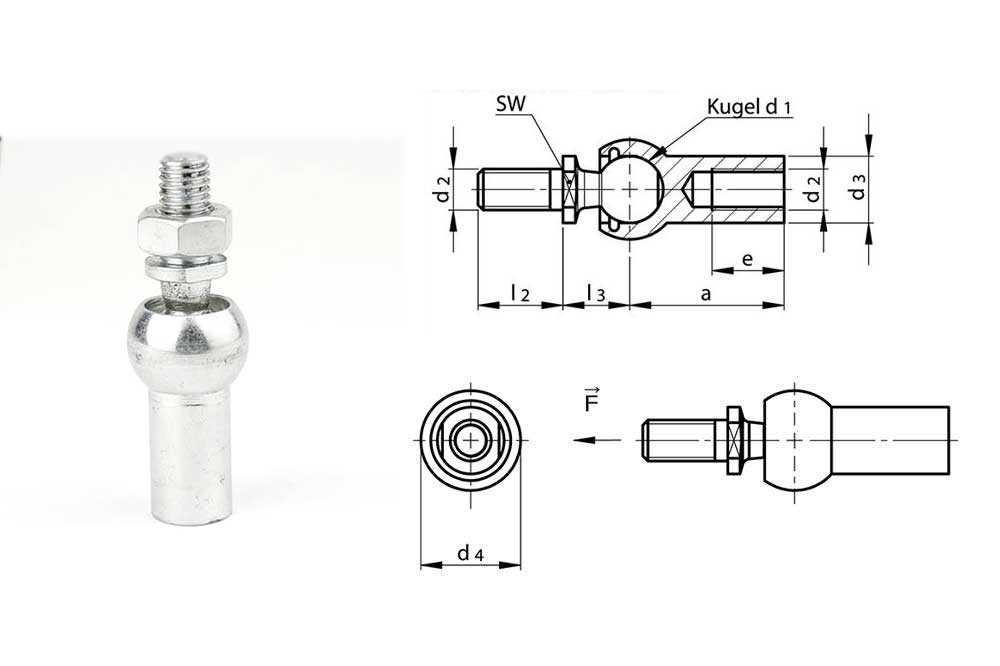

AIM Series Axial Ball Joint Equivalent to GN 71802.1

AIM axial ball joints are compact metric ball-and-socket joints for push-pull force transfer along the axis of the connecting rod. They are a practical axial ball joint equivalent to GN 71802.1 when a direct mechanical linkage must transmit tensile and compressive force while still compensating for angular misalignment.

Optimized for axial force transmission with minimal power loss through the ball stud centerline.
The ball stud pivots within a defined conical angle and allows 360-degree rotation inside the socket.
Carbon steel socket and hardened lubricated ball are standard; stainless material options are available.

Choose axial ball joint by spec

Spec size chart

Part No.	Ball d1	Thread d2	a +/-0.3	d3 +/-0.5	d4 +/-0.5	e min.	l2 +/-0.3	l3 +/-0.3	SW h14	Pull-out force F (N)
AIM5	8	M5	22	8	12.8	10.2	10.2	9	7	30
AIM6	10	M6	25	10	14.8	11.5	12.5	11	8	40
AIM8	13	M8	30	13	19.3	14	16.5	13	11	60
AIM10	16	M10	35	16	24	15.5	20	16	13	80
AIM12	16	M12	35	16	24	15.5	20	16	13	80
AIM14*1.5	19	M14*1.5	45	22	30	21.5	28	20	16	100
AIM14	19	M14	45	22	30	21.5	28	20	16	100
AIM16	19	M16	45	22	30	21.5	28	20	16	100

ES Series · Inch grommet style ball joint

ES Series Grommet Style Ball Joint

ES series grommet style ball joints are swaged around the ball for metal-to-metal contact with controlled play. A rubber grommet acts as an effective seal against debris, making this series common in lawn and garden equipment, motorsports, agricultural equipment, construction equipment and aftermarket linkage assemblies.

Rubber grommet improves sealing, grease retention and vibration damping.
Carbon steel ball stud and body with zinc plating for corrosion resistance.
Right-hand and left-hand thread options support OEM and replacement linkage programs.

Choose grommet style ball joint by spec

Grommet style ball joint for lawn mower steering linkage

Linkage ball joint with anti-dust rubber boot

Spec size chart

PART NO.	M	M1	L	G	F	P	N	C
ES187	10-32-2B	10-32-2A	0.375	0.438	0.438	0.438	0.875	1.063
ES250	1/4-28-2B	1/4-28-2A	0.438	0.563	0.469	0.500	0.969	1.219
ES312	5/16-24-2B	5/16-24-2A	0.500	0.688	0.531	0.563	1.125	1.406
ES375	3/8-24-2B	3/8-24-2A	0.625	0.875	0.688	0.750	1.375	1.688
ES438	7/16-20-2B	7/16-20-2A	0.750	1.125	0.875	1.000	1.938	2.375
ES500	1/2-20-2B	1/2-20-2A	0.750	1.125	0.875	1.000	1.938	2.375
ES625	5/8-18-2B	5/8-18-2A	0.875	1.125	1.000	1.000	2.063	2.578

ES grommet style ball joint technical drawing

QD Series · Inch quick disconnect ball joint

QD Series Quick Disconnect Ball Joint – Inner Spring

QD quick disconnect ball joints, also called quick release ball joints, are designed for linkages where the housing must be detached from the ball stud quickly. Pulling back the spring-loaded outer housing releases the joint without threading or tools, reducing service time on frequently adjusted assemblies.

Inner spring quick-disconnect mechanism for fast tool-free removal.
Ball stud, body and sleeve use zinc-plated carbon steel for corrosion resistance.
Stainless steel spring is standard; stainless steel and aluminum material options can be supplied.

Choose quick disconnect ball joint by spec

Aluminum quick release ball joint option

Spec size chart

PART NO.	D1	D2	A	C	F	G	J	L	M	N	P
QD187	10-32-2B	10-32-2A	0.125	0.063	0.438	0.438	0.313	0.438	1.094	0.906	0.438
QD250	1/4-28-2B	1/4-28-2A	0.125	0.063	0.469	0.562	0.375	0.562	1.250	0.969	0.531
QD315	5/16-24-2B	5/16-24-2A	0.156	0.094	0.531	0.687	0.437	0.625	1.453	1.125	0.605
QD375	3/8-24-2B	3/8-24-2A	0.187	0.094	0.687	0.875	0.500	0.750	1.750	1.375	0.812
QD500	1/2-20-2B	1/2-20-2A	0.250	0.094	0.875	1.125	0.625	1.000	2.530	2.030	1.000

QD quick disconnect ball joint technical drawing

QI Series · Inch quick release ball joint

QI Series Quick Disconnect Ball Joint – Outer Spring

QI series quick disconnect ball joints use an outer spring quick-release layout for compact inch linkage systems that require frequent service access. The configuration supports easy hand disconnection while keeping the ball stud and socket package small for throttle, cable and pedal controls.

Outer spring quick-release design for compact linkage access.
Zinc-plated carbon steel ball stud, body and sleeve with stainless steel spring.
Stainless steel and aluminum materials are available for application-specific programs.

Choose quick release ball joint by spec

Spec size chart

PART NO.	D1	D2	A	F	G	J	L	M	N	P
QI187	10-32-2B	10-32-2A	0.125	0.438	0.438	0.313	0.438	1.094	0.906	0.438
QI250	1/4-28-2B	1/4-28-2A	0.125	0.469	0.562	0.375	0.562	1.250	0.969	0.531
QI312	5/16-24-2B	5/16-24-2A	0.156	0.531	0.687	0.437	0.625	1.453	1.125	0.605
QI375	3/8-24-2B	3/8-24-2A	0.187	0.687	0.875	0.500	0.750	1.750	1.375	0.812
QI500	1/2-20-2B	1/2-20-2A	0.250	0.875	1.125	0.625	1.000	2.530	2.030	1.000

QI quick disconnect ball joint technical drawing

Series Quick Reference Matrix

Series	Product name	Standard / Geometry	Retention / Seal	Best-fit use
CS	DIN 71802 angled ball joint	Metric 90-degree angled	Safety catch / optional dust cap	Compact metric control linkage
AIM	Axial ball joint equivalent to GN 71802.1	Metric axial push-pull	Socket retained axial ball stud	Direct axial force transfer
ES	Grommet style ball joint	Inch staked body	Rubber grommet seal	Lawn, garden and small-engine linkage
QD	Quick disconnect ball joint – inner spring	Inch quick-disconnect	Spring-loaded release	Frequently serviced linkage
QI	Quick disconnect ball joint – outer spring	Inch quick-release	Outer spring release	Cable, pedal and compact quick-release linkage

Related Components

Ball Studs, Ball Sockets and Linkage Hardware

SYZ can supply the small ball joint itself, or the associated DIN ball studs, DIN ball sockets and complete linkage hardware around it.

How to choose

Choose by Geometry, Release Method and Environment

Start with the movement direction and service requirement, then confirm dimensions on the dedicated spec page.

1. Geometry first

Use CS for 90-degree angled linkage. Use AIM when the load must travel along the rod axis. Use ES, QD or QI when inch replacement geometry matches your equipment.

2. Service access

QD and QI are best where the linkage is disconnected often. ES is a staked, sealed style for more permanent assemblies. CS and AIM suit compact metric mechanisms.

3. Environment and material

Zinc-plated carbon steel is standard. Select rubber grommets, dust caps, stainless steel or aluminum options when corrosion, debris, vibration or weight is critical.

Applications

High-Performance Ball Joint Linkages for Multiple Applications

Small ball joints are used wherever compact articulation, misalignment compensation and reliable light-to-medium motion transfer are required.

Material Handling & General Linkages

Smooth and accurate motion transfer in sorting, positioning and lifting mechanisms on automated production lines and logistics equipment.

Agricultural & Heavy Machinery

Flexible connection points for implement controls, hydraulic-arm linkages and equipment subject to vibration and outdoor duty.

Solar Energy Systems

Rotational tracking and misalignment compensation in solar fields where linkage movement and thermal expansion must be controlled.

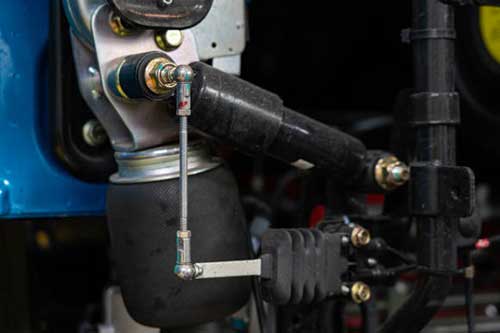

Automotive Suspension & Steering Linkages

Light steering, pedal and control linkages where compact ball-stud articulation is required; structural suspension joints require separate engineering review.

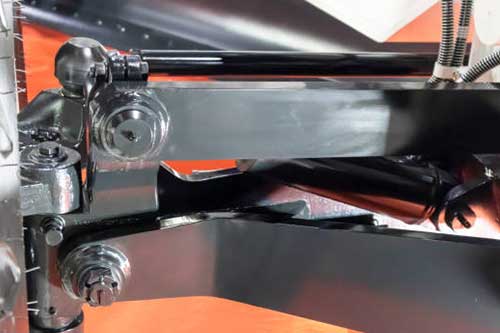

Hydraulic Damper Linkages

Smooth articulation and reliable force transfer under dynamic movement in damper and control assemblies.

Garden Machinery & Lawn Equipment

Throttle control, steering and deck-height adjustment linkages for lawn mowers, weeders and outdoor power equipment.

Manufacturing

How SYZ Manufactures Small Ball Joints

From ball stud blanks to final assembly, the process focuses on strength, surface finish, corrosion resistance and controlled movement without excessive axial play.

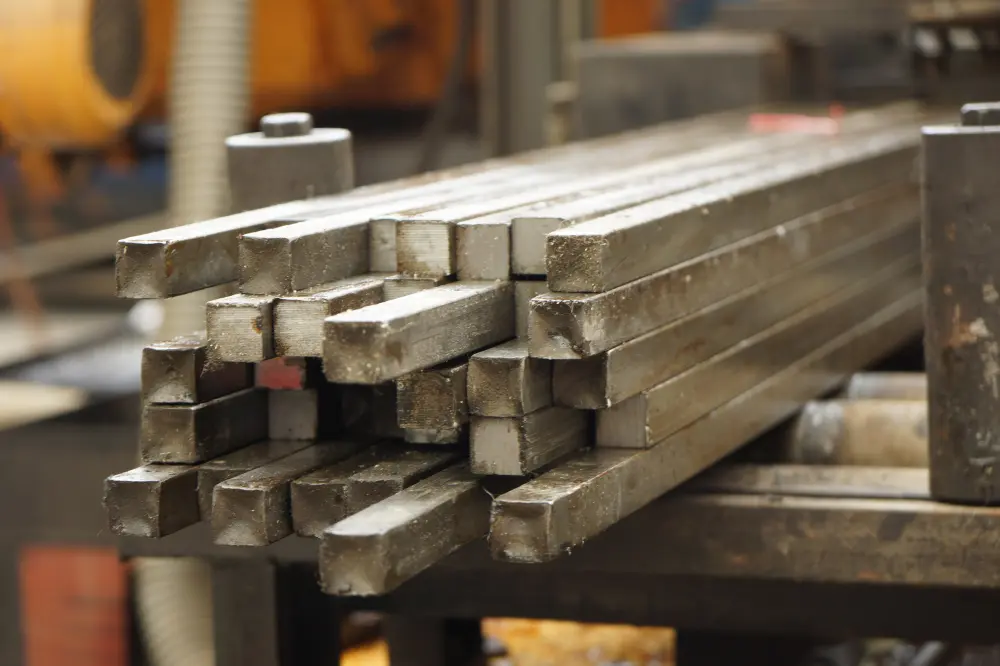

Forging or Bar-Cutting of Blanks

Ball studs may be hot forged to improve grain structure and strength, or bar stock may be cut for smaller production runs. Housings are cold-formed or cut from tube stock to create an economical near-net shape before machining.

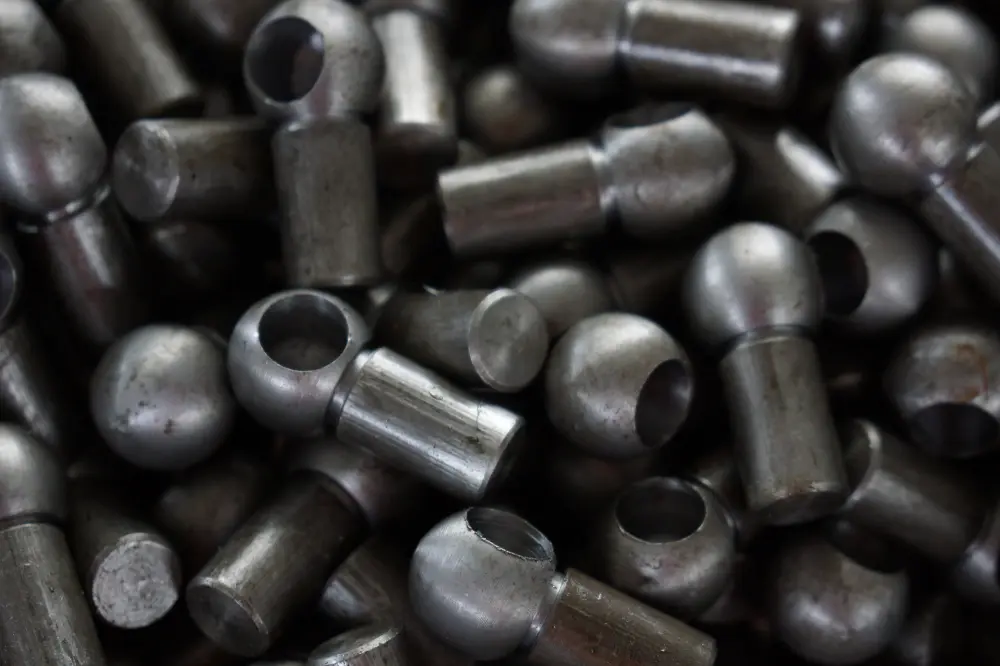

CNC Machining of Stud and Housing

Precision turning, milling, grinding and polishing create the spherical head, threaded shank and socket features. Tight tolerance control supports smooth articulation and stable fit.

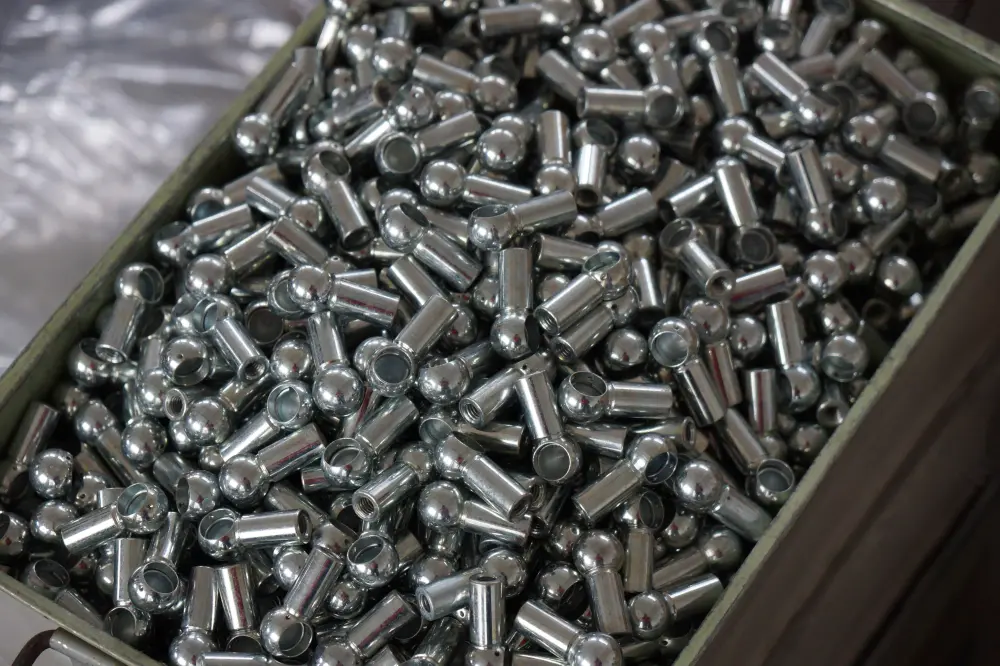

Surface Treatment

Zinc plating, black oxide, phosphating, passivation or friction-reducing coatings can be selected according to corrosion, friction and service-life requirements.

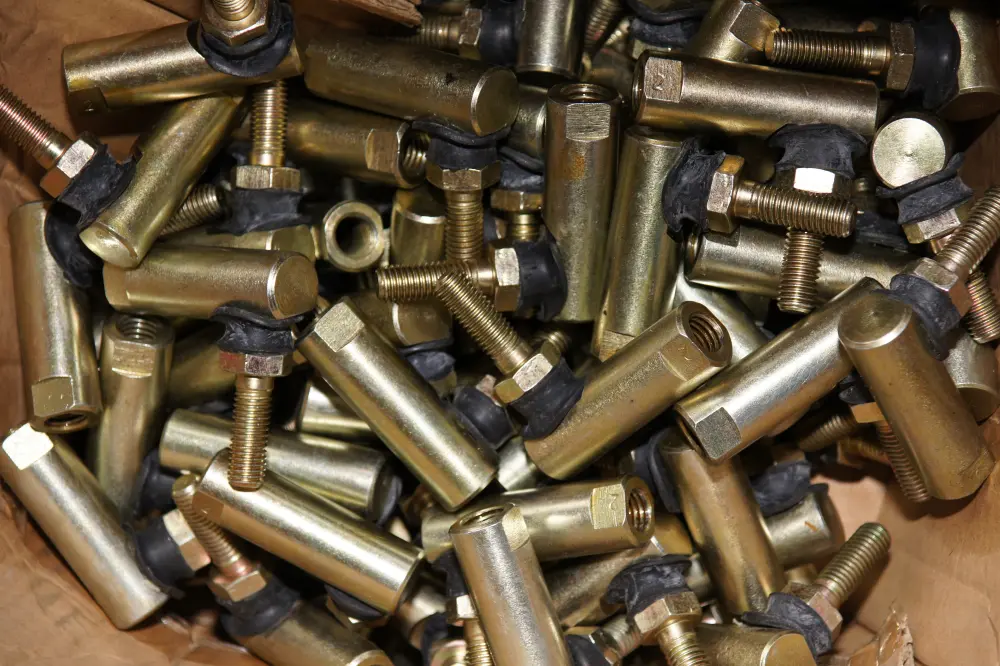

Assembly of Ball Into Housing

The polished ball stud is inserted into the socket with controlled interference, then retained by press-fitting, staking or swaging while maintaining free motion and limiting axial play.

Quality Control & Testing

Inspection Steps for Reliable Ball Joint Linkages

SYZ combines material checks, dimensional measurement, corrosion testing and movement/load validation to keep small ball joint supply consistent.

Raw Material Inspection

Incoming steel and stainless material checks before machining.

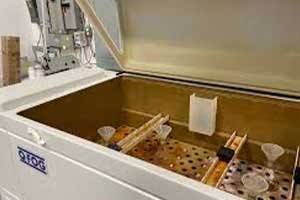

Salt Spray Test

Corrosion resistance evaluation for zinc plating and surface treatments.

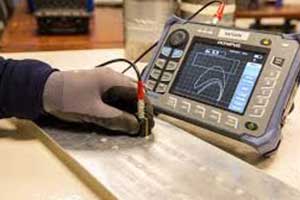

Eddy Current Inspection

Surface crack, pore and defect detection on critical components.

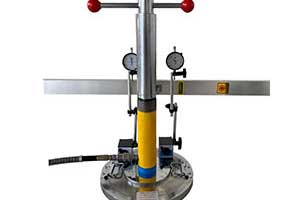

Load-Bearing Capacity Test

Load performance verification for safety and application reliability.

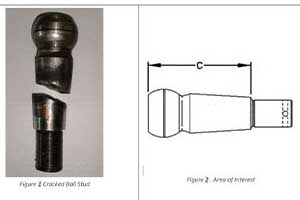

Ball Stud Break Test

Break-load evaluation for severe service conditions.

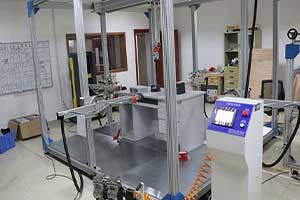

Durability Test

Long-term movement and wear assessment.

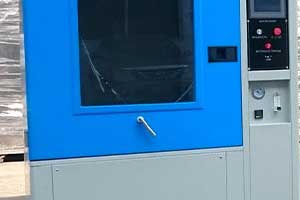

Mud and Water Testing

Environmental exposure checks for outdoor and contaminated conditions.

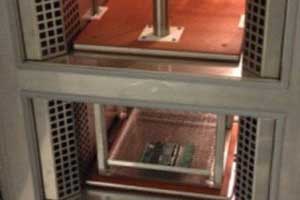

Temperature Cycling Test

Performance verification under severe temperature changes.

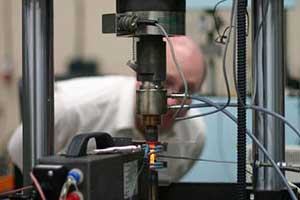

Torque Test

Swing and rotation force checks for ball stud movement.

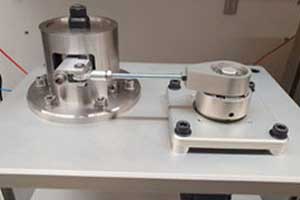

Oscillation Angle Test

Maximum movement angle validation.

Dimension Measurement

Dimensional inspection to prevent assembly failures.

Appearance Inspection

Visual inspection to remove products with surface defects.

One-Stop Solution

Application Kits & Associated Products

Beyond single ball joints, SYZ can help package sockets, studs, rods, cable ends, extension kits and application-specific linkage assemblies for OEM and aftermarket programs.

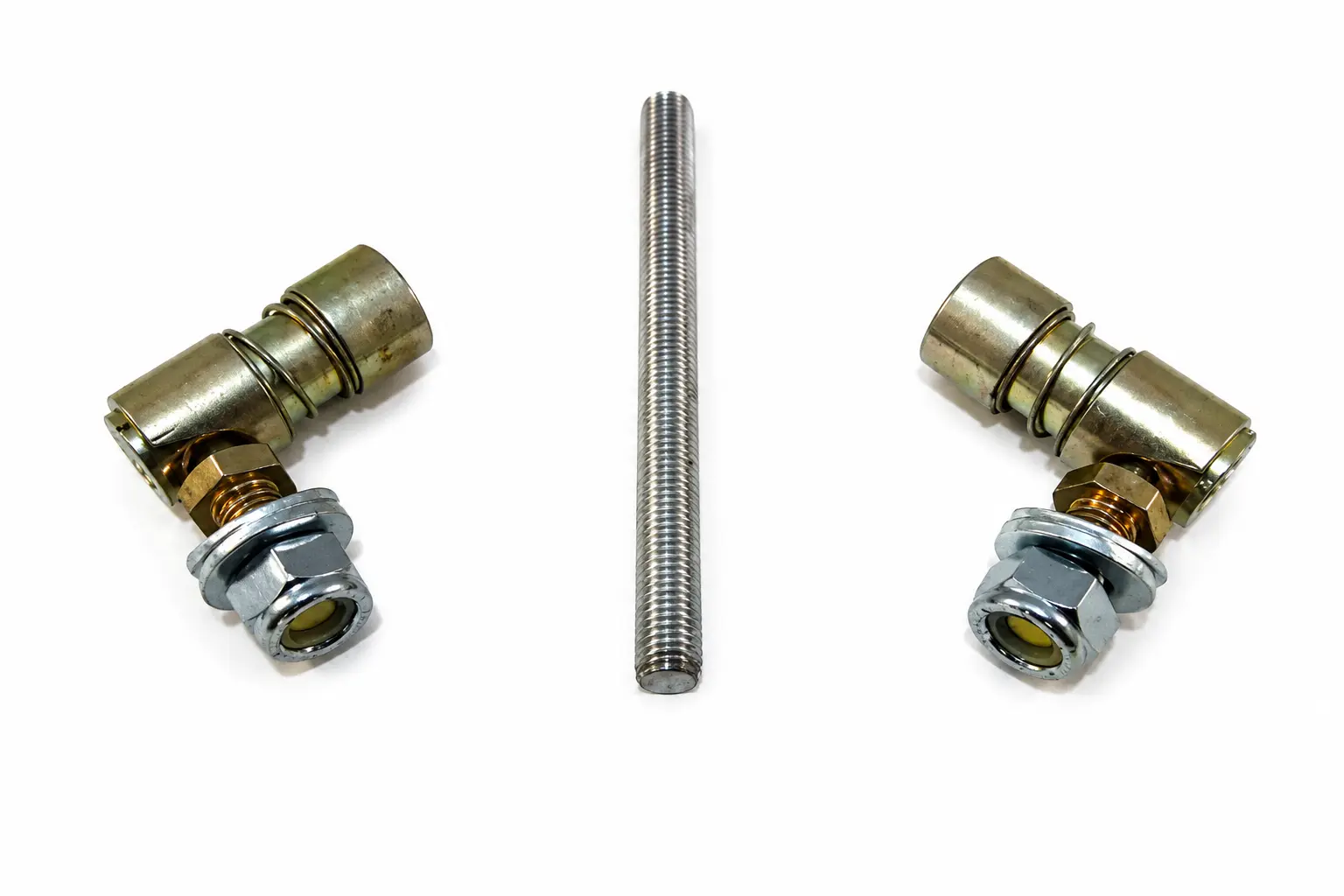

Spider Hill Prop Works Ball Joint Kit

Double ball-joint linkage assemblies, studs and hardware kits for compact motion-control builds.

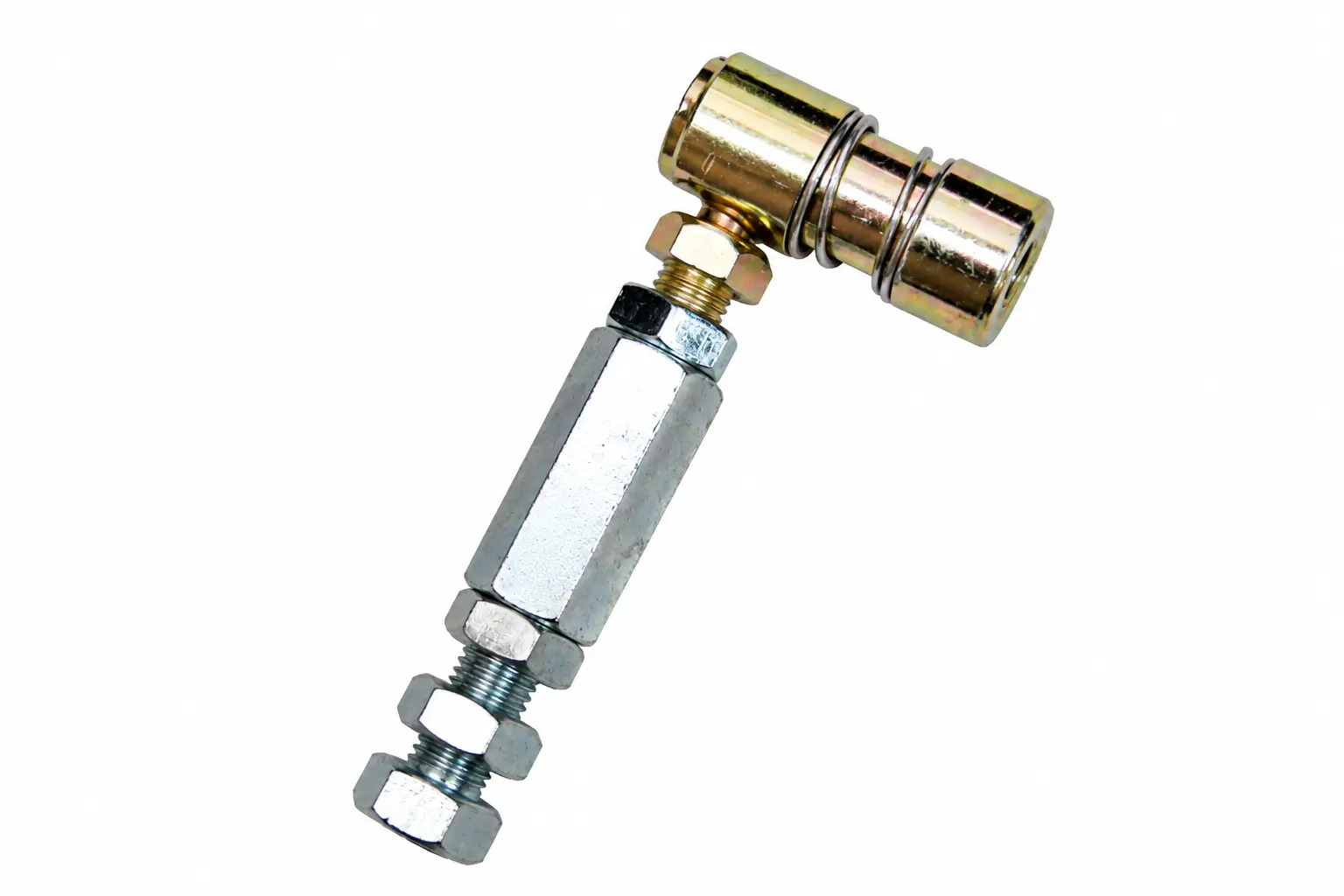

Ball Joint Linkage Extension Kit

Extension rods, sockets and ball studs supplied as matched linkage packages.

Ball Joint Throttle Linkage

Throttle linkage sockets, right-angle ball joints, studs and related hardware for vehicle and small-engine controls.

Shifter Cable Kit

Cable-end hardware and ball-joint linkage options for shifter and control cable assemblies.

FAQ

Common Questions About Small Ball Joints

What is a DIN 71802 angled ball joint used for?+

A DIN 71802 angled ball joint connects and guides moving linkage parts where a compact 90-degree ball-stud joint is needed. It is common in control rods, throttle linkage, actuator linkage and light equipment mechanisms.

What is the difference between DIN 71802 and GN 71802.1 style axial ball joints?+

DIN 71802 angled ball joints use a 90-degree ball stud layout. GN 71802.1 style axial ball joints transmit pushing and pulling force along the rod axis while still compensating for angular misalignment.

Can SYZ supply DIN 71803 ball studs and DIN 71805 ball sockets?+

Yes. SYZ can quote ball studs, ball sockets, sockets with clips and associated linkage hardware as separate components or as part of a complete linkage kit.

What is the difference between QD and QI quick disconnect ball joints?+

QD uses an inner spring quick-disconnect mechanism. QI uses an outer spring quick-release layout. Both support tool-free service access, but the exact style should be matched to available space and release preference.

When should I choose ES grommet style ball joints?+

Choose ES when the linkage benefits from a rubber grommet for dust sealing, grease retention and vibration damping, such as lawn and garden equipment or small-engine control linkage.

Are stainless steel or aluminum ball joint options available?+

Yes. Carbon steel with zinc plating is standard for many series, while stainless steel and aluminum options can be reviewed for corrosion resistance, weight reduction or OEM program requirements.

What information should I provide for a quote?+

Send the series, thread size and pitch, ball diameter, stud style, required finish, quantity, application environment, drawings or samples, and whether associated ball studs, sockets or linkage kits are needed.

Factory Direct

Request a Quote

Submit your ball joint series and quantity requirements. We reply with a complete quote within 24 hours.

Small Ball Joints

What Are Small Ball Joints?

Small Ball Joint Series Breakdown

CS Series DIN 71802 Angled Ball Joint

Spec size chart

AIM Series Axial Ball Joint Equivalent to GN 71802.1

Spec size chart

ES Series Grommet Style Ball Joint

Spec size chart

QD Series Quick Disconnect Ball Joint – Inner Spring

Spec size chart

QI Series Quick Disconnect Ball Joint – Outer Spring

Spec size chart

Series Quick Reference Matrix

Ball Studs, Ball Sockets and Linkage Hardware

DIN 71803 Ball Studs

DIN 71805 Ball Sockets

Choose by Geometry, Release Method and Environment

1. Geometry first

2. Service access

3. Environment and material

High-Performance Ball Joint Linkages for Multiple Applications

Material Handling & General Linkages

Agricultural & Heavy Machinery

Solar Energy Systems

Automotive Suspension & Steering Linkages

Hydraulic Damper Linkages

Garden Machinery & Lawn Equipment

How SYZ Manufactures Small Ball Joints

Forging or Bar-Cutting of Blanks

CNC Machining of Stud and Housing

Surface Treatment

Assembly of Ball Into Housing

Inspection Steps for Reliable Ball Joint Linkages

Raw Material Inspection

Salt Spray Test

Eddy Current Inspection

Load-Bearing Capacity Test

Ball Stud Break Test

Durability Test

Mud and Water Testing

Temperature Cycling Test

Torque Test

Oscillation Angle Test

Dimension Measurement

Appearance Inspection

Application Kits & Associated Products

Spider Hill Prop Works Ball Joint Kit

Ball Joint Linkage Extension Kit

Ball Joint Throttle Linkage

Shifter Cable Kit

Common Questions About Small Ball Joints

Request a Quote

Request a Quote
