Precision Rod Ends
Built for Every
Application
As a China rod ends specialist factory, we’ve been supplying high-quality rod ends, rebuildable joints, spherical bearings, and ball joints for over two decades.
Not sure which spec fits? Our engineers reply within 24 h.
26 Years of Expertise
Rod ends industry expertise ensures application fit and technical guidance.
Free Samples for Test
Free durability-tested samples for product validation before bulk or custom orders.
Flexible MOQ from 50 Sets
Low-volume orders from 50 sets — ideal for prototyping or niche market testing.
Guaranteed Lead Time
Lead time assurance through stable output and flexible production scheduling.
A Rod Ends Specialist,
Backed by SYZ Machine
As a rod ends specialist, we focus on rod ends (also known as “Heim joints”) manufacture. Backed by our parent company, SYZ Machine, and 20+ years of manufacturing expertise, we’ve expanded our product line to include a wide range of aftermarket vehicle parts, such as ball joints, Johnny Joints, control arms, and more suspension parts. Additionally, we offer custom solutions for industrial machinery parts.
Our in-house R&D, prototyping, and testing capabilities are supported by our 35,000 sq.ft. facility, where we ensure high-quality, cost-effective solutions. ISO 9001 and SGS certifications further demonstrate our commitment to excellence in the racing and industrial markets. We also integrate sourcing for bearings and suspension components across China, providing comprehensive support to meet diverse client needs.
55 Categories of Precision Parts

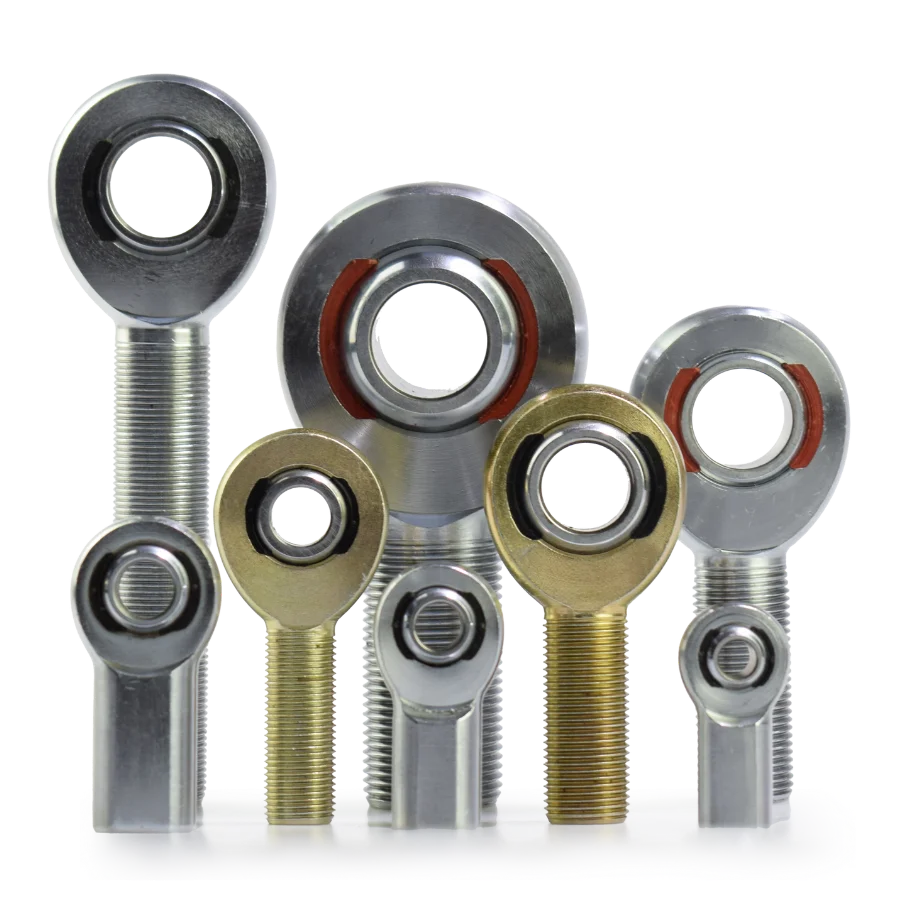

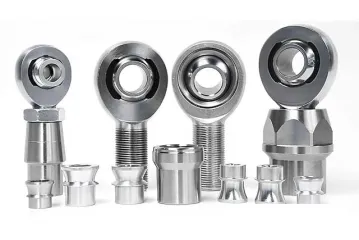

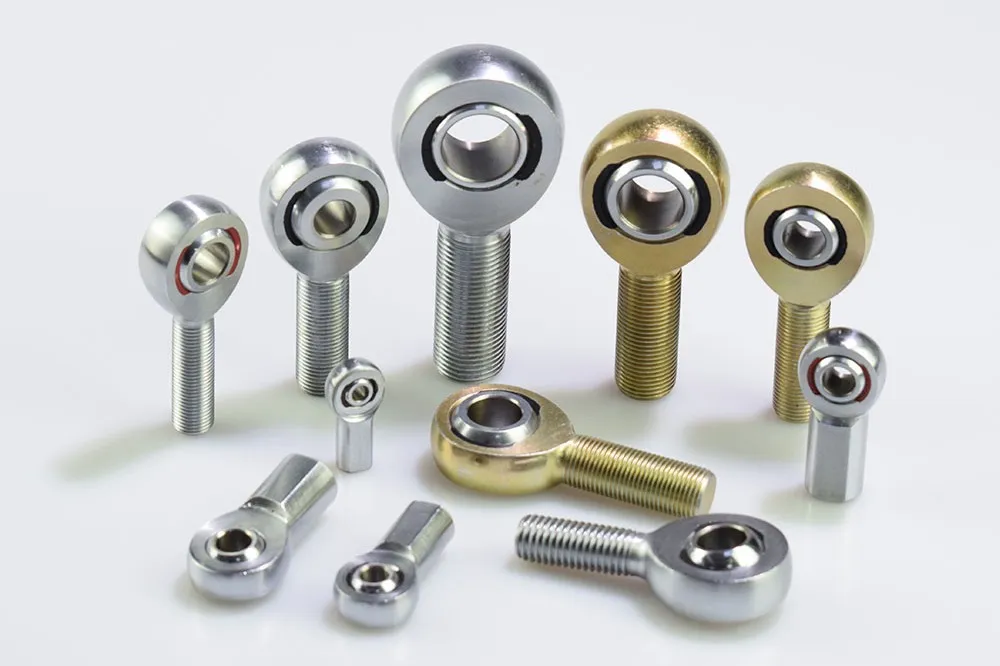

Rod EndsXM & XF Chromoly Steel Rod Ends / Heim Joints
Heavy-Duty Shank · Self-Lubricating PTFE Liner · 4130 Chromoly Body

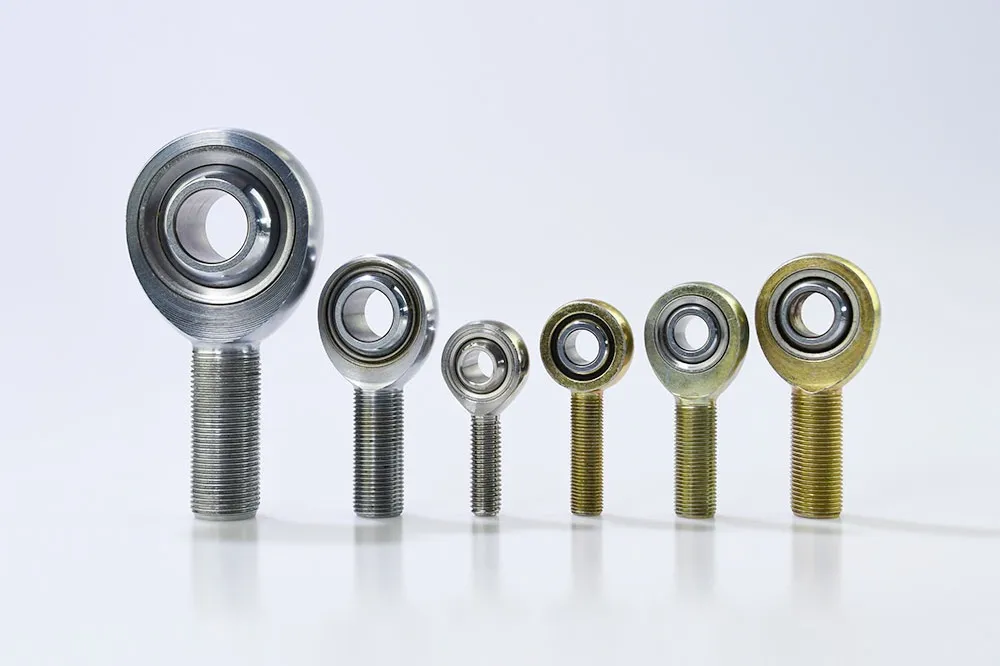

Rod EndsJMX(-T) JFX(-T) 3-Piece Rod Ends / Heim Joints
3-Piece Precision Design · Heat Treated 4130 Chromoly · PTFE Lined Optional

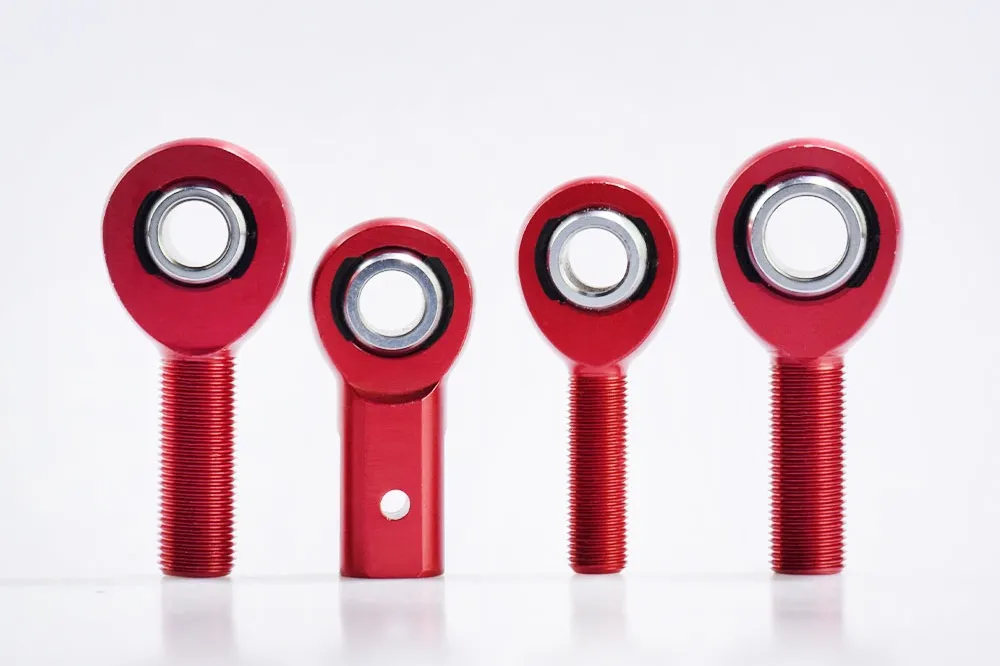

AluminumAM & AF Aluminum Rod Ends / Heim Joints
Loader Slot Design · Self-Lubricating Nylon Race · Aircraft-Grade Aluminum Body

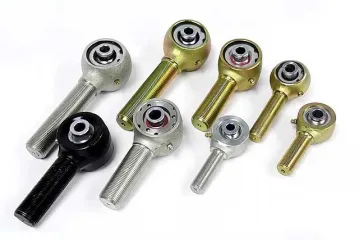

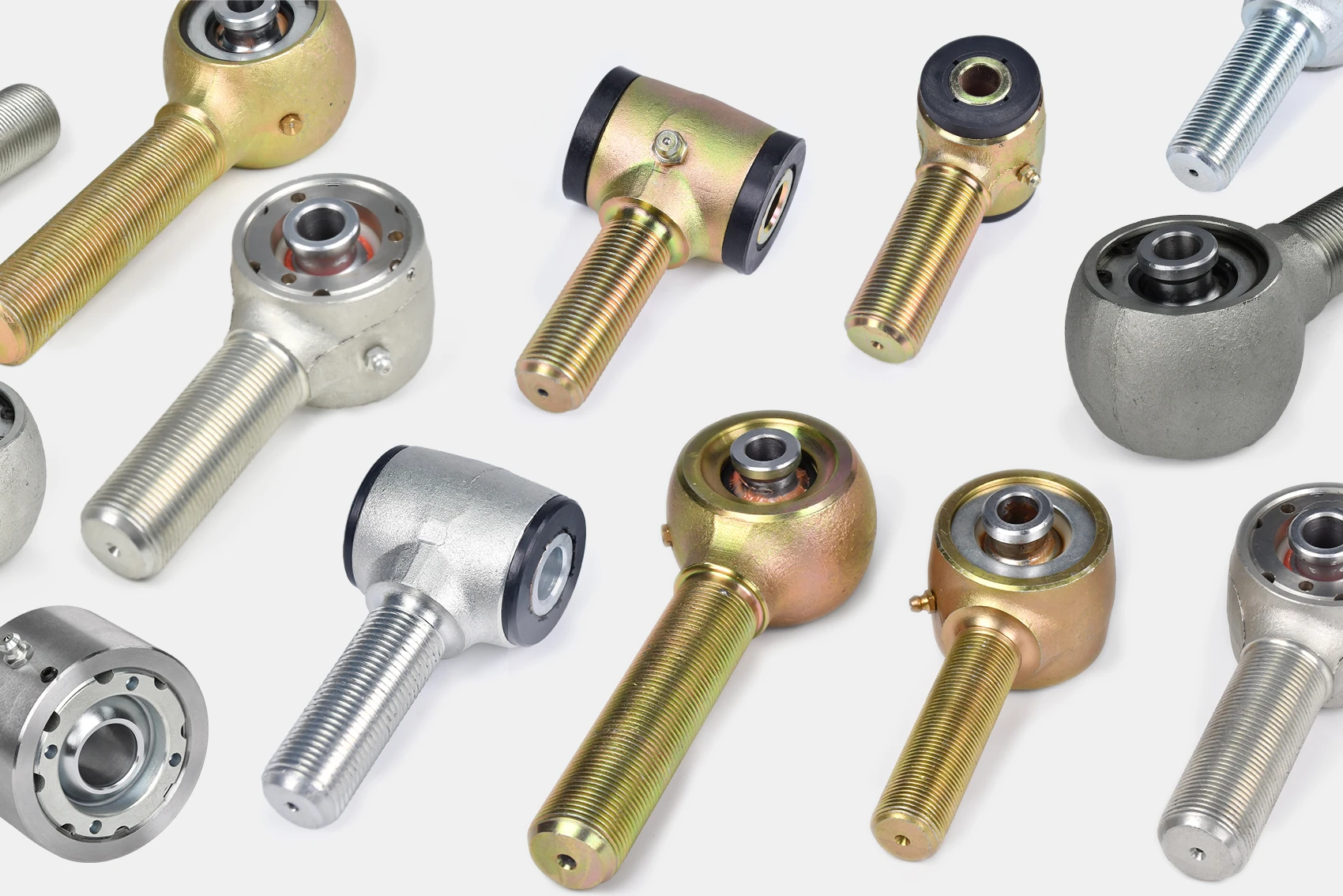

Related ProductsRebuildable Flex Joints / Johnny Joints
Chromoly Housing · Hard Chrome Ball · Polyurethane or Delrin Bushing

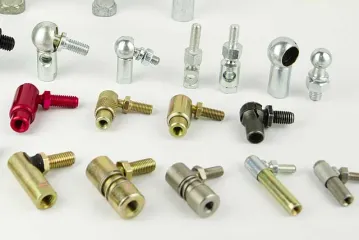

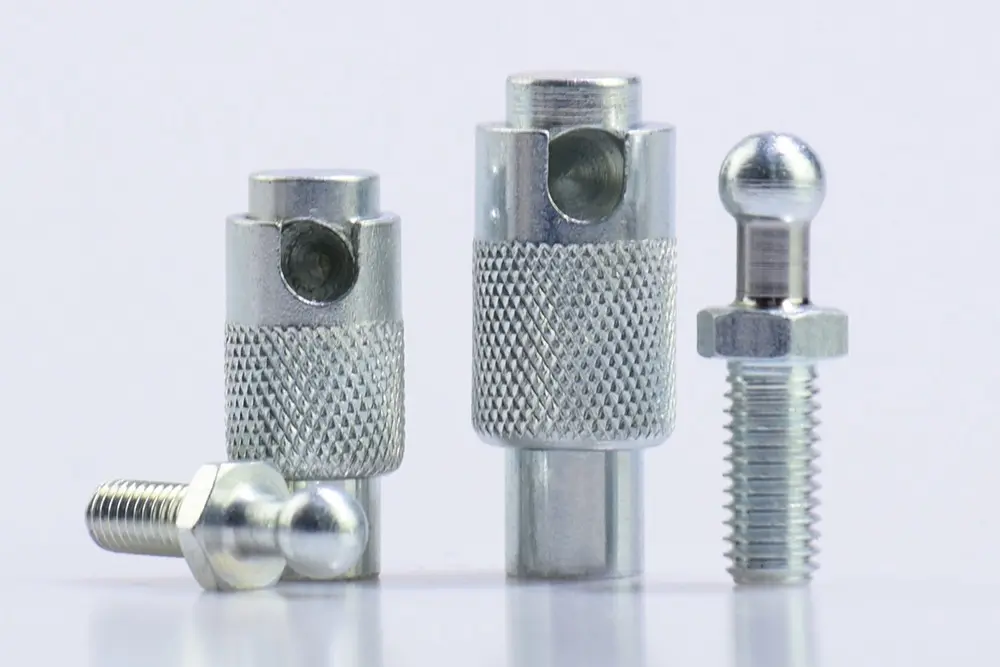

Ball JointsQD Quick Release Ball Joints
Quick Release Design · Stainless Spring · Zinc-Plated Carbon Steel Construction · Aluminum Optional

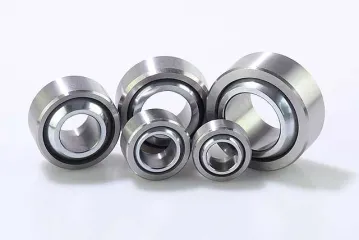

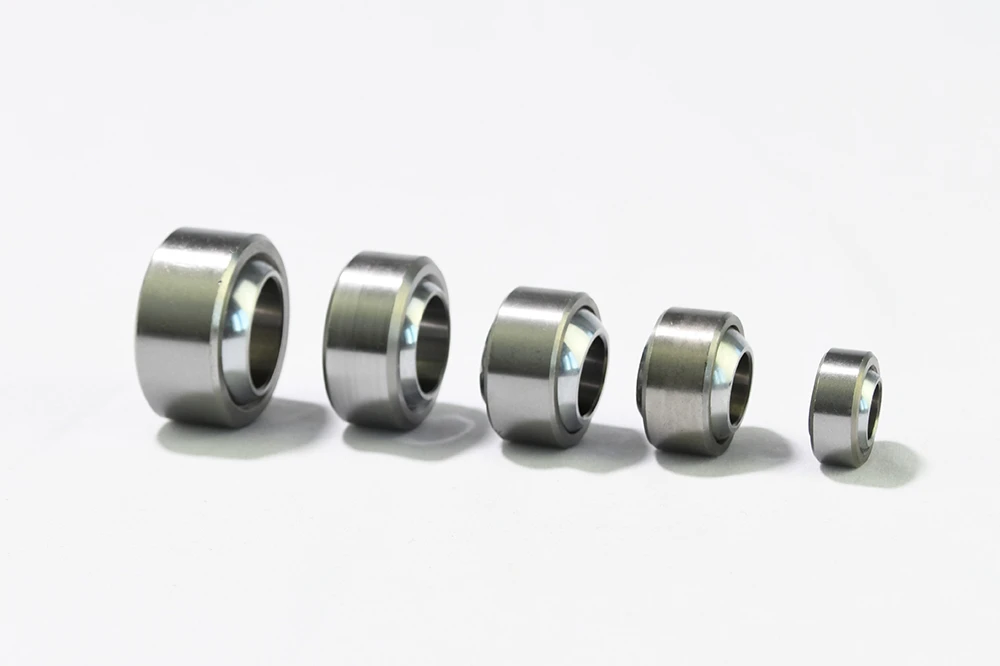

Spherical BearingsCOM(-T) Spherical Bearings
Metal-to-Metal Commercial Series · PTFE Optional · Lubrication Groove and Hole for COM · Inch Sizes
Top-Ordered Products

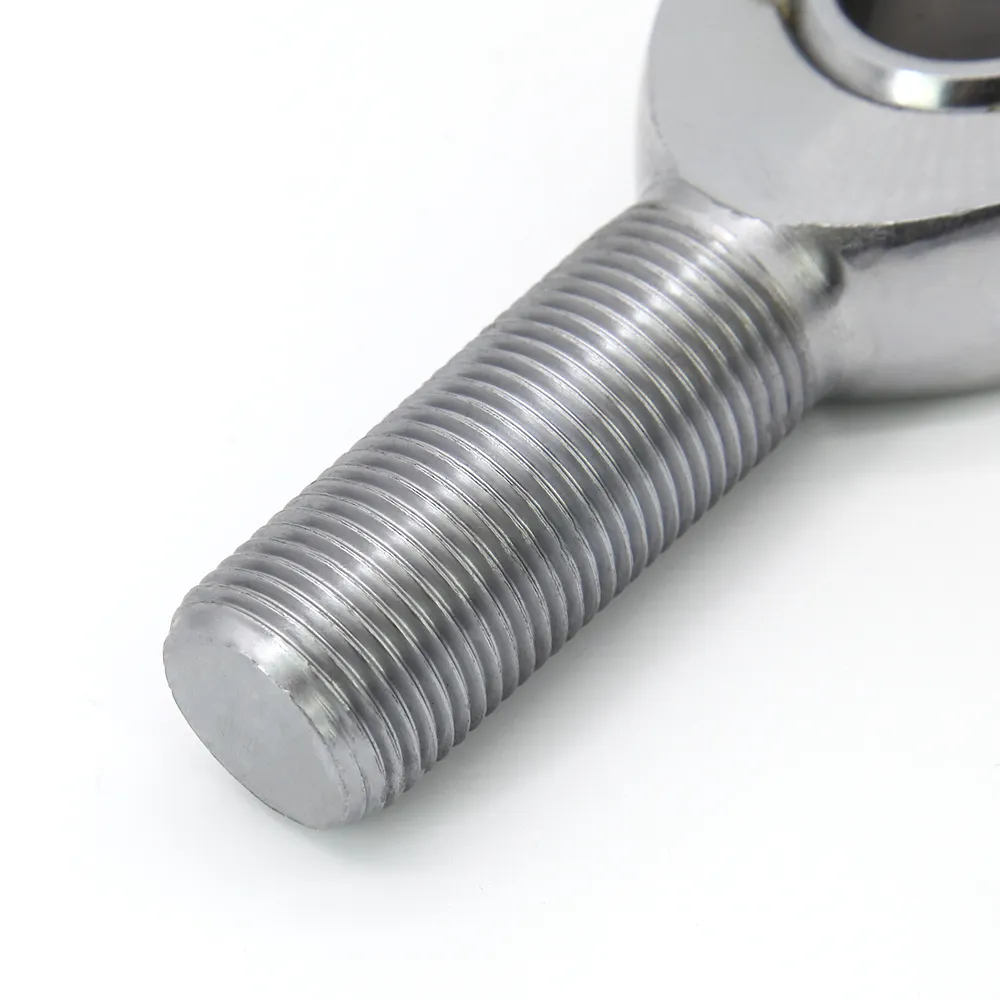

XMR10 / XML10 5/8 Heim Joint
0.6250 bore · 5/8-18 thread · 17,955 lbs static load.
XMR12 / XML12 3/4 Heim Joint
0.7500 bore · 3/4-16 thread · 28,081 lbs static load.
XMR12-14 / XML12-14 7/8 Heim Joint
0.7500 bore · 7/8-14 thread · 55,692 lbs static load.
XMR14 / XML14 7/8 Heim Joint
0.8750 bore · 7/8-14 thread · 45,051 lbs static load.
XMR16 / XML16 1 Inch Heim Joint
1.0000 bore · 1 1/4-12 thread · 76,200 lbs static load.
XMR20 / XML20 1.25 Heim Joint
1.2500 bore · 1 1/4-12 thread · 79,728 lbs static load.

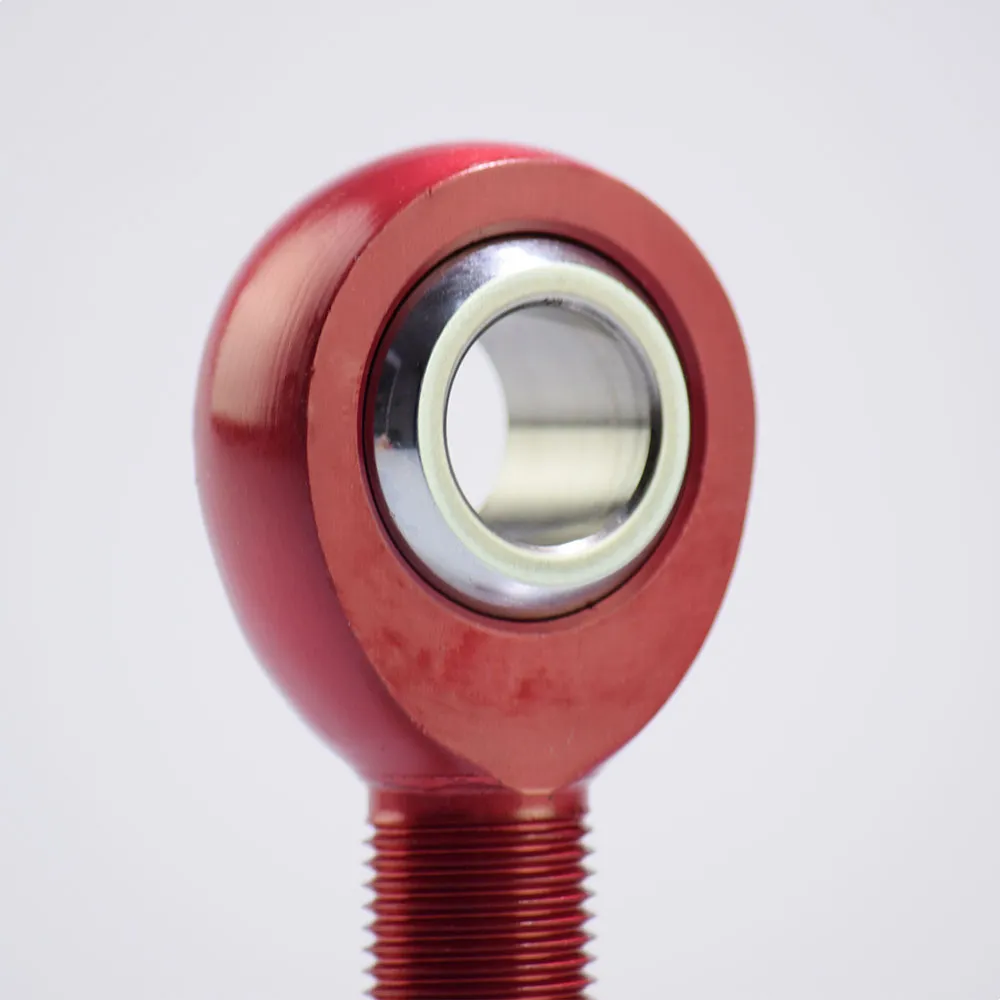

AMR8 / AML8 1/2 Aluminum Heim Joint
0.5000 bore · 1/2-20 thread · 7,700 lbs static load.
AMR8-10 / AML8-10 5/8 Aluminum Heim Joint
0.5000 bore · 5/8-18 thread · 15,000 lbs static load.
AMR10-12 / AML10-12 3/4 Aluminum Heim Joint
0.6250 bore · 3/4-16 thread · 19,300 lbs static load.
JMXR8(T) / JMXL8(T) 1/2 Heim Joint
0.5000 bore · 1/2-20 thread · 16,238 lbs static load.
JMXR10(T) / JMXL10(T) 5/8 Heim Joint
0.6250 bore · 5/8-18 thread · 17,995 lbs static load.
JMXR12(T) / JMXL12(T) 3/4 Heim Joint
0.7500 bore · 3/4-16 thread · 28,081 lbs static load.
JMXR14(T) / JMXL14(T) 7/8 Heim Joint
0.8750 bore · 7/8-14 thread · 45,051 lbs static load.

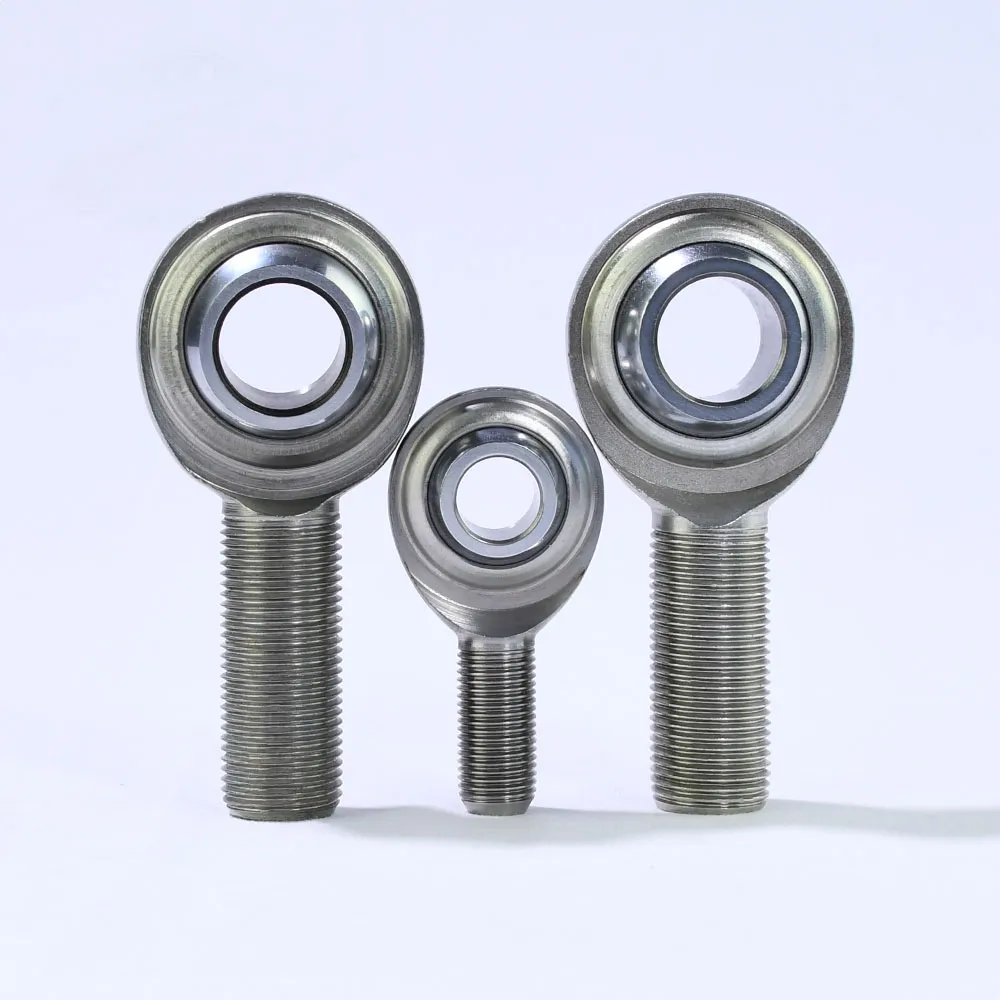

SCMR8T / SCML8T 1/2 Stainless Heim Joint
0.5000 bore · 1/2-20 thread · 7,352 lbs static load.
SCMR12T / SCML12T 3/4 Stainless Heim Joint
0.7500 bore · 3/4-16 thread · 11,595 lbs static load.

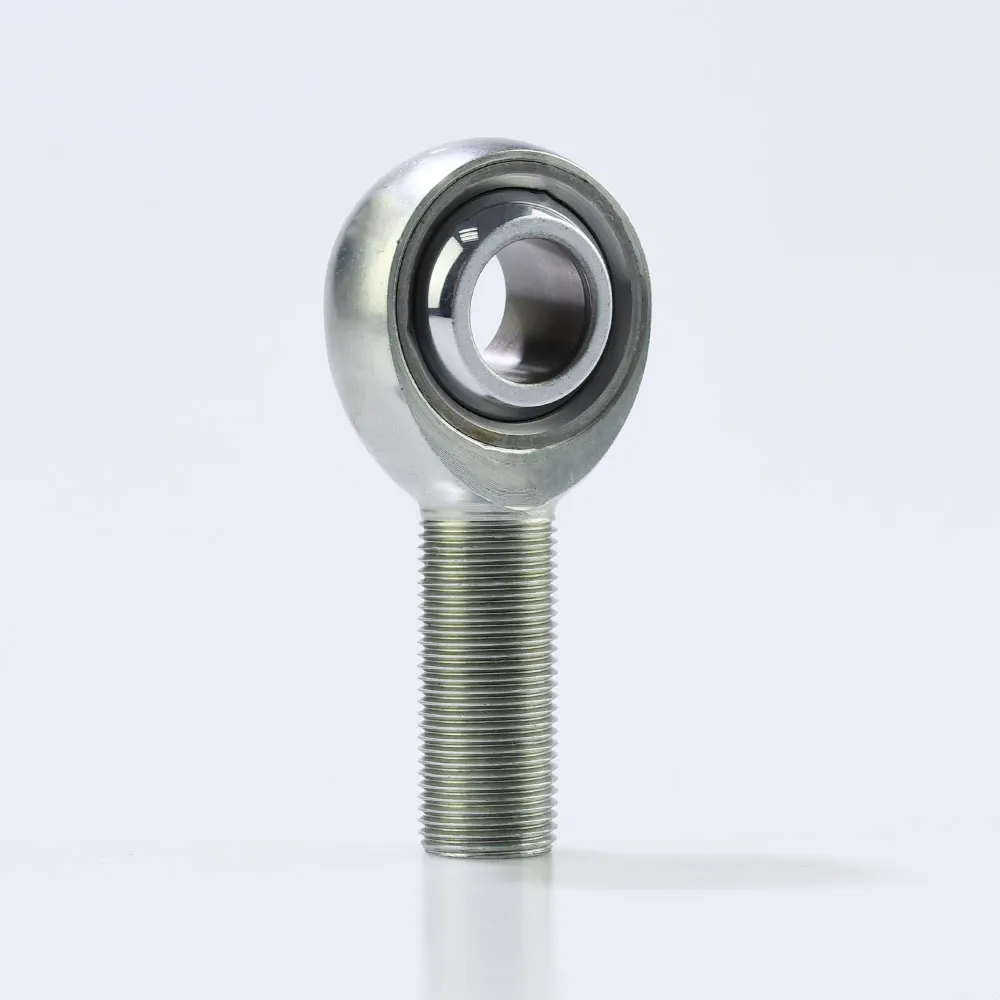

JMXR10M / JMXL10M 10mm Heim Joint
10 mm bore · M10 × 1.5 thread · 50,225 N static load.
JMXR12M / JMXL12M 12mm Heim Joint
12 mm bore · M12 × 1.75 thread · 44,487 N static load.
JMXR14M / JMXL14M 14mm Heim Joint
14 mm bore · M14 × 2.0 thread · 71,745 N static load.
JMXR16M / JMXL16M 16mm Heim Joint
16 mm bore · M16 × 2.0 thread · 76,290 N static load.
JMXR20M / JMXL20M 20mm Heim Joint
20 mm bore · M20 × 1.5 thread · 120,210 N static load.
Built for Your Industry
Off-Road & Motorcycles
Rugged rod ends built for suspension systems, steering stability, and extreme terrain articulation.

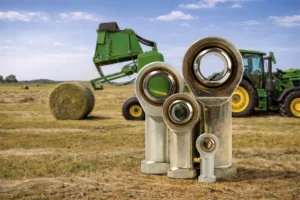

Agricultural Machinery
Durable joints supporting hydraulic linkages, control arms, and rotating systems in farming equipment.
Aerospace
Precision rod ends for flight control, motion transfer, and vibration isolation in aerospace assemblies.
Marine & Offshore
Corrosion-resistant rod ends that perform under saltwater exposure, dynamic loading, and offshore conditions.
Trusted by Buyers Worldwide
“We’ve worked with many rod ends suppliers, but none matched the level of precision and customization we get here. Every part fits like it was built just for us.”
“Fast lead times and excellent communication. We needed a batch of custom rod ends urgently, and they delivered ahead of schedule.”
“Top-notch CNC machining and material quality. The stainless steel components we ordered for our UTV lineup exceeded expectations.”
“As a performance parts brand, we rely on partners who understand the demands of our customers. This team gets it right every time.”
“We’ve scaled our product line faster thanks to their flexible MOQ and sample support. A true manufacturing partner.”
“We’ve worked with many rod ends suppliers, but none matched the level of precision and customization we get here. Every part fits like it was built just for us.”
“Fast lead times and excellent communication. We needed a batch of custom rod ends urgently, and they delivered ahead of schedule.”
“Top-notch CNC machining and material quality. The stainless steel components we ordered for our UTV lineup exceeded expectations.”
“As a performance parts brand, we rely on partners who understand the demands of our customers. This team gets it right every time.”
“We’ve scaled our product line faster thanks to their flexible MOQ and sample support. A true manufacturing partner.”
Download Our Complete Parts Catalog
Featuring detailed specifications, material options, and application insights for all SYZ rod ends and related components. Perfect for engineers, buyers, and sourcing teams.
