4130 Chromoly Steel — Engineered for Racing, Off-Road & High-Shock Loads
4130 chromoly rod ends for off-road, motorsport and heavy links: 7 series, 174 sizes, 2- and 3-piece construction, PTFE options, RH/LH threads and inch or metric bores. Browse the series first, then confirm part-level load and dimensions.
Complete Range
2-piece chromoly with an injection-molded reinforced-nylon + PTFE race for self-lubrication — the most cross-referenced SYZ chromoly series (FK, QA1, Alinabal, Midwest Control). Best for general motorsport and off-road where you want chromoly strength and a maintenance-free joint at a sensible price.

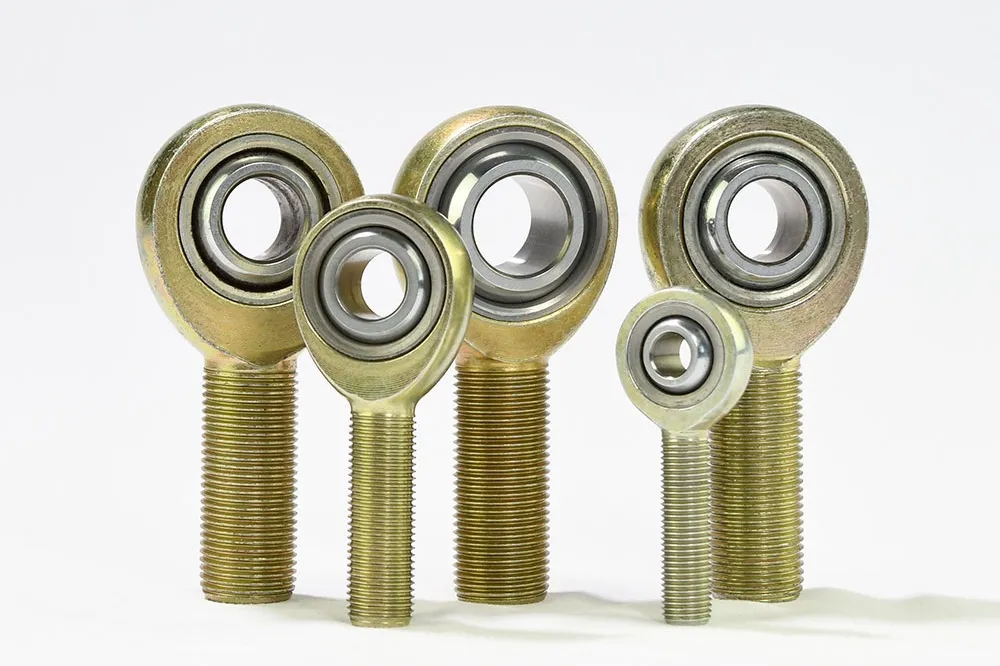

3-piece construction with a separate heat-treated alloy-steel race gives tighter ball-to-race clearance and higher load capacity per bore than a 2-piece. PTFE liner optional (the “-T” suffix). The choice for high-stress suspension joints, heavy-vehicle steering and competition off-road where zero play matters.
The high-misalignment heavy-duty series, PTFE-lined, with a stainless race and 4130 chromoly body, bore 0.375″–0.750″. Built for the largest articulation angles and the most punishing loads — trophy trucks, unlimited-class off-road, rock crawlers. Cross-ref Aurora.

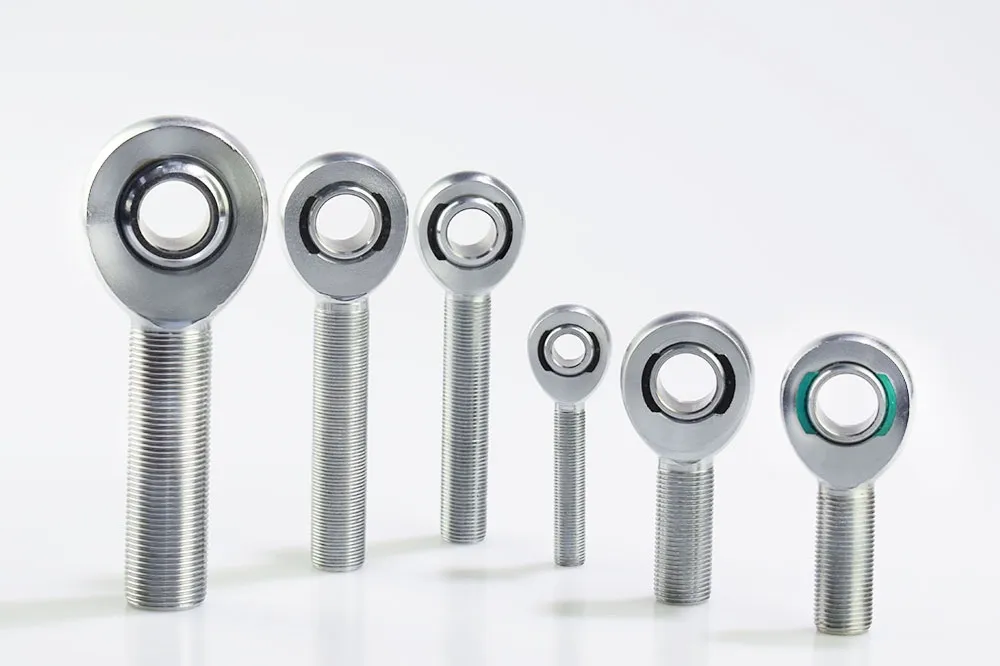

Extended-shank 4130 chromoly male rod end for deep mounting — more thread engagement when the rod end threads into a thick bracket rather than a thin-wall tube adapter.
Offset/eccentric body that shifts the shank axis for clearance-critical steering and mounting where a concentric rod end would interfere with adjacent components.
The metric counterpart of JMX/JFX — same 3-piece precision in ISO metric threads and bores. Cross-ref FK, Aurora, QA1. For European, Asian and powersports applications.
Metric counterpart of XM/XF — self-lubricating reinforced-nylon + PTFE race in a 4130 chromoly body. Cross-ref Midwest Control.
Popular Sizes
These real SYZ part numbers give buyers a fast starting point. Open the linked spec page to confirm current availability and dimensions.
| Part number | Bore | Thread | Type |
|---|---|---|---|
| JMXR8-10-T | 0.500″ | 5/8-18 | Male 3-piece PTFE |
| JMXR10-12-T | 0.625″ | 3/4-16 | Male 3-piece PTFE |
| JMXR12-14-T | 0.750″ | 7/8-14 | Male 3-piece PTFE |
| JMXR16-1-T | 1.000″ | 1-14 | Male 3-piece PTFE |
| JMXR20-T | 1.250″ | 1-1/4-12 | Male 3-piece PTFE |
| XMR8-10 | 0.500″ | 5/8-18 | Male 2-piece |
| XMR10-12 | 0.625″ | 3/4-16 | Male 2-piece |
| XMR12-14 | 0.750″ | 7/8-14 | Male 2-piece |
| XFR8 | 0.500″ | 1/2-20 | Female 2-piece |
| HJMX-10-T | 0.625″ | 5/8-18 | High-misalignment |
| JMXR12M | 12 mm | M12×1.75 | Metric male |
Overview
A chromoly rod end (chromoly heim joint / rose joint) is a spherical rod end built around a 4130 chromoly steel body, heat-treated for high tensile and fatigue strength. The ball is 52100 bearing steel; the race/liner varies by series (alloy-steel race, PTFE, or reinforced nylon-PTFE). Chromoly resists the shock and high-cycle loading that deform weaker bodies — which is why it dominates competition suspension and steering. Buyers also search “rose joint” (UK/Commonwealth) and “4130 rod end” for the same part.
Material Science
4130 is a chromium-molybdenum alloy steel: a medium-carbon base with roughly 0.8–1.1% chromium and 0.15–0.25% molybdenum. Those additions transform its behavior versus plain carbon steel.
4130’s tensile strength is on the order of ~97,000 psi (normalized), well above plain carbon steel, giving more load capacity per unit weight. (Published property of the 4130 alloy — see each spec page for part-level data.)
Its fine grain structure resists micro-crack propagation under cyclic load — the failure mode that matters most for rod ends cycling millions of times in suspension and steering.
Unlike high-carbon steels that turn brittle when hardened, 4130 keeps ductility after heat treatment, absorbing shock without catastrophic fracture.
4130 can be reliably TIG-welded (with proper pre/post-heat), which is why it’s the standard for roll cages, tube chassis and custom fabrication — and why SYZ chromoly tube adapters pair with it.
This combination is why professional off-road and motorsport builds specify 4130 chromoly as the baseline for suspension and steering linkages. SYZ’s chromoly range covers every construction type, size range and thread standard within that material.
Verified Specifications
All chromoly series share a 52100 bearing-steel ball (precision-ground, heat-treated, hard chrome plated). Body and race differ by series:
| Series | Body | Race / Liner | Thread | Notable |
|---|---|---|---|---|
| XM / XF | 4130 chromoly, hard chrome plated | Injection-molded reinforced nylon + PTFE | Inch UNF | High-volume self-lubricating 2-piece; cross-ref FK, QA1, Alinabal, Midwest Control |
| JMX(-T) / JFX(-T) | 4130 chromoly, silver zinc plated | Alloy steel, heat-treated; PTFE & zinc optional | Inch UNF | 3-piece precision; cross-ref FK, QA1, Alinabal, Midwest Control |
| JMX-M / JFX-M | Alloy steel, heat-treated, silver zinc plated | Alloy steel, heat-treated; PTFE & zinc optional | Metric | Metric 3-piece; cross-ref FK, Aurora, QA1 |
| MXM / MXF | 4130 chromoly, hard chrome plated | Injection-molded reinforced nylon + PTFE | Metric | Metric self-lubricating; cross-ref Midwest Control |
| XM-C | 4130 chromoly, hard chrome plated | Injection-molded reinforced nylon + PTFE | Inch UNF | Extended-shank for deep mounting |
| XM-JMX-OS | 4130 chromoly, hard chrome plated | Injection-molded reinforced nylon + PTFE | Inch UNF | Offset/eccentric body for clearance-critical mounting |
| HJMX(-T) | 4130 chromoly, heat-treated, chrome plated, PTFE lined | Stainless steel race | Inch UNF | Heavy-duty high-misalignment; cross-ref Aurora |
Choosing the Right Series
| Your Priority | Series | Why |
|---|---|---|
| Smoothest articulation + highest load per bore | JMX(-T)/JFX(-T) | 3-piece precision + PTFE option |
| Largest articulation angle / extreme loads | HJMX(-T) | Heavy-duty high-misalignment |
| Maintenance-free at sensible cost | XM/XF | Self-lubricating nylon-PTFE race |
| Deep mounting / thick bracket | XM-C | Extended shank |
| Clearance-critical mounting | XM-JMX-OS | Offset body |
| Metric, precision | JMX-M/JFX-M | Metric 3-piece |
| Metric, self-lubricating | MXM/MXF | Metric nylon-PTFE race |
Need chromoly strength?
├─ Maintenance-free + cost-sensitive
│ → XM/XF (self-lube) ; metric → MXM/MXF
├─ Tightest tolerance / highest load per bore
│ → JMX/JFX ; metric → JMX-M/JFX-M
│ └─ Need the largest angle + heaviest housing
│ → HJMX(-T)
└─ Mounting geometry problem
├─ Need more shank length → XM-C (extended)
└─ Need clearance offset → XM-JMX-OS (offset)Exact bore, thread, misalignment angle and load per part number are on each series spec page — confirm there before ordering.
Applications
Chromoly rod ends are the backbone of competitive off-road. From Ultra4 / King of the Hammers rigs to desert race trucks, 4130 JMX/HJMX handle the combination of high-speed impacts, rock strikes and extreme articulation that destroys lesser materials. PTFE-lined models resist the abrasive dust and mud that accelerate wear in unlined bearings.
Recommended: JMX(-T) for standard builds; HJMX(-T) for trophy trucks and unlimited class.
In drag, road race and drifting, 3-piece precision eliminates the vague feel of worn rubber bushings, giving immediate feedback through steering and suspension. 4130’s fatigue life carries reliability through full race seasons.
Recommended: JMX(-T)/JFX(-T) for steering and control arms; XM/XF for sway-bar links.
For heavy-duty linkages and cylinder mounts, chromoly delivers the highest load margin in the catalog. Greaseable variants suit dusty environments where you service on a schedule.
Recommended: XM/XF for general heavy-duty; JMX/JFX where precision and higher load per bore are needed.
European, Asian and powersports builds requiring ISO metric are served by JMX-M/JFX-M (precision) and MXM/MXF (self-lubricating) — same 4130 construction, metric bore and thread.
Recommended: JMX-M/JFX-M for precision; MXM/MXF for self-lubricating economy.
Cross-Reference
Paste the part number into the closest series cross-search. Send a sample or drawing when the geometry is non-standard.
Cross-Reference a Part No. →Samples are typically available in 20 days; confirm the current schedule with your quote.
