Chromoly Steel
Motorsport4130 chromoly bodies, heat-treated for ultimate strength and fatigue resistance. Ideal for competition suspension, steering and high-shock loading.
Factory-Direct Spherical Rod End Bearings — Inch & Metric
Rod Ends &
Heim Joints
A rod end — also called a heim joint or rose joint — is a threaded spherical bearing that carries push-pull load while allowing angular misalignment. SYZ manufactures 22 rod end series and 530+ inch and metric sizes in 4130 chromoly, carbon steel, 304 stainless and 7075-T6 aluminum.
22 Series
Core rod-end series
530+ sizes
Inch & metric
1/8″ – 2″
Bore range · M3–M50
2 / 3-piece
PTFE or metal-to-metal
Material Certs Available
Sample to Full-Container
Heat-Treated & Lot-Verified
FK · QA1 · Aurora Cross-Ref
Direct Factory Sourcing
Overview
What Is a Rod End (Heim Joint)?
A rod end is a mechanical articulating joint used at the end of control rods, linkages and steering systems. A spherical ball is swaged into a housing that carries either an integral threaded shank (male) or a threaded bore (female). The ball swivels to absorb angular misalignment while load transfers along the rod axis.
How a rod end actually works: The spherical ball swivels inside the housing race to absorb angular misalignment (the rod end “tilts”) while transmitting tension or compression along the rod axis. Two things set its operational limits: the race/liner (how the ball slides: greased metal, self-lubricating PTFE, nylon or bronze) and the housing geometry (how far it tilts before the shank bottoms out against the housing, i.e. the misalignment angle). Most field failures trace to under-sizing for load, picking the wrong liner for the environment, or exceeding the misalignment angle.
Terminology Synonyms
Called rod end in engineering specs, heim joint in generic North American terms, and rose joint in the UK/Commonwealth. All refer to the same device.
Performance Factors
Articulating limits are governed by static radial load capacity, maximum misalignment angle, liner type (friction/maintenance needs), and thread specifications.
Limits & Articulation
The race material and housing clearance envelope define the load limits and tilt bounds. Select these based on environmental dust, moisture, and motion frequency.
Material Families
Select by Material
SYZ rod ends span four core material families. Pick the family by your dominant requirement, then explore its landing page for series details.
| Material | Strength / Load Margin | Weight | Corrosion Resistance | Best For |
|---|---|---|---|---|
| Chromoly (4130) | Highest | Moderate | Needs plating (zinc/black oxide) | Off-road, motorsport, 4-link, high-shock steering |
| Carbon steel | High | Moderate | Zinc plated | Industrial machinery, agriculture, general linkage |
| Stainless (304 body / 440C ball) | Moderate-high | Moderate | Highest | Marine, washdown, food, chemical, outdoor |
| 7075-T6 aluminum | Moderate (weight-first) | Lowest | Anodized (moderate) | Racing, robotics, UAV, weight-critical linkage |
7075 Aluminum
LightweightLightweight 7075-T6 aerospace aluminum bodies, color anodized. Cuts weight to 1/3 of steel for racing, robotics, and UAV control links.
Carbon Steel
IndustrialEconomical to heavy industrial carbon steel bodies. Ideal for general linkages, agriculture, conveyor systems, and industrial machinery.
Stainless Steel
Washdown304 stainless steel housings with 440C balls, plus bronze-race and custom specialties. Built for marine, food-grade and washdown environments.
Chromoly (4130): Best for high-impact, shock, or high-cycle loads (steering, competition suspension) where ultimate fatigue life is demanded.
Carbon Steel: Reliable and economical selection for moderate loads in general linkage, machinery, and agricultural mechanisms.
Stainless Steel: Essential choice for marine corrosion resistance, food-grade washdown systems, and chemical exposure.
7075-T6 Aluminum: Reduces unsprung mass for racing, drones, and robotics where moving weight reduction is paramount.
Series Directory
Find a Rod End Series by Material
29 rod-end series are one click away, including the HCR hydraulic-cylinder family. Filter by material, then open the series page for bore, thread, load, liner and cross-reference details.
Chromoly · XM / XF Rod Ends →
Open sizes, specifications and cross-search.
Chromoly · JMX(-T) / JFX(-T) Rod Ends →
Open sizes, specifications and cross-search.
Chromoly · HJMX(-T) Rod Ends →
Open sizes, specifications and cross-search.
Chromoly · XM-C Rod Ends →
Open sizes, specifications and cross-search.
Chromoly · XM-JMX-OS Rod Ends →
Open sizes, specifications and cross-search.
Chromoly · JMX-M / JFX-M Rod Ends →
Open sizes, specifications and cross-search.
Chromoly · MXM / MXF Rod Ends →
Open sizes, specifications and cross-search.
Carbon Steel · CM / CF Rod Ends →
Open sizes, specifications and cross-search.
Carbon Steel · JM(-T) / JF(-T) Rod Ends →
Open sizes, specifications and cross-search.
Carbon Steel · EXM / EXF Rod Ends →
Open sizes, specifications and cross-search.
Carbon Steel · CM-M / CF-M Rod Ends →
Open sizes, specifications and cross-search.
Carbon Steel · JM-M / JF-M Rod Ends →
Open sizes, specifications and cross-search.
Stainless · SCM-T / SCF-T Rod Ends →
Open sizes, specifications and cross-search.
Stainless · SCM-MT / SCF-MT Rod Ends →
Open sizes, specifications and cross-search.
Specialty · PCM(-T) Rod Ends →
Open sizes, specifications and cross-search.
Specialty · PCYM-T / PCYF-T Rod Ends →
Open sizes, specifications and cross-search.
Specialty · VM / VF Rod Ends →
Open sizes, specifications and cross-search.
Specialty · PM / PF Rod Ends →
Open sizes, specifications and cross-search.
Specialty · MPM / MPF Rod Ends →
Open sizes, specifications and cross-search.
Specialty · SA-TK / SI-TK Rod Ends →
Open sizes, specifications and cross-search.
Aluminum · ALJM(-T) / ALJF(-T) Rod Ends →
Open sizes, specifications and cross-search.
Aluminum · AM / AF Rod Ends →
Open sizes, specifications and cross-search.
Carbon Steel · HCR10C Rod Ends →
Forged St 52-3 housing. Open sizes and spec selection.
Carbon Steel · HCR12CE Rod Ends →
Forged C45 / AISI 1045, GS400 option. Open sizes and spec selection.
Carbon Steel · HCR12S Rod Ends →
Forged C45 or GS400 housing. Open sizes and spec selection.
Carbon Steel · HCR15N Rod Ends →
Forged St 52-3 housing. Open sizes and spec selection.
Carbon Steel · HCR20N Rod Ends →
C45 forged or GS400 housing. Open sizes and spec selection.
Carbon Steel · HCR20U Rod Ends →
C45 forged or GS400 housing. Open sizes and spec selection.
Carbon Steel · HCR25D Rod Ends →
GS400 nodular cast iron housing. Open sizes and spec selection.
Structure & Liners
2-Piece or 3-Piece — What’s the Difference?
Choose the configuration that matches your tolerance and maintenance budget. Every series offers male (external threads) and female (internal threads) in right- and left-hand configurations.
2-Piece Construction
The spherical ball is swaged directly into the housing body. This is a simpler, highly cost-effective design suitable for general industrial, agricultural, and light duty linkage.
Examples: XM/XF, CM, AM/AF, SCM, EXM, PM/PF, PCM
3-Piece Construction
A separate insert race retains the spherical ball within the housing. This provides tighter ball-to-race tolerance and higher radial load capacities per bore diameter, with optional self-lubricating PTFE liners.
Examples: JMX/JFX, JM/JF, ALJM Family
Liner and Lubrication Selection
| Liner Type | Lubrication Needs | Best For | Example Series |
|---|---|---|---|
| PTFE-lined | Self-lubricating, maintenance-free | High-cycle, sealed assemblies, clean environments | JMX-T, CM-T, SCM-T |
| Metal-to-metal (alloy/steel race) | Requires periodic grease purges | High static/impact loads, dusty or contaminated settings | COM, JM, JMX (non-T) |
| Molded reinforced nylon + PTFE | Self-lubricating, maintenance-free | Moderate-load, low friction budget linkages | XM/XF, AM/AF, EXM, MXM |
| Sintered bronze, oil-impregnated | Self-lubricating | General machinery and light industrial settings | VM/VF, SA-TK |
| Polyurethane / Delrin (rebuildable) | Self-lubricating | Off-road articulation joints requiring shock absorption | Rebuildable Flex Joint |
Selection Checklist
How to Select in 5 Steps
Ensure reliability in your linkage assembly by reviewing this fundamental checklist before placing your order.
01
Load Rating
Estimate max static radial load (dead + dynamic + shock). Select a housing rating with safety margin (≥1.5× typical; 2–3× for severe impact loads).
02
Thread Fit
Match thread pitch and standard. Inch uses UNF (fine threads); metric uses ISO. Confirm RH vs LH (left-hand) for adjustability turnbuckles.
03
Bore Alignment
Select bore size matching your mounting bolt. Pin size ranges from 3/16″ to 2″ and M3 to M30+ across the SYZ catalog.
04
Body Material
Corrosion-prone → stainless; rotating mass/weight → 7075 aluminum; heavy shock and suspension → 4130 chromoly; economic → carbon steel.
05
Liner Compound
Greaseable and accessible link → metal-to-metal; sealed/maintenance-free → PTFE; high-articulation off-road → polyurethane rebuildable flex joint.
Sizing Assistance
Our engineers can cross-reference parts or run calculations. Get in touch with our team directly for custom sizing.
Common design mistakes: Specifying the rod end by thread size alone while ignoring the radial load capacity; selecting metal-to-metal joints where greasing accessibility is blocked; mounting unprotected carbon steel outdoors; and exceeding the maximum misalignment angle (which bends shanks and cracks housings).
Industries & Equipment
Where SYZ Rod Ends Perform

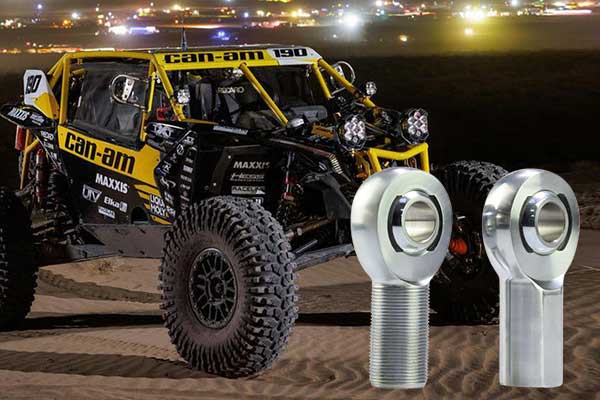

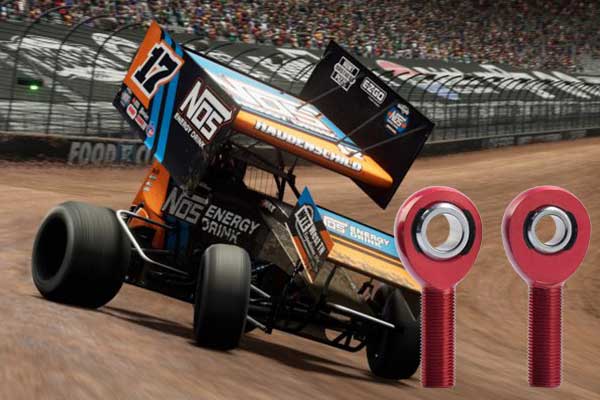

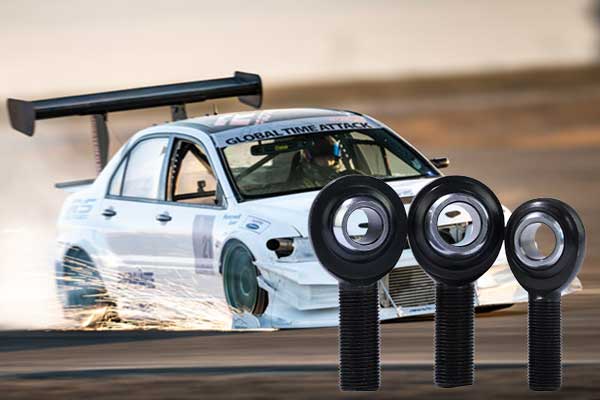

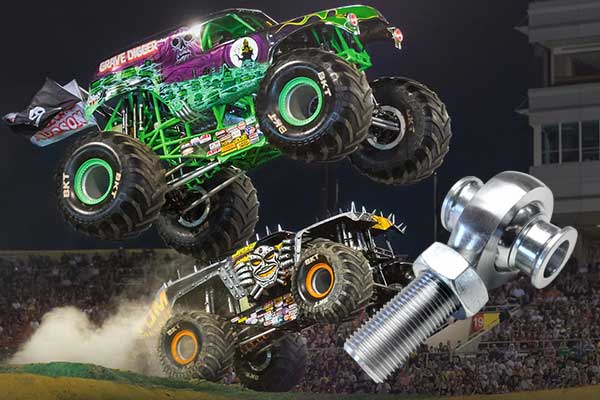

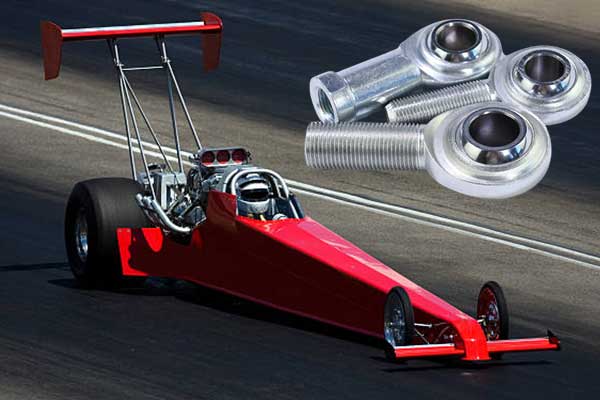

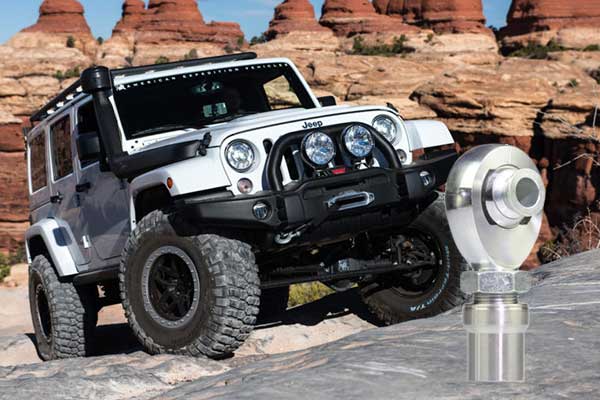

Off-Road & Motorsport
Backbone joints for competition suspension and steering. 4-link systems, panhard bars, sway-bar links, steering columns.
Recommended: Chromoly 3-piece JMX(-T) or high-misalignment PCM.
Industrial Automation
Linkages for packaging machines, conveyors, pneumatic/hydraulic cylinders, actuators, and pick-and-place systems.
Recommended: Carbon steel CM, JM or SCM stainless series.
Agriculture & Heavy Duty
Severe-duty agricultural implements, harvester/baler stroke links, tractor hitch connections, and heavy cylinder mounting.
Recommended: Greaseable COM or carbon steel JM/JF series.
Marine & Corrosive
Rudder steering linkages, throttle linkages, hatch lifters, deck hardware, and tilt/trim actuators exposed to saltwater or washdown chemicals.
Recommended: Stainless SCM-T/SCF-T or COM-SS spherical bearings.
Aerospace & Robotics
Unmanned aerial vehicles (UAVs), robotics, custom motion simulators, and weight-critical assemblies requiring high articulation.
Recommended: 7075-T6 aluminum ALJM or AM/AF series.
Competitor Cross-Reference
Complete Series & Cross-Reference
SYZ manufactures 57 spec series across inch and metric. Open the relevant category hub page below to explore all corresponding series and access the dynamic competitor cross-search tool.
Chromoly Series (4130)
XM/XF · JMX(-T)/JFX(-T) · JMX-M/JFX-M · MXM/MXF · XM-C · HJMX(-T) · XM-JMX-OS
Go to Chromoly Hub →
Carbon Steel Series
CM(-T)/CF(-T) · CM-M/CF-M · JM(-T)/JF(-T) · JM-M/JF-M · EXM/EXF · PM/PF · VM/VF · SA-TK/SI-TK · MPM/MPF
Go to Carbon Steel Hub →
7075-T6 Aluminum Series
AM/AF · ALJM(-T)/ALRSM(-T)/ALJF(-T)
Go to Aluminum Hub →
Stainless & Specialty Series
SCM-T/SCF-T · SCM-MT/SCF-MT · PCM(-T) · PCYM-T/PCYF-T · VM/VF · PM/PF · MPM/MPF · SA-TK/SI-TK
Go to Stainless Hub →
Our Strengths
Why Choose SYZ as Your Supplier
Factory-Direct Pricing
Direct manufacturer integration eliminates distributor margins and markup, saving cost on high-volume production schedules.
Specialist Technical Focus
Spherical plain bearings and rod ends are our core expertise, ensuring deep metallurgical control and batch-verified consistency.
Complete Product Matrix
One source for 57 spec series, 1,200+ distinct part numbers, spanning standard, metric, and specialized structural designs.
Authoritative Cross-Referencing
Dynamic matching capability to identify replacement parts matching FK, QA1, Aurora, Alinabal, and Midwest Control specifications.
Prototype to Production Scaling
Sample orders are welcomed to verify assembly clearances, scaling seamlessly to full container shipping for high-volume OEM requirements.
FAQ
Common Questions
What is the difference between a rod end and a spherical bearing?
A rod end is a complete assembly — a spherical bearing inside a housing with an integral threaded shank or bore, ready to thread into a linkage. A spherical plain bearing is just the ball-in-ring element and must be pressed into a housing first. SYZ manufactures both.
What does “PTFE-lined” mean?
A PTFE liner is bonded between ball and race to eliminate metal-to-metal contact, giving self-lubricating, maintenance-free, low-friction operation. It is the default where the joint is sealed, hard to grease, or must run clean.
Should I choose a male or female rod end?
Male rod ends thread into a tapped hole, tube adapter or turnbuckle and are most common. Female rod ends accept a threaded stud, bolt or male rod end. Every SYZ series offers both.
What thread standard do SYZ rod ends use?
Inch rod ends use UNF fine threads for vibration resistance; metric rod ends use ISO metric threads. Left-hand variants are available for turnbuckle and adjuster assemblies.
How do I match an SYZ rod end to an FK, QA1 or Aurora part?
Each series spec page has a cross-search tool listing the competitor brands SYZ cross-references for that series, such as FK, QA1, Aurora, Alinabal and Midwest Control. Search by competitor part number to find the SYZ equivalent.
Do you offer custom rod ends?
Yes. SYZ can manufacture non-standard threads, special materials, custom housing dimensions and liners. Send a drawing or competitor part number for review.
Can rod ends be used in continuous rotation?
No. Rod ends are designed for oscillating and angular movement and static positioning. Continuous RPM overheats and wears the bearing; use a ball or roller bearing instead.
What is misalignment angle?
It is the maximum angular deflection before the shank or housing bottoms out. SYZ high-misalignment series (PCM, PCYM, HJMX) and misalignment spacers extend the angle. Exceeding it bends the shank or cracks the housing.
How do I measure a heim joint?+
Record the bore or ball diameter, body width, shank or female thread, thread pitch and right- or left-hand direction. For a replacement, send the part number or a dimensioned photo.
What is your MOQ and lead time?+
Typical production orders are 100–300 pieces, with a standard lead time of about 25 days. Samples are typically available in 20 days; confirm the current schedule with your quotation.
Are heim joints street legal?+
Legality depends on the vehicle, jurisdiction and steering or suspension use. For road conversions, validate the design and local rules before installation.
Engineering Tools
Calculators for This Product Family
Estimate required articulation clearance for a threaded rod end.
Check working load against your selected safety factor.
Estimate tightening torque for bolted joint hardware.
Factory Direct
Request a Quote
Tell us your series, part numbers and quantities. We respond within 24 hours with pricing and lead time.
