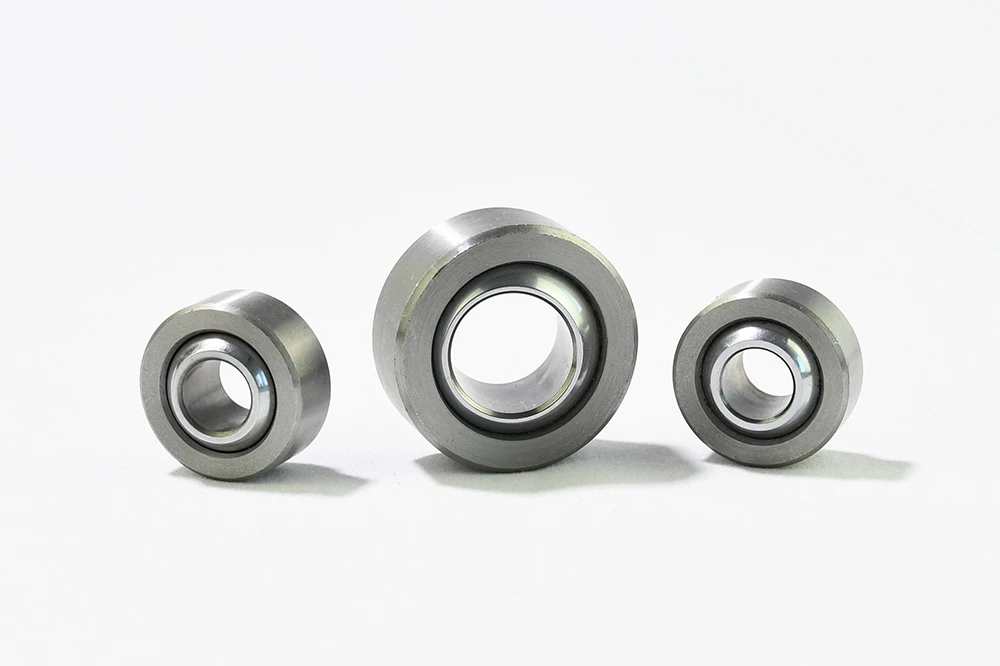

GEGC — Metric Wide-Series Spherical Bearings
GEGC Series
Metric Wide-Series Spherical Bearings
Self-Lubricating · Wide Series · PTFE Lined Race · Zinc Plated Optional
11
Available Sizes
4
Image Views Included
Full Spec Range
Search by spec.
| Type | Part No. | B DIA. | D DIA. | W WIDTH | T WIDTH | O FLAT DIA. | a° | STATIC | WEIGHT | Qty |
|---|
Technical Spec.
- Ball: 52100 bearing steel, precision ground, heat treated, and hard chrome plated.
- Race: Carbon steel, PTFE lined. Zinc plated optional.
- Application: Self-lubricating wide-series spherical bearing for metric articulated joints that need larger section dimensions.
- Series note: GEGC is the wide-series self-lubricating metric spherical bearing platform.
Notes
- Structure: PTFE lined race construction is used across the GEGC series for low-friction articulation.
- Selection: Choose by bore, OD, widths, misalignment angle, and radial load requirement.
- Related range: For standard-width equivalents, see the GEC metric spherical bearing series.
