Threaded Rod-End Connections
Rod-end studs provide a threaded interface between a spherical rod end and a bracket, tube, or linkage member. Match bore, thread class, engagement, and shoulder dimensions to the rod end.
ROD END STUD
• Material: Optional Carbon steel, Alloy steel, or Stainless steel.
• Thread: Standard is right hand. add "sl" for left hand (e.g., cmr12sl).
• Heat Treated: Add "sx" for heat treated Alloy steel stud (e.g., xmr12sx).
• Add "s" To Suffix: To specify stud configuration (e.g., xmr10s).
ISO 9001 Certified
SGS Verified
OEM / ODM Ready
0
SKUs in this series
-
Primary size range
-
Secondary size range
Page 1
Need Something Different?
Can't find the right specification?
Tell us the dimensional target, material preference, and application constraints. We'll help match or develop the right solution.
Ask for Custom SupportProduct Definition
What Is ROD END STUD?
ROD END STUD are threaded studs that connect rod ends or spherical joints to brackets, tubes, control arms, and other linkage members. The shoulder, bore, thread, and engagement establish how force enters the joint, making correct fit and orientation important. Select material, heat treatment, thread class, bending exposure, fastener access, and spacer stack-up for the complete connection.
Typical Applications
Applications for ROD END STUD

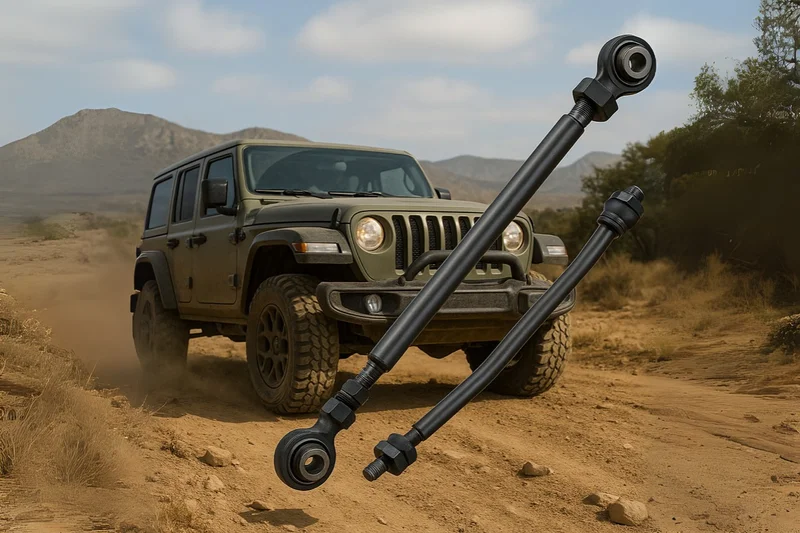

Steering and Suspension Hardware
Studs are used in custom tie rods, control arms, and suspension assemblies where a compact threaded connection is required. Check fastener orientation, bending exposure, and spacer stack-up.
Industrial Actuator and Control Assemblies
The same interface can connect rod ends to machine levers and actuator brackets. Select material and surface treatment for load, vibration, moisture, and service conditions.
Fabricated Joint Assemblies
Supports fabricated joint assemblies where mounting orientation and replacement hardware flexibility are important.
Custom Rod End Packaging
Studs help adapt rod ends into custom bracket, linkage, and serviceable joint layouts across multiple bore sizes.
General Industrial Mounting Hardware
Suitable for industrial rod end hardware packages where material, thread direction, and mounting clearance must be controlled.
Product FAQ
Frequently Asked Questions
What is a rod end stud used for?
A rod end stud is used to adapt a rod end into a studded mounting configuration for improved assembly flexibility.
How do I specify left-hand rod end studs?
Add the LH-style suffix noted in the product documentation to specify a left-hand stud configuration.
What does the heat treated stud option change?
The heat treated alloy steel option supports applications needing higher strength and a more robust stud configuration.
Why are rod end bore size and thread the first fitment checks?
Those two dimensions determine whether the stud matches the rod end bore and the required threaded mounting hardware.
Are these studs available for multiple rod end series?
Yes. The series is intended to support a broad range of rod end sizes for assembly and mounting versatility.
Can SYZ review custom stud requirements?
Yes. SYZ can review custom stud configurations, materials, and program-specific hardware requirements.
