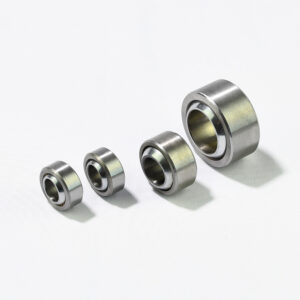

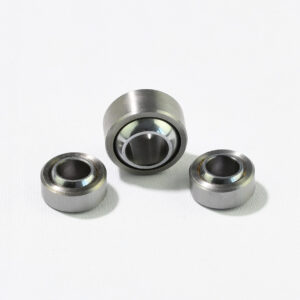

COM-SS Series Stainless Steel Teflon Lined Spherical Bearings
Product Features:
Heat 440C Stainless Steel, Precision Ground, Heat Treated, Hard Chrome Plated
Race: Stainless Steel, Heat Treated, Teflon Lined
Regular Size: Size from COM2T-SS - COMA16T-SS
Inch Size and Metric Size Both Available
- We are a Professional Manufacturer and Accept Special Request.
- Email Us [email protected] to Get a Latest Price or a Sample
COM-SS Series Stainless Steel Teflon Lined Spherical Bearings Overview
COM-SS Stainless Steel Spherical Bearings
| Material | Ball | Race | ||
| COM-SS | 440C STAINLESS STEEL | STAINLESS STEEL | ||
| HEAT TREATED | HEAT TREATED | |||
| PRECISION GROUND | TEFLON LINED | |||
Product Features:
Regular Size: Size from COM2T-SS – COMA16T-SS
Inch Size and Metric Size Both Available
Custom Option: Material/Size
COM-SS Series Stainless Steel Teflon Lined Spherical Bearings Size Chart
| STAINLESS STEEL PART NO. | B | D | W | T | O | M | BALL | a° | STATIC | LBS |
|---|---|---|---|---|---|---|---|---|---|---|
| COMA-M3(T) | 3 | 12 | 6 | 4.5 | 5.19 | 0.5 | 7.93 | 13.5 | - | - |
| COMA-M5(T) | 5 | 16 | 8 | 6 | 7.68 | 0.5 | 11.1 | 12.5 | 27555 | 9 |
| COMA-M6(T) | 6 | 18 | 9 | 6.75 | 8.93 | 0.5 | 12.7 | 12.5 | 35459 | 13 |
| COMA-M8(T) | 8 | 22 | 12 | 9 | 10.35 | 0.8 | 15.88 | 14 | 59121 | 24 |
| COMA-M10(T) | 10 | 26 | 14 | 10.5 | 12.88 | 0.8 | 19.05 | 13.5 | 82744 | 40 |
| COMA-M12(T) | 12 | 30 | 16 | 12 | 15.39 | 0.8 | 22.23 | 13 | 112829 | 80 |
| COMA-M14(T) | 14 | 34 | 19 | 13.5 | 16.86 | 1 | 25.4 | 16 | 141845 | 110 |
| COMA-M16(T) | 16 | 38 | 21 | 15 | 19.34 | 1 | 28.58 | 15 | 177343 | 130 |
| COMA-M18(T) | 18 | 42 | 23 | 16.5 | 21.89 | 1 | 31.75 | 15 | 216714 | 170 |
| COMA-M20(T) | 20 | 46 | 25 | 18 | 24.35 | 1 | 34.93 | 14.5 | 260086 | 230 |
| COMA-M22(T) | 22 | 50 | 28 | 20 | 25.84 | 1.5 | 38.1 | 15 | 315216 | 280 |
| COMA-M25(T) | 25 | 56 | 31 | 22 | 29.6 | 1.5 | 42.86 | 15 | 390056 | 390 |
| COMA-M30(T) | 30 | 66 | 37 | 25 | 34.81 | 1.5 | 50.8 | 17 | 525360 | 610 |
Custom Service Process: Select Similar Product — Confirm MOQ — Send Inquiry — Send your Drawings or Samples — Customization
Select product (If your product is not on our website, select a similar product) — Confirm the quantity you need meet up with our MOQ — Send inquiry with your Drawings or Samples — We will reply to you and confirm details — Send details to our factory and start customization
Hot Selling Products
Every Unit Inspected Before Shipment
Raw Material Inspection
Material certifications verified before machining and assembly begin.
Dimensional Check
Critical dimensions are checked against drawing or sample requirements.
Surface Inspection
Visual inspection confirms finish quality, burr removal, and assembly cleanliness.
Batch Documentation
Inspection reports and production traceability can be provided on request.
