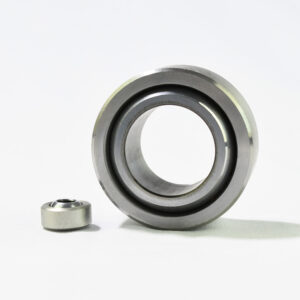

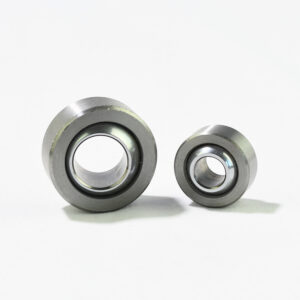

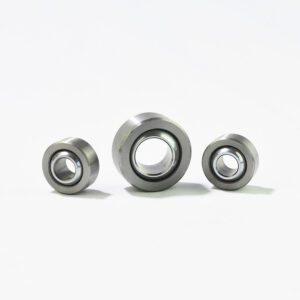

GEC Series Self-Lubricating Spherical Bearings
- Self-Lubricating Spherical Bearing, For Shock Absorber
Ball:52100 Bearing Steel, Precision Ground, Heat Treated
Race: Carbon Steel, Teflon Lined, Zinc Plated Optional
Regular Size: Inch Size from GE4C-GE30C - We are a Professional Manufacturer and Accept Special Request.
- Email Us [email protected] to Get a Latest Price or a Sample
GEC Series Self-Lubricating Spherical Bearings Overview
GEC Spherical Bearings Details
Product Features:
Regular Size: Inch Size from GE4C-GE30C
Metric Size Both Available
Custom Option: Material/Size
| PART NO. | d | D | B | C | r1 | r2 | a° | DYNAMIC | STATIC | WEIGHT | |
| LOAD | LOAD | kg | |||||||||
| GE4C | 4 | 12 | 5 | 3 | 0.3 | 0.3 | 16 | 2.1 | 5.4 | 0.003 | |
| GE5C | 5 | 14 | 6 | 4 | 0.3 | 0.3 | 13 | 3.6 | 9 | 0.004 | |
| GE6C | 6 | 14 | 6 | 4 | 0.3 | 0.3 | 13 | 3.6 | 9 | 0.004 | |
| GE8C | 8 | 16 | 8 | 5 | 0.3 | 0.3 | 15 | 5.8 | 14 | 0.008 | |
| GE10C | 10 | 19 | 9 | 6 | 0.3 | 0.3 | 12 | 8.6 | 21 | 0.011 | |
| GE12C | 12 | 22 | 10 | 7 | 0.3 | 0.3 | 11 | 11 | 28 | 0.015 | |
| GE15C | 15 | 26 | 12 | 9 | 0.3 | 0.3 | 8 | 18 | 45 | 0.027 | |
| GE17C | 17 | 30 | 14 | 10 | 0.3 | 0.3 | 10 | 22 | 56 | 0.041 | |
| GE20C | 20 | 35 | 16 | 12 | 0.3 | 0.3 | 9 | 31 | 78 | 0.066 | |
| GE25C | 25 | 42 | 20 | 16 | 0.6 | 0.6 | 7 | 51 | 127 | 0.119 | |
| GE30C | 30 | 47 | 22 | 18 | 0.6 | 0.6 | 6 | 65 | 166 | 0.153 | |
| GEG4C | GE4FW | 4 | 14 | 7 | 4 | 0.3 | 0.3 | 20 | 3.6 | 9.1 | 0.005 |
| GEG5C | GE5FW | 5 | 16 | 9 | 5 | 0.3 | 0.3 | 21 | 5.8 | 14 | 0.007 |
| GEG6C | GE6FW | 6 | 16 | 9 | 5 | 0.3 | 0.3 | 21 | 5.8 | 14 | 0.008 |
| GEG8C | GE8FW | 8 | 19 | 11 | 6 | 0.3 | 0.3 | 21 | 8.6 | 21 | 0.014 |
| GEG10C | GE10FW | 10 | 22 | 12 | 7 | 0.3 | 0.3 | 18 | 11 | 28 | 0.021 |
| GEG12E | GE12FW | 12 | 26 | 15 | 9 | 0.3 | 0.3 | 18 | 18 | 45 | 0.033 |
| GEG15C | GE15FW | 15 | 30 | 16 | 10 | 0.3 | 0.3 | 16 | 22 | 56 | 0.049 |
| GEG17C | GE17FW | 17 | 35 | 20 | 12 | 0.3 | 0.3 | 19 | 31 | 78 | 0.083 |
| GEG20ES | GE20FW | 20 | 42 | 25 | 16 | 0.3 | 0.3 | 17 | 51 | 127 | 0.153 |
| GEG25C | GE25FW | 25 | 47 | 28 | 18 | 0.6 | 0.6 | 17 | 65 | 166 | 0.203 |
| GEG30C | GE30FW | 30 | 55 | 32 | 20 | 0.6 | 0.6 | 17 | 83 | 212 | 0.304 |
Custom Service Process:Select Similar Product — Confirm MOQ — Send Inquiry — Send your Drawings or Samples — Customization
Select product (If your product is not on our website, select a similar product) — Confirm the quantity you need meet up with our MOQ — Send inquiry with your Drawings or Samples — We will reply to you and confirm details — Send details to our factory and start customization
Hot Selling Products
Every Unit Inspected Before Shipment
Raw Material Inspection
Material certifications verified before machining and assembly begin.
Dimensional Check
Critical dimensions are checked against drawing or sample requirements.
Surface Inspection
Visual inspection confirms finish quality, burr removal, and assembly cleanliness.
Batch Documentation
Inspection reports and production traceability can be provided on request.
