LINKAGE ROD

LCR-236 Linkage Connecting Rod 15.50 in, 3/8-24 RH/LH Thread, 3/8-24 Rod-End Stud Threads, Nylon Race

Part No.: LCR-236  ·  Adjustable motion-transfer assembly series
✓ ISO 9001 Certified
✓ SGS Verified
✓ 26+ Years Factory
✓ OEM / ODM Ready

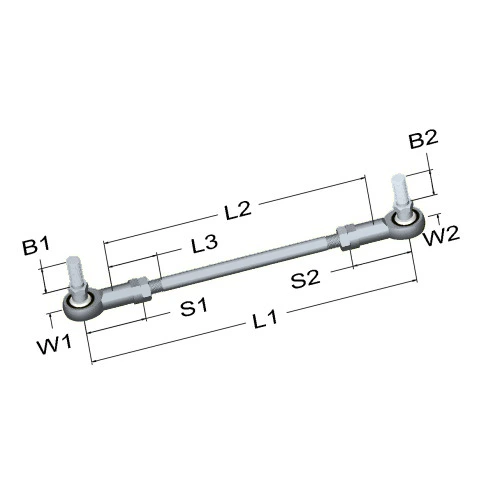

Thread: 3/8-24 RH/LH
Nominal Length: 15.50 in.
L1 Min / Max: 14.876–16 in.
A1 / A2: 0.375 / 0.375 in.
B1 / B2: 0.906 / 0.906 in.
W1 / W2: 0.644 / 0.644 in.
Weight
0.95 lbs
Material
Carbon steel; chromoly steel; aluminum alloy steel optional; stainless steel optional
Get a Quote →
Request Free Sample Back to Spec. Page
⚡ Typically responds within 24 hours
MOQ:50 pcs / model
Lead Time:7–15 days
Sample:Free (excl. freight)
Payment:T/T · PayPal · L/C
Overview

Linkage Connecting Rod Product Overview

LCR-236 is a 15.50 in linkage connecting rod for adjustable mechanical linkages, control rods, and motion-transfer assemblies. The assembly uses 3/8-24 RH/LH thread geometry with 3/8-24 threaded rod-end studs with nylon race spherical rod-end bearings. Dimensional references are L1 14.876-16 in, L2 13.500 in reference, L3 2.75 in typical, A1/A2 0.375/0.375 in, B1/B2 0.906/0.906 in, S1/S2 1.625/1.625 in, and W1/W2 0.644/0.644 in. Material options are carbon steel, chromoly steel, aluminum alloy steel optional, and stainless steel optional. Confirm the final material, finish, thread hand, and hardware configuration with SYZ when requesting a quotation.

lcr-236-linkage-connecting-rod-15-50-in-3-8-24-rh-lh-thread-3-8-24-rod-end-stud-threads-nylon-race
Size Chart

Linkage Connecting Rod Series — Full Size Range

All available sizes in the Linkage Connecting Rod series. Can’t find your size? Contact us for custom dimensions.

Part NumberWeight (lbs)ThreadNominal LengthL1 MinL1 MaxA1A2B1B2L2 (ref)L3 (typ)S1S2W1W2
LCR-0010.733/8-24 RH/LH15.7513.87517.7500.3750.3750.8750.87513.5002.751.6251.6250.4380.438
LCR-0021.13/8-24 RH/LH27.7525.87529.7500.3750.3750.8750.87525.5002.751.6251.6250.4380.438
LCR-0030.633/8-24 RH/LH9.757.87511.7500.3750.3750.8750.8757.5002.7501.6251.6250.4380.438
LCR-0041.023/8-24 RH/LH22.5020.62524.5000.3750.3750.8750.87520.2502.751.6251.6250.4380.438
LCR-0050.853/8-24 RH/LH12.5011.876130.3750.3750.5000.50010.5002.7501.6251.6250.4060.406
LCR-0060.483/8-24 RH/LH5.755.1266.250.3750.3750.5000.5003.7501.5001.6251.6250.4060.406
LCR-0071.033/8-24 RH/LH16.0014.97616.750.3750.3750.5000.50014.252.751.6251.6250.4060.406
LCR-0081.173/8-24 RH/LH23.7523.12624.250.3750.3750.5000.50021.7502.751.6251.6250.4060.406
LCR-0091.133/8-24 RH/LH20.7520.12621.250.3750.3750.5000.50018.7502.751.6251.6250.4060.406
LCR-0100.453/8-24 RH/LH5.004.55.50.3750.3750.5000.5003.0001.2501.6251.6250.4060.406
LCR-0111.143/8-24 RH/LH21.5020.876220.3750.3750.5000.50019.5002.751.6251.6250.4060.406
LCR-0121.193/8-24 RH/LH27.5026.876280.3750.3750.5000.50025.5002.751.6251.6250.4060.406
LCR-0131.353/8-24 RH/LH31.2530.62631.750.3750.3750.5000.50029.2502.751.6251.6250.4060.406
LCR-0141.183/8-24 RH/LH26.7526.12627.250.3750.3750.5000.50024.7502.751.6251.6250.4060.406
LCR-0150.693/8-24 RH/LH7.256.6267.750.3750.3750.9060.9065.2502.5001.6251.6250.6440.644
LCR-0161.093/8-24 RH/LH20.0019.37620.50.3750.3750.9060.90618.0002.751.6251.6250.6440.644
LCR-0171.483/8-24 RH/LH32.7532.12633.250.3750.3750.9060.90630.7502.751.6251.6250.6440.644
LCR-0180.813/8-24 RH/LH14.7514.12615.250.3750.3750.9060.90612.7502.751.6251.6250.6440.644
LCR-0191.193/8-24 RH/LH26.7526.12627.250.3750.3750.9060.90624.7502.751.6251.6250.6440.644
LCR-0201.071/2-2011.5010.87612.250.5010.5010.6250.6259.0003.252.1252.1250.5000.500
LCR-0211.191/2-207.506.8768.250.5010.5011.1251.1255.0002.252.1252.1250.8750.875
LCR-0222.071/2-2023.5022.87624.250.5010.5011.1251.12521.0003.252.1252.1250.8750.875
LCR-0230.753/8-24 RH/LH16.5014.62518.5000.3750.3750.8750.87514.252.751.6251.6250.4380.438
LCR-0241.143/8-24 RH/LH29.2527.37531.2500.3750.3750.8750.87527.0002.751.6251.6250.4380.438
LCR-0250.653/8-24 RH/LH10.508.62512.5000.3750.3750.8750.8758.2502.7501.6251.6250.4380.438
LCR-0261.043/8-24 RH/LH23.2521.37525.250.3750.3750.8750.87521.0002.751.6251.6250.4380.438
LCR-0270.683/8-24 RH/LH9.508.76100.3750.3750.5000.5007.5002.7501.6251.6250.4060.406
LCR-0280.483/8-24 RH/LH5.755.1266.250.3750.3750.5000.5003.7501.5001.6251.6250.4060.406
LCR-0290.643/8-24 RH/LH8.758.1269.250.3750.3750.5000.5006.7502.7501.6251.6250.4060.406
LCR-0301.133/8-24 RH/LH20.7520.12621.250.3750.3750.5000.50018.7502.751.6251.6250.4060.406
LCR-0311.363/8-24 RH/LH3534.37635.50.3750.3750.5000.50033.0002.751.6251.6250.4060.406
LCR-0320.563/8-24 RH/LH7.256.6267.750.3750.3750.5000.5005.2502.5001.6251.6250.4060.406
LCR-0331.13/8-24 RH/LH18.5017.876190.3750.3750.5000.50016.502.751.6251.6250.4060.406
LCR-0341.343/8-24 RH/LH29.7529.12630.250.3750.3750.5000.50027.7502.751.6251.6250.4060.406
LCR-0351.353/8-24 RH/LH32.0031.37632.500.3750.3750.5000.50030.0002.751.6251.6250.4060.406
LCR-0361.193/8-24 RH/LH27.5026.876280.3750.3750.5000.50025.5002.751.6251.6250.4060.406
LCR-0370.723/8-24 RH/LH8.007.3768.50.3750.3750.9060.9066.0002.7501.6251.6250.6440.644
LCR-0381.113/8-24 RH/LH20.7520.12621.250.3750.3750.9060.90618.7502.751.6251.6250.6440.644
LCR-0391.553/8-24 RH/LH3534.37635.50.3750.3750.9060.90633.0002.751.6251.6250.6440.644
LCR-0400.843/8-24 RH/LH15.5014.876160.3750.3750.9060.90613.5002.751.6251.6250.6440.644
LCR-0411.213/8-24 RH/LH27.5026.876280.3750.3750.9060.90625.5002.751.6251.6250.6440.644
LCR-0421.181/2-2012.5011.87613.250.5010.5010.6250.62510.0003.252.1252.1250.5000.500
LCR-0431.251/2-208.507.8769.2500.5010.5011.1251.1256.0002.752.1252.1250.8750.875
LCR-0442.121/2-2024.5023.87625.250.5010.5011.1251.12522.0003.252.1252.1250.8750.875
LCR-0450.393/8-24 RH/LH6.005.9546.0000.3750.3750.8750.8751.750.6251.6251.6250.4380.438
LCR-0460.783/8-24 RH/LH17.2515.37519.250.3750.3750.8750.87515.0002.751.6251.6250.4380.438
LCR-0471.173/8-24 RH/LH30.0028.12532.0000.3750.3750.8750.87527.7502.751.6251.6250.4380.438
LCR-0480.673/8-24 RH/LH11.319.37513.2500.3750.3750.8750.8759.0002.7501.6251.6250.4380.438
LCR-0491.063/8-24 RH/LH24.0022.12526.0000.3750.3750.8750.87521.7502.751.6251.6250.4380.438
LCR-0501.083/8-24 RH/LH14.0013.37614.50.3750.3750.5000.50012.0002.7501.6251.6250.4060.406
LCR-0510.483/8-24 RH/LH5.755.1266.250.3750.3750.5000.5003.7501.5001.6251.6250.4060.406
LCR-0521.113/8-24 RH/LH19.2518.62619.750.3750.3750.5000.50017.2502.751.6251.6250.4060.406
LCR-0530.63/8-24 RH/LH8.007.3768.50.3750.3750.5000.5006.0002.7501.6251.6250.4060.406
LCR-0541.163/8-24 RH/LH22.2521.62622.750.3750.3750.5000.50020.2502.751.6251.6250.4060.406
LCR-0550.453/8-24 RH/LH5.004.55.50.3750.3750.5000.5003.0001.2501.6251.6250.4060.406
LCR-0561.163/8-24 RH/LH2322.37623.50.3750.3750.5000.50021.0002.751.6251.6250.4060.406
LCR-0571.143/8-24 RH/LH21.5020.876220.3750.3750.5000.50019.5002.751.6251.6250.4060.406
LCR-0581.193/8-24 RH/LH29.0028.37629.50.3750.3750.5000.50027.0002.751.6251.6250.4060.406
LCR-0591.193/8-24 RH/LH29.0028.37629.50.3750.3750.5000.50027.0002.751.6251.6250.4060.406
LCR-0600.743/8-24 RH/LH8.758.1269.250.3750.3750.9060.9066.7502.7501.6251.6250.6440.644
LCR-0611.043/8-24 RH/LH21.5020.876220.3750.3750.9060.90619.5002.751.6251.6250.6440.644
LCR-0621.623/8-24 RH/LH37.2536.62637.750.3750.3750.9060.90635.2502.751.6251.6250.6440.644
LCR-0630.863/8-24 RH/LH16.0014.97616.750.3750.3750.9060.90614.252.751.6251.6250.6440.644
LCR-0641.253/8-24 RH/LH29.0028.37629.50.3750.3750.9060.90627.0002.751.6251.6250.6440.644
LCR-0651.241/2-2013.5012.87614.250.5010.5010.6250.62511.0003.252.1252.1250.5000.500
LCR-0661.311/2-209.508.87610.250.5010.5011.1251.1257.0002.752.1252.1250.8750.875
LCR-0670.413/8-24 RH/LH6.255.9546.5000.3750.3750.8750.8752.2500.7501.6251.6250.4380.438
LCR-0680.83/8-24 RH/LH18.0016.12520.0000.3750.3750.8750.87515.7502.751.6251.6250.4380.438
LCR-0691.193/8-24 RH/LH30.7528.5002.750.3750.3750.8750.87528.5002.751.6251.6250.4380.438
LCR-0700.693/8-24 RH/LH12.7510.87514.7500.3750.3750.8750.8759.7502.7501.6251.6250.4380.438
LCR-0711.093/8-24 RH/LH24.7522.87526.7500.3750.3750.8750.87522.502.751.6251.6250.4380.438
LCR-0720.853/8-24 RH/LH12.5011.876130.3750.3750.5000.50010.5002.7501.6251.6250.4060.406
LCR-0730.63/8-24 RH/LH8.007.3768.50.3750.3750.5000.5006.0002.7501.6251.6250.4060.406
LCR-0740.723/8-24 RH/LH10.259.62610.750.3750.3750.5000.5008.2502.7501.6251.6250.4060.406
LCR-0751.163/8-24 RH/LH22.2521.62622.750.3750.3750.5000.50020.2502.751.6251.6250.4060.406
LCR-0760.433/8-24 RH/LH4.504.54.70.3750.3750.5000.5002.2500.7501.6251.6250.4060.406
LCR-0770.563/8-24 RH/LH7.256.6267.750.3750.3750.5000.5005.2502.5001.6251.6250.4060.406
LCR-0781.143/8-24 RH/LH21.5020.876220.3750.3750.5000.50019.5002.751.6251.6250.4060.406
LCR-0791.163/8-24 RH/LH2322.37623.50.3750.3750.5000.50021.0002.751.6251.6250.4060.406
LCR-0800.943/8-24 RH/LH14.7514.12615.250.3750.3750.5000.50012.7502.751.6251.6250.4060.406
LCR-0811.343/8-24 RH/LH29.7529.12630.250.3750.3750.5000.50027.7502.751.6251.6250.4060.406
LCR-0820.923/8-24 RH/LH9.508.76100.3750.3750.9060.9067.5002.7501.6251.6250.6440.644
LCR-0831.163/8-24 RH/LH22.2521.62622.750.3750.3750.9060.90620.2502.751.6251.6250.6440.644
LCR-0840.483/8-24 RH/LH4.254.2044.30.3750.3750.9060.9061.750.6251.6251.6250.6440.644
LCR-0850.883/8-24 RH/LH17.0016.37617.50.3750.3750.9060.90615.0002.751.6251.6250.6440.644
LCR-0861.273/8-24 RH/LH29.7529.12630.250.3750.3750.9060.90627.7502.751.6251.6250.6440.644
LCR-0871.291/2-2014.5013.87615.250.5010.5010.6250.62512.0003.252.1252.1250.5000.500
LCR-0881.361/2-2010.509.87611.2500.5010.5011.1251.1258.0003.252.1252.1250.8750.875
LCR-0890.433/8-24 RH/LH6.505.95407.25000.3750.3750.8750.8753.0001.2501.6251.6250.4380.438
LCR-0900.823/8-24 RH/LH18.7516.87520.7500.3750.3750.8750.87516.502.751.6251.6250.4380.438
LCR-0911.213/8-24 RH/LH31.5029.62533.5000.3750.3750.8750.87529.2502.751.6251.6250.4380.438
LCR-0920.723/8-24 RH/LH13.2511.37515.2500.3750.3750.8750.87510.5002.7501.6251.6250.4380.438
LCR-0931.113/8-24 RH/LH25.5023.62527.5000.3750.3750.8750.87523.2502.751.6251.6250.4380.438
LCR-0940.683/8-24 RH/LH9.508.76100.3750.3750.5000.5007.5002.7501.6251.6250.4060.406
LCR-0950.643/8-24 RH/LH8.758.1269.250.3750.3750.5000.5006.7502.7501.6251.6250.4060.406
LCR-0961.033/8-24 RH/LH16.0014.97616.750.3750.3750.5000.50014.252.751.6251.6250.4060.406
LCR-0970.643/8-24 RH/LH8.758.1269.250.3750.3750.5000.5006.7502.7501.6251.6250.4060.406
LCR-0981.13/8-24 RH/LH24.5023.876250.3750.3750.5000.50022.502.751.6251.6250.4060.406
LCR-0990.453/8-24 RH/LH5.004.55.50.3750.3750.5000.5003.0001.2501.6251.6250.4060.406
LCR-1000.943/8-24 RH/LH14.7514.12615.250.3750.3750.5000.50012.7502.751.6251.6250.4060.406
LCR-1011.193/8-24 RH/LH29.0028.37629.50.3750.3750.5000.50027.0002.751.6251.6250.4060.406
LCR-1021.343/8-24 RH/LH29.7529.12630.250.3750.3750.5000.50027.7502.751.6251.6250.4060.406
LCR-1031.343/8-24 RH/LH30.5029.876310.3750.3750.5000.50028.5002.751.6251.6250.4060.406
LCR-1040.793/8-24 RH/LH10.259.62610.750.3750.3750.9060.9068.2502.7501.6251.6250.6440.644
LCR-1051.533/8-24 RH/LH2322.37623.50.3750.3750.9060.90621.0002.751.6251.6250.6440.644
LCR-1060.493/8-24 RH/LH4.504.54.70.3750.3750.9060.9062.2500.7501.6251.6250.6440.644
LCR-1070.833/8-24 RH/LH17.7517.12618.250.3750.3750.9060.90615.7502.751.6251.6250.6440.644
LCR-1081.33/8-24 RH/LH30.5029.876310.3750.3750.9060.90628.5002.751.6251.6250.6440.644
LCR-1091.361/2-2015.5014.87616.250.5010.5010.6250.62513.0003.252.1252.1250.5000.500
LCR-1101.361/2-2011.5010.87612.250.5010.5011.1251.1259.0003.252.1252.1250.8750.875
LCR-1110.453/8-24 RH/LH7.005.9548.0000.3750.3750.8750.8753.7501.5001.6251.6250.4380.438
LCR-1120.843/8-24 RH/LH19.5017.62521.5000.3750.3750.8750.87517.2502.751.6251.6250.4380.438
LCR-1131.243/8-24 RH/LH32.2530.37534.2500.3750.3750.8750.87530.0002.751.6251.6250.4380.438
LCR-1140.763/8-24 RH/LH14.2512.37516.2500.3750.3750.8750.87512.0002.7501.6251.6250.4380.438
LCR-1151.133/8-24 RH/LH26.5024.37528.5000.3750.3750.8750.87524.0002.751.6251.6250.4380.438
LCR-1161.083/8-24 RH/LH14.0013.37614.50.3750.3750.5000.50012.0002.7501.6251.6250.4060.406
LCR-1170.723/8-24 RH/LH10.259.62610.750.3750.3750.5000.5008.2502.7501.6251.6250.4060.406
LCR-1181.133/8-24 RH/LH20.7520.12621.250.3750.3750.5000.50018.7502.751.6251.6250.4060.406
LCR-1190.723/8-24 RH/LH10.259.62610.750.3750.3750.5000.5008.2502.7501.6251.6250.4060.406
LCR-1201.443/8-24 RH/LH37.2536.62637.750.3750.3750.5000.50035.2502.751.6251.6250.4060.406
LCR-1210.563/8-24 RH/LH7.256.6267.750.3750.3750.5000.5005.2502.5001.6251.6250.4060.406
LCR-1221.173/8-24 RH/LH25.2524.62625.750.3750.3750.5000.50023.2502.751.6251.6250.4060.406
LCR-1231.343/8-24 RH/LH30.5029.876310.3750.3750.5000.50028.5002.751.6251.6250.4060.406
LCR-1240.993/8-24 RH/LH15.5014.876160.3750.3750.5000.50013.5002.751.6251.6250.4060.406
LCR-1251.353/8-24 RH/LH31.2530.62631.750.3750.3750.5000.50029.2502.751.6251.6250.4060.406
LCR-1260.813/8-24 RH/LH11.0010.37611.50.3750.3750.9060.9069.0002.7501.6251.6250.6440.644
LCR-1271.23/8-24 RH/LH23.7523.12624.250.3750.3750.9060.90621.7502.751.6251.6250.6440.644
LCR-1280.513/8-24 RH/LH5.004.55.50.3750.3750.9060.9063.0001.2501.6251.6250.6440.644
LCR-1290.933/8-24 RH/LH18.5017.876190.3750.3750.9060.90616.502.751.6251.6250.6440.644
LCR-1301.323/8-24 RH/LH31.2530.62631.750.3750.3750.9060.90629.2502.751.6251.6250.6440.644
LCR-1311.41/2-2016.5015.87617.250.5010.5010.6250.62514.0003.252.1252.1250.5000.500
LCR-1321.461/2-2012.5011.87613.250.5010.5011.1251.12510.0003.252.1252.1250.8750.875
LCR-1330.483/8-24 RH/LH7.505.5949.5000.3750.3750.8750.8755.2502.5001.6251.6250.4380.438
LCR-1340.873/8-24 RH/LH20.5018.37522.5000.3750.3750.8750.87518.0002.751.6251.6250.4380.438
LCR-1351.263/8-24 RH/LH33.0031.12535.0000.3750.3750.8750.87530.7502.751.6251.6250.4380.438
LCR-1360.793/8-24 RH/LH15.0013.12517.0000.3750.3750.8750.87512.7502.751.6251.6250.4380.438
LCR-1371.153/8-24 RH/LH27.0025.12529.0000.3750.3750.8750.87524.7502.751.6251.6250.4380.438
LCR-1381.123/8-24 RH/LH20.0019.37620.50.3750.3750.5000.50018.0002.751.6251.6250.4060.406
LCR-1390.63/8-24 RH/LH8.007.3768.50.3750.3750.5000.5006.0002.7501.6251.6250.4060.406
LCR-1401.073/8-24 RH/LH17.0016.37617.50.3750.3750.5000.50015.0002.751.6251.6250.4060.406
LCR-1411.13/8-24 RH/LH24.5023.876250.3750.3750.5000.50022.502.751.6251.6250.4060.406
LCR-1421.173/8-24 RH/LH23.7523.12624.250.3750.3750.5000.50021.7502.751.6251.6250.4060.406
LCR-1430.453/8-24 RH/LH5.004.55.50.3750.3750.5000.5003.0001.2501.6251.6250.4060.406
LCR-1441.183/8-24 RH/LH2625.37626.50.3750.3750.5000.50024.0002.751.6251.6250.4060.406
LCR-1451.343/8-24 RH/LH29.7529.12630.250.3750.3750.5000.50027.7502.751.6251.6250.4060.406
LCR-1461.363/8-24 RH/LH32.7532.12633.250.3750.3750.5000.50030.7502.751.6251.6250.4060.406
LCR-1471.353/8-24 RH/LH32.0031.37632.500.3750.3750.5000.50030.0002.751.6251.6250.4060.406
LCR-1481.033/8-24 RH/LH11.7511.12612.250.3750.3750.9060.9069.7502.7501.6251.6250.6440.644
LCR-1491.233/8-24 RH/LH24.5023.876250.3750.3750.9060.90622.502.751.6251.6250.6440.644
LCR-1500.543/8-24 RH/LH5.755.1266.250.3750.3750.9060.9063.7501.5001.6251.6250.6440.644
LCR-1510.953/8-24 RH/LH19.2518.62619.750.3750.3750.9060.90617.2502.751.6251.6250.6440.644
LCR-1521.343/8-24 RH/LH32.0031.37632.500.3750.3750.9060.90630.0002.751.6251.6250.6440.644
LCR-1531.471/2-2017.5016.87618.2500.5010.5010.6250.62515.0003.252.1252.1250.5000.500
LCR-1541.521/2-2013.5012.87614.250.5010.5011.1251.12511.0003.252.1252.1250.8750.875
LCR-1550.53/8-24 RH/LH8.316.37510.2500.3750.3750.8750.8756.0002.7501.6251.6250.4380.438
LCR-1560.893/8-24 RH/LH21.0019.12523.0000.3750.3750.8750.87518.7502.751.6251.6250.4380.438
LCR-1571.333/8-24 RH/LH35.2533.37537.2500.3750.3750.8750.87533.0002.751.6251.6250.4380.438
LCR-1580.813/8-24 RH/LH15.7513.87517.7500.3750.3750.8750.87513.5002.751.6251.6250.4380.438
LCR-1591.183/8-24 RH/LH27.7525.87529.7500.3750.3750.8750.87525.5002.751.6251.6250.4380.438
LCR-1600.853/8-24 RH/LH12.5011.876130.3750.3750.5000.50010.5002.7501.6251.6250.4060.406
LCR-1610.643/8-24 RH/LH8.758.1269.250.3750.3750.5000.5006.7502.7501.6251.6250.4060.406
LCR-1621.163/8-24 RH/LH22.2521.62622.750.3750.3750.5000.50020.2502.751.6251.6250.4060.406
LCR-1631.173/8-24 RH/LH23.7523.12624.250.3750.3750.5000.50021.7502.751.6251.6250.4060.406
LCR-1640.433/8-24 RH/LH4.504.54.70.3750.3750.5000.5002.2500.7501.6251.6250.4060.406
LCR-1650.563/8-24 RH/LH7.256.6267.750.3750.3750.5000.5005.2502.5001.6251.6250.4060.406
LCR-1661.183/8-24 RH/LH26.7526.12627.250.3750.3750.5000.50024.7502.751.6251.6250.4060.406
LCR-1671.353/8-24 RH/LH31.2530.62631.750.3750.3750.5000.50029.2502.751.6251.6250.4060.406
LCR-1681.343/8-24 RH/LH30.5029.876310.3750.3750.5000.50028.5002.751.6251.6250.4060.406
LCR-1691.363/8-24 RH/LH32.7532.12633.250.3750.3750.5000.50030.7502.751.6251.6250.4060.406
LCR-1701.073/8-24 RH/LH12.5011.876130.3750.3750.9060.90610.5002.7501.6251.6250.6440.644
LCR-1711.253/8-24 RH/LH25.2524.62625.750.3750.3750.9060.90623.2502.751.6251.6250.6440.644
LCR-1720.583/8-24 RH/LH7.256.6267.750.3750.3750.9060.9065.2502.5001.6251.6250.6440.644
LCR-1730.973/8-24 RH/LH20.0019.37620.50.3750.3750.9060.90618.0002.751.6251.6250.6440.644
LCR-1741.373/8-24 RH/LH32.7532.12633.250.3750.3750.9060.90630.7502.751.6251.6250.6440.644
LCR-1751.511/2-2018.5017.87619.2500.5010.5010.6250.62516.0003.252.1252.1250.5000.500
LCR-1761.571/2-2014.5013.87615.250.5010.5011.1251.12512.0003.252.1252.1250.8750.875
LCR-1770.523/8-24 RH/LH9.007.12511.0000.3750.3750.8750.8756.7502.7501.6251.6250.4380.438
LCR-1780.913/8-24 RH/LH21.7519.87523.7500.3750.3750.8750.87519.5002.751.6251.6250.4380.438
LCR-1791.43/8-24 RH/LH37.5035.62539.5000.3750.3750.8750.87535.2502.751.6251.6250.4380.438
LCR-1800.833/8-24 RH/LH16.5014.62518.5000.3750.3750.8750.87514.252.751.6251.6250.4380.438
LCR-1811.223/8-24 RH/LH29.2527.37531.2500.3750.3750.8750.87527.0002.751.6251.6250.4380.438
LCR-1821.123/8-24 RH/LH20.0019.37620.50.3750.3750.5000.50018.0002.751.6251.6250.4060.406
LCR-1831.073/8-24 RH/LH17.0016.37617.50.3750.3750.5000.50015.0002.751.6251.6250.4060.406
LCR-1840.83/8-24 RH/LH11.7511.12612.250.3750.3750.5000.5009.7502.7501.6251.6250.4060.406
LCR-1851.363/8-24 RH/LH3534.37635.50.3750.3750.5000.50033.0002.751.6251.6250.4060.406
LCR-1861.093/8-24 RH/LH17.7517.12618.250.3750.3750.5000.50015.7502.751.6251.6250.4060.406
LCR-1870.763/8-24 RH/LH11.0010.37611.50.3750.3750.5000.5009.0002.7501.6251.6250.4060.406
LCR-1881.163/8-24 RH/LH2322.37623.50.3750.3750.5000.50021.0002.751.6251.6250.4060.406
LCR-1890.763/8-24 RH/LH11.0010.37611.50.3750.3750.5000.5009.0002.7501.6251.6250.4060.406
LCR-1901.13/8-24 RH/LH18.5017.876190.3750.3750.5000.50016.502.751.6251.6250.4060.406
LCR-1910.423/8-24 RH/LH4.254.2044.30.3750.3750.5000.5001.750.6251.6251.6250.4060.406
LCR-1921.273/8-24 RH/LH14.0013.37614.50.3750.3750.9060.90612.0002.7501.6251.6250.6440.644
LCR-1931.273/8-24 RH/LH2625.37626.50.3750.3750.9060.90624.0002.751.6251.6250.6440.644
LCR-1940.613/8-24 RH/LH8.007.3768.50.3750.3750.9060.9066.0002.7501.6251.6250.6440.644
LCR-19513/8-24 RH/LH20.7520.12621.250.3750.3750.9060.90618.7502.751.6251.6250.6440.644
LCR-1961.443/8-24 RH/LH3534.37635.50.3750.3750.9060.90633.0002.751.6251.6250.6440.644
LCR-1971.581/2-2019.5018.87620.250.5010.5010.6250.62517.0003.252.1252.1250.5000.500
LCR-1981.641/2-2015.5014.87616.250.5010.5011.1251.12513.0003.252.1252.1250.8750.875
LCR-1990.553/8-24 RH/LH9.757.87511.7500.3750.3750.8750.8757.5002.7501.6251.6250.4380.438
LCR-2000.943/8-24 RH/LH22.5020.62524.5000.3750.3750.8750.87520.2502.751.6251.6250.4380.438
LCR-2010.473/8-24 RH/LH6.005.9546.0000.3750.3750.8750.8751.750.6251.6251.6250.4380.438
LCR-2020.863/8-24 RH/LH17.2515.37519.250.3750.3750.8750.87515.0002.751.6251.6250.4380.438
LCR-2031.253/8-24 RH/LH30.0028.12532.0000.3750.3750.8750.87527.7502.751.6251.6250.4380.438
LCR-2040.683/8-24 RH/LH9.508.76100.3750.3750.5000.5007.5002.7501.6251.6250.4060.406
LCR-2050.723/8-24 RH/LH10.259.62610.750.3750.3750.5000.5008.2502.7501.6251.6250.4060.406
LCR-2061.133/8-24 RH/LH20.7520.12621.250.3750.3750.5000.50018.7502.751.6251.6250.4060.406
LCR-2071.073/8-24 RH/LH17.0016.37617.50.3750.3750.5000.50015.0002.751.6251.6250.4060.406
LCR-2081.093/8-24 RH/LH17.7517.12618.250.3750.3750.5000.50015.7502.751.6251.6250.4060.406
LCR-2090.763/8-24 RH/LH11.0010.37611.50.3750.3750.5000.5009.0002.7501.6251.6250.4060.406
LCR-2100.993/8-24 RH/LH15.5014.876160.3750.3750.5000.50013.5002.751.6251.6250.4060.406
LCR-2111.173/8-24 RH/LH25.2524.62625.750.3750.3750.5000.50023.2502.751.6251.6250.4060.406
LCR-2121.353/8-24 RH/LH31.2530.62631.750.3750.3750.5000.50029.2502.751.6251.6250.4060.406
LCR-2130.423/8-24 RH/LH4.254.2044.30.3750.3750.5000.5001.750.6251.6251.6250.4060.406
LCR-2140.923/8-24 RH/LH14.7514.12615.250.3750.3750.9060.90612.7502.751.6251.6250.6440.644
LCR-2151.33/8-24 RH/LH26.7526.12627.250.3750.3750.9060.90624.7502.751.6251.6250.6440.644
LCR-2160.633/8-24 RH/LH8.758.1269.250.3750.3750.9060.9066.7502.7501.6251.6250.6440.644
LCR-2170.923/8-24 RH/LH21.5020.876220.3750.3750.9060.90619.5002.751.6251.6250.6440.644
LCR-2181.513/8-24 RH/LH37.2536.62637.750.3750.3750.9060.90635.2502.751.6251.6250.6440.644
LCR-2191.621/2-2020.5019.87621.250.5010.5010.6250.62518.0003.252.1252.1250.5000.500
LCR-2201.681/2-2016.5015.87617.250.5010.5011.1251.12514.0003.252.1252.1250.8750.875
LCR-2210.573/8-24 RH/LH10.508.62512.5000.3750.3750.8750.8758.2502.7501.6251.6250.4380.438
LCR-2220.963/8-24 RH/LH23.2521.37525.250.3750.3750.8750.87521.0002.751.6251.6250.4380.438
LCR-2230.493/8-24 RH/LH6.255.9546.5000.3750.3750.8750.8752.2500.7501.6251.6250.4380.438
LCR-2240.883/8-24 RH/LH18.0016.12520.0000.3750.3750.8750.87515.7502.751.6251.6250.4380.438
LCR-2251.273/8-24 RH/LH30.7528.5002.750.3750.3750.8750.87528.5002.751.6251.6250.4380.438
LCR-2261.083/8-24 RH/LH14.0013.37614.50.3750.3750.5000.50012.0002.7501.6251.6250.4060.406
LCR-2270.483/8-24 RH/LH5.755.1266.250.3750.3750.5000.5003.7501.5001.6251.6250.4060.406
LCR-2281.13/8-24 RH/LH24.5023.876250.3750.3750.5000.50022.502.751.6251.6250.4060.406
LCR-2290.83/8-24 RH/LH11.7511.12612.250.3750.3750.5000.5009.7502.7501.6251.6250.4060.406
LCR-2300.433/8-24 RH/LH4.504.54.70.3750.3750.5000.5002.2500.7501.6251.6250.4060.406
LCR-2310.943/8-24 RH/LH14.7514.12615.250.3750.3750.5000.50012.7502.751.6251.6250.4060.406
LCR-2321.193/8-24 RH/LH27.5026.876280.3750.3750.5000.50025.5002.751.6251.6250.4060.406
LCR-2331.183/8-24 RH/LH2625.37626.50.3750.3750.5000.50024.0002.751.6251.6250.4060.406
LCR-2341.353/8-24 RH/LH32.0031.37632.500.3750.3750.5000.50030.0002.751.6251.6250.4060.406
LCR-2350.423/8-24 RH/LH4.254.2044.30.3750.3750.5000.5001.750.6251.6251.6250.4060.406
LCR-2360.953/8-24 RH/LH15.5014.876160.3750.3750.9060.90613.5002.751.6251.6250.6440.644
LCR-2371.323/8-24 RH/LH27.5026.876280.3750.3750.9060.90625.5002.751.6251.6250.6440.644
LCR-2380.813/8-24 RH/LH9.508.76100.3750.3750.9060.9067.5002.7501.6251.6250.6440.644
LCR-2391.053/8-24 RH/LH22.2521.62622.750.3750.3750.9060.90620.2502.751.6251.6250.6440.644
LCR-2400.81/2-206.005.756.250.5010.5010.6250.6253.0001.2502.1252.1250.5000.500
LCR-2411.691/2-2021.5020.87622.250.5010.5010.6250.62519.0003.252.1252.1250.5000.500
LCR-2421.751/2-2017.5016.87618.2500.5010.5011.1251.12515.0003.252.1252.1250.8750.875
LCR-2430.593/8-24 RH/LH11.319.37513.2500.3750.3750.8750.8759.0002.7501.6251.6250.4380.438
LCR-2440.983/8-24 RH/LH24.0022.12526.0000.3750.3750.8750.87521.7502.751.6251.6250.4380.438
LCR-2450.513/8-24 RH/LH6.505.95407.25000.3750.3750.8750.8753.0001.2501.6251.6250.4380.438
LCR-2460.93/8-24 RH/LH18.7516.87520.7500.3750.3750.8750.87516.502.751.6251.6250.4380.438
LCR-2471.293/8-24 RH/LH31.5029.62533.5000.3750.3750.8750.87529.2502.751.6251.6250.4380.438
LCR-2481.123/8-24 RH/LH20.0019.37620.50.3750.3750.5000.50018.0002.751.6251.6250.4060.406
LCR-2490.83/8-24 RH/LH11.7511.12612.250.3750.3750.5000.5009.7502.7501.6251.6250.4060.406
LCR-2501.113/8-24 RH/LH19.2518.62619.750.3750.3750.5000.50017.2502.751.6251.6250.4060.406
LCR-2511.363/8-24 RH/LH3534.37635.50.3750.3750.5000.50033.0002.751.6251.6250.4060.406
LCR-2521.363/8-24 RH/LH3534.37635.50.3750.3750.5000.50033.0002.751.6251.6250.4060.406
LCR-2530.993/8-24 RH/LH15.5014.876160.3750.3750.5000.50013.5002.751.6251.6250.4060.406
LCR-2541.173/8-24 RH/LH25.2524.62625.750.3750.3750.5000.50023.2502.751.6251.6250.4060.406
LCR-2551.183/8-24 RH/LH26.7526.12627.250.3750.3750.5000.50024.7502.751.6251.6250.4060.406
LCR-2561.143/8-24 RH/LH21.5020.876220.3750.3750.5000.50019.5002.751.6251.6250.4060.406
LCR-2570.423/8-24 RH/LH4.254.2044.30.3750.3750.5000.5001.750.6251.6251.6250.4060.406
LCR-2580.973/8-24 RH/LH16.0014.97616.750.3750.3750.9060.90614.252.751.6251.6250.6440.644
LCR-2591.363/8-24 RH/LH29.0028.37629.50.3750.3750.9060.90627.0002.751.6251.6250.6440.644
LCR-2600.683/8-24 RH/LH10.259.62610.750.3750.3750.9060.9068.2502.7501.6251.6250.6440.644
LCR-2611.423/8-24 RH/LH2322.37623.50.3750.3750.9060.90621.0002.751.6251.6250.6440.644
LCR-2620.861/2-206.505.8767.250.5010.5010.6250.6254.0001.752.1252.1250.5000.500
LCR-2631.731/2-2022.5021.87623.250.5010.5010.6250.62520.0003.252.1252.1250.5000.500
LCR-2641.791/2-2018.5017.87619.2500.5010.5011.1251.12516.0003.252.1252.1250.8750.875
LCR-2650.613/8-24 RH/LH12.7510.87514.7500.3750.3750.8750.8759.7502.7501.6251.6250.4380.438
LCR-2661.013/8-24 RH/LH24.7522.87526.7500.3750.3750.8750.87522.502.751.6251.6250.4380.438
LCR-2670.533/8-24 RH/LH7.005.9548.0000.3750.3750.8750.8753.7501.5001.6251.6250.4380.438
LCR-2680.923/8-24 RH/LH19.5017.62521.5000.3750.3750.8750.87517.2502.751.6251.6250.4380.438
LCR-2691.323/8-24 RH/LH32.2530.37534.2500.3750.3750.8750.87530.0002.751.6251.6250.4380.438
LCR-2700.853/8-24 RH/LH12.5011.876130.3750.3750.5000.50010.5002.7501.6251.6250.4060.406
LCR-2711.113/8-24 RH/LH19.2518.62619.750.3750.3750.5000.50017.2502.751.6251.6250.4060.406
LCR-2721.173/8-24 RH/LH23.7523.12624.250.3750.3750.5000.50021.7502.751.6251.6250.4060.406
LCR-2731.443/8-24 RH/LH37.2536.62637.750.3750.3750.5000.50035.2502.751.6251.6250.4060.406
LCR-2741.093/8-24 RH/LH17.7517.12618.250.3750.3750.5000.50015.7502.751.6251.6250.4060.406
LCR-2750.943/8-24 RH/LH14.7514.12615.250.3750.3750.5000.50012.7502.751.6251.6250.4060.406
LCR-2761.183/8-24 RH/LH2625.37626.50.3750.3750.5000.50024.0002.751.6251.6250.4060.406
LCR-2771.353/8-24 RH/LH32.0031.37632.500.3750.3750.5000.50030.0002.751.6251.6250.4060.406
LCR-2781.163/8-24 RH/LH2322.37623.50.3750.3750.5000.50021.0002.751.6251.6250.4060.406
LCR-2790.593/8-24 RH/LH4.254.2044.30.3750.3750.9060.9061.750.6251.6251.6250.6440.644
LCR-2800.993/8-24 RH/LH17.0016.37617.50.3750.3750.9060.90615.0002.751.6251.6250.6440.644
LCR-2811.393/8-24 RH/LH29.7529.12630.250.3750.3750.9060.90627.7502.751.6251.6250.6440.644
LCR-2820.73/8-24 RH/LH11.0010.37611.50.3750.3750.9060.9069.0002.7501.6251.6250.6440.644
LCR-2831.093/8-24 RH/LH23.7523.12624.250.3750.3750.9060.90621.7502.751.6251.6250.6440.644
LCR-2840.911/2-207.506.8768.250.5010.5010.6250.6255.0002.252.1252.1250.5000.500
LCR-2851.781/2-2023.5022.87624.250.5010.5010.6250.62521.0003.252.1252.1250.5000.500
LCR-2861.871/2-2019.5018.87620.250.5010.5011.1251.12517.0003.252.1252.1250.8750.875
LCR-2870.643/8-24 RH/LH13.2511.37515.2500.3750.3750.8750.87510.5002.7501.6251.6250.4380.438
LCR-2881.033/8-24 RH/LH25.5023.62527.5000.3750.3750.8750.87523.2502.751.6251.6250.4380.438
LCR-2890.563/8-24 RH/LH7.505.5949.5000.3750.3750.8750.8755.2502.5001.6251.6250.4380.438
LCR-2900.953/8-24 RH/LH20.5018.37522.5000.3750.3750.8750.87518.0002.751.6251.6250.4380.438
LCR-2911.343/8-24 RH/LH33.0031.12535.0000.3750.3750.8750.87530.7502.751.6251.6250.4380.438
LCR-2920.683/8-24 RH/LH9.508.76100.3750.3750.5000.5007.5002.7501.6251.6250.4060.406
LCR-2931.073/8-24 RH/LH17.0016.37617.50.3750.3750.5000.50015.0002.751.6251.6250.4060.406
LCR-2941.163/8-24 RH/LH22.2521.62622.750.3750.3750.5000.50020.2502.751.6251.6250.4060.406
LCR-2951.113/8-24 RH/LH19.2518.62619.750.3750.3750.5000.50017.2502.751.6251.6250.4060.406
LCR-2961.443/8-24 RH/LH37.2536.62637.750.3750.3750.5000.50035.2502.751.6251.6250.4060.406
LCR-2971.13/8-24 RH/LH18.5017.876190.3750.3750.5000.50016.502.751.6251.6250.4060.406
LCR-2981.183/8-24 RH/LH26.7526.12627.250.3750.3750.5000.50024.7502.751.6251.6250.4060.406
LCR-2991.343/8-24 RH/LH30.5029.876310.3750.3750.5000.50028.5002.751.6251.6250.4060.406
LCR-3001.363/8-24 RH/LH32.7532.12633.250.3750.3750.5000.50030.7502.751.6251.6250.4060.406
LCR-3010.63/8-24 RH/LH4.504.54.70.3750.3750.9060.9062.2500.7501.6251.6250.6440.644
LCR-3020.943/8-24 RH/LH17.7517.12618.250.3750.3750.9060.90615.7502.751.6251.6250.6440.644
LCR-3031.413/8-24 RH/LH30.5029.876310.3750.3750.9060.90628.5002.751.6251.6250.6440.644
LCR-3040.923/8-24 RH/LH11.7511.12612.250.3750.3750.9060.9069.7502.7501.6251.6250.6440.644
LCR-3051.123/8-24 RH/LH24.5023.876250.3750.3750.9060.90622.502.751.6251.6250.6440.644
LCR-3060.971/2-208.507.8769.2500.5010.5010.6250.6256.0002.752.1252.1250.5000.500
LCR-3071.831/2-2024.5023.87625.250.5010.5010.6250.62522.0003.252.1252.1250.5000.500
LCR-3081.91/2-2020.5019.87621.250.5010.5011.1251.12518.0003.252.1252.1250.8750.875
LCR-3090.683/8-24 RH/LH14.2512.37516.2500.3750.3750.8750.87512.0002.7501.6251.6250.4380.438
LCR-3101.053/8-24 RH/LH26.5024.37528.5000.3750.3750.8750.87524.0002.751.6251.6250.4380.438
LCR-3110.583/8-24 RH/LH8.316.37510.2500.3750.3750.8750.8756.0002.7501.6251.6250.4380.438
LCR-3120.973/8-24 RH/LH21.0019.12523.0000.3750.3750.8750.87518.7502.751.6251.6250.4380.438
LCR-3131.413/8-24 RH/LH35.2533.37537.2500.3750.3750.8750.87533.0002.751.6251.6250.4380.438
LCR-3141.083/8-24 RH/LH14.0013.37614.50.3750.3750.5000.50012.0002.7501.6251.6250.4060.406
LCR-3150.83/8-24 RH/LH11.7511.12612.250.3750.3750.5000.5009.7502.7501.6251.6250.4060.406
LCR-3161.033/8-24 RH/LH16.0014.97616.750.3750.3750.5000.50014.252.751.6251.6250.4060.406
LCR-3171.033/8-24 RH/LH16.0014.97616.750.3750.3750.5000.50014.252.751.6251.6250.4060.406
LCR-3180.433/8-24 RH/LH4.504.54.70.3750.3750.5000.5002.2500.7501.6251.6250.4060.406
LCR-3190.993/8-24 RH/LH15.5014.876160.3750.3750.5000.50013.5002.751.6251.6250.4060.406
LCR-3201.13/8-24 RH/LH18.5017.876190.3750.3750.5000.50016.502.751.6251.6250.4060.406
LCR-3211.193/8-24 RH/LH27.5026.876280.3750.3750.5000.50025.5002.751.6251.6250.4060.406
LCR-3221.173/8-24 RH/LH25.2524.62625.750.3750.3750.5000.50023.2502.751.6251.6250.4060.406
LCR-3230.633/8-24 RH/LH5.004.55.50.3750.3750.9060.9063.0001.2501.6251.6250.6440.644
LCR-3241.043/8-24 RH/LH18.5017.876190.3750.3750.9060.90616.502.751.6251.6250.6440.644
LCR-3251.433/8-24 RH/LH31.2530.62631.750.3750.3750.9060.90629.2502.751.6251.6250.6440.644
LCR-3260.963/8-24 RH/LH12.5011.876130.3750.3750.9060.90610.5002.7501.6251.6250.6440.644
LCR-3271.143/8-24 RH/LH25.2524.62625.750.3750.3750.9060.90623.2502.751.6251.6250.6440.644
LCR-3281.031/2-209.508.87610.250.5010.5010.6250.6257.0002.752.1252.1250.5000.500
LCR-3291.081/2-206.005.756.250.5010.5011.1251.1253.0001.2502.1252.1250.8750.875
LCR-3301.981/2-2021.5020.87622.250.5010.5011.1251.12519.0003.252.1252.1250.8750.875
LCR-3310.713/8-24 RH/LH15.0013.12517.0000.3750.3750.8750.87512.7502.751.6251.6250.4380.438
LCR-3321.073/8-24 RH/LH27.0025.12529.0000.3750.3750.8750.87524.7502.751.6251.6250.4380.438
LCR-3330.63/8-24 RH/LH9.007.12511.0000.3750.3750.8750.8756.7502.7501.6251.6250.4380.438
LCR-3340.993/8-24 RH/LH21.7519.87523.7500.3750.3750.8750.87519.5002.751.6251.6250.4380.438
LCR-3351.483/8-24 RH/LH37.5035.62539.5000.3750.3750.8750.87535.2502.751.6251.6250.4380.438
LCR-3361.123/8-24 RH/LH20.0019.37620.50.3750.3750.5000.50018.0002.751.6251.6250.4060.406
LCR-3370.63/8-24 RH/LH8.007.3768.50.3750.3750.5000.5006.0002.7501.6251.6250.4060.406
LCR-3381.13/8-24 RH/LH24.5023.876250.3750.3750.5000.50022.502.751.6251.6250.4060.406
LCR-3391.443/8-24 RH/LH37.2536.62637.750.3750.3750.5000.50035.2502.751.6251.6250.4060.406
LCR-3401.093/8-24 RH/LH17.7517.12618.250.3750.3750.5000.50015.7502.751.6251.6250.4060.406
LCR-3410.763/8-24 RH/LH11.0010.37611.50.3750.3750.5000.5009.0002.7501.6251.6250.4060.406
LCR-3421.193/8-24 RH/LH29.0028.37629.50.3750.3750.5000.50027.0002.751.6251.6250.4060.406
LCR-3431.363/8-24 RH/LH32.7532.12633.250.3750.3750.5000.50030.7502.751.6251.6250.4060.406
LCR-3441.183/8-24 RH/LH2625.37626.50.3750.3750.5000.50024.0002.751.6251.6250.4060.406
LCR-3450.653/8-24 RH/LH5.755.1266.250.3750.3750.9060.9063.7501.5001.6251.6250.6440.644
LCR-3461.063/8-24 RH/LH19.2518.62619.750.3750.3750.9060.90617.2502.751.6251.6250.6440.644
LCR-3471.453/8-24 RH/LH32.0031.37632.500.3750.3750.9060.90630.0002.751.6251.6250.6440.644
LCR-3481.163/8-24 RH/LH14.0013.37614.50.3750.3750.9060.90612.0002.7501.6251.6250.6440.644
LCR-3491.163/8-24 RH/LH2625.37626.50.3750.3750.9060.90624.0002.751.6251.6250.6440.644
LCR-3501.071/2-2010.509.87611.2500.5010.5010.6250.6258.0003.252.1252.1250.5000.500
LCR-3511.141/2-206.505.8767.250.5010.5011.1251.1254.0001.752.1252.1250.8750.875
LCR-3522.011/2-2022.5021.87623.250.5010.5011.1251.12520.0003.252.1252.1250.8750.875
Quality Control

Every Unit Inspected Before Shipment

🔩

Raw Material Inspection

Material certifications verified. Composition confirmed by spectrometer before machining begins.

🔍

Thread Gauge Inspection

100% go/no-go gauge check on all threaded sections. Zero tolerance on dimensional non-conformance.

⚖️

Load Capacity Test

Static and dynamic load tests run on representative samples from each production batch.

📏

Dimensional Measurement

CMM verification of critical dimensions — ball diameter, bore, thread pitch, and body length.

🔬

Surface Inspection

Visual and tactile inspection for burrs, scratches, surface cracks, and plating defects.

🔄

Articulation Test

Misalignment angle and torque measured to confirm liner performance meets specification.

🏆

Heat Treatment Verify

Hardness tests confirm proper heat treatment on chromoly steel bodies and bearing balls.

📋

Batch Documentation

Full traceability from raw material heat number to finished part. COC and inspection reports available.

Applications

Where Linkage Rods Are Used

Mechanical Control Linkages

Connecting rods transfer motion between levers, shafts, actuators, and control arms while rod ends accommodate angular change at each attachment. Match overall length and end geometry to the mechanism.

Steering, Suspension & Stabilizer Systems

Preassembled or fabricated linkage rods can be used in steering and suspension systems where accurate length and repeatable end connections are important. Check joint orientation and travel before final tightening.

Agricultural and Industrial Equipment

Longer linkage assemblies are common in machine controls, agricultural mechanisms, and industrial equipment. Select the race and rod-end material for the expected oscillation, contamination, load, and maintenance plan.

Related Products

More from the Linkage Connecting Rod Series

All Products →
lcr-345-linkage-connecting-rod-5-75-in-3-8-24-rh-lh-thread-3-8-24-rod-end-stud-threads-nylon-race

LCR-345 Linkage Connecting Rod 5.75 in, 3/8-24 RH/LH Thread, 3/8-24 Rod-End Stud Threads, Nylon Race

LCR-345

View Product →
lcr-344-linkage-connecting-rod-26-00-in-3-8-24-rh-lh-thread-3-8-in-bores-bronze-race

LCR-344 Linkage Connecting Rod 26.00 in, 3/8-24 RH/LH Thread, 3/8 in Bores, Bronze Race

LCR-344

View Product →
lcr-343-linkage-connecting-rod-32-75-in-3-8-24-rh-lh-thread-3-8-in-bores-steel-race

LCR-343 Linkage Connecting Rod 32.75 in, 3/8-24 RH/LH Thread, 3/8 in Bores, Steel Race

LCR-343

View Product →
lcr-342-linkage-connecting-rod-29-00-in-3-8-24-rh-lh-thread-3-8-in-bores-steel-race

LCR-342 Linkage Connecting Rod 29.00 in, 3/8-24 RH/LH Thread, 3/8 in Bores, Steel Race

LCR-342

View Product →
Get a Quote

Request a Quote for the Linkage Connecting Rod Series

Share your part number, required quantity, and any special material or packaging requirements. We respond within 24 hours.

✉
⚡ Reply in 24 hrs
🎁 Free samples
🔒 NDA available
📦 MOQ from 50 pcs
Optional: JPG, PNG, WEBP, GIF or ZIP; up to 5 files and 20 MB total.
FAQ

Linkage Connecting Rod Frequently Asked Questions

What is the LCR-236 built to do?

The LCR-236 is a 15.50 in nominal-length connecting rod for adjustable mechanical linkages, control rods, and motion-transfer assemblies, with a 3/8-24 RH/LH thread on the connecting body and a 3/8-24 threaded rod-end stud fitted with a nylon-race spherical bearing at each end, so installed length can be fine-tuned and each end can articulate.

What is the adjustable length range of the LCR-236?

The LCR-236 has an overall L1 adjustment range of 14.876–16 in, with an L2 reference length of 13.500 in and an L3 typical dimension of 2.75 in, giving roughly 1.1 in of total length adjustment through the 3/8-24 RH/LH threaded ends.

What rod-end bearings does the LCR-236 use?

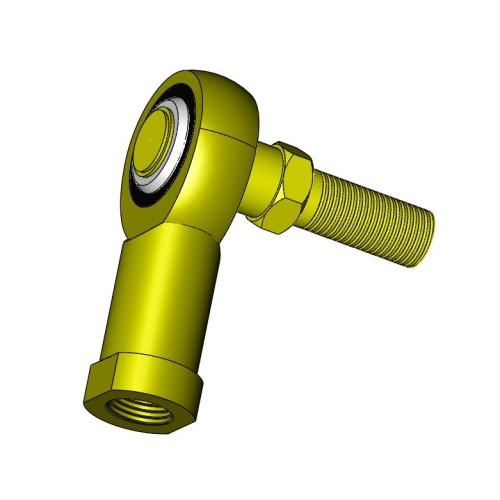

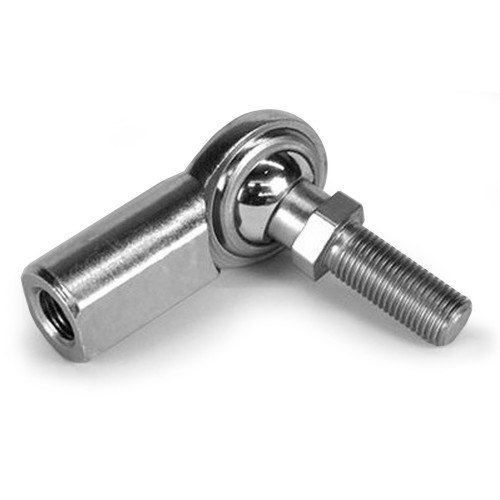

Each end of the LCR-236 terminates in a 3/8-24 threaded rod-end stud fitted with a nylon-race spherical rod-end bearing, so the rod both threads for length adjustment and articulates at each pivot point.

Is the LCR-236 available in anything besides standard steel?

Standard construction is carbon steel. Chromoly steel is also offered, with aluminum alloy and stainless steel available as optional materials — confirm the material, finish, and thread hand with SYZ before ordering.

Does the LCR-236 adjust like a turnbuckle?

Yes. Because the 3/8-24 RH/LH configuration pairs a right-hand thread on one end with a left-hand thread on the other, rotating the center body changes the installed length turnbuckle-style, without unthreading either end.

Can the LCR-236 be customized for an OEM linkage project?

Yes. SYZ can adjust the nominal length, thread size/hand, end style, and material for OEM or custom linkage projects — provide your target L1 range and mounting thread when requesting a quote for the LCR-236.

LCR-236 Linkage Connecting Rod 15.50 in, 3/8-24 RH/LH Thread, 3/8-24 Rod-End Stud Threads, Nylon Race
Linkage Connecting Rod · LCR-236
50 pcs
Min. Order
Free Sample Get a Quote →

Request a Quote

Please submit the form or email [email protected]

🍪
We Use Cookies
