Steering and Suspension Linkages
Linkage rods and Heim-joint assemblies provide adjustable, serviceable connections for steering, suspension, and chassis systems. Match the joint type, thread, spacers, and alignment to the travel of the mechanism.
ROD END / HEIM JOINT
Stainless Steel Rod End for Industrial Machinery
✓ ISO 9001 Certified
✓ SGS Verified
✓ 26+ Years Factory
✓ OEM / ODM Ready
- Email Us [email protected] to Get a Latest Price or a Sample
Precision-engineered stainless steel rod ends designed for industrial machinery, including egg processing and packaging equipment. High corrosion resistance, durability, and customizable specifications to meet OEM production requirements.
⚡ Typically responds within 24 hours
MOQ:50 pcs / model
Lead Time:7–15 days
Sample:Free (excl. freight)
Payment:T/T · PayPal · L/C
Overview
Stainless Steel Rod End for Industrial Machinery Overview
Stainless Steel Rod End for Industrial Machinery
Our stainless steel rod end is ideal for industrial applications where precision, durability, and corrosion resistance are essential. These parts are widely used in egg processing equipment, food packaging machinery, and other automation systems.
Features
- Material: Stainless Steel
- High corrosion resistance
- Custom sizes and thread specifications
- Suitable for food-grade environments
- Long lifespan with low maintenance
Customization Services
- CNC Machining
- Surface Treatment (Polishing, Passivation)
- Custom Logo Engraving
- Small batch sampling and mass production available
Applications
- Egg Grading Machines
- Food Packaging Machinery
- Linear Actuators
- Conveyor Systems

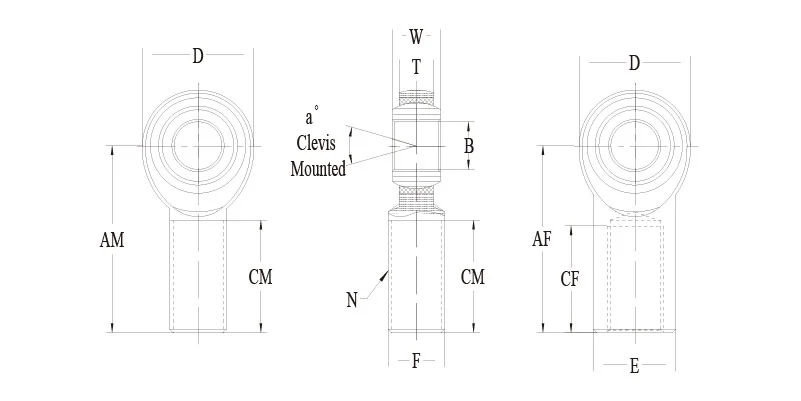

| SCM-T ROD END | B | D | W | T | BALL | AM | N | CM | a° | STATIC | APPROX | |
| RIGHT | LEFT | DIA. | DIA. | WIDTH | WIDTH | DIA. | LENGTH | THREAD | LENGTH | MIS. | RADIAL | WEIGHT |
| HAND | HAND | +0.0025 | +0.010 | +0.005 | REF. | REF. | +0.015 | UNF | +0.062 | ANGLE | LOAD | (LBS) |
| PART NO. | PART NO. | -0.0005 | -0.010 | -0.005 | -0.015 | 3A | -0.031 | REF. | (LBS) | |||
| SCMR3T | SCML3T | 0.1900 | 0.625 | 0.312 | 0.234 | 0.437 | 1.250 | 10-32 | 0.750 | 20 | 912 | 0.03 |
| SCMR4T | SCML4T | 0.2500 | 0.750 | 0.375 | 0.250 | 0.500 | 1.562 | 1/4-28 | 1.000 | 27 | 1,370 | 0.04 |
| SCMR5T | SCML5T | 0.3125 | 0.875 | 0.437 | 0.312 | 0.625 | 1.875 | 5/16-24 | 1.250 | 22 | 2,050 | 0.07 |
| SCMR6T | SCML6T | 0.3750 | 1.000 | 0.500 | 0.359 | 0.719 | 1.938 | 3/8-24 | 1.250 | 22 | 3,040 | 0.11 |
| SCMR7T | SCML7T | 0.4375 | 1.125 | 0.562 | 0.406 | 0.812 | 2.125 | 7/16-20 | 1.375 | 21 | 3,780 | 0.15 |
| SCMR8T | SCML8T | 0.5000 | 1.312 | 0.625 | 0.453 | 0.937 | 2.438 | 1/2-20 | 1.500 | 20 | 4,700 | 0.24 |
| SCMR10T | SCML10T | 0.6250 | 1.500 | 0.750 | 0.484 | 1.125 | 2.625 | 5/8-18 | 1.625 | 26 | 5,860 | 0.36 |
| SCMR12T | SCML12T | 0.7500 | 1.750 | 0.875 | 0.593 | 1.312 | 2.875 | 3/4-16 | 1.750 | 24 | 7,512 | 0.57 |
| SCF-T ROD END | B | D | W | T | BALL | AF | N | CF | a° | STATIC | APPROX | |
| SCFR3T | SCFL3T | 0.1900 | 0.625 | 0.312 | 0.234 | 0.437 | 1.062 | 10-32 | 0.500 | 20 | 930 | 0.04 |
| SCFR4T | SCFL4T | 0.2500 | 0.750 | 0.375 | 0.250 | 0.500 | 1.312 | 1/4-28 | 0.687 | 27 | 1,380 | 0.05 |
| SCFR5T | SCFL5T | 0.3125 | 0.875 | 0.437 | 0.312 | 0.625 | 1.375 | 5/16-24 | 0.687 | 22 | 2,100 | 0.08 |
| SCFR6T | SCFL6T | 0.3750 | 1.000 | 0.500 | 0.359 | 0.719 | 1.625 | 3/8-24 | 0.812 | 22 | 3,080 | 0.13 |
| SCFR7T | SCFL7T | 0.4375 | 1.125 | 0.562 | 0.406 | 0.812 | 1.812 | 7/16-20 | 0.937 | 21 | 3,790 | 0.18 |
| SCFR8T | SCFL8T | 0.5000 | 1.312 | 0.625 | 0.453 | 0.937 | 2.125 | 1/2-20 | 1.062 | 20 | 4,720 | 0.29 |
| SCFR10T | SCFL10T | 0.6250 | 1.500 | 0.750 | 0.484 | 1.125 | 2.500 | 5/8-18 | 1.375 | 26 | 5,870 | 0.43 |
| SCFR12T | SCFL12T | 0.7500 | 1.750 | 0.875 | 0.593 | 1.312 | 2.875 | 3/4-16 | 1.562 | 24 | 7,520 | 0.65 |
Quality Control
Every Unit Inspected Before Shipment
Raw Material Inspection
Material certifications verified before machining and assembly begin.
Dimensional Check
Critical dimensions are checked against drawing or sample requirements.
Surface Inspection
Visual inspection confirms finish quality, burr removal, and assembly cleanliness.
Batch Documentation
Inspection reports and production traceability can be provided on request.
