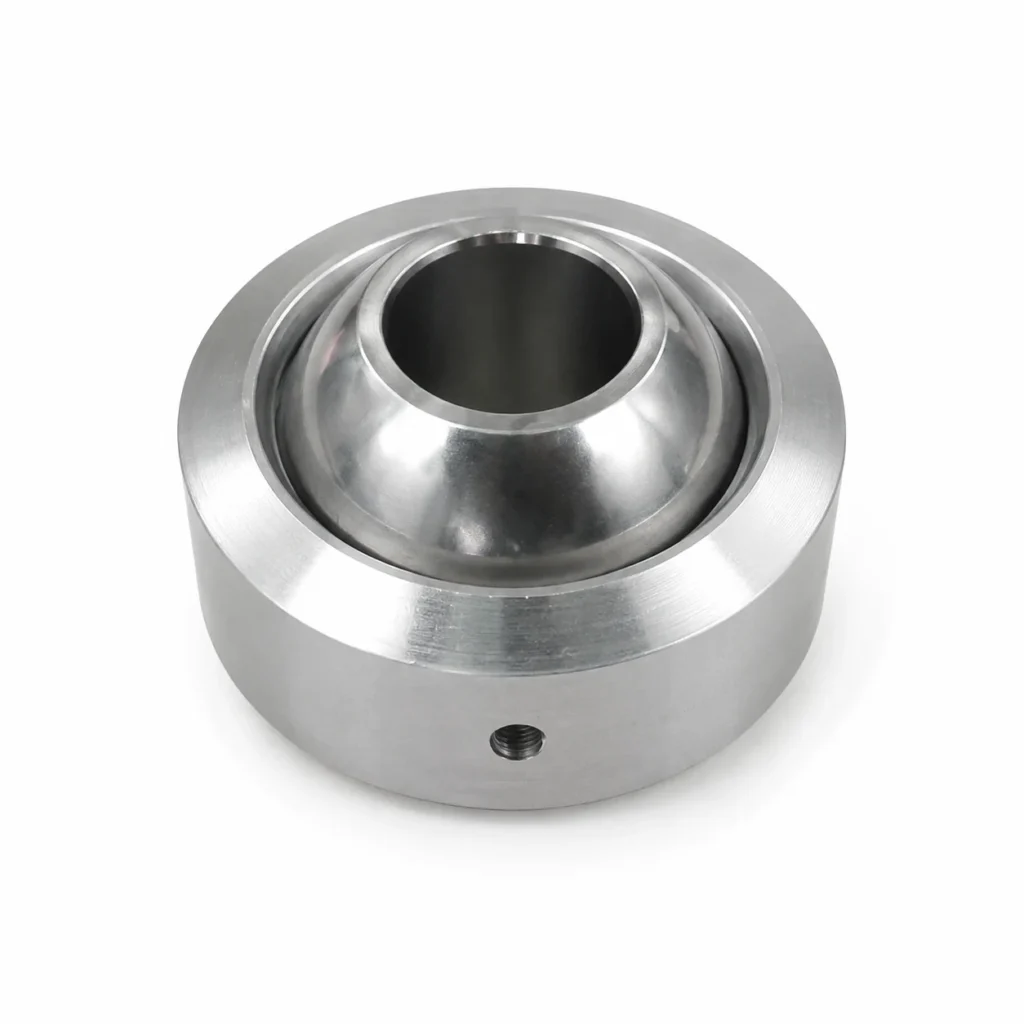

Pin 1.75 in. / B 4.5 in.Not-Shouldered Industrial Weld-On Ball Joint – 1.75 in Pin, 4.5 in Retainer OD is built for heavy-duty fabricated linkage, control arm, steering, cylinder connection, and weld-in joint applications.
Key dimensions: Pin size 1.75 in, Retainer OD 4.5 in, Ball width 2.5 in, Retainer width 11/16 in, Angle A 20 deg, Angle B 28 deg.
Material references include a zinc-plated 45# carbon steel housing, heat-treated bearing steel ball, and metal-to-metal structure for custom welded assemblies.
All available sizes in the Industrial Weld on Ball Joints series. Can’t find your size? Contact us for custom dimensions.
| Type | Part ID | Pin Size (in) | Retainer OD B (in) | Ball Width C (in) | Retainer Width D (in) | Angle A (deg) | Angle B (deg) | Ultimate Retainer Strength (lbs) | Ball Push Out Force (lbs) |
|---|---|---|---|---|---|---|---|---|---|
| Not Shouldered | SYZ-HSB-NS001 | 0.5 | 2 | 1 | 3/8 | 11 | 40 | 20000 | 14600 |
| Not Shouldered | SYZ-HSB-NS002 | 0.62 | 2 | 1 | 3/8 | 11 | 33 | 20000 | 14600 |
| Not Shouldered | SYZ-HSB-NS003 | 0.62 | 2.25 | 1 | 3/8 | 10 | 35 | 45000 | 17100 |
| Not Shouldered | SYZ-HSB-NS004 | 0.75 | 2 | 1 | 3/8 | 11 | 26 | 20000 | 14600 |
| Not Shouldered | SYZ-HSB-NS005 | 0.75 | 2.25 | 1 | 3/8 | 10 | 28 | 45000 | 17100 |
| Not Shouldered | SYZ-HSB-NS006 | 0.75 | 2.25 | 1.38 | 9/16 | 17 | 30 | 32800 | 26200 |
| Not Shouldered | SYZ-HSB-NS007 | 0.75 | 2.25 | 1.38 | 3/8 | 17 | 32 | 52000 | 28500 |
| Not Shouldered | SYZ-HSB-NS008 | 0.87 | 2.5 | 1.38 | 3/8 | 17 | 27 | 32800 | 26200 |
| Not Shouldered | SYZ-HSB-NS009 | 0.87 | 2.5 | 1.38 | 3/8 | 17 | 26 | 52000 | 28500 |
| Not Shouldered | SYZ-HSB-NS010 | 1 | 2 | 1 | 3/8 | 11 | 17 | 20000 | 14600 |
| Not Shouldered | SYZ-HSB-NS011 | 1 | 2.25 | 1 | 3/8 | 10 | 19 | 45000 | 17100 |
| Not Shouldered | SYZ-HSB-NS012 | 1 | 2.75 | 1.75 | 7/8 | 17 | 26 | 40500 | 35100 |
| Not Shouldered | SYZ-HSB-NS013 | 1 | 3.12 | 1.75 | 9/16 | 15 | 31 | 78900 | 46000 |
| Not Shouldered | SYZ-HSB-NS014 | 1.12 | 2.75 | 1.38 | 11/16 | 10 | 30 | 35500 | 35100 |
| Not Shouldered | SYZ-HSB-NS015 | 1.12 | 2.75 | 1.75 | 13/16 | 17 | 28 | 40500 | 35100 |
| Not Shouldered | SYZ-HSB-NS016 | 1.12 | 3.12 | 1.38 | 3/8 | 11 | 32 | 50000 | 23700 |
| Not Shouldered | SYZ-HSB-NS017 | 1.12 | 3.12 | 1.75 | 9/16 | 15 | 25 | 78900 | 46000 |
| Not Shouldered | SYZ-HSB-NS018 | 1.25 | 2.75 | 1.75 | 7/8 | 17 | 25 | 40500 | 35100 |
| Not Shouldered | SYZ-HSB-NS019 | 1.25 | 3.12 | 1.75 | 9/16 | 15 | 24 | 78900 | 35100 |
| Not Shouldered | SYZ-HSB-NS020 | 1.43 | 3.5 | 1.75 | 1/2 | 13 | 24 | 82400 | 40200 |
| Not Shouldered | SYZ-HSB-NS021 | 1.43 | 3.5 | 1.75 | 1/2 | 13 | 23 | 82400 | 40200 |
| Not Shouldered | SYZ-HSB-NS022 | 1.43 | 4 | 1.75 | 5/8 | 13 | 23 | 135000 | 47900 |
| Not Shouldered | SYZ-HSB-NS023 | 1.5 | 4.5 | 2.5 | 1 | 20 | 33 | 162000 | 68600 |
| Not Shouldered | SYZ-HSB-NS024 | 1.75 | 4.5 | 2.5 | 11/16 | 20 | 28 | 162000 | 68600 |
| Not Shouldered | SYZ-HSB-NS025 | 2 | 4.5 | 2.25 | 1 | 14 | 22 | 162000 | 68600 |
| Shouldered | SYZ-HSB-S001 | 0.75 | 2 | 1.75 | 3/8 | 17 | 0 | 20000 | 14600 |
| Shouldered | SYZ-HSB-S002 | 0.75 | 2.25 | 1.75 | 3/8 | 15 | 0 | 45000 | 17100 |
| Shouldered | SYZ-HSB-S003 | 1.25 | 3.5 | 2 | 1/2 | 20 | 0 | 82400 | 40200 |
| Shouldered | SYZ-HSB-S004 | 1.25 | 4 | 2 | 5/8 | 18 | 0 | 135000 | 47900 |
Material certifications verified. Composition confirmed by spectrometer before machining begins.
100% go/no-go gauge check on all threaded sections. Zero tolerance on dimensional non-conformance.
Static and dynamic load tests run on representative samples from each production batch.
CMM verification of critical dimensions — ball diameter, bore, thread pitch, and body length.
Visual and tactile inspection for burrs, scratches, surface cracks, and plating defects.
Misalignment angle and torque measured to confirm liner performance meets specification.
Hardness tests confirm proper heat treatment on chromoly steel bodies and bearing balls.
Full traceability from raw material heat number to finished part. COC and inspection reports available.
Share your part number, required quantity, and any special material or packaging requirements. We respond within 24 hours.
The SYZ-HSB-NS024 is a not-shouldered industrial weld-on ball joint built for heavy-duty fabricated linkage, control arm, steering, cylinder connection, and weld-in joint applications.
Pin size is 1.75 in, retainer OD (B) is 4.5 in, ball width (C) is 2.5 in, and retainer width (D) is 11/16 in.
The SYZ-HSB-NS024 lists two angle references: Angle A is 20° and Angle B is 28°, reflecting the wider misalignment range of the not-shouldered design.
The SYZ-HSB-NS024 lists an ultimate retainer strength of 162000 lbs and a ball push-out force of 68600 lbs.
The housing is 45# carbon steel, zinc plated, the ball is 52100 bearing steel / 45# carbon, hard plated, heat treated, and material references given for the joint include GCr15 / 52100, carbon steel, zinc coating, black oxide, chrome plated options. It uses a metal to metal, with grease nipple or oil hole optional construction for custom welded assemblies.
The SYZ-HSB-NS024 is the not-shouldered type in this series — shouldered joints (part numbers ending -S###) add a shoulder feature to the housing, while not-shouldered joints (ending -NS###) omit it; both are sized by pin diameter and retainer OD, so match the type your weld fixture and clearance require.
