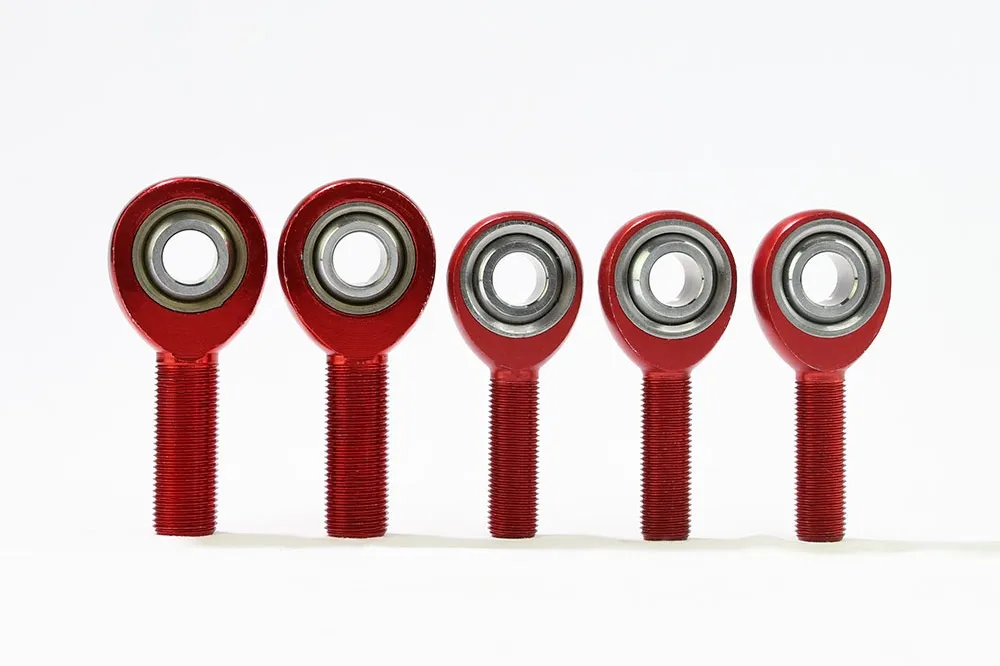

ALJM(-T) / ALRSM(-T) / ALJF(-T) Series — Aluminum Precision Rod Ends
ALJM(-T) / ALRSM(-T) / ALJF(-T) Series
Aluminum Precision Rod Ends
3-Piece Precision Design · 7075-T6 Aircraft Aluminum · PTFE Lined Optional
12
Male Rod End Choices
12
Female Rod End Choices
Brand Compatibility
Cross-searching
Full Spec Range
Search by spec.

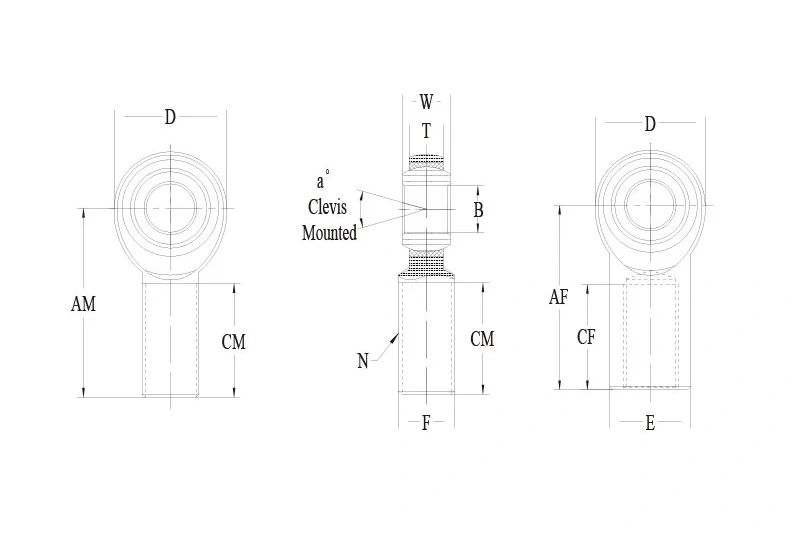

| Type | RH Part No. | LH Part No. | B | D | N | W | T | Ball | AM / AF | CM / CF | A° | Static | Weight | Qty | Action | Details |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| ALJM Male | ALJMR3(T) | ALJML3(T) | 0.1900 | 0.625 | 10-32 | 0.312 | 0.250 | 0.437 | 1.250 | 0.750 | 13 | 1360 | 0.022 | View details | ||
| ALJM Male | ALJMR8(T) | ALJML8(T) | 0.5000 | 1.312 | 1/2-20 | 0.625 | 0.500 | 0.937 | 2.438 | 1.500 | 12 | 7698 | 0.140 | View details | ||
| ALJM Male | ALJMR12(T) | ALJML12(T) | 0.7500 | 1.750 | 3/4-16 | 0.875 | 0.687 | 1.312 | 2.875 | 1.750 | 14 | 13319 | 0.300 | View details | ||
| ALRSM Heavy Duty | ALRSM6(T) | — | 0.3750 | 1.125 | 7/16-20 | 0.500 | 0.406 | 0.719 | 2.125 | 1.375 | 10 | 7718 | 0.088 | View details | ||
| ALRSM Heavy Duty | ALRSM10(T) | — | 0.6250 | 1.750 | 3/4-16 | 0.750 | 0.562 | 1.125 | 2.875 | 1.750 | 13 | 19240 | 0.317 | View details | ||
| ALJF Female | ALJFR3(T) | ALJFL3(T) | 0.1900 | 0.625 | 10-32 | 0.312 | 0.250 | 0.437 | 1.062 | 0.500 | 13 | 1360 | 0.022 | View details | ||
| ALJF Female | ALJFR8(T) | ALJFL8(T) | 0.5000 | 1.312 | 1/2-20 | 0.625 | 0.500 | 0.937 | 2.125 | 1.062 | 12 | 7006 | 0.186 | View details | ||
| ALJF Female | ALJFR12(T) | ALJFL12(T) | 0.7500 | 1.750 | 3/4-16 | 0.875 | 0.687 | 1.312 | 2.875 | 1.562 | 14 | 13319 | 0.414 | View details |
Technical Spec.
- Ball: 52100 Bearing Steel, precision ground, heat-treated, and Hard Chrome Plated for smooth articulation and wear resistance.
- Race: Alloy Steel with PTFE lined option and zinc plating option for precise, low-friction articulation.
- Body: 7075-T6 Aircraft Aluminum, color anodized red or black. Other colors available on request.
Notes
- Stud Configurations Available: Add "S" to suffix, example: ALJMR12S.
- Teflon Liner: Add "T" to suffix, example: ALJMR12T.
- Available Colors: Red, Black, Plain, Purple, Blue, Green, and Pink.
