BUNG ADJUSTER NUT — Related Products

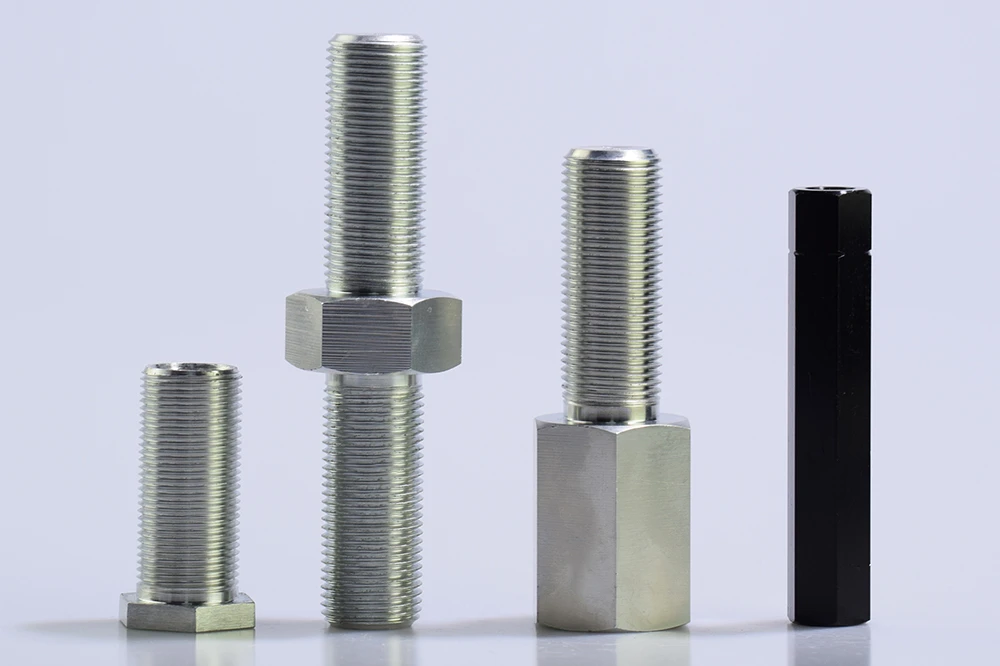

Bung Adjuster Nut
Chromoly Steel Thread Adjusters
Chromoly Steel · Silver Zinc Plated · Internal / External Thread Adjustment · Fabrication Hardware
15
Available Sizes
Flexable
MOQ
Full Spec Range
Search by spec.
| Type | Part No. | Internal Thread C | External Thread D | HEX E | Total Length A | Hex Length B | Qty | |
|---|---|---|---|---|---|---|---|---|
| Bung Adjuster Nut | BAN-8-6 | 3/8-24 RH | 1/2-20 RH | 0.563 | 1.250 | 0.219 | ||
| Bung Adjuster Nut | BANL-8-6 | 3/8-24 LH | 1/2-20 LH | 0.563 | 1.250 | 0.219 | ||
| Bung Adjuster Nut | BAN-10-8 | 1/2-20 RH | 5/8-18 RH | 0.750 | 1.500 | 0.313 | ||
| Bung Adjuster Nut | BANL-10-8 | 1/2-20 LH | 5/8-18 LH | 0.750 | 1.500 | 0.313 | ||
| Bung Adjuster Nut | BAN-12-10 | 5/8-18 RH | 3/4-16 RH | 0.938 | 1.630 | 0.375 | ||
| Bung Adjuster Nut | BANL-12-10 | 5/8-18 LH | 3/4-16 LH | 0.938 | 1.630 | 0.375 | ||
| Bung Adjuster Nut | BAN-12-10-1 | 5/8-18 RH | 3/4-16 LH | 0.938 | 1.630 | 0.375 | ||
| Bung Adjuster Nut | BAN-16-12 | 3/4-16 RH | 1-12 RH | 1.125 | 1.750 | 0.422 | ||
| Bung Adjuster Nut | BANL-16-12 | 3/4-16 LH | 1-12 LH | 1.125 | 1.750 | 0.422 | ||
| Bung Adjuster Nut | BAN-16-12-1 | 3/4-16 LH | 1-12 RH | 1.125 | 1.750 | 0.422 | ||
| Bung Adjuster Nut | BANL-16-12-1B | 3/4-16 LH | 1-12 RH | 1.125 | 2.750 | 0.422 | ||
| Bung Adjuster Nut | BAN-20-16 | 1 – 12 RH | 1 1/4-12 RH | 1.500 | 2.130 | 0.547 | ||
| Bung Adjuster Nut | BANL-20-16 | 1 – 12 LH | 1 1/4-12 LH | 1.500 | 2.130 | 0.547 | ||
| Bung Adjuster Nut | BAN-24-20 | 1 1/4-12 RH | 1 1/2-12 RH | 1.875 | 2.130 | 0.719 | ||
| Bung Adjuster Nut | BANL-24-20 | 1 1/4-12 LH | 1 1/2-12 LH | 1.875 | 2.130 | 0.719 |
Technical Spec.
- Material: 4130 chromoly steel construction for high-strength threaded adjustment hardware.
- Finish: Silver zinc plated finish for corrosion resistance and clean assembly appearance.
- Function: Allows internal/external thread transition and adjustment when used with threaded bungs and tubing assemblies.
- Configuration: Right-hand, left-hand, and mixed-thread configurations are available across the series.
Notes
- Special sizes: Special sizes are available in volume. Contact us with dimensions and thread requirements.
- Use case: Commonly paired with threaded bungs for suspension links, steering links, and fabricated adjustment assemblies.
- Selection: Choose by internal thread, external thread, hex size, and overall installed length requirement.
