CM(-T) / CF(-T) Series — 2-Piece Commercial Rod Ends
CM(-T) & CF(-T) Series
2-Piece Commercial Rod Ends
2-Piece Metal-to-Metal Design · PTFE Lined Optional · Silver Zinc Plated Carbon Steel Body
22
Male Rod End Choices
11
Female Rod End Choices
Brand Compatibility
Cross-searching
Full Spec Range
Search by spec.

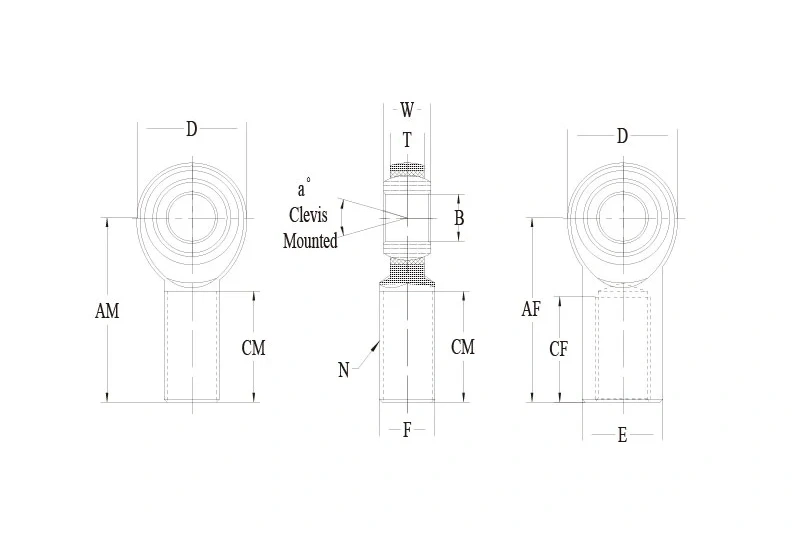

| Type | RH Part No. | LH Part No. | B | D | N | W | T | Ball | AM / AF | CM / CF | A° | Static | Weight | Qty | Action | Details |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| CM Male | CMR2(T) | CML2(T) | 0.1250 | 0.500 | 6-32UNC | 0.250 | 0.175 | 0.312 | 0.937 | 0.562 | 22 | 700 | 0.01 | View details | ||
| CM Male | CMR6(T) | CML6(T) | 0.3750 | 1.000 | 3/8-24 | 0.500 | 0.359 | 0.719 | 1.938 | 1.250 | 22 | 6323 | 0.11 | View details | ||
| CM Male | CMR8-10(T) | CML8-10(T) | 0.5000 | 1.500 | 5/8-18 | 0.625 | 0.453 | 0.937 | 2.625 | 1.625 | 20 | 13729 | 0.34 | View details | ||
| CM Male | CMR16(T) | CML16(T) | 1.0000 | 2.750 | 1 1/4-12 | 1.375 | 0.913 | 1.875 | 4.125 | 2.125 | 28 | – | 1.98 | View details | ||
| CF Female | CFR2(T) | CFL2(T) | 0.1250 | 0.500 | 6-32UNC | 0.250 | 0.175 | 0.312 | 0.812 | 0.437 | 22 | 1510 | 0.02 | View details | ||
| CF Female | CFR4(T) | CFL4(T) | 0.2500 | 0.750 | 1/4-28 | 0.375 | 0.250 | 0.500 | 1.312 | 0.687 | 27 | 3820 | 0.05 | View details | ||
| CF Female | CFR7(T) | CFL7(T) | 0.4375 | 1.125 | 7/16-20 | 0.562 | 0.406 | 0.812 | 1.812 | 0.937 | 21 | 7897 | 0.18 | View details | ||
| CF Female | CFR12(T) | CFL12(T) | 0.7500 | 1.750 | 3/4-16 | 0.875 | 0.593 | 1.312 | 2.875 | 1.562 | 24 | 15894 | 0.65 | View details |
Technical Spec.
- Ball: 52100 Bearing Steel, precision ground, heat-treated, and Hard Chrome Plated for smooth articulation and wear resistance.
- Body: Carbon Steel, Silver Zinc Plated for durable corrosion protection in commercial and industrial linkage service.
- Liner Option: PTFE lined versions are available by adding the T suffix for lower-friction, maintenance-reduced operation.
Notes
- Teflon Liner: Add "T" to suffix, example: CMR12T.
- Stud Configurations Available: Add "S" to suffix, example: CMR12S.
- Metric Size Available: Check the CM-M / CF-M series.
- Grease Fitting: Available on non-Teflon lined versions, add "Z" to suffix, example: CMR8Z.
- Available Finishes & Body Options: Yellow zinc plating, heat treated chromoly body, heat treated carbon steel body, and 6061 color anodized aluminum body are optional.
