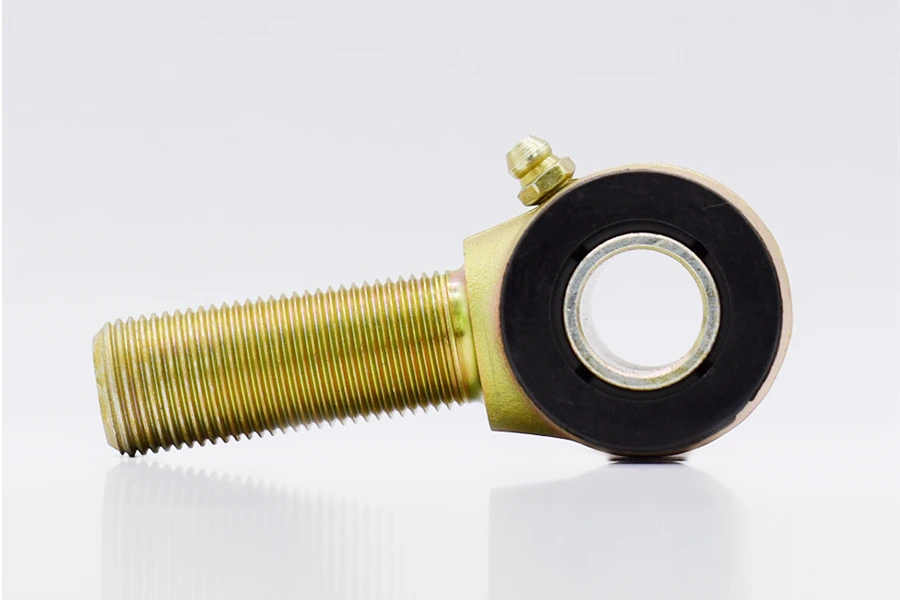

Forged Poly Bushings
Heavy-Duty Forged Flex Joint Bushings
Polyurethane Bushing · Carbon Steel BOM Sleeve · 4130 Chromoly Heat-Treated Body
22
Available Sizes
2
Hero Views
Full Spec Range
Search by spec.
| Type | Carbon Steel Part No. | 4130 Steel Part No. | Thread | B | D | w | A | C | Qty | |
|---|---|---|---|---|---|---|---|---|---|---|
| Forged Poly Bushing | CBS-1 | XBS-1 | 5/8-18 | 0.500 | 1.5 | 1.750 | 1.750 | 2.700 | ||
| Forged Poly Bushing | CBS-2 | XBS-2 | 5/8-18 | 0.625 | 1.5 | 1.750 | 1.750 | 2.700 | ||
| Forged Poly Bushing | CBS-3 | XBS-3 | 5/8-18 | 0.625 | 1.5 | 2.000 | 1.750 | 2.700 | ||
| Forged Poly Bushing | CBS-5 | XBS-5 | 5/8-18 | 0.500 | 1.5 | 1.750 | 2.000 | 2.950 | ||
| Forged Poly Bushing | CBS-6 | XBS-6 | 5/8-18 | 0.625 | 1.5 | 1.750 | 2.000 | 2.950 | ||
| Forged Poly Bushing | CBS-7 | XBS-7 | 5/8-18 | 0.500 | 1.5 | 2.000 | 2.000 | 2.950 | ||
| Forged Poly Bushing | CBS-9 | XBS-9 | 3/4-16 | 0.500 | 1.5 | 1.750 | 1.750 | 2.700 | ||
| Forged Poly Bushing | CBS-10 | XBS-10 | 3/4-16 | 0.625 | 1.5 | 1.750 | 1.750 | 2.700 | ||
| Forged Poly Bushing | CBS-12 | XBS-12 | 3/4-16 | 0.625 | 1.5 | 2.000 | 1.750 | 2.700 | ||
| Forged Poly Bushing | CBS-13 | XBS-13 | 3/4-16 | 0.500 | 1.5 | 1.750 | 2.000 | 2.950 | ||
| Forged Poly Bushing | CBS-14 | XBS-14 | 3/4-16 | 0.625 | 1.5 | 1.750 | 2.000 | 2.950 | ||
| Forged Poly Bushing | CBS-16 | XBS-16 | 3/4-16 | 0.625 | 1.5 | 2.000 | 2.000 | 2.950 | ||
| Forged Poly Bushing | CBS-17 | XBS-17 | 1 1/4-12 | 0.563 | 2.1 | 2.250 | 3.000 | 4.210 | ||
| Forged Poly Bushing | CBS-18 | XBS-18 | 1 1/4-12 | 0.625 | 2.1 | 2.250 | 3.000 | 4.210 | ||
| Forged Poly Bushing | CBS-20 | XBS-20 | 1 1/4-12 | 0.563 | 2.1 | 2.625 | 3.000 | 4.210 | ||
| Forged Poly Bushing | CBS-21 | XBS-21 | 1 1/4-12 | 0.625 | 2.1 | 2.625 | 3.000 | 4.210 |
Technical Spec.
- Bushing: Polyurethane for compliant articulation and serviceable flex-joint performance.
- BOM Sleeve: Carbon steel sleeve for load transfer and joint support.
- Body: 4130 chromoly steel, heat treated, for heavy-duty joint housing strength.
- Selection: Choose by thread and B first, then confirm the outer package dimensions A, C, D, and w.
Notes
- Application: Common in suspension flex-joint and heavy-duty pivot assemblies.
- Part Families: Carbon steel and 4130 steel part numbers are paired by the same size geometry.
- Fabrication: Suitable for custom suspension and off-road linkage systems needing bushing compliance.
