G Series Metric Clevis

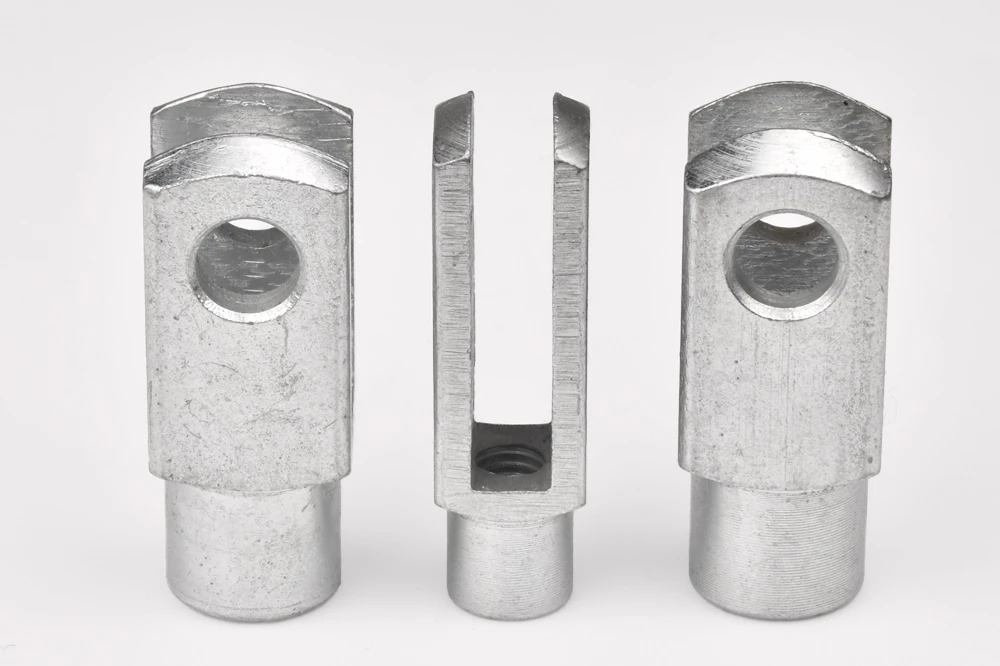

Steel Zinc-Plated Female Clevis
Q235 Steel · Zinc Plated · RH Standard / LH Optional · FG Fine-Thread Variants
49
Available Sizes
2
Hero Views
Full Spec Range
Search by spec.

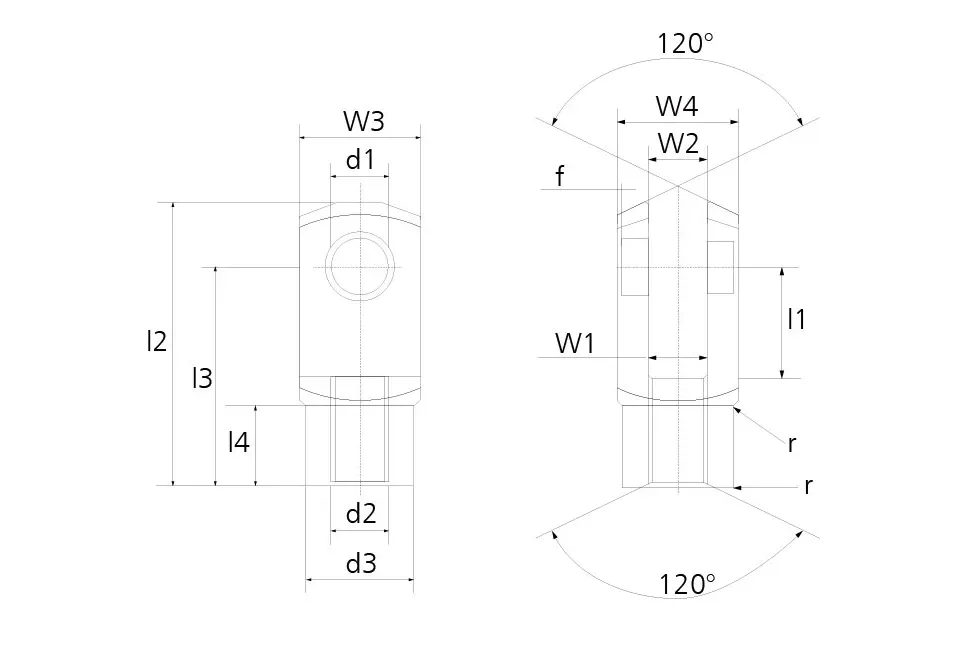

| Type | Part No. | Thread d2 | d1 H9 | w1 | w2 | w3 | w4 | d3 | l1 | l2 | l3 | l4 | Approx Weight | Qty | |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| G CLEVIS METRIC | G 4×8 | M4 | 4 | 4 | 4 | 8 | 8 | 8 | 8 | 21 | 16 | 6.0 | 5 | ||
| G CLEVIS METRIC | G 5×20 | M5 | 5 | 5 | 5 | 10 | 10 | 9 | 20 | 36 | 30 | 7.5 | 13 | ||
| G CLEVIS METRIC | G 8×16 | M8 | 8 | 8 | 8 | 16 | 16 | 14 | 16 | 42 | 32 | 12.0 | 37 | ||
| G CLEVIS METRIC | G 8x32FG | M8X1 | 8 | 8 | 8 | 16 | 16 | 14 | 32 | 58 | 48 | 12.0 | 54 | ||
| G CLEVIS METRIC | G 10×40 | M10 | 10 | 10 | 10 | 20 | 20 | 18 | 40 | 72 | 60 | 15.0 | 116 | ||
| G CLEVIS METRIC | G 12x24FG | M12X1.25 | 12 | 12 | 12 | 24 | 24 | 20 | 24 | 62 | 48 | 18.0 | 121 | ||
| G CLEVIS METRIC | G 14×28 | M14 | 14 | 14 | 14 | 27 | 27 | 24 | 28 | 72 | 56 | 22.5 | 178 | ||
| G CLEVIS METRIC | G 14x56FG | M14X1.5 | 14 | 14 | 14 | 27 | 27 | 24 | 56 | 101 | 85 | 22.5 | 258 | ||
| G CLEVIS METRIC | G 16×64 | M16 | 16 | 16 | 16 | 32 | 32 | 26 | 64 | 115 | 96 | 24.0 | 411 | ||
| G CLEVIS METRIC | G 18x36FG | M18X1.5 | 18 | 18 | 18 | 36 | 36 | 30 | 36 | 94 | 72 | 27.0 | 390 | ||
| G CLEVIS METRIC | G 20×80 | M20 | 20 | 20 | 20 | 40 | 40 | 34 | 80 | 145 | 120 | 30.0 | 800 | ||
| G CLEVIS METRIC | G 25x50FG | M24X2 | 25 | 25 | 25 | 50 | 50 | 42 | 50 | 132 | 100 | 36.0 | 1100 | ||
| G CLEVIS METRIC | G 30x54FG | M27X2 | 30 | 30 | 30 | 55 | 55 | 48 | 54 | 148 | 110 | 40.0 | 1440 | ||
| G CLEVIS METRIC | G 35x54FG | M36X2 | 35 | 35 | 35 | 70 | 70 | 60 | 54 | 188 | 144 | 54.0 | 2930 | ||
| G CLEVIS METRIC | G 36×72 | M36 | 35 | 36 | 36 | 70 | 70 | 60 | 72 | 188 | 144 | 54.0 | 2930 | ||
| G CLEVIS METRIC | G 42×84 | M42 | 42 | 42 | 42 | 85 | 85 | 70 | 84 | 232 | 168 | 63.5 | 5340 |
Technical Spec.
- Material: Q235 steel with silver zinc plating as the standard specification.
- Type: Clevis pin, washer, cotter pin optional, or clevis spring pin depending on the assembly package.
- Threading: Standard is right hand. For left hand, add
LHto the suffix. - FG Variants: Fine-thread FG versions are listed separately in the same geometry family.
Notes
- Selection: Choose first by d1 H9 and w1, then confirm thread and the full fork dimensions for the target linkage.
- Applications: Suitable for industrial linkage, control transfer, and fabricated motion assemblies using metric clevis hardware.
- Options: Stainless and aluminum versions can be reviewed for special corrosion or weight requirements.
