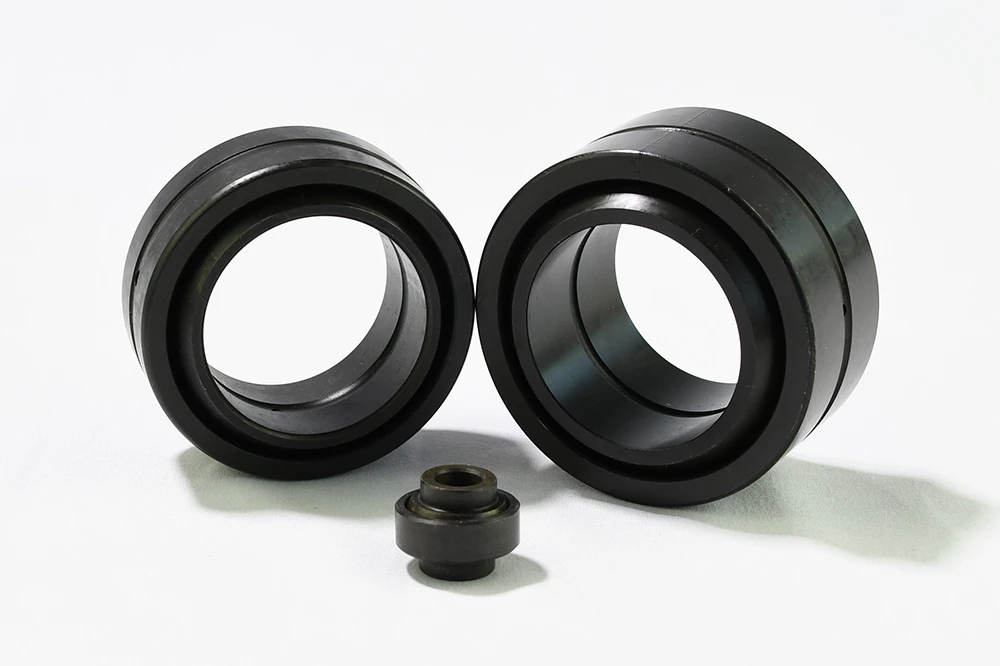

GEZ — Inch Fractured Race Spherical Bearings
GEZ
Inch Fractured Race Spherical Bearings
High Wear & Increased Load Applications · Protective Coated 52100 Steel · Optional Double Rubber Seals
23
Available Sizes
4
Image Views Included
Full Spec Range
Search by spec.

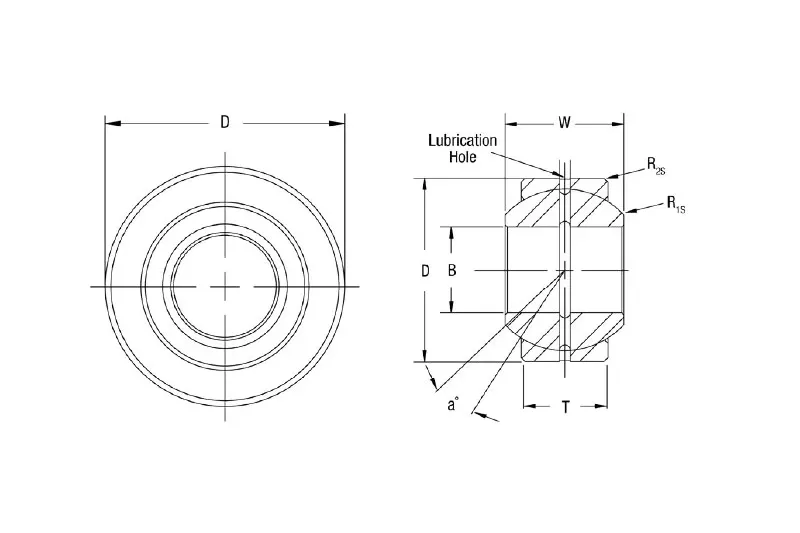

| Type | Part No. | B DIA. | D DIA. | W WIDTH | T WIDTH | a° | STATIC | WEIGHT | Qty | |
|---|---|---|---|---|---|---|---|---|---|---|
| GEZ Inch | GEZ12ES | 0.500 | 0.875 | 0.437 | 0.375 | 6.0 | 9,217 | 0.05 | ||
| GEZ Inch | GEZ19ES / GEZ19ES-2RS | 0.750 | 1.250 | 0.656 | 0.562 | 6.0 | 21,357 | 0.12 | ||
| GEZ Inch | GEZ31ES / GEZ31ES-2RS | 1.250 | 2.000 | 1.093 | 0.937 | 6.0 | 58,450 | 0.51 | ||
| GEZ Inch | GEZ44ES / GEZ44ES-2RS | 1.750 | 2.813 | 1.531 | 1.312 | 6.0 | 114,653 | 1.41 | ||
| GEZ Inch | GEZ63ES / GEZ63ES-2RS | 2.500 | 3.938 | 2.187 | 1.875 | 6.0 | 238,298 | 4.08 | ||
| GEZ Inch | GEZ82ES / GEZ82ES-2RS | 3.252 | 5.118 | 2.842 | 2.437 | 1.0 | 388,013 | 8.30 | ||
| GEZ Inch | GEZ101ES / GEZ101ES-2RS | 4.015 | 6.260 | 3.500 | 3.000 | 1.0 | 584,224 | 15.43 | ||
| GEZ Inch | GEZ120ES / GEZ120ES-2RS | 4.763 | 7.362 | 4.173 | 3.562 | 1.0 | 826,733 | 25.35 |
Technical Spec.
- Ball: 52100 bearing steel with protective coating for wear-resistant industrial service.
- Race: 52100 bearing steel with protective coating and fractured-race spherical bearing construction.
- Liner / Seal: No liner in the standard construction; double rubber seals
2RSare optional on applicable sizes. - Construction: GEZ is intended for high-wear and increased-load spherical bearing applications in industrial markets.
Notes
- Double seals: add
-2RSto the suffix, for exampleGEZ38ES-2RS. - Metric family: corresponding metric sizes are available in
GE..ESandGE..ES-2RSseries. - Configuration: this page covers the inch GEZ fractured-race spherical bearing size range.
