HJMX(-T) Series — Heavy Duty High Misalignment Rod Ends
HJMX(-T) Series
Heavy Duty High Misalignment Rod Ends
3-Piece Precision Design · Heat Treated 4130 Chromoly · Chrome Plated Body · PTFE Lined
5
Standard Sizes
4
Heavy Duty Shank Sizes
Brand Compatibility
Cross-searching
Full Spec Range
Search by spec.

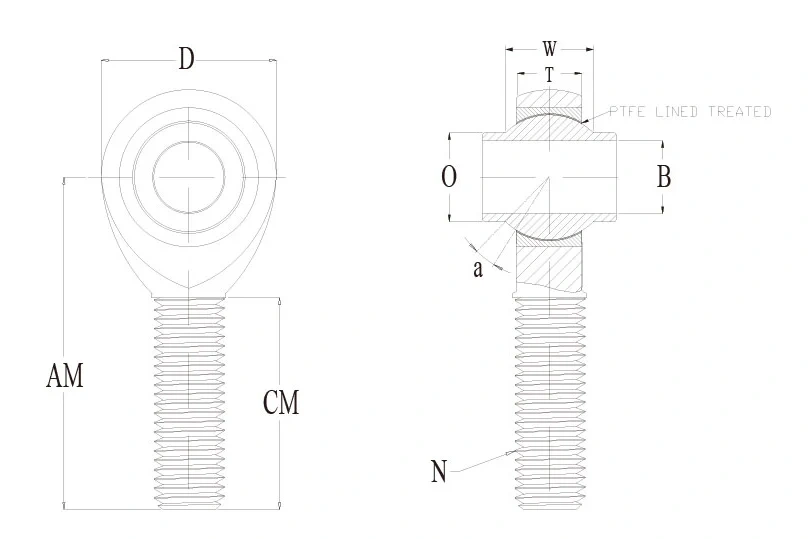

| Type | Part No. | Bore x Thd. | B | D | N | W | T | Ball | AM | CM | O | A° | Static | Weight | Qty | Action | Details |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| HJMX Standard | HJMX-6(T) | 3/8×3/8-24 | 0.3750 | 1.125 | 3/8-24 | 0.813 | 0.355 | 0.781 | 2.125 | 1.281 | 0.512 | 22 | 11410 | 0.12 | View details | ||
| HJMX Standard | HJMX-7(T) | 7/16×7/16-20 | 0.4375 | 1.312 | 7/16-20 | 0.875 | 0.355 | 0.875 | 2.438 | 1.468 | 0.618 | 21 | 15760 | 0.23 | View details | ||
| HJMX Standard | HJMX-10(T) | 5/8×5/8-18 | 0.6250 | 1.750 | 5/8-18 | 1.200 | 0.577 | 1.250 | 2.875 | 1.687 | 0.856 | 19 | 28110 | 0.57 | View details | ||
| HJMX Standard | HJMX-12(T) | 3/4×3/4-16 | 0.7500 | 1.500 | 3/4-16 | 1.280 | 0.630 | 1.375 | 3.375 | 2.000 | 0.970 | 19 | 38707 | 0.82 | View details | ||
| HJMX Heavy Duty | HJMX6-7(T) | 0.3750 | 1.125 | 7/16-20 | 0.813 | 0.355 | 0.781 | 2.125 | 1.281 | 0.512 | 22 | 16985 | 0.16 | View details | |||
| HJMX Heavy Duty | HJMX7-8(T) | 0.4375 | 1.312 | 1/2-20 | 0.875 | 0.355 | 0.875 | 2.438 | 1.468 | 0.618 | 21 | 19025 | 0.25 | View details | |||
| HJMX Heavy Duty | HJMX8-10(T) | 0.5000 | 1.500 | 5/8-18 | 0.937 | 0.411 | 1.000 | 2.625 | 1.562 | 0.730 | 20 | 25277 | 0.39 | View details | |||
| HJMX Heavy Duty | HJMX10-12(T) | 0.6250 | 1.750 | 3/4-16 | 1.200 | 0.577 | 1.250 | 2.875 | 1.687 | 0.856 | 20 | 44650 | 0.60 | View details |
Technical Spec.
- Ball: 52100 Bearing Steel, precision ground, heat-treated, and Hard Chrome Plated for high-load wear resistance.
- Race: Stainless Steel race with PTFE lined option for precise articulation and improved service life.
- Body: 4130 Chromoly, heat treated, chrome plated, and PTFE lined for heavy-duty high misalignment performance.
Notes
- Stud Configurations Available: Add “S” to suffix when applicable.
- Metric Size Available: Check the JMX-M / JFX-M series.
- Teflon Liner: Add “T” to suffix for PTFE lined versions.
- Available Finish: Polished hard chrome finish is available.
