Interlocking ID Tube Clamp
Removable Tube Connection Clamps

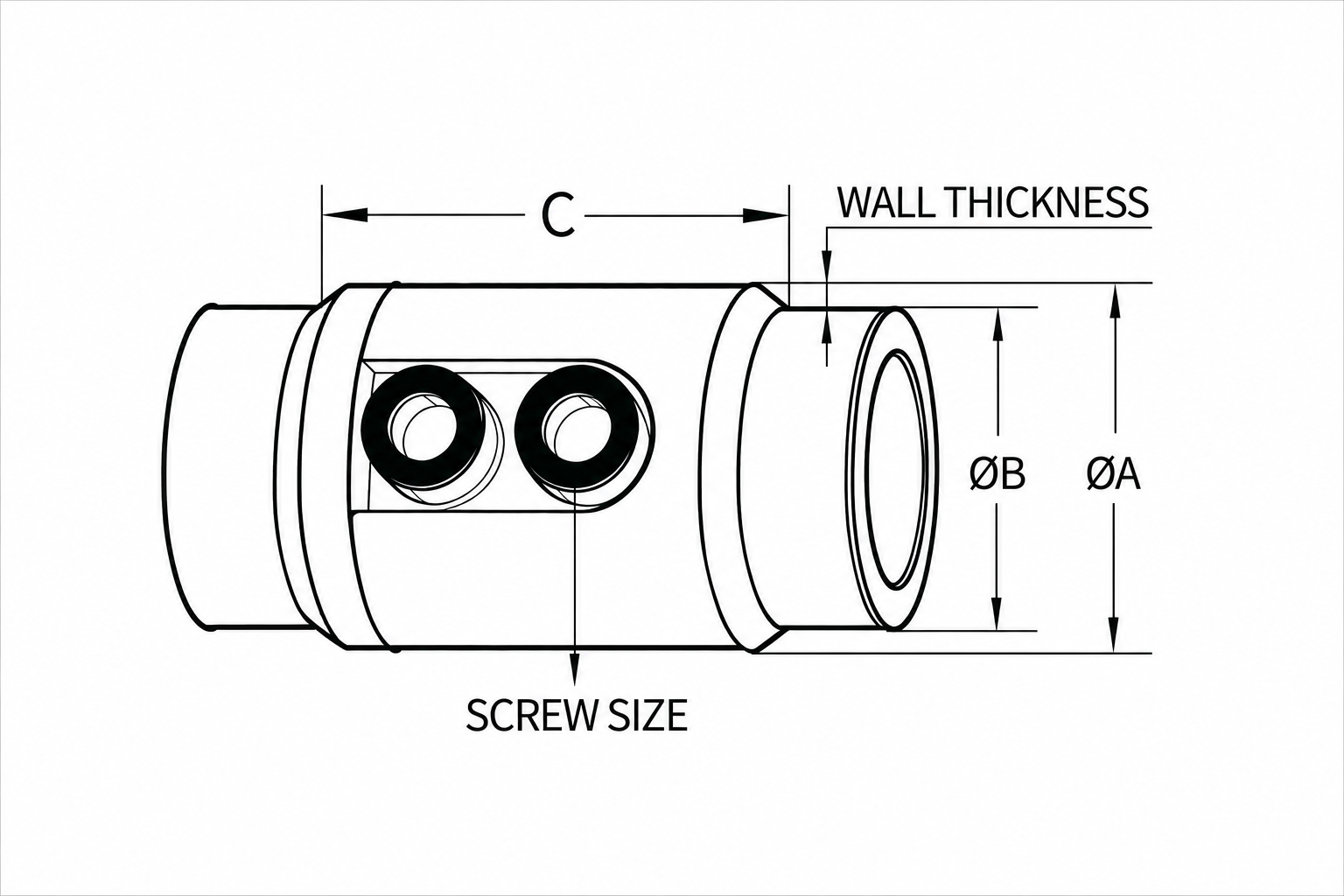

CNC Machined · Tube Size / ØA · ØB · Wall Thickness · Screw Size
7
Available Sizes
2
Hero Views
Full Spec Range
Search by spec.
| Type | Part ID | Tube Size / ØA | ØB | Wall Thickness | C | Screw Size | Qty | |
|---|---|---|---|---|---|---|---|---|
| Interlocking ID Tube Clamp | IDTC-001 | 1-1/4" | 1.010" | .120 | 2-1/4" | 1/4" | ||
| Interlocking ID Tube Clamp | IDTC-002 | 1-1/2" | 1.260" | .120 | 2" | 5/16" | ||
| Interlocking ID Tube Clamp | IDTC-003 | 1-5/8" | 1.385" | .120 | 2-1/8" | 3/8" | ||
| Interlocking ID Tube Clamp | IDTC-004 | 1-5/8" | 1.435" | .095 | 2-1/8" | 3/8" | ||
| Interlocking ID Tube Clamp | IDTC-005 | 1-3/4" | 1.510" | .120 | 2-1/8" | 3/8" | ||
| Interlocking ID Tube Clamp | IDTC-006 | 1-3/4" | 1.560" | .095 | 2-1/8" | 3/8" | ||
| Interlocking ID Tube Clamp | IDTC-007 | 2" | 1.760" | .120 | 2-1/8" | 3/8" |
Technical Spec.
- CNC-machined tube connection components for roll cages, chassis fabrication, removable structural tube sections, light bars, and bumpers.
- Designed around tube size, internal locking diameter, wall thickness, body dimension C, and screw size.
- Catalog material card lists 4130 chromoly steel or carbon steel with 2 pcs Grade 10.9 bolts.
Notes
- This package contains only the 7 IDTC products from the catalog table.
- Black powder coated or silver zinc plated wording applies to the bolt/finish option; the catalog does not list a separate surface treatment line for the IDTC body.
