JMX-M / JFX-M Series — Metric Rod Ends

JMX-M & JFX-M Series
Metric 3-Piece Chromoly Rod Ends

Metric Threads · Heat Treated Alloy Steel Body · PTFE Lined Optional

18

Male Rod End Choices

18

Female Rod End Choices

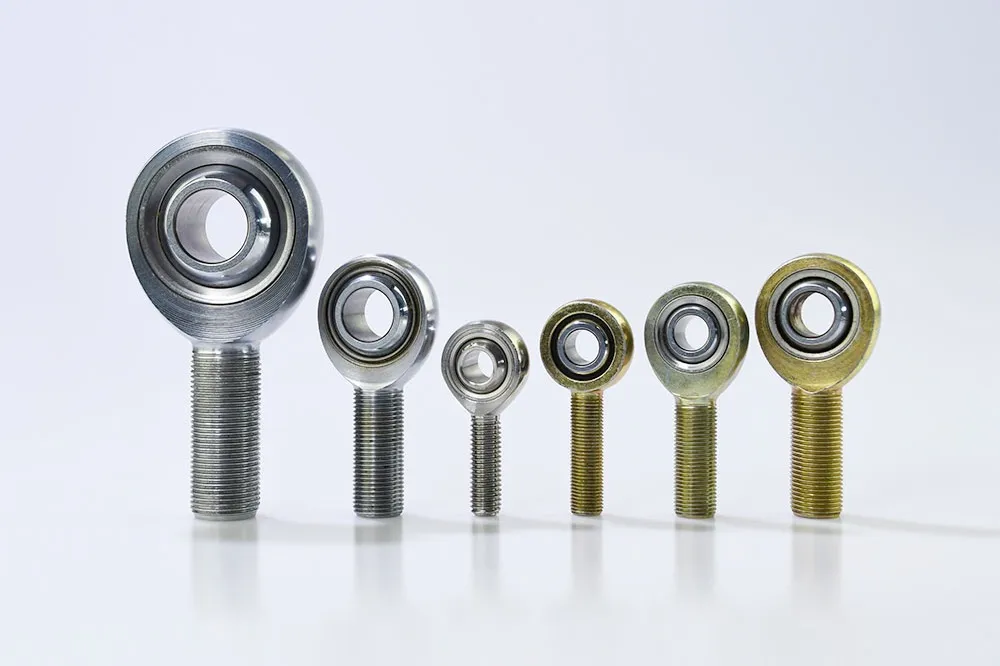

JMX-M JFX-M series rod end product overview

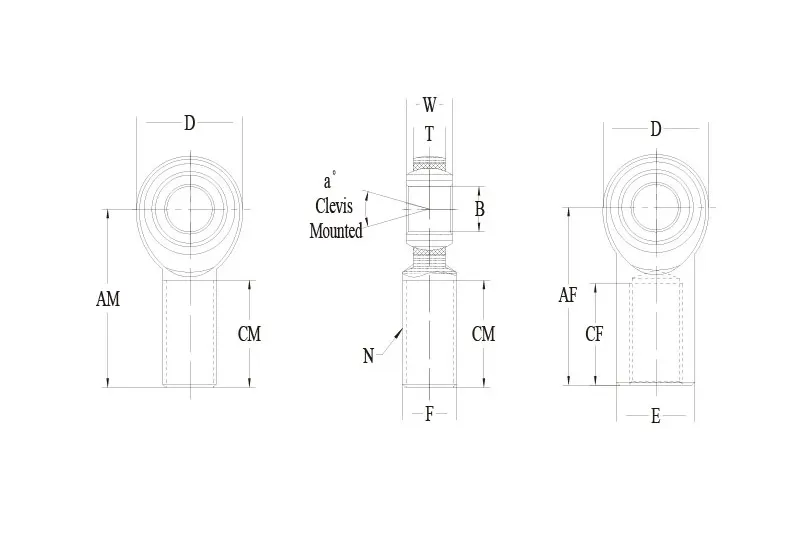

JMX-M JFX-M series metric rod end technical drawing

Brand Compatibility

Cross-searching

SYZ Part No.

FK Rod Ends

Aurora

QA1

Alinabal

Midwest Control

Full Spec Range

Search by spec.

B

N

Part No.

TYPE	RH PART NO.	LH PART NO.	BDIA. +0.065 -0.012	DDIA. +0.38 -0.38	NTHREAD METRIC	WWIDTH +0.12 -0.12	TWIDTH +0.13 -0.13	BALLDIA. REF.	AM / AFLENGTH +0.40 -0.40	CM / CFLENGTH +1.00 -1.00	A°MIS. ANGLE REF.	STATICRADIAL LOAD (N)	WEIGHTAPPROX. (G)	QTY	ACTION	DETAILS
JMX-M Male	JMXR5M	JMXL5M	5	16	M5 X 0.8	8	6.25	11.10	33 (AM)	20 (CM)	14	5170	13
JMX-M Male	JMXR6M	JMXL6M	6	19	M6 X 1.0	9	7	12.70	36 (AM)	22 (CM)	13	17725	18
JMX-M Male	JMXR8M	JMXL8M	8	22.25	M8 X 1.25	12	8.75	15.88	42 (AM)	25 (CM)	18	33137	31
JMX-M Male	JMXR8Mx1.0	JMXL8Mx1.0	8	22.25	M8 X 1.0	12	8.75	15.88	42 (AM)	25 (CM)	18	33137	31
JMX-M Male	JMXR10M	JMXL10M	10	27	M10 X 1.5	14	10.50	19.05	48 (AM)	29 (CM)	17	50225	68
JMX-M Male	JMXR10Mx1.25	JMXL10Mx1.25	10	27	M10 X 1.25	14	10.50	19.05	48 (AM)	29 (CM)	17	50225	68
JMX-M Male	JMXR12M	JMXL12M	12	30	M12X1.75	16	12	22.23	54 (AM)	33 (CM)	17	44487	78
JMX-M Male	JMXR12Mx1.25	JMXL12Mx1.25	12	30	M12X1.25	16	12	22.23	54 (AM)	33 (CM)	17	44487	78

🍪
