• Housing: Carbon steel 1020.
• Ball Stud: Carbon steel 1045.
• Clip: Spring steel.
• Surface: Silver or yellow zinc plated.
Tell us the dimensional target, material preference, and application constraints. We'll help match or develop the right solution.

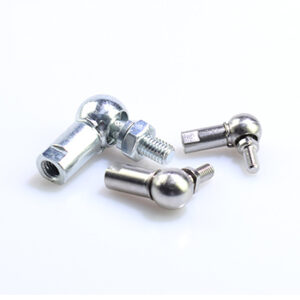

Ask for Custom SupportBALL JOINTS CS are compact ball-joint assemblies consisting of a ball stud and socket or housing that provide controlled multi-directional articulation in a compact linkage connection. They are used for steering, suspension, actuator, pedal, lever, and machine-control mechanisms where the mating parts need to pivot without a rigid clevis alignment. Selection should consider thread form, stud geometry, retention, angular travel, corrosion protection, and the actual radial or axial load in service.
Compact ball joints provide a multi-directional pivot for steering arms, stabilizer links, control rods, and other vehicle mechanisms. Match stud geometry, thread, articulation, and retention method to the assembly.
The small joint format is useful where a linkage needs angular movement in a limited package, including actuator links, pedals, levers, and machine-control mechanisms. Verify clearance and joint travel at both extremes.
Ball joints can simplify replacement and adjustment of exposed control linkages on agricultural and off-road equipment. Choose materials and surface protection for the expected moisture, dirt, impact, and maintenance conditions.
Suitable for machine guards, control arms, and compact mechanical assemblies where low-profile ball-joint movement improves alignment and serviceability.
A good fit for replacement or OEM ball-joint connections when metric thread compatibility, zinc-plated surfaces, and compact packaging are important.
Frequently selected for custom control systems and fabricated linkages that need a compact ball-joint body with optional sealing-cap protection.
The CS series is used in compact motion-transfer points such as steering, lever control, throttle linkages, and other assemblies that need a small articulated ball-joint connection.
The standard CS series uses a carbon steel 1020 housing, carbon steel 1045 ball stud, spring-steel clip, zinc-plated surface treatment, and an optional sealing cap.
The sealing cap is optional. If your application needs added sealing protection, confirm the cap requirement when requesting a quote.
Yes. Stainless-material versions are available by adding an S prefix to the part number, subject to production availability.
Yes. Left-hand versions are available by adding the LH designation to the applicable CS series part number.
Match the required thread sizes, ball diameter, overall length, and housing dimensions against the CS size chart. If you have installation constraints, send the target dimensions for selection support.
