Description

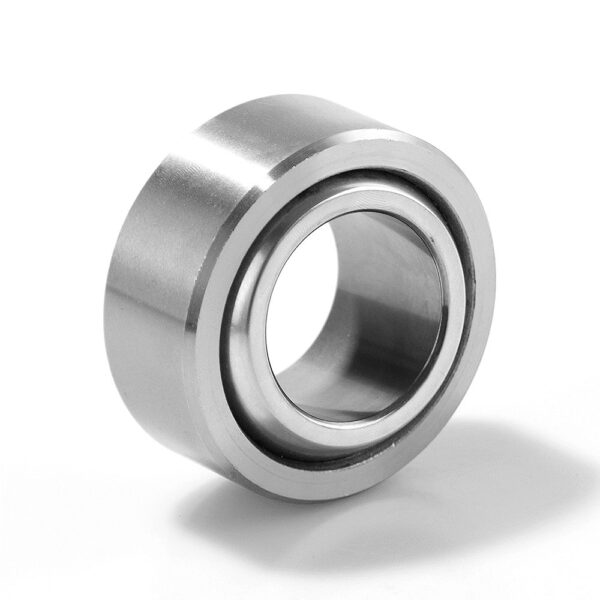

Radial Spherical Bearings COM10T for Shock
BALL MATERIAL | ||||
52100 BEARING STEEL, HEAT TREATED HRC58-64 | ||||
HARD CHROME PLATED | ||||
RACE MATERIAL | ||||
ALLOY STEEL, OIL COATED | ||||
LUBRICATION GROOVE AND HOLE IN O.D. OF RACE | ||||
TEFLON LINER OPTIONAL, ADD “T” TO SUFFIX |
COM Series Metal to Metal Alloy Steel Spherical Bearings Size Chart
BEARING NO. | B | D | W | T | O | M | BALL | a° | STATIC | APPROX | |
DIA. | DIA. | WIDTH | WIDTH | FLAT DIA. | CHAMFER | DIA. | MIS. | RADIAL | WEIGHT | ||
+0.0000 | +0.0000 | +0.000 | +0.005 | REF. | REF. | REF. | ANGLE | LOAD | (LBS) | ||
-0.0005 | -0.0005 | -0.002 | -0.005 | REF. | (LBS) | ||||||
COM-2(T) | 0.0650 | 0.4687 | 0.250 | 0.187 | 0.235 | 0.020 | 0.343 | 9.0 | 3,200 | 0.010 | |
COM-3(T) | 0.1900 | 0.5625 | 0.281 | 0.218 | 0.293 | 0.015 | 0.406 | 11.0 | 3,250 | 0.014 | |
COM-4(T) | 0.2500 | 0.6562 | 0.343 | 0.250 | 0.364 | 0.022 | 0.500 | 13.5 | 4,950 | 0.022 | |
COM-5(T) | 0.3125 | 0.7500 | 0.375 | 0.281 | 0.419 | 0.032 | 0.562 | 12.0 | 6,475 | 0.030 | |
COM-6(T) | 0.3750 | 0.8125 | 0.406 | 0.312 | 0.516 | 0.032 | 0.656 | 10.0 | 8,400 | 0.038 | |
COM-7(T) | 0.4375 | 0.9062 | 0.437 | 0.343 | 0.530 | 0.032 | 0.687 | 8.0 | 9,453 | 0.047 | |
COM-8(T) | 0.5000 | 1.0000 | 0.500 | 0.390 | 0.640 | 0.032 | 0.781 | 9.5 | 13,250 | 0.065 | |
COM-9(T) | 0.5625 | 1.0937 | 0.562 | 0.437 | 0.710 | 0.032 | 0.875 | 9.5 | 16,630 | 0.086 | |
COM-10(T) | 0.6250 | 1.1875 | 0.625 | 0.500 | 0.780 | 0.032 | 0.968 | 8.5 | 21,280 | 0.110 | |
COM-12(T) | 0.7500 | 1.4375 | 0.750 | 0.593 | 0.920 | 0.044 | 1.187 | 9.0 | 31,920 | 0.204 | |
COM-14(T) | 0.8750 | 1.5625 | 0.875 | 0.703 | 0.980 | 0.044 | 1.312 | 9.5 | 41,960 | 0.263 | |
COM-16(T) | 1.0000 | 1.7500 | 1.000 | 0.797 | 1.118 | 0.044 | 1.500 | 10.0 | 55,200 | 0.386 | |
HCOM-16(T) | 1.0000 | 2.0000 | 1.000 | 0.781 | 1.360 | 0.032 | 1.687 | 9.0 | 70,820 | 0.553 | |
HCOM-19(T) | 1.1875 | 2.3750 | 1.187 | 0.937 | 1.610 | 0.032 | 2.000 | 8.5 | 100,730 | 0.895 | |
HCOM-20(T) | 1.2500 | 2.3750 | 1.187 | 0.937 | 1.610 | 0.032 | 2.000 | 8.5 | 100,730 | 0.895 | |
HCOM-24(T) | 1.5000 | 2.7500 | 1.375 | 1.094 | 1.860 | 0.032 | 2.312 | 8.5 | 135,950 | 1.358 | |
HCOM-28(T) | 1.7500 | 3.1250 | 1.562 | 1.250 | 2.110 | 0.044 | 2.625 | 8.0 | 176,370 | 1.948 | |
HCOM-32(T) | 2.0000 | 3.5000 | 1.750 | 1.375 | 2.360 | 0.044 | 2.937 | 8.5 | 217,060 | 2.650 |
