Ball d1 16 mm / M10AIM10 16 mm M10 Carbon Steel Axial Ball Joint
AIM Axial Ball Joints Product Overview
AIM10 16 mm M10 Carbon Steel Axial Ball Joint is an AIM series axial ball joint with M10 metric thread, 16 mm ball diameter, and 35 mm body length for compact linkage and control assemblies.
The AIM series uses a carbon steel socket with zinc-plated colorless passivated finish and a hardened steel ball with lubricated ball seat. Stainless steel versions are available on request.

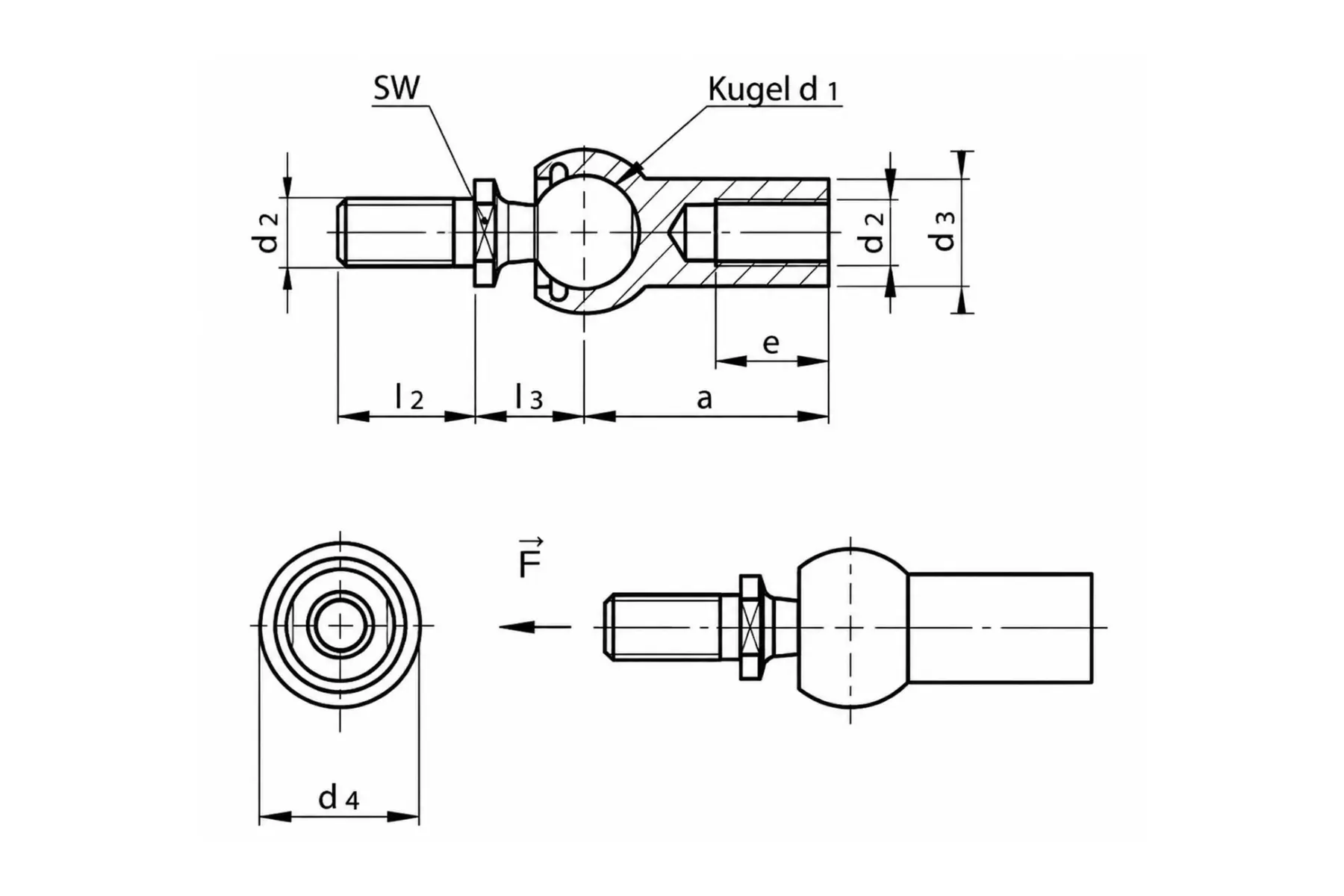

Key dimensions include d3 16 mm, d4 24 mm, e min. 15.5 mm, l2 20 mm, l3 16 mm, SW 13, and pull-out force 80 N.
AIM Axial Ball Joints Series — Full Size Range
All available sizes in the AIM Axial Ball Joints series. Can’t find your size? Contact us for custom dimensions.
| Part No. | Ball d1 | Thread d2 | a +/-0.3 | d3 +/-0.5 | d4 +/-0.5 | e min. | l2 +/-0.3 | l3 +/-0.3 | SW h14 | Pull-out force F (N) |
|---|---|---|---|---|---|---|---|---|---|---|
| AIM5 | 8 | M5 | 22 | 8 | 12.8 | 10.2 | 10.2 | 9 | 7 | 30 |
| AIM6 | 10 | M6 | 25 | 10 | 14.8 | 11.5 | 12.5 | 11 | 8 | 40 |
| AIM8 | 13 | M8 | 30 | 13 | 19.3 | 14 | 16.5 | 13 | 11 | 60 |
| AIM10 | 16 | M10 | 35 | 16 | 24 | 15.5 | 20 | 16 | 13 | 80 |
| AIM12 | 16 | M12 | 35 | 16 | 24 | 15.5 | 20 | 16 | 13 | 80 |
| AIM14*1.5 | 19 | M14*1.5 | 45 | 22 | 30 | 21.5 | 28 | 20 | 16 | 100 |
| AIM14 | 19 | M14 | 45 | 22 | 30 | 21.5 | 28 | 20 | 16 | 100 |
| AIM16 | 19 | M16 | 45 | 22 | 30 | 21.5 | 28 | 20 | 16 | 100 |
Every Unit Inspected Before Shipment
Raw Material Inspection
Material certifications verified. Composition confirmed by spectrometer before machining begins.
Thread Gauge Inspection
100% go/no-go gauge check on all threaded sections. Zero tolerance on dimensional non-conformance.
Load Capacity Test
Static and dynamic load tests run on representative samples from each production batch.
Dimensional Measurement
CMM verification of critical dimensions — ball diameter, bore, thread pitch, and body length.
Surface Inspection
Visual and tactile inspection for burrs, scratches, surface cracks, and plating defects.
Articulation Test
Misalignment angle and torque measured to confirm liner performance meets specification.
Heat Treatment Verify
Hardness tests confirm proper heat treatment on chromoly steel bodies and bearing balls.
Batch Documentation
Full traceability from raw material heat number to finished part. COC and inspection reports available.
