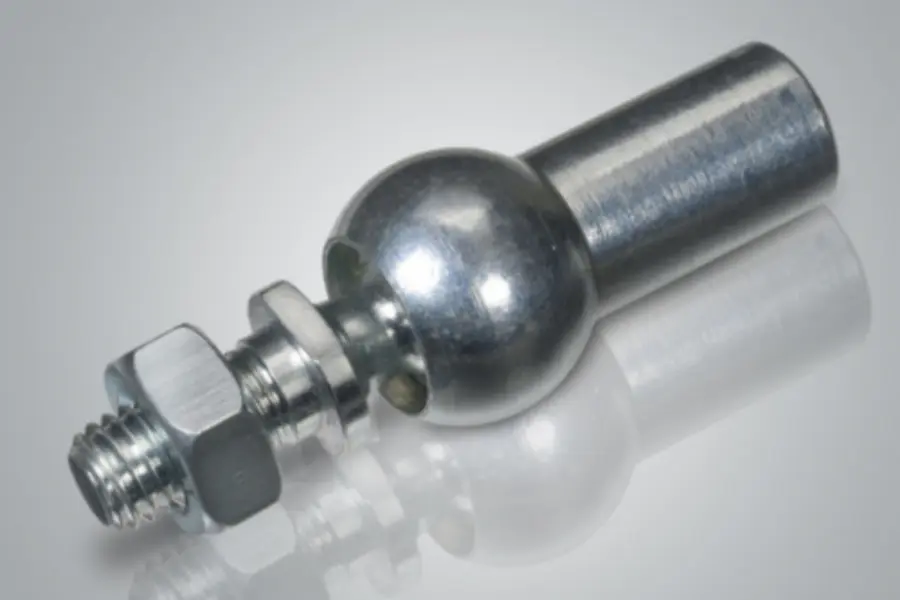

AIM Series — Axial Small Ball Joints
AIM Series
Axial Ball Joints
Metric Thread · Axial Pull-Out Loading · Zinc-Plated Carbon Steel Socket · Hardened Steel Ball
8
Available Sizes
30-100 N
Pull-Out Force Range
Full Spec Range
Search by spec.

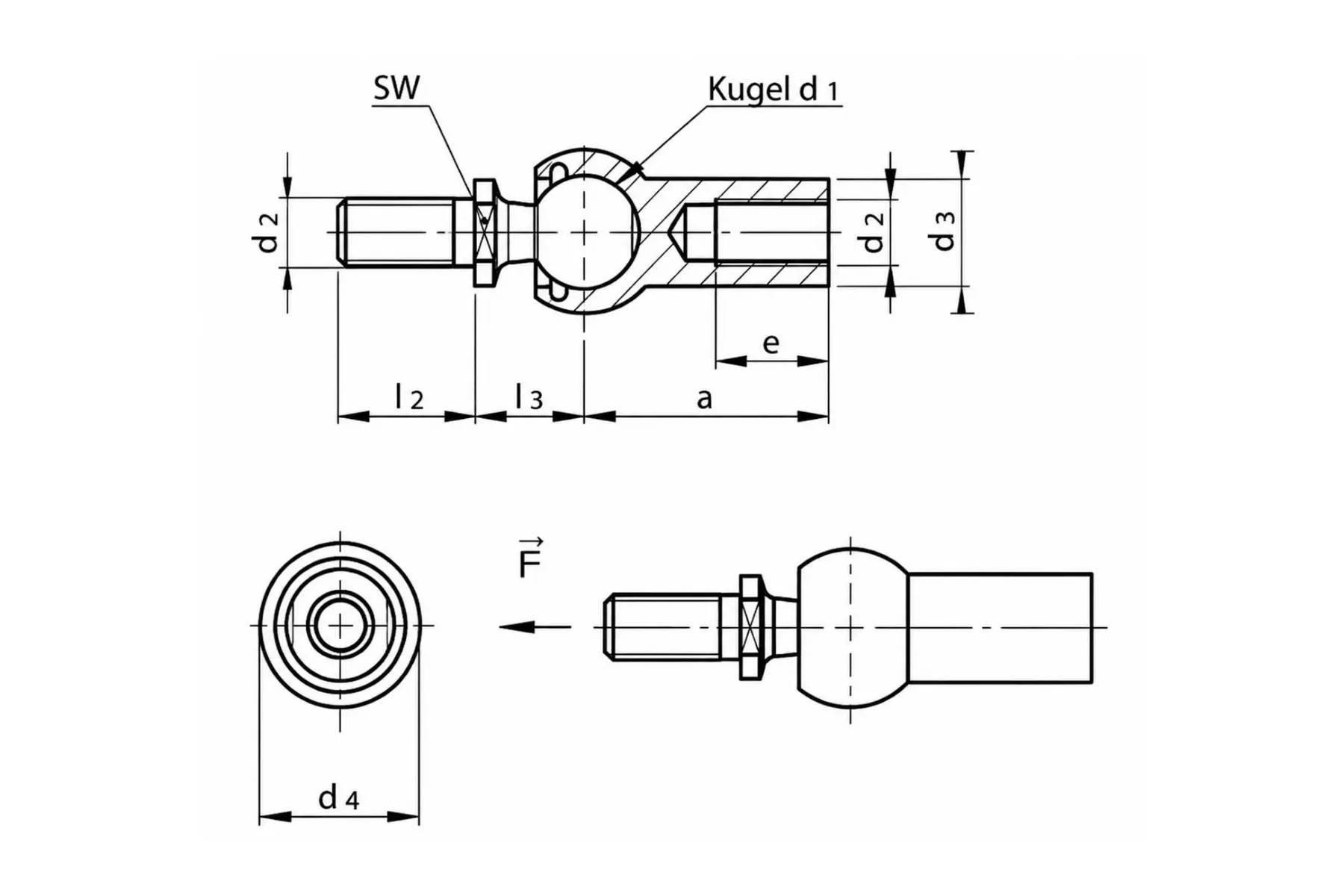

| Type | Part No. | Ball d1 | Thread d2 | a | d3 | d4 | e min. | l2 | l3 | SW | Pull-Out F | Qty | |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| AIM Axial | AIM5 | 8 | M5 | 22 | 8 | 12.8 | 10.2 | 10.2 | 9 | 7 | 30 | ||
| AIM Axial | AIM6 | 10 | M6 | 25 | 10 | 14.8 | 11.5 | 12.5 | 11 | 8 | 40 | ||
| AIM Axial | AIM8 | 13 | M8 | 30 | 13 | 19.3 | 14 | 16.5 | 13 | 11 | 60 | ||
| AIM Axial | AIM10 | 16 | M10 | 35 | 16 | 24 | 15.5 | 20 | 16 | 13 | 80 | ||
| AIM Axial | AIM12 | 16 | M12 | 35 | 16 | 24 | 15.5 | 20 | 16 | 13 | 80 | ||
| AIM Axial | AIM14×1.5 | 19 | M14x1.5 | 45 | 22 | 30 | 21.5 | 28 | 20 | 16 | 100 | ||
| AIM Axial | AIM14 | 19 | M14 | 45 | 22 | 30 | 21.5 | 28 | 20 | 16 | 100 | ||
| AIM Axial | AIM16 | 19 | M16 | 45 | 22 | 30 | 21.5 | 28 | 20 | 16 | 100 |
Technical Spec.
- Socket: Carbon steel, tensile strength class 5, zinc plated and colorless passivated.
- Ball: Hardened steel with lubricated ball seat for compact axial articulation.
- Stainless option: Stainless steel version available for corrosion-sensitive applications.
- Tolerances: a ±0.3 · d3 ±0.5 · d4 ±0.5 · l2 ±0.3 · l3 ±0.3.
Notes
- Axial layout: AIM is intended for compact axial ball-joint linkage points where pull-out force and packaging size matter.
- Thread choice: Match thread d2 and ball diameter d1 to the mating linkage and housing space.
- RFQ support: Send target load, mounting direction, finish preference, and annual quantity for selection confirmation.
