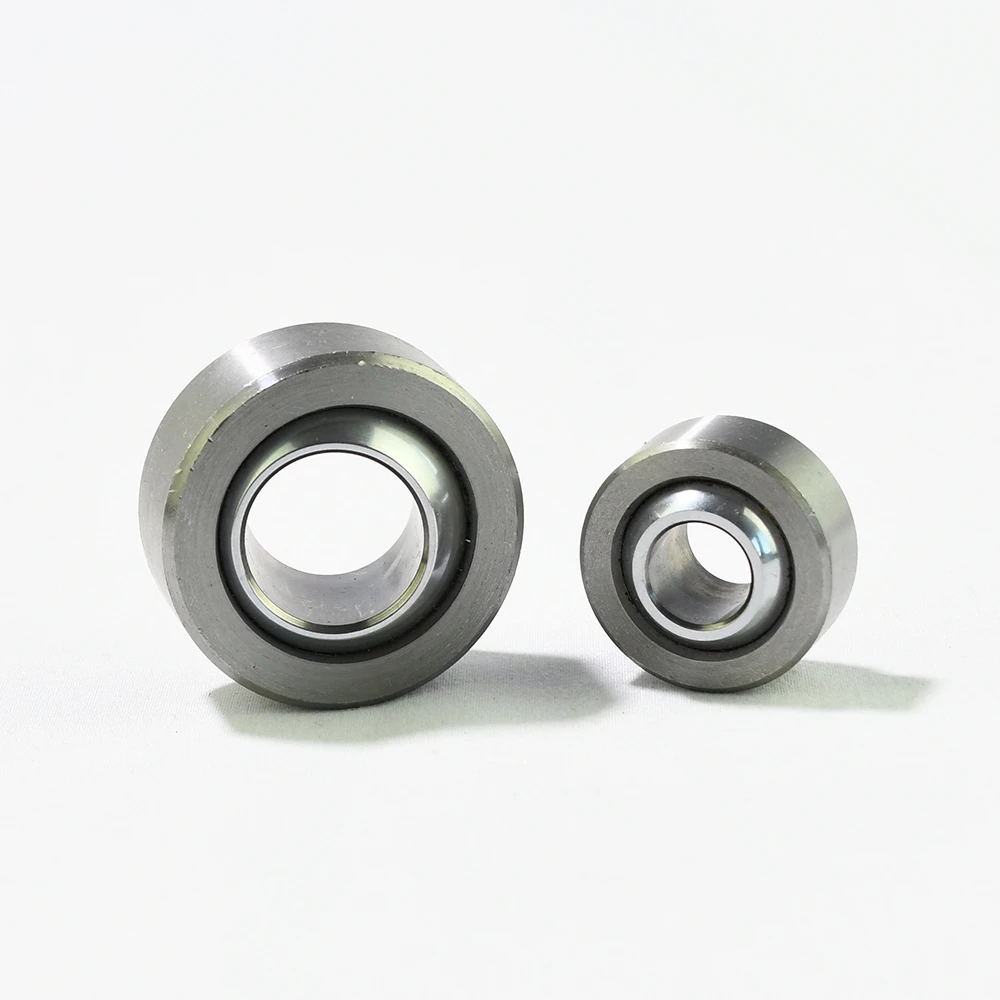

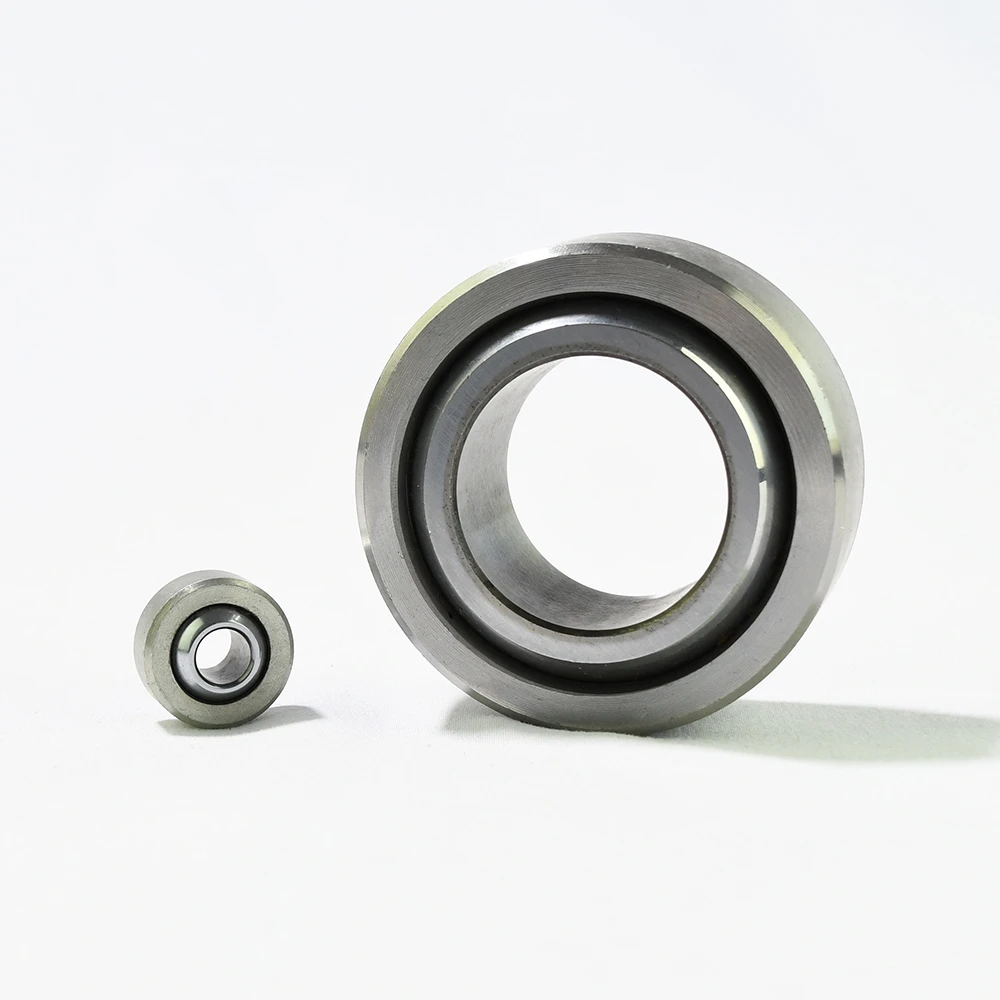

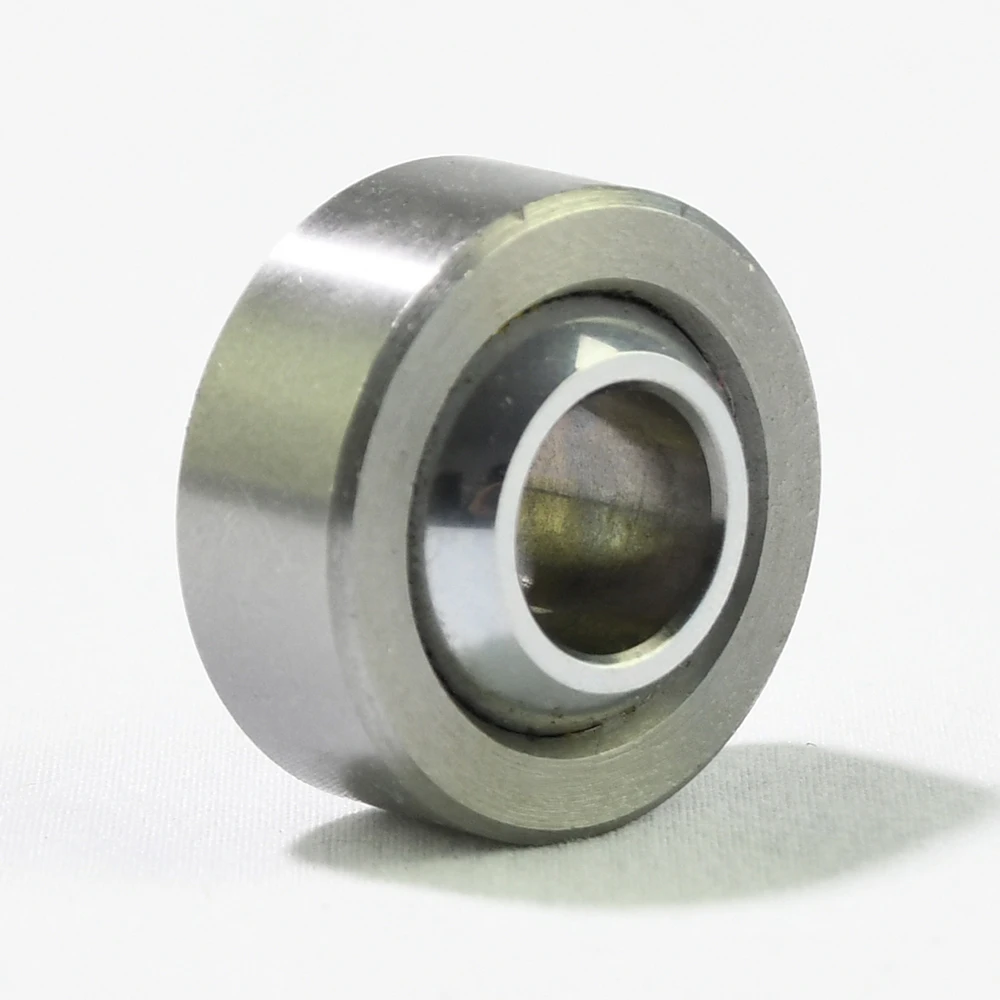

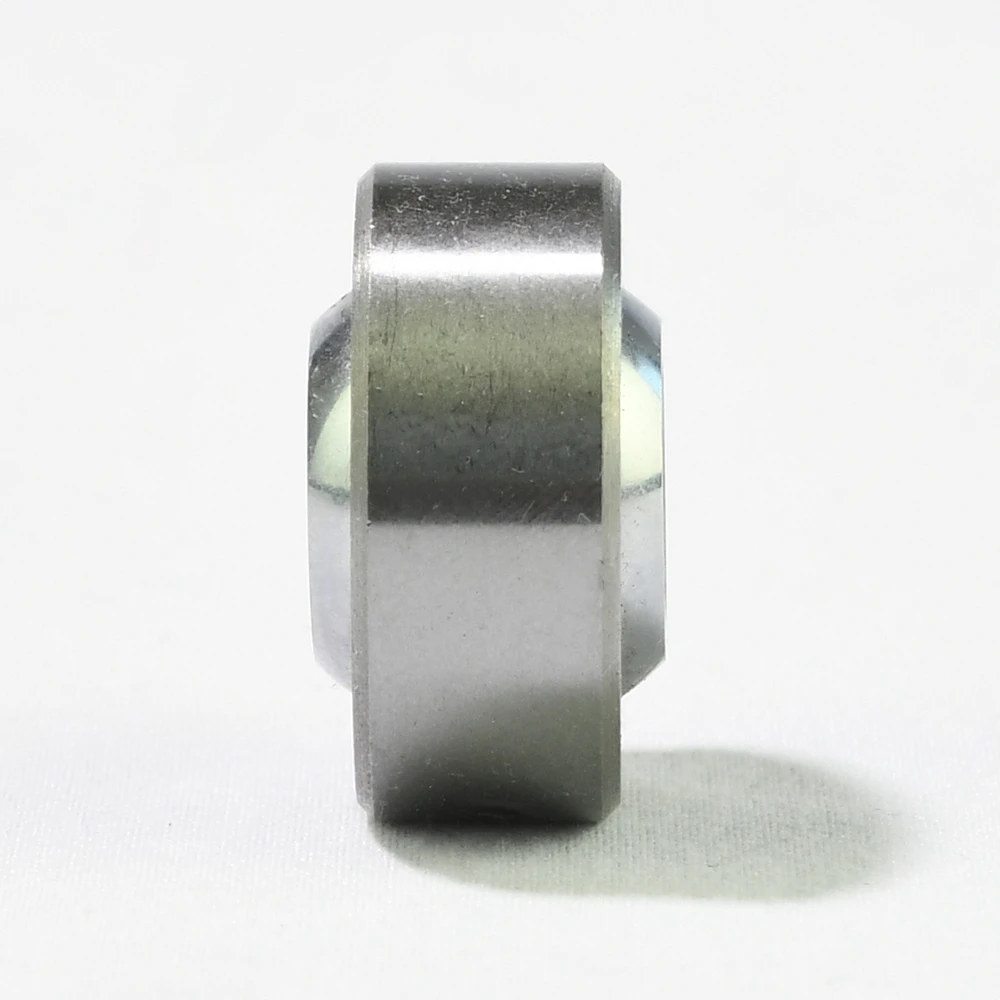

B 17 / D 35GEG17C is a wide-series metric spherical bearing with a 17 mm bore (B) and 35 mm OD (D). Width (W) = 20 mm, inner race width (T) = 12 mm. Approximate weight: 0.083 lb.
Rated at 78 kN static radial load with ±19.0° misalignment angle. The wide-body design provides higher misalignment angle compared to the standard GEC series. The 52100 bearing steel ball is precision ground, heat treated, and hard chrome plated. The carbon steel race is PTFE-lined for self-lubricating, maintenance-free operation, with optional zinc plating. Suited to heavy-pivot assemblies, suspension components, and applications requiring increased misalignment range in a metric package.
Zinc plated race option available on request. Standard-width metric equivalent is the GEC series. Inch-size fractured-race equivalent is the GEZ series.
All available sizes in the GEGC Wide-Race Metric Spherical Bearings series. Can’t find your size? Contact us for custom dimensions.
| WIDE SERIES PART NO. | B | D | W | T | O | a° | STATIC RADIAL LOAD (LBS) | APPROX WEIGHT (LBS) |
|---|---|---|---|---|---|---|---|---|
| GEG4C | 4 | 14 | 7 | 4 | 0.3 | 20.0 | 9 | 0.005 |
| GEG5C | 5 | 16 | 9 | 5 | 0.3 | 21.0 | 14 | 0.006 |
| GEG6C | 6 | 16 | 9 | 5 | 0.3 | 21.0 | 14 | 0.008 |
| GEG8C | 8 | 19 | 11 | 6 | 0.3 | 21.0 | 21 | 0.014 |
| GEG10C | 10 | 22 | 12 | 7 | 0.3 | 18.0 | 28 | 0.021 |
| GEG12C | 12 | 26 | 15 | 9 | 0.3 | 18.0 | 45 | 0.033 |
| GEG15C | 15 | 30 | 16 | 10 | 0.3 | 16.0 | 56 | 0.049 |
| GEG17C | 17 | 35 | 20 | 12 | 0.3 | 19.0 | 78 | 0.083 |
| GEG20C | 20 | 42 | 25 | 16 | 0.3 | 17.0 | 127 | 0.153 |
| GEG25C | 25 | 47 | 28 | 18 | 0.6 | 17.0 | 166 | 0.203 |
| GEG30C | 30 | 55 | 32 | 20 | 0.6 | 17.0 | 212 | 0.304 |
Material certifications verified. Composition confirmed by spectrometer before machining begins.
100% go/no-go gauge check on all threaded sections. Zero tolerance on dimensional non-conformance.
Static and dynamic load tests run on representative samples from each production batch.
CMM verification of critical dimensions — ball diameter, bore, thread pitch, and body length.
Visual and tactile inspection for burrs, scratches, surface cracks, and plating defects.
Misalignment angle and torque measured to confirm liner performance meets specification.
Hardness tests confirm proper heat treatment on chromoly steel bodies and bearing balls.
Full traceability from raw material heat number to finished part. COC and inspection reports available.
Share your part number, required quantity, and any special material or packaging requirements. We respond within 24 hours.
The GEG17C is a wide-series metric self-lubricating spherical bearing with a 17 mm bore, suited to heavy-pivot assemblies, suspension components, and applications requiring increased misalignment range in a metric package.
Bore (B) is 17 mm, OD (D) is 35 mm, width (W) is 20 mm, and inner race width (T) is 12 mm, weighing approximately 0.083 lb.
The GEG17C is rated at 78 kN static radial load with ±19.0° misalignment angle — the wide-body design gives it a higher misalignment angle than the standard-width GEC series.
The 52100 bearing steel ball is precision ground, heat treated, and hard chrome plated. The carbon steel race is PTFE-lined for self-lubricating, maintenance-free operation, with optional zinc plating.
Yes. Zinc plating on the carbon steel race is available as an option on request, in addition to the standard PTFE-lined finish.
GEG17C belongs to the GEGC wide-series metric line. The standard-width metric equivalent is the GEC series, and the inch-size fractured-race equivalent is the GEZ series — choose based on your width requirement and bore unit system.
