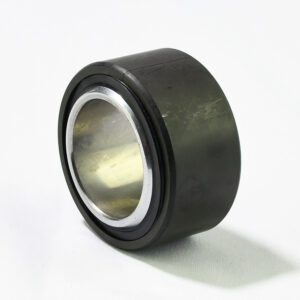

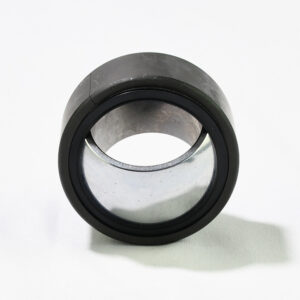

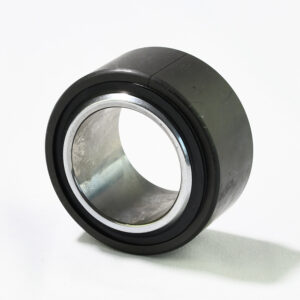

GEZ Series Fractured Race Spherical Bearings
High Wear and Increased Load Applications in Industrial Markets
Ball:52100 Bearing Steel, Protective Coated
Race:52100 Bearing Steel, Protective Coated, 2 Rubber Seals(2RS) Optional Type: Inch/Metric
Regular Size: Inch Size from GEZ12ES - GEZ152ES
Metric Size Both Available
Custom Option: Material/Size
GEZ Series Fractured Race Spherical Bearings Overview
GEZ Spherical Bearings Features:
High Wear and Increased Load Applications in Industrial Markets
Ball:52100 Bearing Steel, Protective Coated
Race:52100 Bearing Steel, Protective Coated, 2 Rubber Seals(2RS) Optional Type: Inch/Metric
Regular Size: Inch Size from GEZ12ES – GEZ152ES
Metric Size Both Available
Custom Option: Material/Size
Custom Service Process: Select Similar Product — Confirm MOQ — Send Inquiry — Send your Drawings or Samples — Customization
Select product (If your product is not on our website, select a similar product) — Confirm the quantity you need meet up with our MOQ — Send inquiry with your Drawings or Samples — We will reply to you and confirm details — Send details to our factory and start customization
GEZ Spherical Bearings Size Chart
| GEC PART NO. | GEC PART NO. | B | D | W | T | a° | STATIC | LBS | |||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| GEZ12ES | 0.5 | 0.875 | 0.437 | 0.375 | 6 | 9217 | 0.05 | ||||||
| GEZ15ES | 0.625 | 1.063 | 0.547 | 0.469 | 6 | 14613 | 0.08 | ||||||
| GEZ19ES | GEZ19ES-2RS | 0.75 | 1.25 | 0.656 | 0.562 | 6 | 21357 | 0.12 | |||||
| GEZ22ES | GEZ22ES-2RS | 0.875 | 1.438 | 0.765 | 0.656 | 6 | 28551 | 0.19 | |||||
| GEZ25ES | GEZ25ES-2RS | 1 | 1.625 | 0.875 | 0.75 | 6 | 37318 | 0.27 | |||||
| GEZ31ES | GEZ31ES-2RS | 1.25 | 2 | 1.093 | 0.937 | 6 | 58450 | 0.51 | |||||
| GEZ34ES | GEZ34ES-2RS | 1.375 | 2.188 | 1.187 | 1.031 | 6 | 69.691 | 0.77 | |||||
| GEZ38ES | GEZ38ES-2RS | 1.5 | 2.438 | 1.312 | 1.125 | 6 | 84303 | 0.93 | |||||
| GEZ44ES | GEZ44ES-2RS | 1.75 | 2.813 | 1.531 | 1.312 | 6 | 114653 | 1.41 | |||||
| GEZ50ES | GEZ50ES-2RS | 2 | 3.188 | 1.75 | 1.5 | 6 | 150622 | 2.05 | |||||
| GEZ57ES | GEZ57ES-2RS | 2.25 | 3.563 | 2.166 | 1.687 | 6 | 191088 | 2.93 | |||||
| GEZ63ES | GEZ63ES-2RS | 2.5 | 3.938 | 2.187 | 1.875 | 6 | 238.298 | 4.08 | |||||
| GEZ69ES | GEZ69ES-2RS | 2.75 | 4.375 | 2.406 | 2.062 | 6 | 281011 | 5.34 | |||||
| GEZ76ES | GEZ76ES-2RS | 3 | 4.75 | 2.625 | 2.25 | 6 | 337213 | 6.83 | |||||
| GEZ82ES | GEZ82ES-2RS | 3.252 | 5.118 | 2.842 | 2.437 | 1 | 388013 | 8.3 | |||||
| GEZ88ES | GEZ88ES-2RS | 3.5 | 5.512 | 3.06 | 2.625 | 1 | 449743 | 10.58 | |||||
| GEZ95ES | GEZ95ES-2RS | 3.75 | 5.866 | 3.279 | 2.811 | 1 | 520290 | 12.78 | |||||
| GEZ101ES | GEZ101ES-2RS | 4.015 | 6.26 | 3.5 | 3 | 1 | 584224 | 15.43 | |||||
| GEZ107ES | GEZ107ES-2RS | 4.252 | 6.614 | 3.72 | 3.189 | 1 | 661386 | 18.54 | |||||
| GEZ114ES | GEZ114ES-2RS | 4.488 | 7.008 | 3.937 | 3.334 | 1 | 749571 | 21.6 | |||||
| GEZ120ES | GEZ120ES-2RS | 4.763 | 7.362 | 4.173 | 3.562 | 1 | 826733 | 25.35 | |||||
| GEZ127ES | GEZ127ES-2RS | 5 | 7.756 | 4.37 | 3.752 | 1 | 914918 | 29.76 | |||||
| GEZ152ES | GEZ152ES-2RS | 5.984 | 8.74 | 4.763 | 4.133 | 1 | 1146403 | 38.58 |
