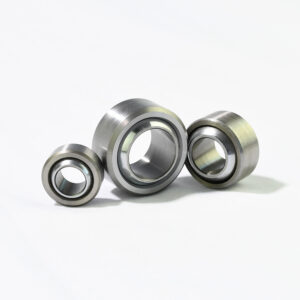

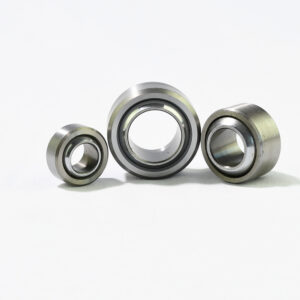

WPB-T/WPB-TG Wide Series Precision Spherical Bearings
BALL | |||||
52100 BEARING STEEL, HEAT TREATED HRC58-64 | |||||
HARD CHROME PLATED | |||||
HEAT TREATED 440C STAINLESS OPTIONAL | |||||
RACE | |||||
ALLOY STEEL, OIL COATED, TEFLON LINED | |||||
HEAT TREATED STAKING GROOVE OPTIONAL(WPB-TG) | |||||
HEAT TREATED STAINLESS OPTIONAL |
Product Features:
Type:Inch/Metric
Thread:Right/Left
Regular Size: Inch Size from WPB4T-WPB16T
Metric Size Both Available
Custom Option:Material/Size
BEARING NO. | B | D | W | T | O | M | BALL | a° | STATIC | APPROX | ||||
DIA. | DIA. | WIDTH | WIDTH | FLAT DIA. | CHAMFER | DIA. | MIS. | RADIAL | WEIGHT | |||||
+0.0000 | +0.0000 | +0.000 | +0.005 | REF. | REF. | REF. | ANGLE | LOAD | (LBS) | |||||
-0.0005 | -0.0005 | -0.002 | -0.005 | REF. | (LBS) | |||||||||
WPB4T | 0.2500 | 0.6250 | 0.437 | 0.327 | 0.300 | 0.022 | 0.531 | 15.0 | 5,500 | 0.031 | ||||
WPB5T | 0.3125 | 0.6875 | 0.437 | 0.317 | 0.360 | 0.032 | 0.593 | 14.0 | 9,400 | 0.035 | ||||
WPB6T | 0.3750 | 0.8125 | 0.500 | 0.406 | 0.466 | 0.032 | 0.687 | 8.0 | 13,700 | 0.060 | ||||
WPB7T | 0.4375 | 0.9375 | 0.562 | 0.442 | 0.537 | 0.032 | 0.781 | 10.0 | 20,700 | 0.080 | ||||
WPB8T | 0.5000 | 1.0000 | 0.625 | 0.505 | 0.607 | 0.032 | 0.875 | 9.0 | 21,400 | 0.100 | ||||
WPB9T | 0.5625 | 1.1250 | 0.687 | 0.536 | 0.721 | 0.032 | 1.000 | 10.0 | 26,600 | 0.135 | ||||
WPB10T | 0.6250 | 1.1875 | 0.750 | 0.567 | 0.752 | 0.032 | 1.062 | 12.0 | 29,000 | 0.160 | ||||
WPB12T | 0.7500 | 1.3750 | 0.875 | 0.630 | 0.845 | 0.044 | 1.250 | 13.0 | 37,000 | 0.240 | ||||
WPB14T | 0.8750 | 1.6250 | 0.875 | 0.755 | 0.995 | 0.044 | 1.375 | 6.0 | 65,200 | 0.350 | ||||
WPB16T | 1.0000 | 2.1250 | 1.375 | 1.005 | 1.269 | 0.044 | 1.875 | 12.0 | 104,000 | 0.970 |
BEARING NO. | B | D | W | T | O | P | R | S | G | BALL | a° | STATIC | APPROX | |
DIA. | DIA. | WIDTH | WIDTH | FLAT DIA. | DIA. | MIS. | RADIAL | WEIGHT | ||||||
+0.0000 | +0.0000 | +0.000 | +0.005 | REF. | +0.000 | +0.002 | MIN. | +0.000 | REF. | ANGLE | LOAD | (LBS) | ||
-0.0005 | -0.0005 | -0.002 | -0.005 | -0.015 | -0.005 | -0.01 | REF. | (LBS) | ||||||
WPB4TG | 0.2500 | 0.6250 | 0.437 | 0.327 | 0.300 | 0.030 | 0.010 | 0.010 | 0.565 | 0.531 | 15.0 | 5,500 | 0.031 | |
WPB5TG | 0.3125 | 0.6875 | 0.437 | 0.317 | 0.360 | 0.030 | 0.010 | 0.010 | 0.627 | 0.593 | 14.0 | 9,400 | 0.035 | |
WPB6TG | 0.3750 | 0.8125 | 0.500 | 0.406 | 0.466 | 0.040 | 0.015 | 0.020 | 0.714 | 0.687 | 8.0 | 13,700 | 0.060 | |
WPB7TG | 0.4375 | 0.9375 | 0.562 | 0.442 | 0.537 | 0.040 | 0.015 | 0.020 | 0.839 | 0.781 | 10.0 | 20,700 | 0.080 | |
WPB8TG | 0.5000 | 1.0000 | 0.625 | 0.505 | 0.607 | 0.040 | 0.015 | 0.020 | 0.902 | 0.875 | 9.0 | 21,400 | 0.100 | |
WPB9TG | 0.5625 | 1.1250 | 0.687 | 0.536 | 0.721 | 0.040 | 0.015 | 0.020 | 1.027 | 1.000 | 10.0 | 26,600 | 0.135 | |
WPB10TG | 0.6250 | 1.1875 | 0.750 | 0.567 | 0.752 | 0.040 | 0.015 | 0.020 | 1.089 | 1.062 | 12.0 | 29,000 | 0.160 | |
WPB12TG | 0.7500 | 1.3750 | 0.875 | 0.630 | 0.845 | 0.060 | 0.015 | 0.020 | 1.253 | 1.250 | 13.0 | 37,000 | 0.240 | |
WPB14TG | 0.8750 | 1.6250 | 0.875 | 0.755 | 0.995 | 0.060 | 0.015 | 0.020 | 1.503 | 1.375 | 6.0 | 65,200 | 0.350 | |
WPB16TG | 1.0000 | 2.1250 | 1.375 | 1.005 | 1.269 | 0.060 | 0.015 | 0.020 | 2.003 | 1.875 | 12.0 | 104,000 | 0.970 |
Custom Service Process:Select Similar Product — Confirm MOQ — Send Inquiry — Send your Drawings or Samples — Customization
Select product (If your product is not on our website, select a similar product) — Confirm the quantity you need meet up with our MOQ — Send inquiry with your Drawings or Samples — We will reply to you and confrim details — Send details to our factory and start customization
