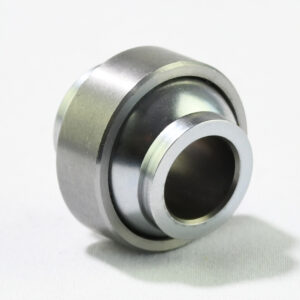

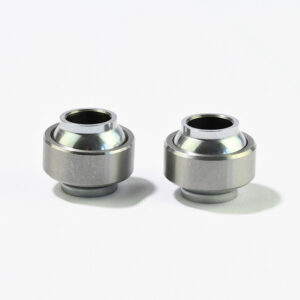

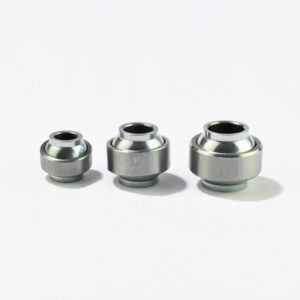

YPB(-T) Series High Misalignment Alloy Steel Spherical Bearings
- Regular Size: Inch Size from YPB4T-YPB12T
Inch Size and Metric Size Both Available - We are a Professional Manufacturer and Accept Special Request.
- Email Us [email protected] to Get a Latest Price or a Sample
YPB(-T) Series High Misalignment Alloy Steel Spherical Bearings Overview
YPB(-T) Series High Misalignment Alloy Steel Spherical Bearings
| BALL: |
| 52100 BEARING STEEL, HEAT TREATED |
| HARD CHROME PLATED, HIGH MISALIGNMENT |
| 440C STAINLESS, HEAT TREATED |
| PRECISION GROUND BALL OPTIONAL |
| RACE: |
| ALLOY STEEL, OIL COATED, TEFLON LINED |
| HEAT TREATED STAINLESS OPTIONAL |
Product Features:
High Misalignment, Alloy Steel, Teflon Lined, Stainless Optional
Thread:Right/Left
Regular Size: Inch Size from YPB4T-YPB12T
Metric Size Both Available
Custom Option:Material/Size
| YPB-T HIGH MISALIGNMENT PART NUMBER | B | D | W | T | O | M | BALL | a° | STATIC | APPROX | |
| DIA. | DIA. | WIDTH | WIDTH | FLAT DIA. | CHAMFER | DIA. | MIS. | RADIAL | WEIGHT | ||
| +0.0000 | +0.0000 | +0.000 | +0.005 | REF. | REF. | REF. | ANGLE | LOAD | (LBS) | ||
| -0.0005 | -0.0005 | -0.005 | -0.005 | REF. | (LBS) | ||||||
| YPB4T | 0.2500 | 0.7400 | 0.593 | 0.255 | 0.390 | 0.020 | 0.593 | 24.0 | 7,560 | 0.040 | |
| YPB5T | 0.3125 | 0.9060 | 0.813 | 0.345 | 0.512 | 0.030 | 0.781 | 23.0 | 16,975 | 0.070 | |
| YPB6T | 0.3750 | 0.9060 | 0.813 | 0.345 | 0.512 | 0.030 | 0.781 | 23.0 | 16,975 | 0.070 | |
| YPB7T | 0.4375 | 1.0000 | 0.875 | 0.345 | 0.618 | 0.030 | 0.875 | 22.0 | 19,018 | 0.100 | |
| YPB8T | 0.5000 | 1.1250 | 0.937 | 0.401 | 0.730 | 0.030 | 1.000 | 20.0 | 25,263 | 0.160 | |
| YPB10T | 0.6250 | 1.3750 | 1.200 | 0.567 | 0.856 | 0.030 | 1.250 | 20.0 | 44,651 | 0.250 | |
| YPB12T | 0.7500 | 1.5625 | 1.280 | 0.620 | 0.970 | 0.035 | 1.325 | 18.0 | 53,507 | 0.320 | |
Custom Service Process:Select Similar Product — Confirm MOQ — Send Inquiry — Send your Drawings or Samples — Customization
Select product (If your product is not on our website, select a similar product) — Confirm the quantity you need meet up with our MOQ — Send inquiry with your Drawings or Samples — We will reply to you and confrim details — Send details to our factory and start customization
Product Features:
High Misalignment, Alloy Steel, Teflon Lined, Stainless Optional
Ball:52100 Bearing Steel,Precision Ground,Heat Treated, Hard Chrome Plated,
Race:Alloy Steel, Heat Treated, Teflon Lined
