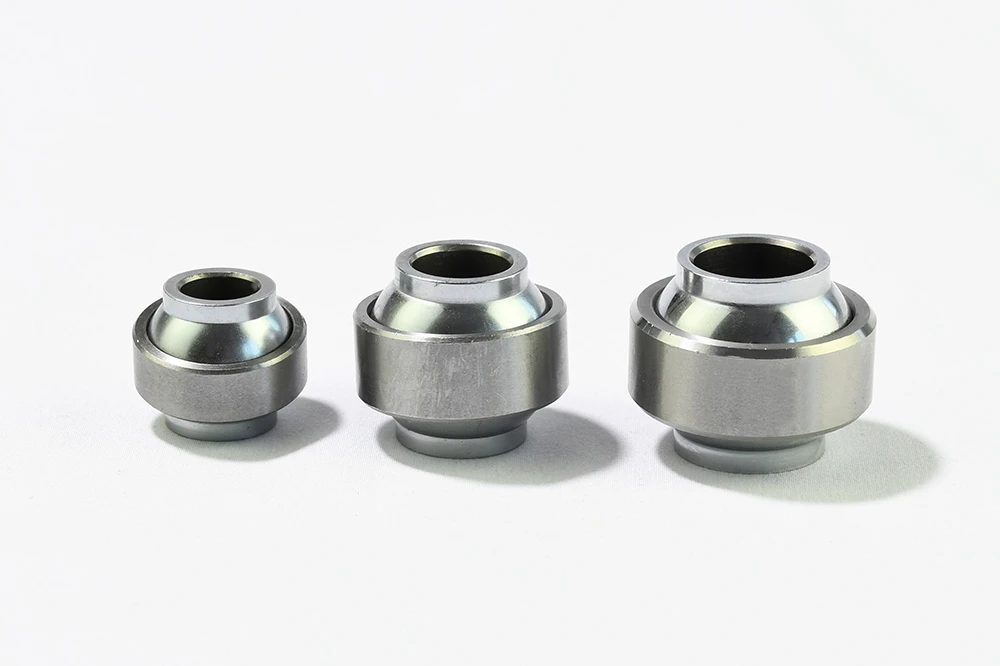

YPB-T — Inch High Misalignment Spherical Bearings
YPB-T
Inch High Misalignment Spherical Bearings
Alloy Steel · PTFE Lined · High Misalignment Geometry · Stainless Optional
7
Available Sizes
4
Image Views Included
Full Spec Range
Search by spec.
| Type | Part No. | B DIA. | D DIA. | W WIDTH | T WIDTH | O FLAT DIA. | M CHAMFER | a° | STATIC | WEIGHT | Qty | |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| YPB-T Inch | YPB4T | 0.2500 | 0.7400 | 0.593 | 0.255 | 0.390 | 0.020 | 24.0 | 7,560 | 0.040 | ||
| YPB-T Inch | YPB5T | 0.3125 | 0.9060 | 0.813 | 0.345 | 0.512 | 0.030 | 23.0 | 16,975 | 0.070 | ||
| YPB-T Inch | YPB6T | 0.3750 | 0.9060 | 0.813 | 0.345 | 0.512 | 0.030 | 23.0 | 16,975 | 0.070 | ||
| YPB-T Inch | YPB7T | 0.4375 | 1.0000 | 0.875 | 0.345 | 0.618 | 0.030 | 22.0 | 19,018 | 0.100 | ||
| YPB-T Inch | YPB8T | 0.5000 | 1.1250 | 0.937 | 0.401 | 0.730 | 0.030 | 20.0 | 25,263 | 0.160 | ||
| YPB-T Inch | YPB10T | 0.6250 | 1.3750 | 1.200 | 0.567 | 0.856 | 0.030 | 20.0 | 44,651 | 0.250 | ||
| YPB-T Inch | YPB12T | 0.7500 | 1.5625 | 1.280 | 0.620 | 0.970 | 0.035 | 18.0 | 53,507 | 0.320 |
Technical Spec.
- Ball: 52100 bearing steel, precision ground, heat treated, and hard chrome plated. 440C stainless optional.
- Race: Alloy steel, heat treated, oil coated, and PTFE lined. Stainless steel optional, zinc plated optional.
- Liner: PTFE lined race construction for self-lubricating high-misalignment articulation.
- Construction: YPB-T is the inch high-misalignment spherical bearing family for wide-angle articulation and rugged radial support.
Notes
- Stainless race and stainless ball: add
-SSto the suffix, for exampleYPB12T-SS. - Stainless race and steel ball: add
-Sto the suffix, for exampleYPB12T-S. - Configuration: this page covers the inch YPB-T high-misalignment spherical bearing size range.
