SA-TK / SI-TK Series — Metric Rod Ends

SA-TK & SI-TK Series
Metric 3-Piece Self-Lubricating Rod Ends

Metric Threads · Copper Alloy PTFE Race · Carbon Steel Silver Zinc Plated Body

13

Male Rod End Choices

13

Female Rod End Choices

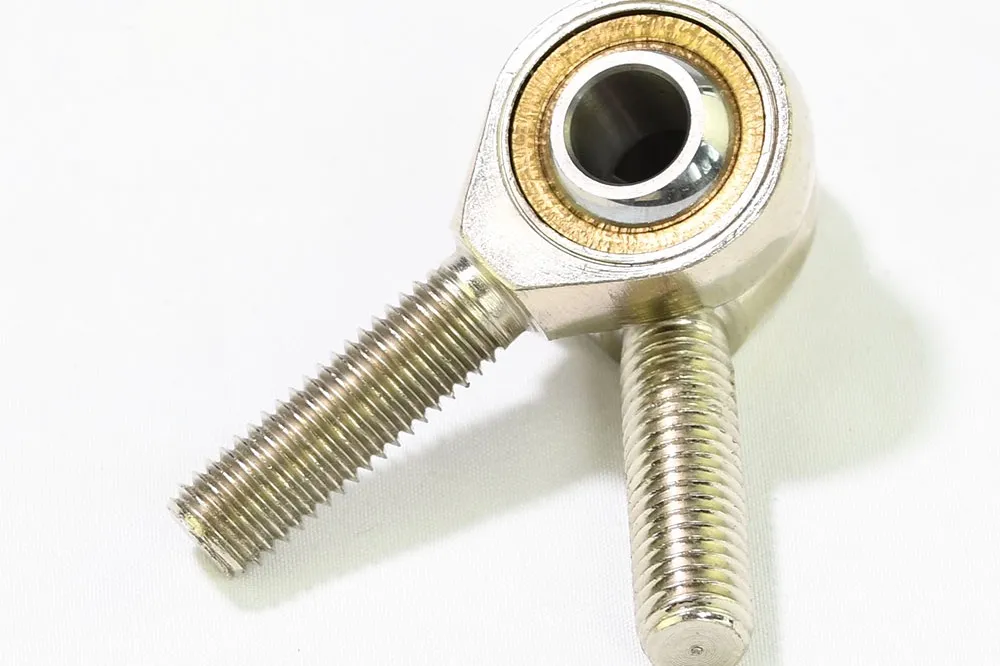

SA-TK SI-TK series rod end product overview

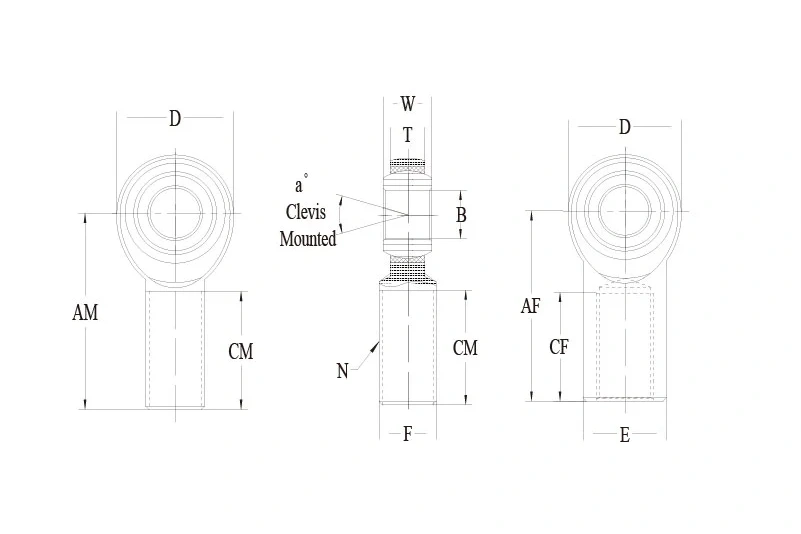

SA-TK SI-TK series metric rod end technical drawing

Full Spec Range

Search by spec.

B

N

Part No.

TYPE	RH PART NO.	LH PART NO.	BDIA. +0.065 -0.012	DDIA. +0.38 -0.38	NTHREAD METRIC	WWIDTH +0.12 -0.12	TWIDTH +0.13 -0.13	AM / AFLENGTH +0.40 -0.40	CM / CFLENGTH +1.00 -1.00	A°MIS. ANGLE REF.	STATICRADIAL LOAD (KN)	WEIGHTAPPROX. (G)	QTY	ACTION	DETAILS
Male	SA5TK	SAL5TK	5	18.00	M5 X 0.8	8	6.00	33 (AM)	19 (CM)	4	7.5	13
Male	SA6TK	SAL6TK	6	20.00	M6 X 1.0	9	6.75	36 (AM)	22 (CM)	9	9.3	20
Female	SI5TK	SIL5TK	5	18.00	M5 X 0.8	8	6.00	27 (AF)	10 (CF)	4	7.5	18
Female	SI6TK	SIL6TK	6	20.00	M6 X 1.0	9	6.75	30 (AF)	12 (CF)	9	9.3	27

Technical Spec.

Ball: 52100 bearing steel, precision ground, heat treated, and hard chrome plated for long-wear articulation.
Race: Copper alloy race with PTFE lining for durable self-lubricating service in metric linkage assemblies.
Body: Carbon steel body with silver zinc plating for corrosion resistance and practical OEM replacement service.

Notes

Stud configurations available: add S to the suffix, for example SA12TK-S.
Inch size available: check the VM / VF series for inch-size equivalents.
Yellow zinc plating optional when an alternate finish is required for the application.

🍪
