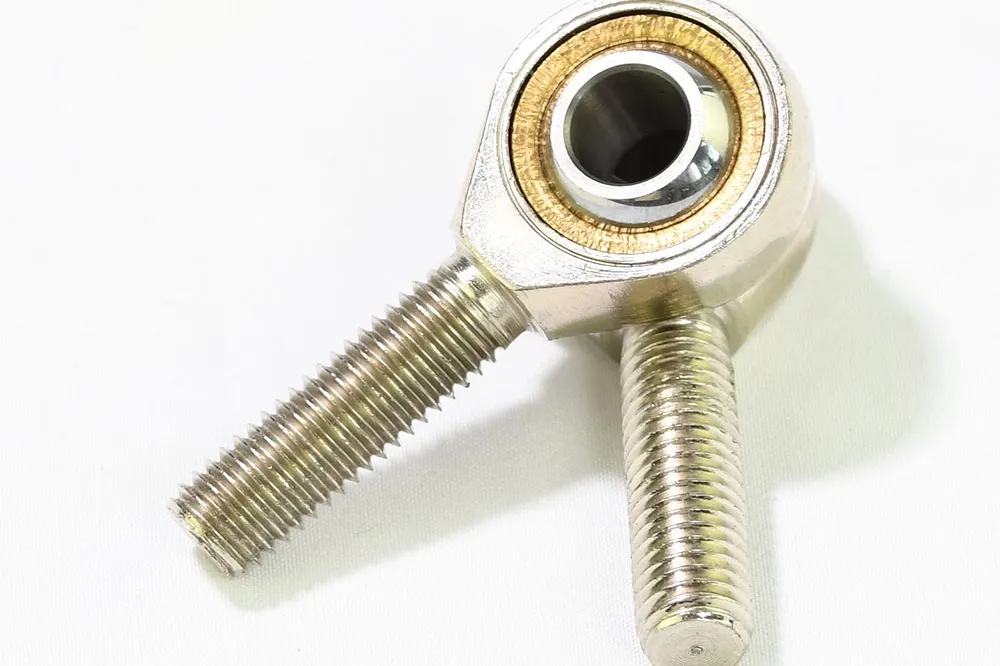

VM / VF Series — 3-Piece Bronze Race Rod Ends

VM & VF Series
3-Piece Bronze Race Rod Ends

3-Piece Design · Oil Impregnated Sintered Bronze Race · Yellow Zinc Plated Carbon Steel Body

Male Rod End Choices

Female Rod End Choices

Brand Compatibility

Cross-searching

SYZ Part No.

FK Rod Ends

Aurora

QA1

Alinabal

Midwest Control

Full Spec Range

Part No.

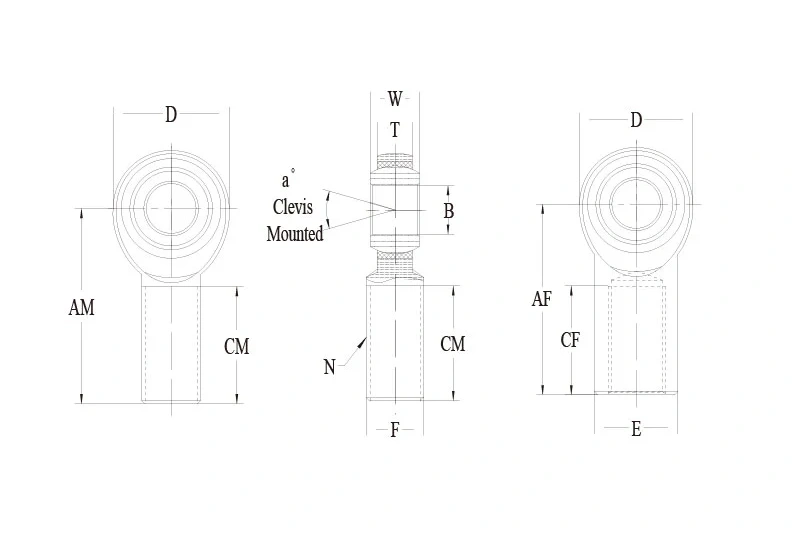

Type	RH Part No.	LH Part No.	BDIA. +.0025 -.0005	DDIA. +.010 -.010	NTHREAD UNF 3A	WWIDTH +.005 -.005	TWIDTH +.005 -.005	BallDIA. REF.	AM / AFLENGTH +.015 -.015	CM / CFLENGTH +.062 -.031	A°MIS. ANGLE REF.	StaticRADIAL LOAD (LBS)	WeightAPPROX. (LBS)	Details
VM Male	VMR3	VML3	0.1900	0.625	10-32	0.312	0.250	0.437	1.250	0.750	13	1169	0.03	View details
VM Male	VMR5	VML5	0.3125	0.875	5/16-24	0.437	0.344	0.625	1.875	1.250	12	2784	0.07	View details
VM Male	VMR8	VML8	0.5000	1.312	1/2-20	0.625	0.500	0.937	2.438	1.500	12	6660	0.25	View details
VM Male	VMR12	VML12	0.7500	1.750	3/4-16	0.875	0.687	1.312	2.875	1.750	14	11518	0.60	View details
VF Female	VFR3	VFL3	0.1900	0.625	10-32	0.312	0.250	0.437	1.062	0.562	13	1531	0.04	View details
VF Female	VFR5	VFL5	0.3125	0.875	5/16-24	0.437	0.344	0.625	1.375	0.750	12	3133	0.09	View details
VF Female	VFR8	VFL8	0.5000	1.312	1/2-20	0.625	0.500	0.937	2.125	1.187	12	6660	0.33	View details
VF Female	VFR12	VFL12	0.7500	1.750	3/4-16	0.875	0.687	1.312	2.875	1.750	14	11518	0.72	View details

Ball: 52100 Bearing Steel, precision ground, heat-treated, and Hard Chrome Plated for smooth articulation and wear resistance.
Race: Sintered Bronze, oil impregnated for self-lubricating operation and dependable 3-piece service life.
Body: Carbon Steel, Yellow Zinc Plated for corrosion protection and industrial-duty reliability.
