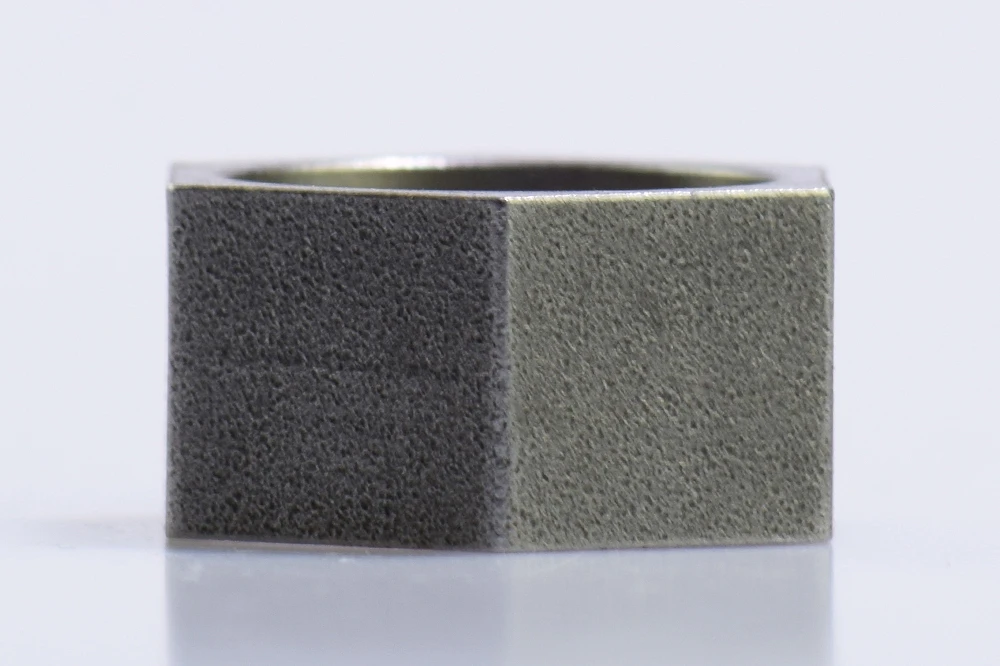

Weld-On Wrench Hexes
Mild Steel Hex Wrench Flats for Tube Assemblies
Mild Steel · Fits Different O.D. Tube Sizes · Weld-On Hex Profile
13
Available Sizes
2
Hero Views
Full Spec Range
Search by spec.
| Type | Part No. | Fits Tubing O.D. Size | Wrench Size | I.D. Size | Qty | |
|---|---|---|---|---|---|---|
| WRENCH HEX | 1865-101 | 3/8″ | 5/8″ | 0.390 | ||
| WRENCH HEX | 1865-102 | 1/2″ | 3/4″ | 0.515 | ||
| WRENCH HEX | 1865-103 | 5/8″ | 7/8″ | 0.640 | ||
| WRENCH HEX | 1865-104 | 3/4″ | 1″ | 0.765 | ||
| WRENCH HEX | 1865-105 | 7/8″ | 1 1/8″ | 0.890 | ||
| WRENCH HEX | 1865-106 | 1″ | 1 1/4″ | 1.015 | ||
| WRENCH HEX | 1865-107 | 1 1/8″ | 1 3/8″ | 1.140 | ||
| WRENCH HEX | 1865-108 | 1 1/4″ | 1 1/2″ | 1.265 | ||
| WRENCH HEX | 1865-109 | 1 3/8″ | 1 5/8″ | 1.390 | ||
| WRENCH HEX | 1865-110 | 1 1/2″ | 1 3/4″ | 1.515 | ||
| WRENCH HEX | 1865-111 | 1 5/8″ | 1 7/8″ | 1.640 | ||
| WRENCH HEX | 1865-112 | 1 3/4″ | 2″ | 1.765 | ||
| WRENCH HEX | 1865-113 | 2″ | 2 1/4″ | 2.015 |
Technical Spec.
- Function: Weld-on wrench hexes add wrench flats to tube-based assemblies so adjustment can be made after welding.
- Selection: Start with tube O.D. size and wrench size, then confirm I.D. size to match the intended tube package.
- Construction: Standard construction uses mild steel for weldability and economical fabrication.
- Options: Multiple tube sizes are available for common adjustment and fabrication programs.
Notes
- Applications: Used in tie rods, link bars, and fabricated threaded tube assemblies where wrench access is required.
- Fabrication: The weld-on hex profile helps create a repeatable adjustment point without machining a custom hex body.
- Customization: SYZ can review alternate sizes and production requirements for repeat OEM fabrication work.
