PCYM-T / PCYF-T Series — High Misalignment Chromoly Rod Ends
PCYM-T & PCYF-T Series
High Misalignment Chromoly Rod Ends
Built-in Spacers · Up to 24° Articulation · 4130 Chromoly Steel · PTFE Lined
7
Male Rod End Choices
4
Female Rod End Choices
Brand Compatibility
Cross-searching
Full Spec Range
Search by spec.

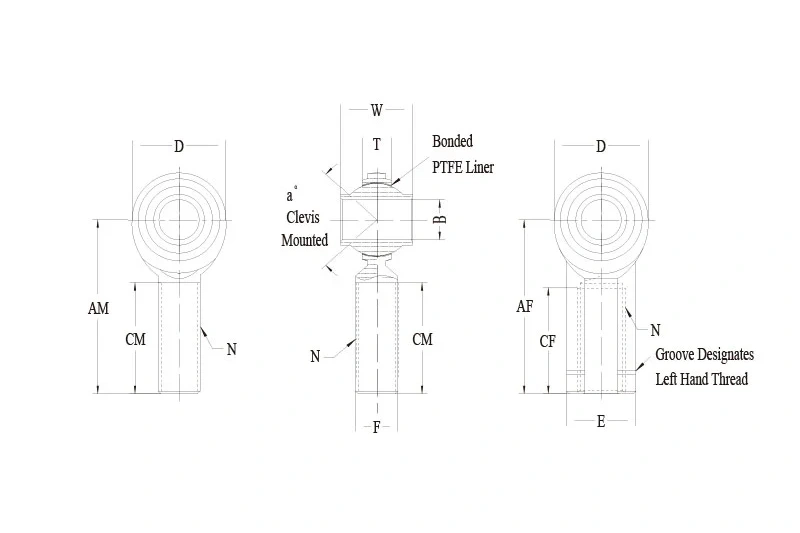

| Type | RH Part No. | LH Part No. | B | D | N | W | T | AM | CM | A° | Static | Weight | Qty | Action | Details | |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| PCYM Male | PCYMR6T | PCYML6T | 0.3750 | 1.125 | 3/8-24 | 0.875 | 0.390 | — | 2.125 | 1.375 | 46 | 11050 | 0.14 | View details | ||
| PCYM Male | PCYMR8T | PCYML8T | 0.5000 | 1.500 | 1/2-20 | 1.250 | 0.470 | — | 2.625 | 1.625 | 60 | 16240 | 0.33 | View details | ||
| PCYM Male | PCYMR10T | PCYML10T | 0.6250 | 1.750 | 5/8-18 | 1.375 | 0.531 | — | 2.875 | 1.750 | 48 | 21219 | 0.51 | View details | ||
| PCYM Male | PCYMR12T | PCYML12T | 0.7500 | 2.000 | 3/4-16 | 1.500 | 0.651 | — | 3.375 | 2.000 | 54 | 29127 | 0.79 | View details | ||
| PCYF Female | PCYFR6T | PCYFL6T | 0.3750 | 1.125 | 3/8-24 | 0.875 | 0.390 | — | 2.125 | 1.062 | 46 | 11050 | 0.20 | View details | ||
| PCYF Female | PCYFR8T | PCYFL8T | 0.5000 | 1.500 | 1/2-20 | 1.250 | 0.470 | — | 2.625 | 1.375 | 60 | 16240 | 0.43 | View details | ||
| PCYF Female | PCYFR10T | PCYFL10T | 0.6250 | 1.750 | 5/8-18 | 1.375 | 0.531 | — | 2.875 | 1.562 | 48 | 21219 | 0.57 | View details | ||
| PCYF Female | PCYFR12T | PCYFL12T | 0.7500 | 2.000 | 3/4-16 | 1.500 | 0.651 | — | 3.375 | 1.785 | 54 | 29127 | 0.84 | View details |
Technical Spec.
- Ball: 52100 Bearing Steel, precision ground, heat-treated, and Hard Chrome Plated with extended shoulders for built-in high misalignment.
- Body: 4130 Chromoly Steel, heat treated and black oxide coated to handle high leverage and off-road impact loading.
- Liner: PTFE liner provides self-lubricating performance without separate spacers or frequent maintenance.
Notes
- Built-In High Misalignment: The extended shoulder ball reduces the need for separate misalignment spacers.
- PTFE Lined Construction: Standard on the T-series for maintenance-reduced articulation.
