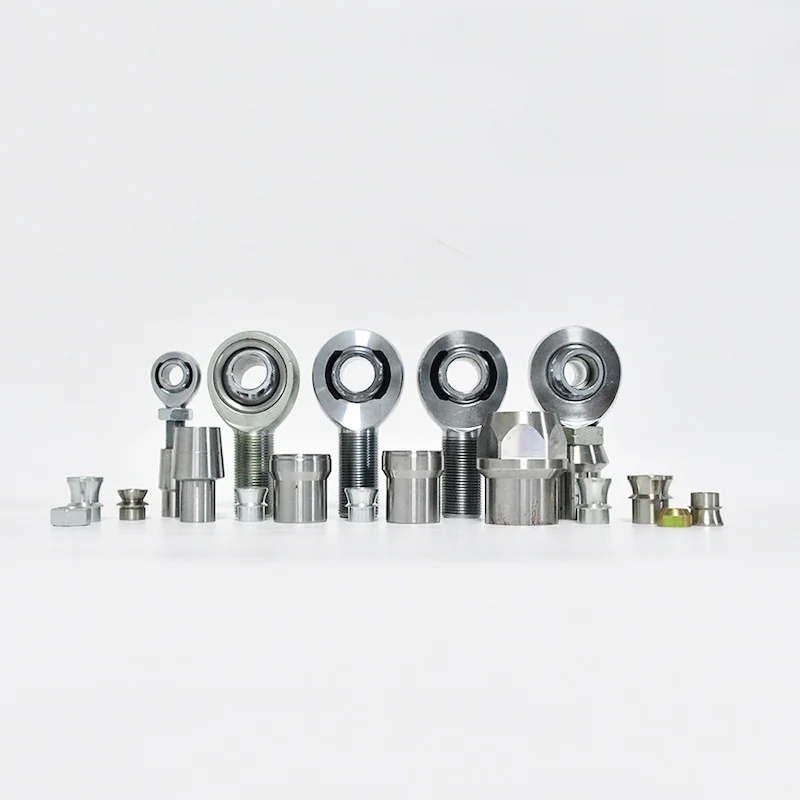

A collection of heim joints with accessories including tube adapters, jam nuts, spacers, and related components, arranged in a row.

ROD END / HEIM JOINT

1 3/4″ Heim Joint Kit High Mis. Spacers and Tube Adapter

Name: 1 3/4″ Heim Joint Kit High Mis. Spacers and Tube Adapter
Brand: SYZ Rod Ends
Availability: InStock

✓ ISO 9001 Certified

✓ SGS Verified

✓ 26+ Years Factory

✓ OEM / ODM Ready

It is a male heim joint with matching high mis. spacer and tube adapter
Different sizes and models available, hot selling are xm and jmx series
heavy duty Chromoly Steel with chrome moly plated or zinc plated
We are an experienced manufacturer. We can handle any custom heim joint request.

Get a Quote →

⚡ Typically responds within 24 hours

MOQ:50 pcs / model

Lead Time:7–15 days

Sample:Free (excl. freight)

Payment:T/T · PayPal · L/C

Overview

1 3/4″ Heim Joint Kit High Mis. Spacers and Tube Adapter Overview

1 3/4 Heim Joint Kit Rod End Replacement
It is a male heim joint with matching high mis. spacer and tube adapter
Different sizes and models available, hot selling are xm and jmx series
This 1 3/4″ heim joint kit is made of heavy duty Chromoly Steel with chrome moly plated or zinc plated

heim joint kit rod end kit

XM ROD END		B	D	W	T	BALL	AM	N	CM	a°	STATIC	APPROX
RIGHT	LEFT	DIA.	DIA.	WIDTH	WIDTH	DIA.	LENGTH	THREAD	LENGTH	MIS.	RADIAL	WEIGHT
HAND	HAND	+0.0025	+0.010	+0.005	REF.	REF.	+0.015	UNF	+0.062	ANGLE	LOAD	(LBS)
PART NO.	PART NO.	-0.0005	-0.010	-0.005	REF.	REF.	-0.015	3A	-0.031	REF.	(LBS)
XMR3	XML3	0.1900	0.625	0.312	0.250	0.437	1.250	10-32	0.750	13	2,851	0.03
XMR3-4	XML3-4	0.1900	0.750	0.312	0.250	0.437	1.562	1/4-28	1.000	10	5,260	0.04
XMR4	XML4	0.2500	0.750	0.375	0.281	0.500	1.562	1/4-28	1.000	16	5,260	0.04
XMR4-5	XML4-5	0.2500	0.875	0.375	0.281	0.500	1.875	5/16-24	1.250	13	8,452	0.07
XMR5	XML5	0.3125	0.875	0.437	0.344	0.625	1.875	5/16-24	1.250	14	7,639	0.07
XMR5-6	XML5-6	0.3125	1.000	0.437	0.344	0.625	1.938	3/8-24	1.250	12	12,978	0.11
XMR6	XML6	0.3725	1.000	0.500	0.406	0.719	1.938	3/8-24	1.250	12	9,544	0.11
XMR6-7	XML6-7	0.3725	1.125	0.500	0.406	0.719	2.125	7/16-20	1.375	10	17,508	0.15
XMR7	XML7	0.4375	1.125	0.562	0.437	0.812	2.125	7/16-20	1.375	14	10,285	0.15
XMR7-8	XML7-8	0.4375	1.312	0.562	0.437	0.812	2.438	1/2-20	1.500	12	23,452	0.24
XMR8	XML8	0.5000	1.312	0.625	0.500	0.937	2.438	1/2-20	1.500	12	16,238	0.24
XMR8-10	XML8-10	0.5000	1.500	0.625	0.500	0.937	2.625	5/8-18	1.625	10	31,390	0.36
XMR8-12	XML8-12	0.5000	1.750	0.625	0.562	1.125	2.875	3/4-16	1.750	16	40,572	0.42
XMR10	XML10	0.6250	1.500	0.750	0.562	1.125	2.625	5/8-18	1.625	16	17,955	0.36
XMR10-12	XML10-12	0.6250	1.750	0.750	0.562	1.125	2.875	3/4-16	1.750	13	40,572	0.57
XMR12	XML12	0.7500	1.750	0.875	0.687	1.312	2.875	3/4-16	1.750	14	28,081	0.57
XMR12-14	XML12-14	0.7500	2.000	0.875	0.687	1.312	3.375	7/8-14	1.875	12	55,692	0.88
XMR14	XML14	0.8750	2.000	0.875	0.765	1.375	3.375	7/8-14	2.000	7	45,051	0.88
XMR16	XML16	1.0000	2.750	1.375	1.015	1.875	4.125	1 1/4-12	2.125	17	76,200	2.41
XMR16-1	XML16-1	1.0000	2.750	1.375	1.015	1.875	4.125	1-14	2.125	17	76,200	2.13
XMR16-2	XML16-2	1.0000	2.750	1.375	1.015	1.875	4.125	1-12	2.125	17	76,200	2.13

Custom Service Process: Select Similar Product — Confirm MOQ — Send Inquiry — Send your Drawings or Samples — Customization
Select product (If your product is not on our website, select a similar product) — Confirm the quantity you need meet up with our MOQ — Send inquiry with your Drawings or Samples — We will reply to you and confirm details — Send details to our factory and start customization

Hot Selling Products

Quality Control

Every Unit Inspected Before Shipment

🔩

Raw Material Inspection

Material certifications verified before machining and assembly begin.

🔍

Dimensional Check

Critical dimensions are checked against drawing or sample requirements.

🔬

Surface Inspection

Visual inspection confirms finish quality, burr removal, and assembly cleanliness.

📋

Batch Documentation

Inspection reports and production traceability can be provided on request.

Applications

Where Rod End / Heim Joint Products Are Used

Steering and Suspension Linkages

Linkage rods and Heim-joint assemblies provide adjustable, serviceable connections for steering, suspension, and chassis systems. Match the joint type, thread, spacers, and alignment to the travel of the mechanism.

Motorsport and Off-Road Fabrication

These components are widely used in custom vehicle builds where geometry, length adjustment, and replaceable joints are important. Check shock loading, misalignment, fastener orientation, and maintenance access.

Industrial and Agricultural Controls

Rod-end linkages can connect levers, actuators, and control arms in agricultural and industrial equipment. Select material, race, sealing, and surface treatment for the expected contamination and oscillation.
