Johnny Joints
- Heat Treated Chromoly, Polyurethane/Delrin Bushing
Threaded Spanner Nut Design AvailableHeat Treated Chromoly, Polyurethane/Delrin Bushing,Threaded Spanner Nut Design Available
Housing: 4130 Heat Treated Chromoly Steel, Zinc Plated, Custom Size Available
Ball: 4130 Chromoly Steel, Hard Chrome Plated
Bushing: Polyurethane or Delrin BushingType:Male
Thread:Right/Left
Custom Option:Material/Size/Coating

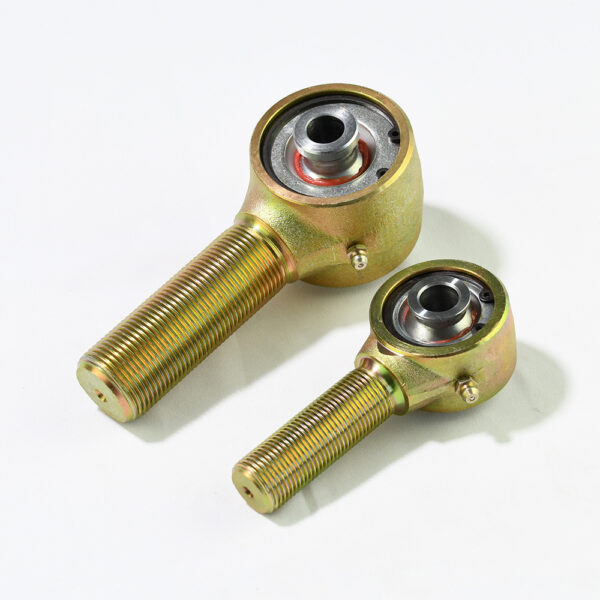

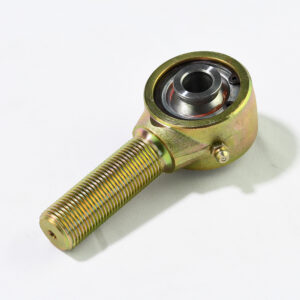

Johnny Joints Overview
Item: Johnny Joints
* Rebuildable Flex Joints
* Male Thread and Weldable Sleeve
* Different Inner Configurations Available
* Our Johnny Joint with Polyurethane bushings or POM bushings

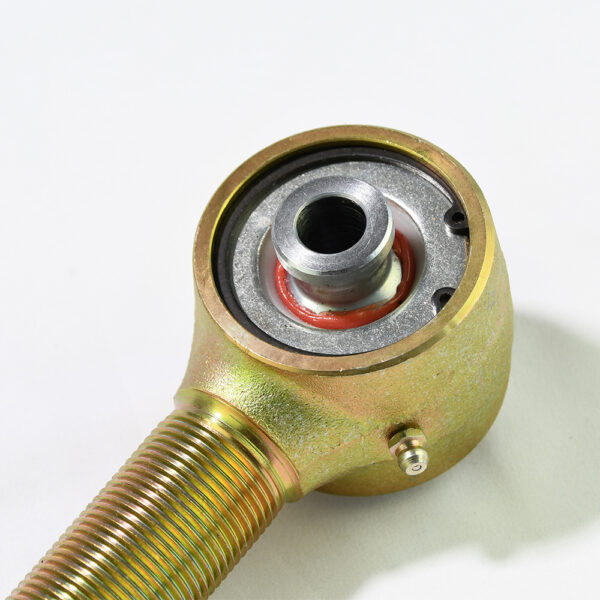

* Johnny joint Housing is Forged and Precision Machined From 4130 Heat Treated Chromoly Steel
* Steel Ball is also made from 4130 Chromoly and hard Chrome Plated
| HOUSING | BALL | BUSHING | |||||
| 4130 CHROMOLY STEEL | 4130 CHROMOLY STEEL | POLYURETHANE OR DELRIN | |||||
| ZINC PLATED | HARD CHROME PLATED | ||||||
| HEAT TREATED | |||||||
| PART NO. | Mounting Width W | Bolt Dia. B | Thread UNF | Thread Length C | Housing O.D. D | Offset Angle | Bushing Material |
| SYZ-F001 | 2-5/8″ | 9/16″ | 1 1/4″-12 | 5″ | 3″ | 0 | Polyurethane |
| SYZ-F002 | 2-5/8″ | 9/16″ | 1 1/4″-12 | 5″ | 3″ | 10 | Polyurethane |
| SYZ-F003 | 2″ | 7/16″ | 7/8″-18 or 7/8″-14 | 3.15″ | 2.36″ | 0 | Polyurethane |
| SYZ-F004 | 2-5/16″ | 9/16″ | 7/8″-18 or 7/8″-14 | 3.15″ | 2.36″ | 9 | Polyurethane |
| SYZ-F005 | 2-5/8″ | 9/16″ | 1 1/4″-12 | 3.5″ | 2.68″ | – | Delrin |
| SYZ-F006 | 2-5/8″ | 9/16″ | 1″-14 | 3.5″ | 2.68″ | – | Delrin |
| SYZ-F007 | 2-5/8″ | 9/16″ | 7/8″-14 | 3.5″ | 2.68″ | – | Delrin |
| SYZ-F008 | 1.6″ | 9/16″ | 1″-14 | 2.6″ | 2.1″ | – | Delrin |
| SYZ-F009 | 1.6″ | 9/16″ | 7/8″-14 | 2.6″ | 2.1″ | – | Delrin |
| SYZ-F010 | 1.6″ | 9/16″ | 3/4″-16 | 2.6″ | 2.1″ | – | Delrin |
| SYZ-F011 | 1.6″ | 7/16″ | 1″-14 | 2.6″ | 2.1″ | – | Delrin |
| SYZ-F012 | 1.6″ | 7/16″ | 7/8″-14 | 2.6″ | 2.1″ | – | Delrin |
| SYZ-F013 | 1.6″ | 7/16″ | 3/4″-16 | 2.6″ | 2.1″ | – | Delrin |
| SYZ-F014 | 7/8″ Ball Width | 3/4″ | 3/4″-16 | 2.6″ | 2.1″ | – | Delrin |
Custom Service Process:Select Similar Product — Confirm MOQ — Send Inquiry — Send your Drawings or Samples — Customization
Select product (If your product is not on our website, select a similar product) — Confirm the quantity you need meet up with our MOQ — Send inquiry with your Drawings or Samples — We will reply to you and confrim details — Send details to our factory and start customization
Hot Selling Products
Every Unit Inspected Before Shipment
Raw Material Inspection
Material certifications verified before machining and assembly begin.
Dimensional Check
Critical dimensions are checked against drawing or sample requirements.
Surface Inspection
Visual inspection confirms finish quality, burr removal, and assembly cleanliness.
Batch Documentation
Inspection reports and production traceability can be provided on request.
