ROD END / HEIM JOINT

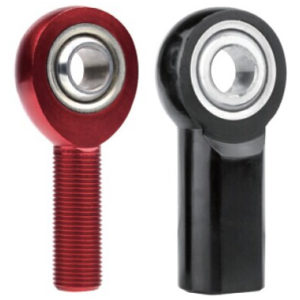

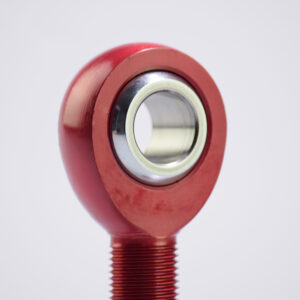

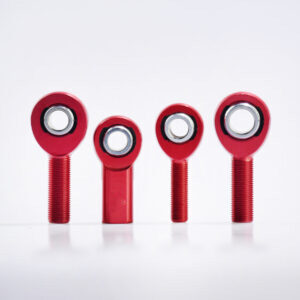

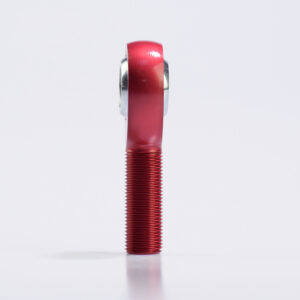

AM/AF 7075 Aluminum Spherical Rod End Bearing
✓ ISO 9001 Certified
✓ SGS Verified
✓ 26+ Years Factory
✓ OEM / ODM Ready
- Product Name: AM/AF 7075 Aluminum Spherical Rod End Bearing
- Thread: Both Right Hand & Left Hand; Male & Female
- Regular Size: Male Type from AM3-AM16/Female Type from AF3-AF6
- Inch Size and Metric Size Both Available
- Custom Option: Material/Size/Stud Configurations/Polishing
- Packaging Details: Individual Plastic Bag, with Thread Cover, and into Cartons.
- Brand Name: SYZ Machine
- Origin: Made-in-China
⚡ Typically responds within 24 hours
MOQ:50 pcs / model
Lead Time:7–15 days
Sample:Free (excl. freight)
Payment:T/T · PayPal · L/C
Overview
AM/AF 7075 Aluminum Spherical Rod End Bearing Overview
| BALL | RACE | BODY | ||||||
| 52100 BEARING STEEL | Injection | 7075-T6 Aircraft Aluminum | ||||||
| PRECISION GROUND | Molded | Color Anodized Red or Black | ||||||
| HEAT TREATED | Reinforced Nylon with PTFE | Other Color Available | ||||||
| HARD CHROME PLATED |
- Type:Male/Female
- Thread:Right/Left
- Regular Size: Male Type from AM3-AM16/Female Type from AF3-AF6
- All Dimension in Inch
- Custom Option:Material/Color/Size/Stud Configurations
AM/AF 7075 Aluminum Rod Ends Dimension Chart
| MALE ROD END RH. | MALE ROD END LH. | B | D | W | T | BALL | AF | N | CF | a° | STATIC | LBS |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| AMR3 | AML3 | 0.19 | 0.625 | 0.312 | 0.25 | 0.437 | 1.25 | 10-32 | 0.75 | 13 | 788 | 0.02 |
| AMR4 | AML4 | 0.25 | 0.75 | 0.375 | 0.281 | 0.5 | 1.562 | 1/4-28 | 1 | 16 | 1433 | 0.03 |
| AMR5 | AML5 | 0.3125 | 0.875 | 0.437 | 0.344 | 0.625 | 1.875 | 5/16-24 | 1.25 | 14 | 2284 | 0.05 |
| AMR5-6 | AML5-6 | 0.3125 | 1 | 0.437 | 0.344 | 0.625 | 1.938 | 3/8-24 | 1.25 | 12 | 3457 | 0.05 |
| AMR6 | AML6 | 0.375 | 1 | 0.5 | 0.406 | 0.719 | 1.938 | 3/8-24 | 1.25 | 12 | 3457 | 0.05 |
| AMR6-7 | AML6-7 | 0.375 | 1.125 | 0.5 | 0.406 | 0.719 | 2.125 | 7/16-20 | 1.375 | 10 | 7800 | 0.09 |
| AMR6-8 | AML6-8 | 0.375 | 1.125 | 0.5 | 0.406 | 0.719 | 2.125 | 1/2-20 | 1.375 | 10 | 7800 | 0.09 |
| AMR7 | AML7 | 0.4375 | 1.125 | 0.562 | 0.437 | 0.812 | 2.125 | 7/16-20 | 1.375 | 14 | 4800 | 0.09 |
| AMR7-8 | AML7-8 | 0.4375 | 1.312 | 0.562 | 0.437 | 0.812 | 2.438 | 1/2-20 | 1.5 | 12 | 11100 | 0.12 |
| AMR8 | AML8 | 0.5 | 1.312 | 0.625 | 0.5 | 0.937 | 2.438 | 1/2-20 | 1.5 | 12 | 7700 | 0.12 |
| AMR8-10 | AML8-10 | 0.5 | 1.5 | 0.625 | 0.5 | 0.937 | 2.625 | 5/8-18 | 1.625 | 10 | 15000 | 0.18 |
| AMR10 | AML10 | 0.625 | 1.5 | 0.75 | 0.562 | 1.125 | 2.625 | 5/8-18 | 1.625 | 16 | 8600 | 0.18 |
| AMR10H | AML10H | 0.625 | 1.75 | 0.75 | 0.562 | 1.125 | 2.625 | 5/8-18 | 1.625 | 13 | 19300 | 0.26 |
| AMR10-12 | AML10-12 | 0.625 | 1.75 | 0.75 | 0.562 | 1.125 | 2.875 | 3/4-16 | 1.75 | 13 | 19300 | 0.3 |
| AMR12 | AML12 | 0.75 | 1.75 | 0.875 | 0.687 | 1.312 | 2.875 | 3/4-16 | 1.75 | 14 | 13400 | 0.29 |
| AMR12-757 | AML12-757 | 0.757 | 1.75 | 0.875 | 0.687 | 1.312 | 2.875 | 3/4-16 | 1.75 | 14 | 13400 | 0.29 |
| AMR12-16-1 | AML12-16-1 | 0.75 | 2.75 | 1.375 | 1 | 1.875 | 4.125 | 1-14 | 2.125 | 17 | 36285 | 1.08 |
| AMR16-1 | AML16-1 | 1 | 2.75 | 1.375 | 1 | 1.875 | 4.125 | 1-14 | 2.125 | 17 | 24130 | 0.88 |
| FEMALE ROD END RH. | FEMALE ROD END LH. | B | D | W | T | BALL | AF | N | CF | a° | STATIC | LBS |
| AFR3 | AFL3 | 0.19 | 0.625 | 0.312 | 0.234 | 0.437 | 1.062 | 10-32 | 0.562 | 13 | 1453 | 0.03 |
| AFR4 | AFL4 | 0.25 | 0.75 | 0.375 | 0.25 | 0.5 | 1.312 | 1/4-28 | 0.75 | 16 | 2363 | 0.04 |
| AFR5 | AFL5 | 0.3125 | 0.875 | 0.437 | 0.344 | 0.625 | 1.375 | 5/16-24 | 0.75 | 14 | 2780 | 0.06 |
| AFR5-6 | AFL5-6 | 0.3125 | 1 | 0.437 | 0.344 | 0.625 | 1.625 | 3/8-24 | 0.937 | 14 | 4512 | 0.09 |
| AFR6 | AFL6 | 0.375 | 1 | 0.5 | 0.406 | 0.719 | 1.625 | 3/8-24 | 0.937 | 12 | 3682 | 0.11 |
| AFR7 | AFL7 | 0.4375 | 1.125 | 0.562 | 0.437 | 0.812 | 1.812 | 7/16-20 | 1.062 | 14 | 5160 | 0.11 |
| AFR8 | AFL8 | 0.5 | 1.312 | 0.625 | 0.5 | 0.937 | 2.125 | 1/2-20 | 1.187 | 12 | 7700 | 0.12 |
