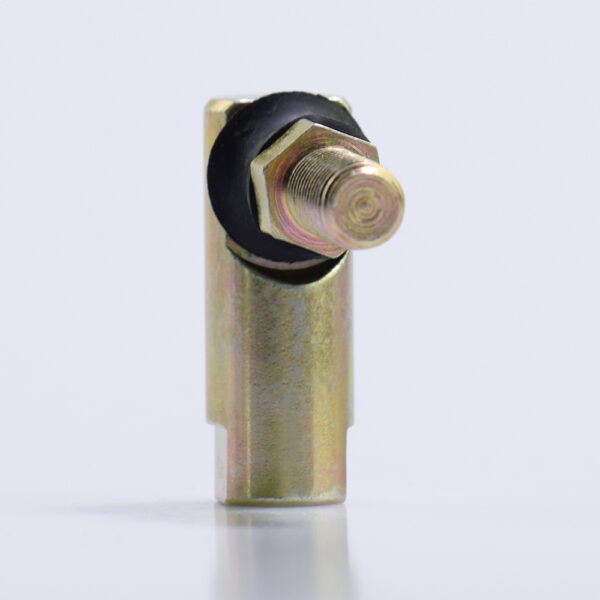

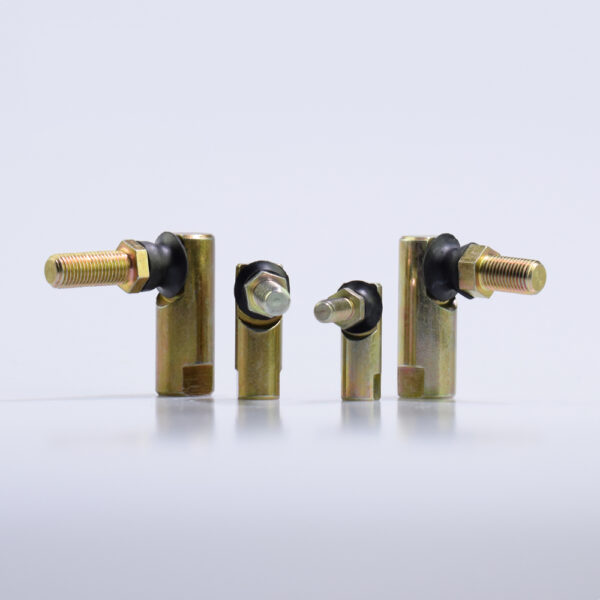

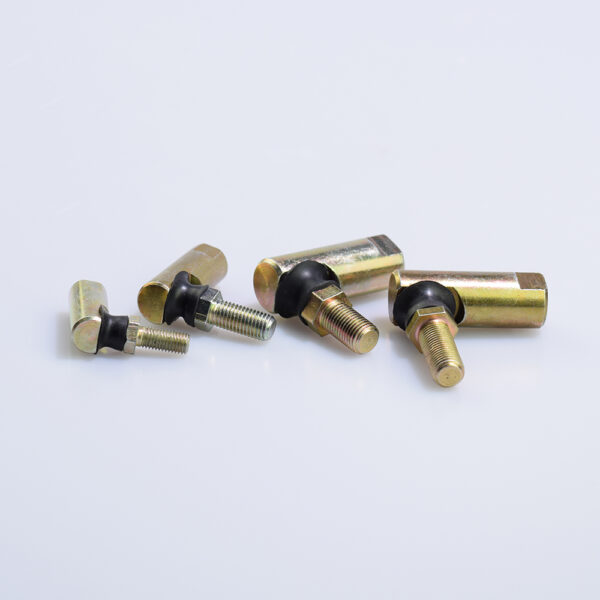

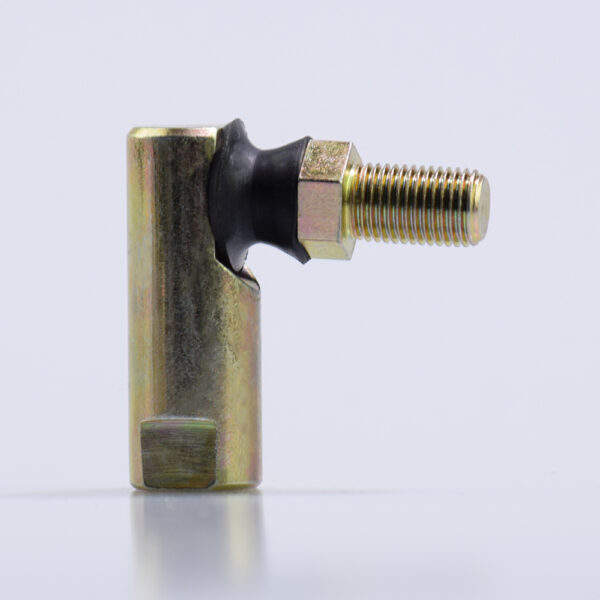

ES Series Staked Design Ball Joint with Rubber Grommet Throttle Linkage Ball Joint
- Thread: Right/Left
Regular Size: Inch Size from ES187-ES625
Inch Size and Metric Size Both Available
Custom Option: Material/Size/Stud
ES Series Staked Design Ball Joint with Rubber Grommet Throttle Linkage Ball Joint Overview
ES Series Staked Design Ball Joint with Rubber Grommet Throttle Linkage Ball Joint
Type:Inch/Metric
Thread:Right/Left
Regular Size: Inch Size from ES187-ES625
Inch Size Available
Custom Option: Material/Size
Product Features:
Staked Design Throttle Linkage Ball Joint with Rubber Grommet
Housing: Carbon Stell 1045
Ball Stud: Carbon Stell 1045
Shell: Rubber
| INCH SIZE | THREAD | DIMENSIONS | ||||||||||
| PART NO. | M | M1 | A | D2 | D1 | C2 | C1 | C | ||||
| ES187 | 10-32-2B | 10-32-2A | 0.375 | 0.438 | 0.438 | 0.438 | 0.875 | 1.063 | ||||
| ES250 | 1/4-28-2B | 1/4-28-2A | 0.438 | 0.563 | 0.469 | 0.500 | 0.969 | 1.219 | ||||
| ES312 | 5/16-24-2B | 5/16-24-2A | 0.500 | 0.688 | 0.531 | 0.563 | 1.136 | 1.406 | ||||
| ES375 | 3/8-24-2B | 3/8-24-2A | 0.625 | 0.875 | 0.688 | 0.750 | 1.375 | 1.688 | ||||
| ES438 | 7/16-20-2B | 7/16-20-2A | 0.750 | 1.125 | 0.875 | 1.000 | 1.938 | 2.375 | ||||
| ES500 | 1/2-20-2B | 1/2-20-2A | 0.750 | 1.125 | 0.875 | 1.000 | 1.938 | 2.375 | ||||
| ES625 | 5/8-18-2B | 5/8-18-2A | 0.875 | 1.125 | 1.000 | 1.000 | 2.063 | 2.578 | ||||
Custom Service Process:Select Similar Product — Confirm MOQ — Send Inquiry — Send your Drawings or Samples — Customization
Select product (If your product is not on our website, select a similar product) — Confirm the quantity you need meet up with our MOQ — Send inquiry with your Drawings or Samples — We will reply to you and confrim details — Send details to our factory and start customization
Hot Selling Products
Every Unit Inspected Before Shipment
Raw Material Inspection
Material certifications verified before machining and assembly begin.
Dimensional Check
Critical dimensions are checked against drawing or sample requirements.
Surface Inspection
Visual inspection confirms finish quality, burr removal, and assembly cleanliness.
Batch Documentation
Inspection reports and production traceability can be provided on request.
