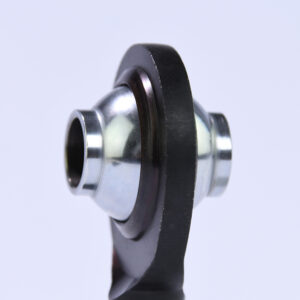

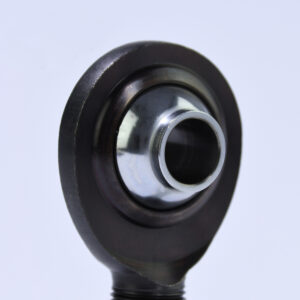

Heim Joint Suspension Rod Ends High Misalignment PCYM-T
Model:PCYM-T
Heim Joint Suspension Rod Ends High Misalignment PCYM-T Overview
Heim Joint Suspension Rod Ends High Misalignment
| BALL | BODY | |||||
| 52100 BEARING STEEL | 4130 CHROMOLY STEEL | |||||
| HIGH MISALIGNMENT | HEAT TREATED | |||||
| HEAT TREATED | BLACK OXIDE COATED | |||||
| HARD CHROME PLATED | PTFE LINED | |||||
High Misalignment PCYM-T ROD END Size Chart:
| PCYM-T ROD END RIGHT LEFT PART NO. PART NO. | B DIA. +0.0025 -0.0005 | D DIA. +0.010 -0.010 | W WIDTH +0.005 -0.005 | T REF.
| AM LENGTH +0.015 -0.015 | N THREAD UNF 3A | CM LENGTH +0.062 -0.031 | a° MIS. ANGLE REF. | STATIC RADIAL | APPROX WEIGHT (LBS) | |
| PCYMR6T | PCYML6T | 0.3750 | 1.125 | 0.875 | – | 2.125 | 3/8-24 | 1.375 | 55 | 11,050 | 0.14 |
| PCYMR7T | PCYML7T | 0.4375 | 1.312 | 1.000 | – | 2.438 | 7/16-20 | 1.500 | 58 | 14,449 | 0.22 |
| PCYMR8T | PCYML8T | 0.5000 | 1.500 | 1.250 | – | 2.625 | 1/2-20 | 1.625 | 65 | 16,240 | 0.33 |
| PCYMR8-10T | PCYML8-10T | 0.5000 | 1.750 | 1.250 | – | 2.875 | 5/8-18 | 1.750 | 65 | 24,158 | 0.44 |
| PCYMR10T | PCYML10T | 0.6250 | 1.750 | 1.375 | – | 2.875 | 5/8-18 | 1.750 | 64 | 21,219 | 0.51 |
| PCYMR10-12T | PCYML10-12T | 0.6250 | 2.000 | 1.375 | – | 3.375 | 3/4-16 | 2.000 | 64 | 30,290 | 0.68 |
| PCYMR12T | PCYML12T | 0.7500 | 2.000 | 1.500 | – | 3.375 | 3/4-16 | 2.000 | 61 | 29,127 | 0.79 |
Custom Service Process:Select Similar Product — Confirm MOQ — Send Inquiry — Send your Drawings or Samples — Customization
Select product (If your product is not on our website, select a similar product) — Confirm the quantity you need meet up with our MOQ — Send inquiry with your Drawings or Samples — We will reply to you and confrim details — Send details to our factory and start customization
