ROD END / HEIM JOINT

JMX-M JFX-M Rod Ends

Name: JMX-M JFX-M Rod Ends
Brand: SYZ Rod Ends
Availability: InStock

✓ ISO 9001 Certified

✓ SGS Verified

✓ 26+ Years Factory

✓ OEM / ODM Ready

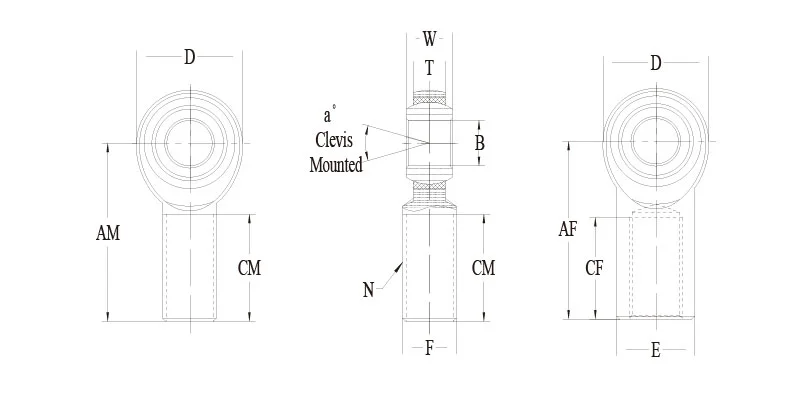

JMX Rod Ends in metric size, 3-piece precision design
52100 bearing steel ball, heat treated, hard chrome plated
Alloy steel race, PTFE lined and zinc plated optional
Chromoly steel body, heat treated, silver zinc plated
Male & female threads, right & left hand available

Get a Quote →

⚡ Typically responds within 24 hours

MOQ:50 pcs / model

Lead Time:7–15 days

Sample:Free (excl. freight)

Payment:T/T · PayPal · L/C

Overview

JMX-M JFX-M Rod Ends Overview

Metric JMX Rod Ends —JMX-M JFX-M Rod Ends

[Precision Metric JMX Rod Ends]The JMX-M and JFX-M rod ends offer a robust 3-piece precision design with a 52100 bearing steel ball that is heat treated and hard chrome plated to ensure durability and smooth operation

[Durable and Optional Features] Featuring an alloy steel race that is heat treated, with optional PTFE lining and zinc plating. The chromoly steel body is heat treated and finished with a corrosion-resistant silver zinc plating

[Thread and Packaging Options] Available in metric sizes with both male and female threads, including right and left-hand options. Each rod end is individually packed in a plastic bag with a thread cover and carton packaging for protection

[Reliable Supplier] Manufactured by SYZ Machine under Shanghai Yong Zhen Machine Components Co., Ltd, a trusted rod ends manufacturer since 2002, offering custom machining services and global shipping options

[Order and Delivery] Sample orders are free (air freight paid by customer). MOQ is 100 pcs or $500 minimum. Fast shipping available: same-day for inventory, 30-45 days for production, with air and ocean freight options worldwide

Hot Selling Products

Quality Control

Every Unit Inspected Before Shipment

🔩

Raw Material Inspection

Material certifications verified before machining and assembly begin.

🔍

Dimensional Check

Critical dimensions are checked against drawing or sample requirements.

🔬

Surface Inspection

Visual inspection confirms finish quality, burr removal, and assembly cleanliness.

📋

Batch Documentation

Inspection reports and production traceability can be provided on request.

Applications

Where Rod End / Heim Joint Products Are Used

Steering and Suspension Linkages

Linkage rods and Heim-joint assemblies provide adjustable, serviceable connections for steering, suspension, and chassis systems. Match the joint type, thread, spacers, and alignment to the travel of the mechanism.

Motorsport and Off-Road Fabrication

These components are widely used in custom vehicle builds where geometry, length adjustment, and replaceable joints are important. Check shock loading, misalignment, fastener orientation, and maintenance access.

Industrial and Agricultural Controls

Rod-end linkages can connect levers, actuators, and control arms in agricultural and industrial equipment. Select material, race, sealing, and surface treatment for the expected contamination and oscillation.
