ROD END / HEIM JOINT

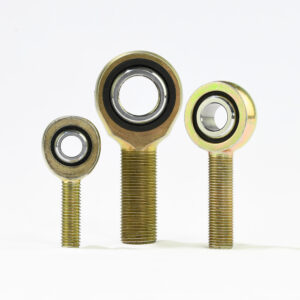

MPM/MPF Precision Injection Molded Race Metric Rod Ends

Name: MPM/MPF Precision Injection Molded Race Metric Rod Ends
Brand: SYZ Rod Ends
Availability: InStock

✓ ISO 9001 Certified

✓ SGS Verified

✓ 26+ Years Factory

✓ OEM / ODM Ready

Precision Rod End, Molded Race, Self-Lubricating Ball:52100 Bearing Steel, Precision Ground, Heat Treated, Hard Chrome Plated Race: Injection Molded, Reinforced Nylon with PTFE Body:4130 Chromoly Steel, Heat Treated, Hard Chrome Plated Type: Male/Female Thread: Right/Left Regular Size: Male Type from MPMR5-MPMR20/Female Type from MPFR5-MPFR20 Inch Size and Metric Size Both Available Custom Option: Material/Size/Stud Configurations

Get a Quote →

⚡ Typically responds within 24 hours

MOQ:50 pcs / model

Lead Time:7–15 days

Sample:Free (excl. freight)

Payment:T/T · PayPal · L/C

Overview

MPM/MPF Precision Injection Molded Race Metric Rod Ends Overview

Metric MPM MPF Rod End Details

BALL	RACE	BODY
52100 BEARING STEEL	INJECTION	CARBON STEEL
PRECISION GROUND	MOLDED	YELLOW ZINC PLATED
HEAT TREATED	REINFORCED
HARD CHROME PLATED	NYLON WITH PTFE

Type: Male/Female
Thread: Right/Left
Regular Size: Male Type from MPMR5-MPMR20/Female Type from MPFR5-MPFR20
Inch Size and Metric Size Both Available
Custom Option: Material/Size/Stud Configurations

MPM MPF Metric Rod Ends

Metric MPM MPF Rod End Size Chart
Dimension in MM

MPM ROD END		B	D	W	T	BALL	AM/AF	N	CM/CF	a°	STATIC	APPROX
RIGHT	LEFT	DIA.	DIA.	WIDTH	WIDTH	DIA.	LENGTH	THREAD	LENGTH	MIS.	RADIAL	WEIGHT
HAND	HAND	0.065	0.038	0.12	REF.	REF.	0.4	METRIC	1	ANGLE	LOAD	(GRAMS)
PART NO.	PART NO.	-0.012	-0.038	-0.12	REF.	REF.	-0.4	MALE	-1	REF.	NEWTONS	(GRAMS)
MPMR-5M	MPML-5M	5	18	8	6.00	11.10	33	M5 X0.8	20	13	5,000	17
MPMR-6M	MPML-6M	6	20	9	6.75	12.70	36	M6 X 1.0	22	13	7,000	25
MPMR-8M	MPML-8M	8	24	12	9.00	15.90	42	M8 X 1.25	25	13	9,500	43
MPMR-10M	MPML-10M	10	28	14	10.50	19.10	48	M10 X 1.5	29	13	14,500	73
MPMR-12M	MPML-12M	12	32	16	12.00	22.20	54	M12 X 1.75	33	13	19,000	110
MPMR-14M	MPML-14M	14	36	19	13.50	25.40	60	M14 X 2.0	36	15	20,500	160
MPMR-16M	MPML-16M	16	42	21	15.00	28.60	66	M16 X 2.0	40	15	21,500	210
MPMR-20M	MPML-20M	20	50	25	18.00	34.90	78	M20 X 1.5	47	15	36,000	380

MPF ROD END		B	D	W	T	BALL	AM/AF	N	CM/CF	a°	STATIC	APPROX
MPFR-5M	MPFL-5M	5	18	8	6.00	11.10	33	M5 X0.8	20	13	5,000	17
MPFR-6M	MPFL-6M	6	20	9	6.75	12.70	36	M6 X 1.0	22	13	7,000	25
MPFR-8M	MPFL-8M	8	24	12	9.00	15.90	42	M8 X 1.25	25	13	9,500	43
MPFR-10M	MPFL-10M	10	28	14	10.50	19.10	48	M10 X 1.5	29	13	14,500	73
MPFR-12M	MPFL-12M	12	32	16	12.00	22.20	54	M12 X 1.75	33	13	19,000	110
MPFR-14M	MPFL-14M	14	36	19	13.50	25.40	60	M14 X 2.0	36	15	20,500	160
MPFR-16M	MPFL-16M	16	42	21	15.00	28.60	66	M16 X 2.0	40	15	21,500	210
MPFR-20M	MPFL-20M	20	50	25	18.00	34.90	78	M20 X 1.5	47	15	36,000	380

Custom Service Process: Select Similar Product — Confirm MOQ — Send Inquiry — Send your Drawings or Samples — Customization
Select product (If your product is not on our website, select a similar product) — Confirm the quantity you need meet up with our MOQ — Send inquiry with your Drawings or Samples — We will reply to you and confirm details — Send details to our factory and start customization

Hot Selling Products

Quality Control

Every Unit Inspected Before Shipment

🔩

Raw Material Inspection

Material certifications verified before machining and assembly begin.

🔍

Dimensional Check

Critical dimensions are checked against drawing or sample requirements.

🔬

Surface Inspection

Visual inspection confirms finish quality, burr removal, and assembly cleanliness.

📋

Batch Documentation

Inspection reports and production traceability can be provided on request.

Applications

Where Rod End / Heim Joint Products Are Used

Steering and Suspension Linkages

Linkage rods and Heim-joint assemblies provide adjustable, serviceable connections for steering, suspension, and chassis systems. Match the joint type, thread, spacers, and alignment to the travel of the mechanism.

Motorsport and Off-Road Fabrication

These components are widely used in custom vehicle builds where geometry, length adjustment, and replaceable joints are important. Check shock loading, misalignment, fastener orientation, and maintenance access.

Industrial and Agricultural Controls

Rod-end linkages can connect levers, actuators, and control arms in agricultural and industrial equipment. Select material, race, sealing, and surface treatment for the expected contamination and oscillation.
